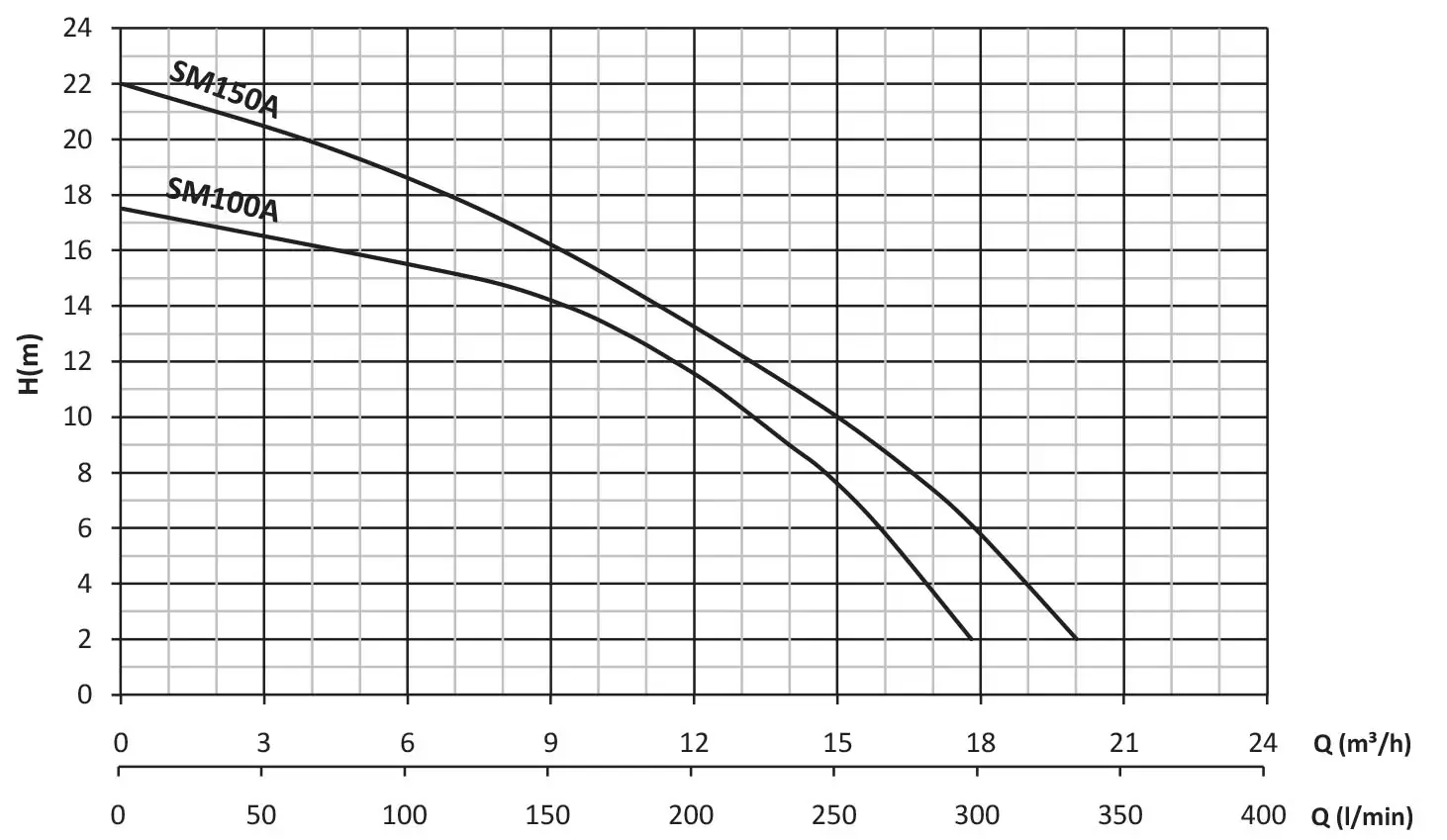

Centrifugal Pump
SM100A
MOTOR | POMPA | |||||||||||||||||
TİP | KW | HP | V | Hz | A | d/d | Kapasitör | Çıkış | W | L | H | KG | 3 | 6 | 10 | 15 | 20 | |
SM100A | 0.75 | 1 | 220 | 50 | 4.7 | 2900 | 20 | 450 | 1½ | 180 | 303 | 233 | 13 | 16.5 | 15.5 | 13.5 | 7 | – |
SMT100A | 0.75 | 1 | 380 | 50 | 2.2 | 2900 | – | – | 1½ | 180 | 303 | 233 | 13 | 16.5 | 15.5 | 13.5 | 7 | – |
SM150A | 1.1 | 1.5 | 220 | 50 | 5.8 | 2900 | 25 | 450 | 1½ | 180 | 303 | 233 | 14 | 20.5 | 19 | 15 | 10 | 2 |
SMT150A | 1.1 | 1.5 | 380 | 50 | 2.8 | 2900 | – | – | 1½ | 180 | 303 | 233 | 14 | 20.5 | 19 | 15 | 10 | 2 |
DESCRIPTION
Mono-staged, open impeller centrifugal pumps. This type centrifugal pumps manufactured at frequencies of 50 Hz and 60 Hz. Turkey Manufacturer Of Centrifugal Pump.
FIELDS OF USAGE
These types centrifugal pumps are designed for suctioning at a depth of 6 m and for dripping and releasing water up to a maximum height of 22 m; is used in the water discharge of a little dirt accumulation. Turkey Manufacturer Of Centrifugal Pump.
Pump Body | GG25 Döküm |
Wheel | GG25 Döküm |
Shaft | Aısı 304 Inox |
Flow (max) | 20 m3 /saat |
Discharge head | 22 m |
Liquid Discharge Temperature | 0-45°C |
Protection Class | IP 54 |
Insulation | CI.F |
Mechanical Seal | Seramik/Karbon |
Pump Withstand Pressure (Pmax) | 4 bar |
*Aşırı yüklemelere karşı monofaze modellerde termik koruma mevcuttur.

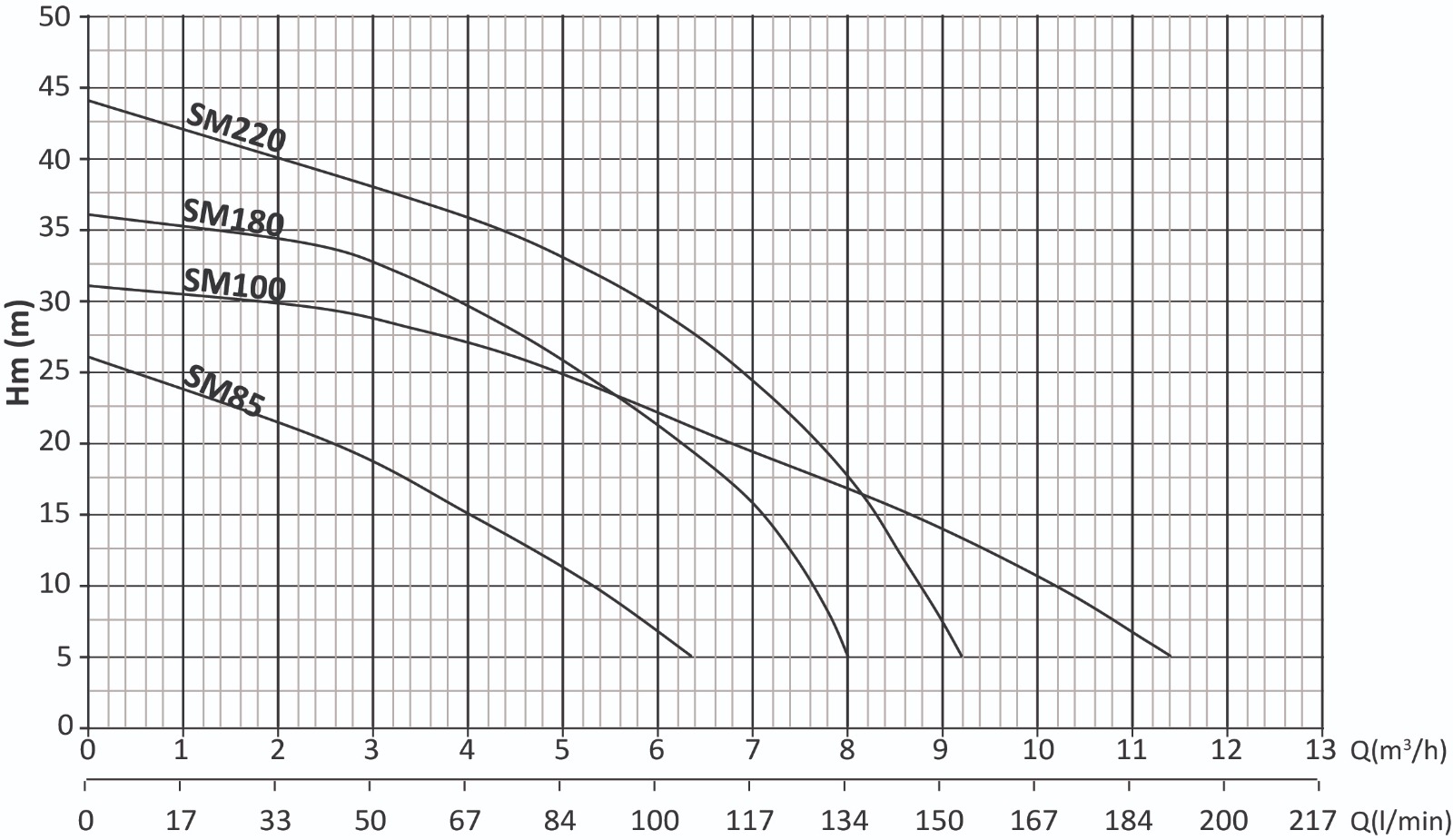

SM100
SM220
MOTOR | POMPA | |||||||||||||||||
TİP | KW | HP | V | Hz | A | d/d | Kapasitör | Çıkış | W | L | H | KG | 2 | 4 | 6 | 8 | 10 | |
SM85 | 0.65 | 0.85 | 220 | 50 | 4.3 | 2900 | 20 | 450 | 1″ | 180 | 299 | 236 | 12 | 23 | 20 | 16 | 13 | 7 |
SMT85 | 0.65 | 0.85 | 380 | 50 | 1.7 | 2900 | – | – | 1″ | 180 | 299 | 236 | 12 | 23 | 20 | 16 | 13 | 7 |
SM100 | 0.75 | 1 | 220 | 50 | 5.7 | 2900 | 25 | 450 | 1″ | 180 | 303 | 233 | 14 | 29 | 26 | 22 | 16 | 11 |
SMT100 | 0.75 | 1 | 380 | 50 | 2.2 | 2900 | – | – | 1″ | 180 | 303 | 233 | 14 | 29 | 26 | 22 | 16 | 11 |
SM180 | 1.35 | 1.8 | 220 | 50 | 8.5 | 2900 | 40 | 450 | 1¼ | 207 | 396 | 268 | 24 | 34 | 29 | 22 | 5 | – |
SMT180 | 1.35 | 1.8 | 380 | 50 | 3 | 2900 | – | – | 1″ | 207 | 396 | 268 | 24 | 34 | 29 | 22 | 5 | – |
SM220 | 1.6 | 1.8 | 220 | 50 | 10.8 | 2900 | 45 | 450 | 1¼ | 207 | 396 | 268 | 25.5 | 40 | 36 | 29 | 18 | – |
SMT220 | 1.6 | 1.8 | 380 | 50 | 3.6 | 2900 | – | – | 1″ | 207 | 396 | 268 | 25.5 | 40 | 36 | 29 | 18 | – |
DESCRIPTION
Mono-staged, centrifugal pumps. This type centrifugal pumps manufactured at frequencies of 50 Hz and 60 Hz.
FIELDS OF USAGE
These type centrifugal pumps are designed for suctioning at a depth of 6 m and it is used in small irrigation up to a maximum of 44 m in height and as a water booster in the buildings not exceeding 8 apartments in 4 floors.
Pump Body | GG25 Döküm |
Wheel | Noryl |
Shaft | Aısı 304 Inox |
Flow (max) | 11.5 m3 /saat |
Discharge head | 44 m |
Liquid Discharge Temperature | 0-45°C |
Protection Class | IP 54 |
Insulation | CI.F |
Mechanical Seal | Seramik/Karbon |
Pump Withstand Pressure (Pmax) | 6 bar |
*Aşırı yüklemelere karşı SM85 – SM100 modellerde termik koruma mevcuttur.

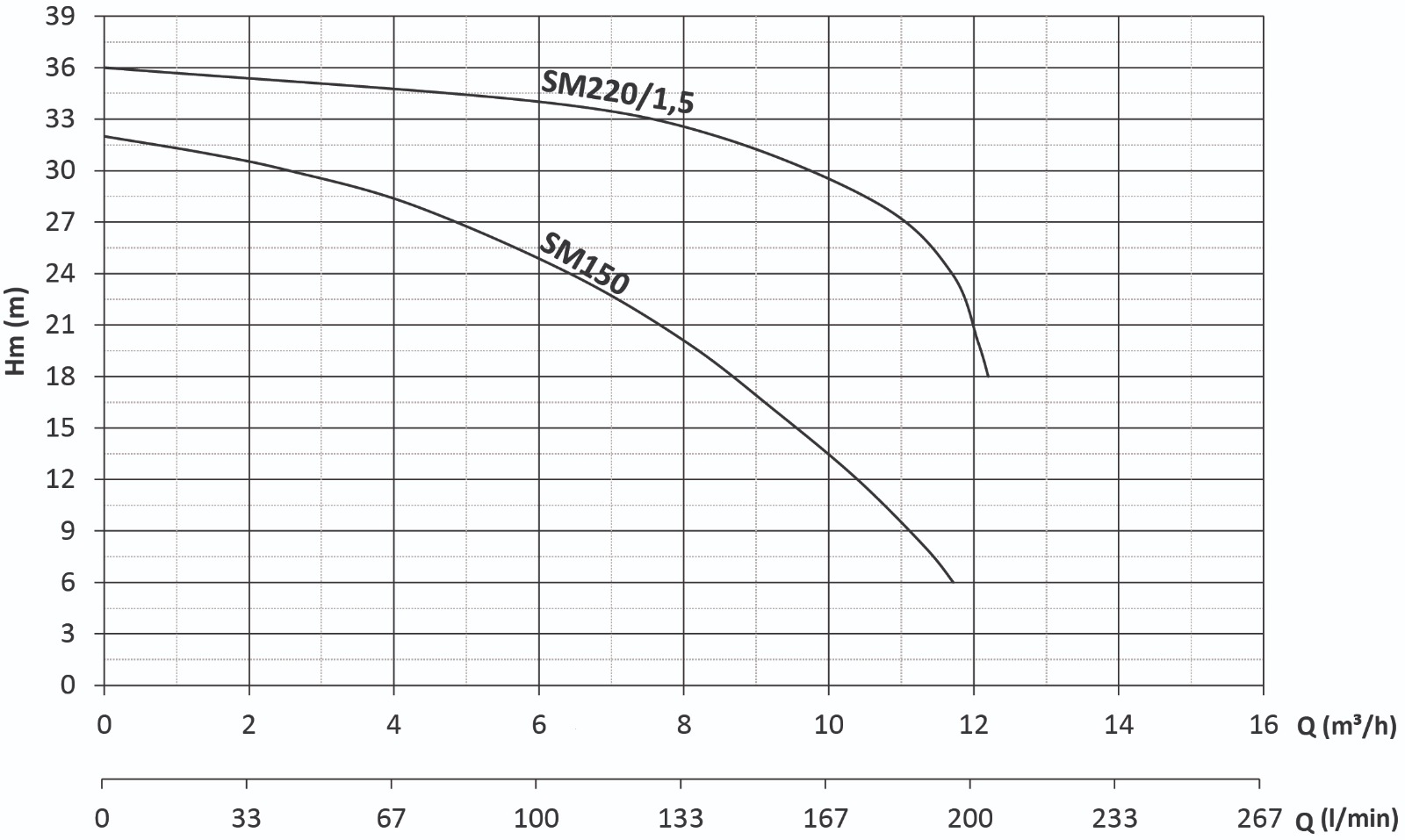

SM150
SM220/1.5
MOTOR | POMPA | |||||||||||||||||
TİP | KW | HP | V | Hz | A | d/d | Kapasitör | Çıkış | W | L | H | KG | 2 | 4 | 6 | 9 | 12 | |
SM150 | 1.1 | 1.5 | 220 | 50 | 6.3 | 2900 | 25 | 450 | 1½ | 180 | 312 | 250 | 14.5 | 30 | 28 | 25 | 16 | 5 |
SMT150 | 1.1 | 1.5 | 380 | 50 | 2.6 | 2900 | – | – | 1½ | 180 | 312 | 250 | 14.5 | 30 | 28 | 25 | 16 | 5 |
SM220/1.5 | 1.6 | 2.2 | 220 | 50 | 9.8 | 2900 | 45 | 450 | 1½ | 207 | 415 | 277 | 28 | 35 | 34 | 33 | 31 | 21 |
SMT220/1.5 | 1.6 | 2.2 | 380 | 50 | 4.4 | 2900 | – | – | 1½ | 207 | 415 | 277 | 28 | 35 | 34 | 33 | 31 | 21 |
DESCRIPTION
Mono-staged, centrifugal pumps. This type centrifugal pumps manufactured at frequencies of 50 Hz and 60 Hz.
FIELDS OF USAGE
These type centrifugal pumps are designed for suctioning at a depth of 6 m and it is used in small-scale irrigations up to a maximum of 36 m in height as a water booster in the buildings not exceeding 16 apartments in 4 floors.
Pump Body | GG25 Döküm |
Wheel | SM150 Noryl – SM220/1.5 GG25 Döküm |
Shaft | Aısı 304 Inox |
Flow (max) | 12 m3 /saat |
Discharge head | 36 m |
Liquid Discharge Temperature | 0-45°C |
Protection Class | IP 54 |
Insulation | CI.F |
Mechanical Seal | Seramik/Karbon |
Pump Withstand Pressure (Pmax) | 6 bar |
*Aşırı yüklemelere karşı SM150 modelinde termik koruma mevcuttur.

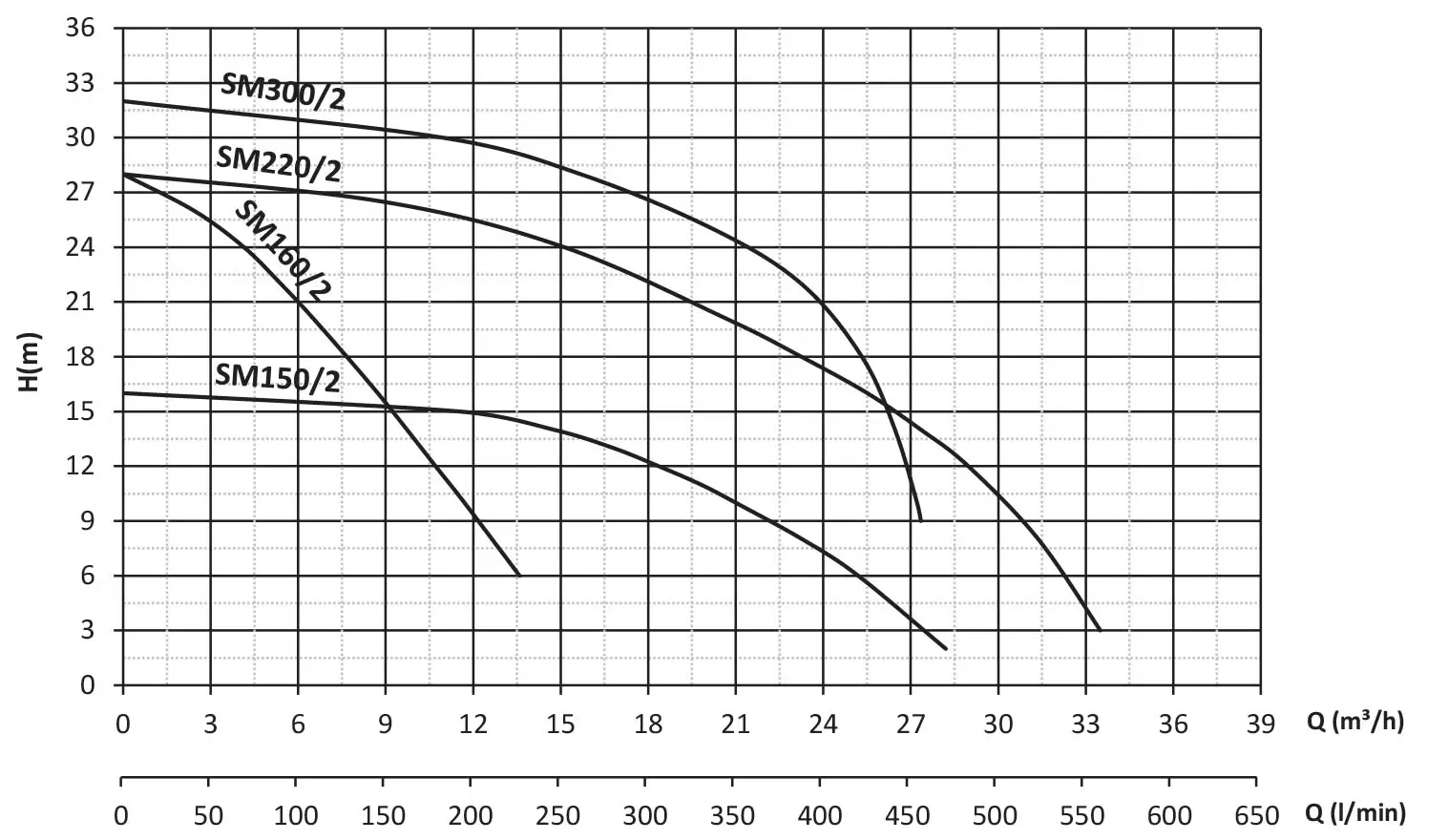

SM150/2
SM300/2
MOTOR | POMPA | |||||||||||||||||
TİP | KW | HP | V | Hz | A | d/d | Kapasitör | Çıkış | W | L | H | KG | 6 | 12 | 18 | 24 | 32 | |
SM150/2 | 1.1 | 1.5 | 220 | 50 | 6.3 | 2900 | 25 | 450 | 2″ | 180 | 324 | 246 | 15.5 | 15.5 | 15 | 12 | 7 | – |
SMT150/2 | 1.1 | 1.5 | 380 | 50 | 2.6 | 2900 | – | – | 2″ | 180 | 324 | 246 | 15.5 | 15.5 | 15 | 12 | 7 | – |
SM160/2 | 1.1 | 1.5 | 220 | 50 | 6.3 | 2900 | 25 | 450 | 2″ | 180 | 324 | 246 | 14.5 | 21 | 9 | – | – | – |
SMT160/2 | 1.1 | 1.5 | 380 | 50 | 2.6 | 2900 | – | – | 2″ | 180 | 324 | 246 | 14.5 | 21 | 9 | – | – | – |
SM220/2 | 1.6 | 2.2 | 220 | 50 | 4.4 | 2900 | 45 | 450 | 2″ | 207 | 416 | 277 | 27.5 | 27 | 25 | 22 | 18 | 7 |
SMT220/2 | 1.6 | 2.2 | 380 | 50 | 4.4 | 2900 | – | – | 2″ | 207 | 416 | 277 | 27.5 | 27 | 25 | 22 | 18 | 7 |
SM300/2 | 2.2 | 3 | 220 | 50 | 13.7 | 2900 | 50 | 450 | 2″ | 207 | 416 | 277 | 29 | 31 | 29 | 26 | 21 | – |
SMT300/2 | 2.2 | 3 | 380 | 50 | 4.9 | 2900 | – | – | 2″ | 207 | 416 | 277 | 29 | 31 | 29 | 26 | 21 | – |
DESCRIPTION
Mono-staged, centrifugal pumps. This type centrifugal pumps manufactured at frequencies of 50 Hz and 60 Hz.
FIELDS OF USAGE
These type centrifugal pumps are designed for suctioning at a depth of 6 m, it is used in drip, and surface irrigation up to a maximum of 32 m in height and it is used in the water discharge a few dirty accumulation
Pump Body | GG25 Döküm |
Wheel | Noryl (SM300/2 GG25 Döküm) |
Shaft | Aısı 304 Inox |
Flow (max) | 34 m3 /saat |
Discharge head | 32 m |
Liquid Discharge Temperature | 0-45°C |
Protection Class | IP 54 |
Insulation | CI.F |
Mechanical Seal | Seramik/Karbon |
Pump Withstand Pressure (Pmax) | 6 bar |
*Aşırı yüklemelere karşı SM150/2-SM160/2 modellerde termik koruma mevcuttur.
SMT300/3 - SMT400/4
MOTOR | POMPA | |||||||||||||||||
TİP | KW | HP | V | Hz | A | d/d | Kapasitör | Çıkış | W | L | H | KG | 10 | 25 | 35 | 45 | 60 | |
SM220/3 | 1.6 | 2.2 | 220 | 50 | 8.8 | 2900 | 45 | 450 | 3″ | 204 | 444 | 288 | 28.5 | 13.5 | 12 | 10 | 6 | – |
SMT220/3 | 1.6 | 2.2 | 380 | 50 | 4.6 | 2900 | – | – | 2½ | 204 | 444 | 288 | 28.5 | 13.5 | 12 | 10 | 6 | – |
SM300/3 | 2.2 | 3 | 220 | 50 | 12 | 2900 | 50 | 450 | 3″ | 204 | 444 | 288 | 30 | 15 | 14 | 11 | 8 | – |
SMT300/3 | 2.2 | 3 | 380 | 50 | 4.8 | 2900 | – | – | 2½ | 204 | 444 | 288 | 30 | 15 | 14 | 11 | 8 | – |
SMT400/3 | 3 | 4 | 380 | 50 | 7 | 2900 | – | – | 3″ | 204 | 444 | 288 | 33.5 | 17 | 16 | 14 | 11 | – |
DESCRIPTION
Mono-staged, centrifugal pumps. This type centrifugal pumps manufactured at frequencies of 50 Hz and 60 Hz.
FIELDS OF USAGE
These type centrifugal pumps are designed for suctioning at a depth of 6 m, it is used in drip, and surface irrigation up to a maximum of 23 m in height and it is used in the water discharge a few dirty accumulation
Pump Body | GG25 Döküm |
Wheel | GG25 Döküm |
Shaft | Aısı 304 Inox |
Flow (max) | 58 m3 /saat |
Discharge head | 18 m |
Liquid Discharge Temperature | 0-45°C |
Protection Class | IP 54 |
Insulation | CI.F |
Mechanical Seal | Seramik/Karbon |
Pump Withstand Pressure (Pmax) | 4 bar |

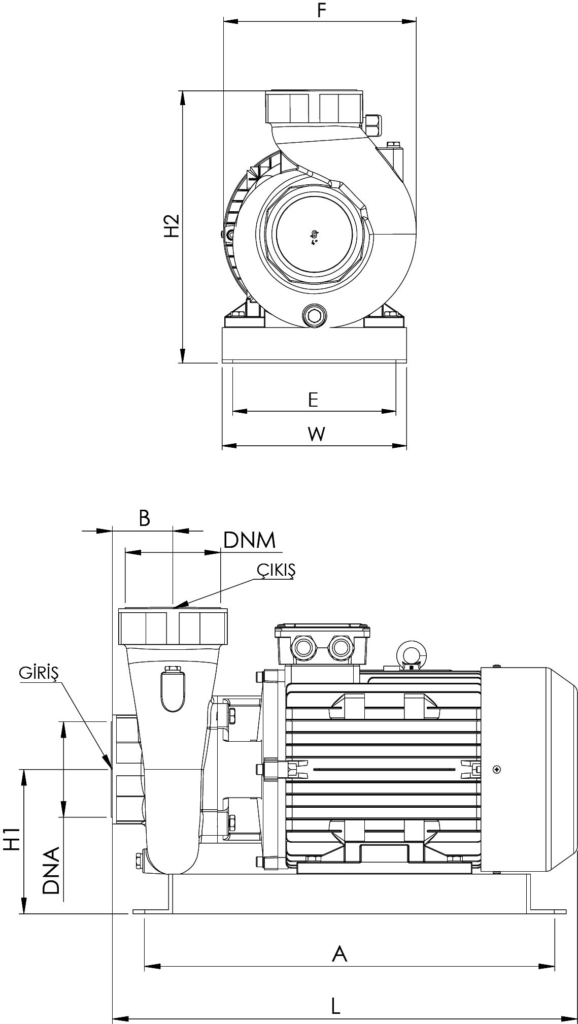

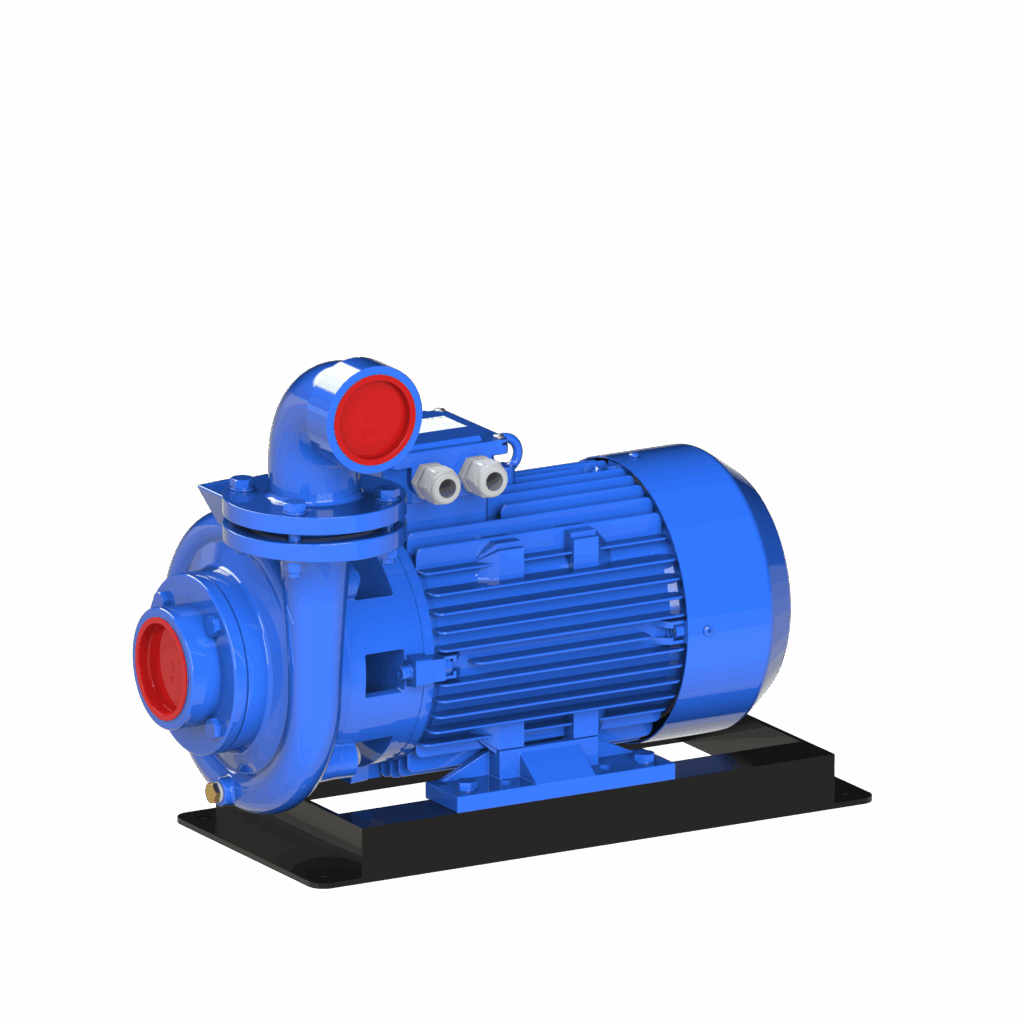

SMT550/3
SMT1500/3
MOTOR | POMPA | ||||||||||||||||
TİP | KW | HP | V | Hz | A | d/d | Emiş | Çıkış | W | L | H | KG | 10 | 20 | 30 | 40 | 55 |
SMT550/3 | 4 | 5.5 | 380 | 50 | 10.5 | 2900 | 6 | 2½ | 229 | 511 | 300 | 44.5 | 28 | 27 | 25 | 23 | 17 |
SMT750/3 | 5.5 | 7.5 | 380 | 50 | 12 | 2900 | 6 | 2½ | 229 | 526 | 485 | 63 | 38 | 37 | 35 | 31 | 20 |
SM1000/3 | 7.5 | 10 | 380 | 50 | 14.7 | 2900 | 6 | 2½ | 260 | 577 | 492 | 75 | 49 | 48 | 47 | 41 | 27 |
SMT1500/3 | 11 | 15 | 380 | 50 | 22 | 2900 | 6 | 2½ | 260 | 577 | 492 | 83.5 | 54 | 53 | 52 | 50 | 45 |
DESCRIPTION
Mono-staged, centrifugal pumps. This type centrifugal pumps manufactured at frequencies of 50 Hz and 60 Hz.
FIELDS OF USAGE
These type centrifugal pumps are designed for suctioning at a depth of 6 m and it is used in drip and surface irrigation for agricultural purposes up to maximum 55 m height, bilge water discharge on ships, water discharge a few dirty accumulation and need of high flow water.
Pump Body | GG25 Döküm |
Wheel | GG25 Döküm |
Shaft | Aısı 304 Inox |
Flow (max) | 65 m3 /saat |
Discharge head | 55 m |
Liquid Discharge Temperature | 0-45°C |
Protection Class | IP 54 |
Insulation | CI.F |
Mechanical Seal | Seramik/Karbon |
Pump Withstand Pressure (Pmax) | 8 bar |

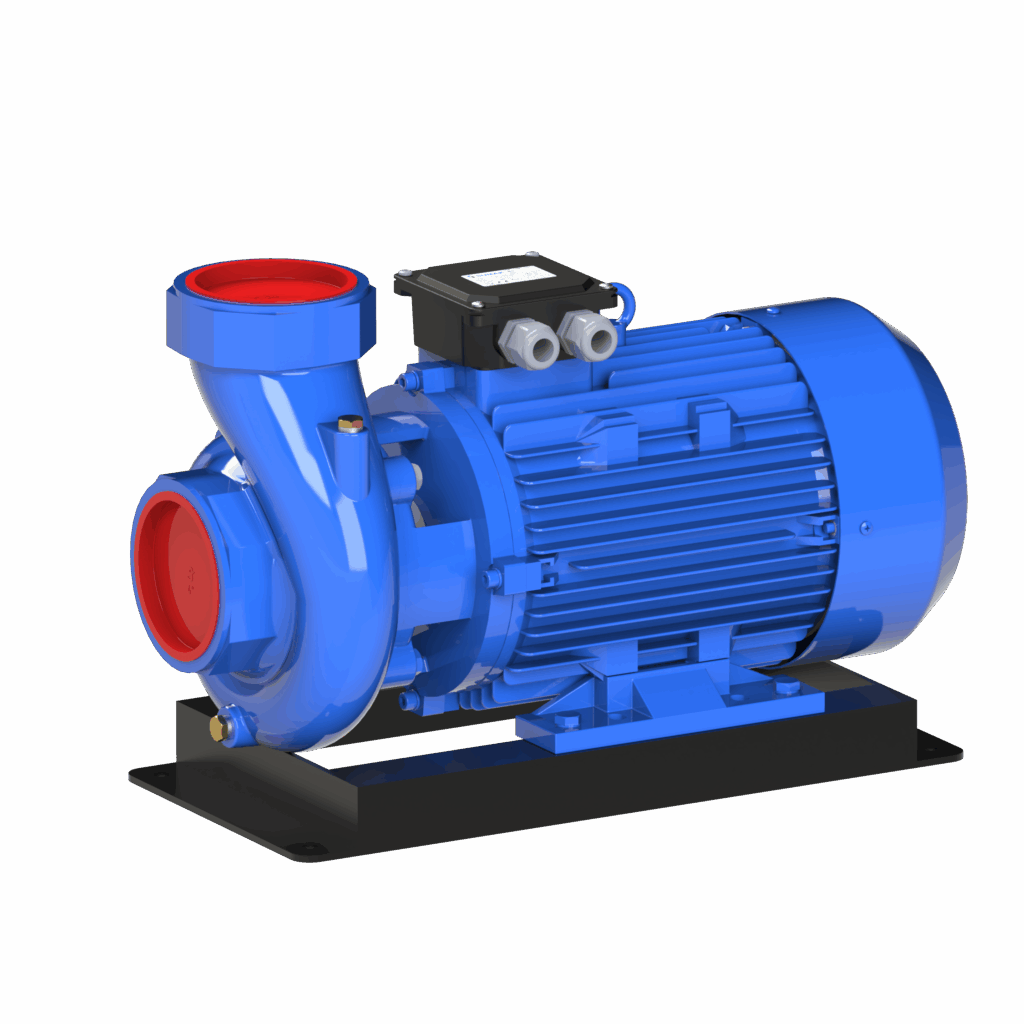

SM300/4 - SMT400/4

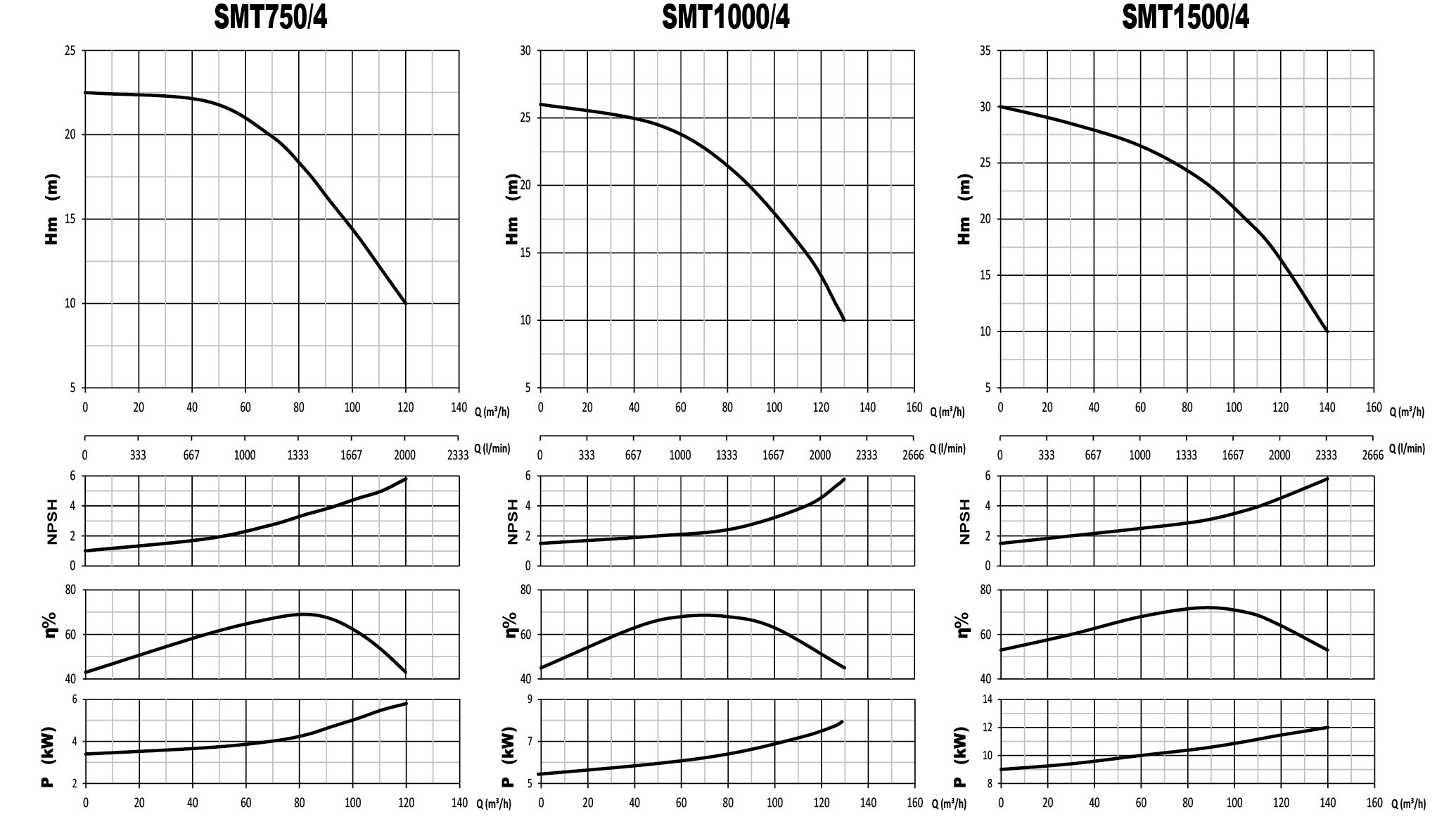

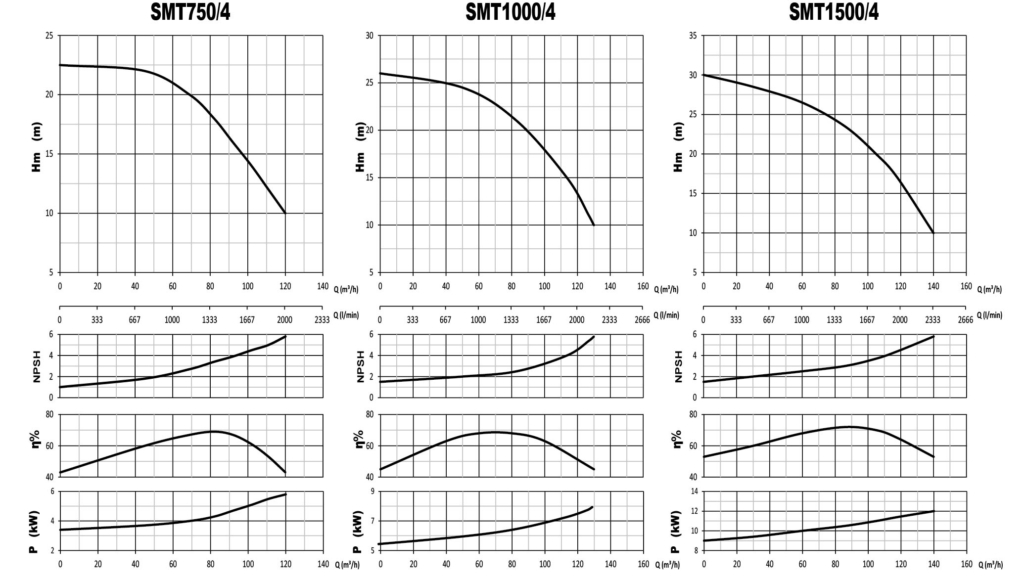

SMT1500/4
MOTOR | POMPA | |||||||||||||||||
TİP | KW | HP | V | Hz | A | d/d | Kapasitör | Çıkış | W | L | H | KG | 15 | 30 | 50 | 80 | 115 | |
SM300/4 | 2.2 | 3 | 220 | 50 | 13.3 | 2900 | 50 | 450 | 4″ | 204 | 453 | 298 | 34.5 | 13.5 | 13 | 11.5 | 6 | – |
SMT300/4 | 2.2 | 3 | 380 | 50 | 4.8 | 2900 | – | – | 4″ | 204 | 453 | 298 | 34.5 | 13.5 | 13 | 11.5 | 6 | – |
SMT400/4 | 3 | 4 | 380 | 50 | 6.3 | 2900 | – | – | 4″ | 204 | 470 | 292 | 37.5 | 17.5 | 16 | 14 | 8 | – |
SMT550/4 | 4 | 5.5 | 380 | 50 | 9.8 | 2900 | – | – | 4″ | 250 | 531 | 365 | 51 | 19.5 | 19 | 18 | 14 | 8 |
SMT750/4 | 5.5 | 7.5 | 380 | 50 | 14 | 2900 | – | – | 4″ | 250 | 531 | 365 | 56 | 22.5 | 22 | 21.5 | 18 | 11 |
SMT1000/4 | 7.5 | 10 | 380 | 50 | 14.7 | 2900 | – | – | 4″ | 260 | 585 | 384 | 73 | 27.5 | 25 | 22 | 21 | 14 |
SMT1500/4 | 11 | 15 | 380 | 50 | 22.5 | 2900 | – | – | 4″ | 260 | 585 | 384 | 82 | 29 | 28 | 26 | 24 | 17 |
DESCRIPTION
Mono-staged, centrifugal pumps. This type centrifugal pumps manufactured at frequencies of 50 Hz and 60 Hz.Turkey Manufacturer Of Centrifugal Pump.
FIELDS OF USAGE
These type centrifugal pumps are designed for suctioning at a depth of 6 m and it is used in drip and surface irrigation for agricultural purposes up to maximum 22,5 m height, bilge water discharge on ships, tanker water discharge, water discharge a few dirty accumulation and need of high flow water.
Pump Body | GG25 Döküm |
Wheel | GG25 Döküm |
Shaft | Aısı 304 Inox |
Flow (max) | 115 m3 /saat |
Discharge head | 20 m |
Liquid Discharge Temperature | 0-45°C |
Protection Class | IP 54 |
Insulation | CI.F |
Mechanical Seal | Seramik/Karbon |
Pump Withstand Pressure (Pmax) | 4 bar |
Centrifugal Pumps
Centrifugal pumps, as the name suggests, are pumps that flood water with the centrifugal effect. The word centrifuge means “centrifuge (force)” in Turkish. The French word centrifuge is derived from the word “centrifugal (force)”.
Centrıfugal pumps manufactured by turkish centrifugal pump producers ; In these pumps, which consist of a vane impeller (Impeller) in a body, the liquid is transmitted from an inlet to the middle of the impeller. The pressure is obtained by rotating the liquid with the impeller.
The working principle of the centrifugal pump produced by turksih centrifugal pump manufacturers is as follows. Due to the vacuum created on the suction side of the impeller, the liquid enters between the blades of the impeller. The fluid passing between the impeller blades gains a great tangential velocity with the rotational movements of the impeller. Between the impeller blades and the channels bounded by the front and rear profiles of the impeller, the liquid is pushed towards the outlet side of the impeller by the effect of centrifugal forces that occur during the rotational movement. The movement created in this way ensures the continuous flow of the liquid and the suction of the pump around the suction. The kinetic energy contained in the liquid leaving the impeller blades with a great tangential velocity is converted into pressure energy in the volute cavity between the fixed diffuser blades.
Centrifugal Water Pumps produced by turkish centrifugal pump suppliers are machines that increase the energy or pressure of liquids. In this regard, pumps are used to send a liquid from low to high or from low pressure to high pressure.
Regarding the selection of the centrifugal pumps , ıt should be known , Centrifugal pumps are also used to increase the flow rate and therefore the flow rate of the liquid flowing in a pipe. Centrifugal water pump inlets and outlets are manufactured in types ranging from 1” to 6” inches, with power between 0.50 hp-130 HP, 1450 cycles and 2900 cycles.
Centrifugal Water pump installation is quite simple and easy. Centrifugal pump calculation and selection is very important in terms of choosing the appropriate one. The variables of the operating conditions that should be known in the selection of the centrifugal pump type are mainly as follows: The flow rate (Q) and the desired head (H) values at the operating point. The size and speed of the pump are determined from the pump selection curves. Other parameters such as efficiency, pump motor power and HPSH values of the selected pump are also read from the pump performance curves.
When choosing Centrifugal Pumps produced by turkish centrifugal pump manufacturers in turkey , it should be selected in accordance with the required flow rate and pipe resistance. When using speed-controlled pumps, always choose a pump whose duty point is as close to the best efficiency point as possible. There are often several alternatives and an important rule of thumb is to choose a pump that is within ±10% of the best efficiency point. When using a speed-controlled pump, the duty point should always be within 10% of the best efficiency point. This will ensure that there is a sufficiently large flow area to be able to adjust while regulating the pump.
If we talk to centrifugal water pumps produced by turkish centrifugal pump producers , these pumps consist of a vane impeller in a body, and the liquid enters the pump through a suction pipe. The path of the liquid in a centrifugal water dynamo is as follows. Due to the vacuum created on the suction side of the impeller, the liquid enters between the blades of the impeller. The fluid passing between the impeller blades gains a great tangential velocity with the rotational movements of the impeller. Between the impeller blades and the channels bounded by the front and rear profiles of the impeller, the liquid is pushed towards the exit side of the impeller by the centrifugal force that occurs during the rotational movement. The movement created in this way ensures the continuous flow of liquid and suction from the suction side of the pump. The kinetic energy contained in the liquid leaving the impeller blades with a great tangential velocity is converted into a pressure force in the volute cavity between the fixed diffuser blades. The highest pressure is achieved with a given rotational speed. This kind of pump can be said to be a hydrodynamic pump.
