Dirty Water Submersible Pumps

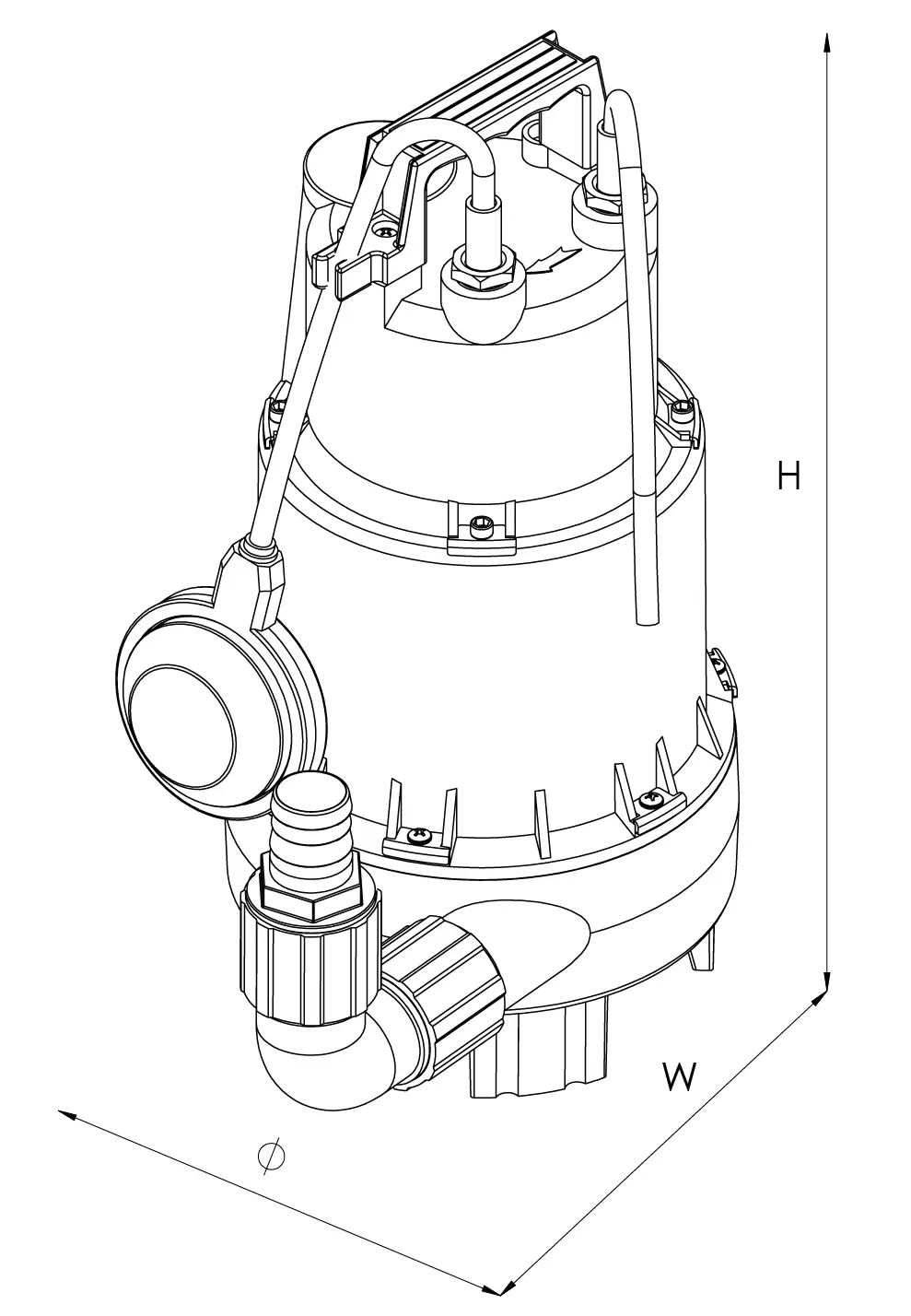

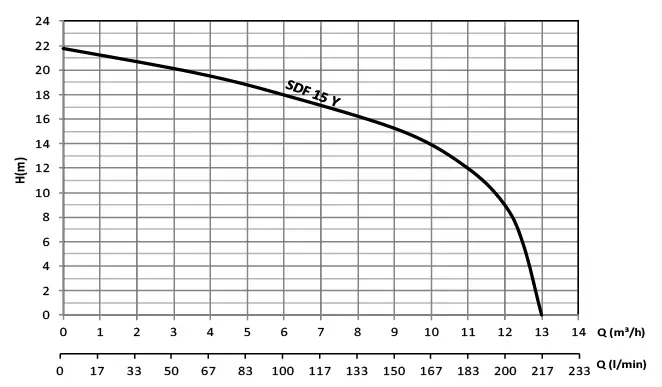

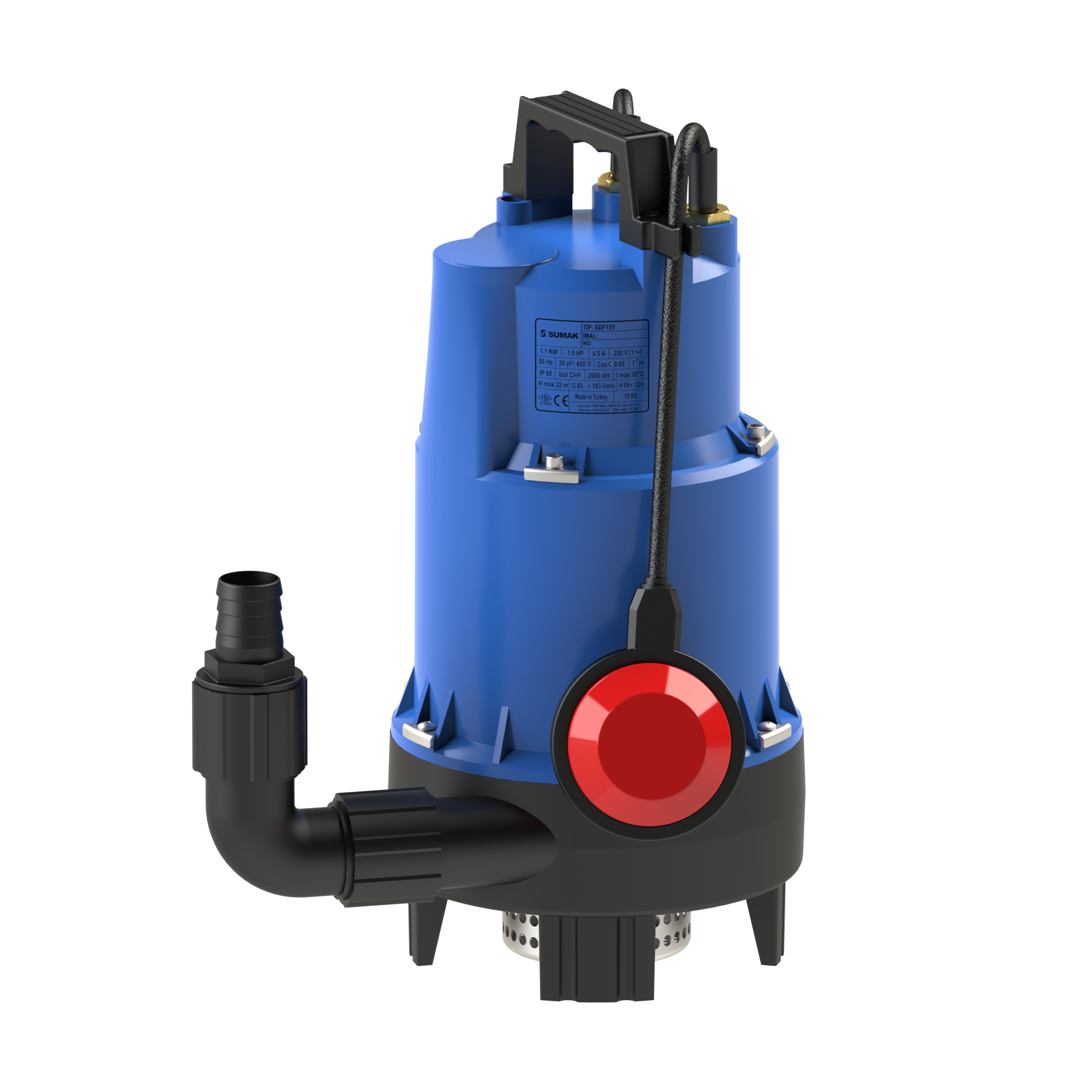

SDF15 Y
Definition
These pumps with completely stainless steel body and stainless steel vortex impeller are easy to portable and automatic operation (with floater) pumps. It is designed to be used in the pumping of few abrasive corrosive liquids and in the pumping of septic water containing fibrous solid particles.
It provides long life and quiet operation due to its oil cooled engine design.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Usage Areas
These pumps are used in residential areas and industrial facilities to discharge rain and sewage water, waterfalls, basements, ornamental pools, standing water and water containing max. 20 mm particles.
Pump Material Characteristics
| Pump Body | PPH |
| Impeller | NORYL |
| Shaft | AISI 304 INOX |
| Flow Rate(max) | 13 m³/hour |
| Total Head (max) | 22 m |
| Liquid Temperature | 0-30°C |
| Protection Class | IP68 |
| Insulation | CI.F |
| Cable Lenght | 10 m |
| Mechanical Seal | SIC/SIC |
| Pump Durability Pressure (Pmax) | 4 bar |
| Type | Control Panel | Open Impeller | Closed Impeller | Blade | Stainless(304) | Cast Iron Impeller (GG25) | Noryl Impeller | Thermal Protection |
| SDF15 Y | √ | √ |
Technical Specifications
| MOTOR | PUMP | ||||||||||||||||||||
| TYPE | KW | HP | V | Hz | A | RPM | CAPACITOR uf Vc | Hm | output | ∇ | W | L | H | KG | m³/h | 1 | 3 | 7 | 9 | 12 | |
| SDF15 Y | 1.1 | 1.5 | 220 | 50 | 6.5 | 2900 | 30 | 450 | 22 | 1¼ | 7 | 185 | 284 | 380 | 14.5 | mss | 21 | 20 | 17 | 15 | 9 |
SDF15/1.5
SDF18/2-Y
Definition
These high altitude pumps with a stainless body are easily portable, easy to install and automatically operating (with floaters). It is designed for use in the drainage of clean or few dirty water.
Having a suction filter provides an advantage against clogging risks.
It has a long life and provides quiet operation due to its oil cooled engine design.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Usage Areas
These pumps are used in residential areas, basement water and elevator shafts, industrial facilities, waterfalls, basement water, ornamental pools, standing water and for the discharge of water containing max. 6 mm particles.
Pump Material Characteristics
| Pump Body | AISI 304 INOX |
| Impeller | AISI 304 INOX (SDF 15/1,5) GG 25 CAST IRON (SDF 18/2Y) NORLY (SDF18/1,5Y) |
| Shaft | AISI 304 INOX |
| Flow Rate(max) | 23 m³/hour |
| Total Head (max) | 22 m |
| Liquid Temperature | 0-30°C |
| Protection Class | IP68 |
| Insulation | CI.F |
| Cable Lenght | 10 m |
| Mechanical Seal | SIC/SIC |
| Pump Durability Pressure (Pmax) | 4 bar |
| Type | Control panel | Open Impeller | Closed Impeller | Blade | Stainless(304) | Cast Iron Impeller(GG25) | Noryl Impeller |
| SDF15/1.5 | √ | √ | √ | ||||
| SDF18/1.5Y | √ | √ | √ | ||||
| SDF18/2Y | √ | √ | √ |
Technical Specifications
| MOTOR | PUMP | ||||||||||||||||||||
| TYPE | KW | HP | V | Hz | A | rpm | Hm | CAPACITOR uf Vc | Output | ∇ | W | L | H | KG | m³/h | 3 | 8 | 12 | 16 | 20 | |
| SDF15/1.5 | 1.1 | 1.5 | 220 | 50 | 6.2 | 2900 | 17 | 25 | 450 | 1½ | 7 | 185 | 260 | 350 | 21 | mss | 16.5 | 14 | 11 | 7.5 | – |
| SDF18/1.5 Y | 1.35 | 1.8 | 220 | 50 | 6.5 | 2900 | 22 | 25 | 450 | 1½ | 7 | 185 | 260 | 350 | 20 | 21 | 18 | 10 | – | – | |
| SDF18/2Y | 1.35 | 1.8 | 220 | 50 | 6.5 | 2900 | 19 | 30 | 450 | 2″ | 7 | 200 | 280 | 430 | 23 | 18 | 16 | 13 | 10 | 6 | |
SDF12 - SDF15 - SDF18
Definition
These pumps with techno polymer body and stainless steel vortex impeller are easy to portable and automatic operation (with floater) pumps. It is designed for use in pumping septic water containing fibrous solid particles.
These are pumps with a cast motor body, internal thermal protection and automatic reset.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Usage Areas
These pumps are used in residential areas, industrial facilities, to discharge rain and sewage water, waterfalls, basements, ornamental pools, standing water and water containing max. 20 mm particles.
Pump Material Characteristics
| Pump Body | PPH |
| Impeller | AISI 304 INOX |
| Shaft | AISI 304 INOX |
| Flow Rate(max) | 18 m³/hour |
| Total Head (max) | 12 m |
| Liquid Temperature | 0-30°C |
| Protection Class | IP68 |
| Insulation | CI.F |
| Cable Lenght | 10 m |
| Mechanical Seal | SIC/SIC |
| Pump Durability Pressure (Pmax) | 2 bar |
| Type | Control Panel | Open Impeller | Closed Impeller | Blade | Stainless(304) | Cast Iron Iımpeller(GG25) | Noryl Impeller | Thermal Protection |
| SDF12 | √ | √ | √ | |||||
| SDF15 | √ | √ | √ | |||||
| SDF18 | √ | √ | √ |
Technical Specifications
| MOTOR | PUMP | ||||||||||||||||||||
| TYPE | KW | HP | V | Hz | A | rpm | Hm | CAPACITOR uf Vc | output | ∇ | W | L | H | KG | m³/h | 3 | 6 | 9 | 11 | 16 | |
| SDF12 | 0.75 | 1 | 220 | 50 | 4.5 | 2900 | 7 | 25 | 450 | 2″ | 7 | 185 | 195 | 400 | 14 | mss | 7 | 6 | 5 | 4 | – |
| SDF15 | 1.1 | 1.5 | 220 | 50 | 5.2 | 2900 | 10 | 25 | 450 | 2″ | 7 | 185 | 195 | 400 | 14 | 9 | 8 | 7 | 6 | 3 | |
| SDF18 | 1.35 | 1.8 | 220 | 50 | 6 | 2900 | 12 | 30 | 450 | 2″ | 7 | 185 | 195 | 400 | 14.5 | 11 | 10 | 8 | 7 | 5 | |
SDF18/2
Definition
These pumps with stainless steel body and cast iron vortex impeller are easy to portable and automatic operation (with floater) pumps. It is designed to be used in the pumping of septic water containing fibrous solid particles.
It provides long life and quiet operation due to its oil cooled engine design.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Usage Areas
These pumps are used in residential areas and industrial facilities to discharge rain and sewage water, waterfalls, basements, ornamental pools, standing water and water containing max. 20 mm particles.
Pump Material Characteristics
| Pump Body | AISI 304 INOX |
| Impeller | GG25 CAST IRON |
| Shaft | AISI 304 INOX |
| Flow Rate(max) | 21 m³/hour |
| Total Head (max) | 13.5 m |
| Liquid Temperature | 0-30°C |
| Protection Class | IP68 |
| Insulation | CI.F |
| Cable Lenght | 10 m |
| Mechanical Seal | SIC/SIC |
| Pump Durability Pressure (Pmax) | 6 bar |
| Type | Control Panel | Open Impeller | Closed Impeller | Blade | Stainless(304) | Cast Iron Impeller(GG25) | Noryl Impeller |
| SDF10/2 | √ | √ | √ | ||||
| SDF14/2 | √ | √ | √ | ||||
| SDF18/2 | √ | √ | √ |
Technical Specifications
| MOTOR | PUMP | ||||||||||||||||||||
| TYPE | KW | HP | V | Hz | A | rpm | Hm | CAPACITOR uf Vc | output | ∇ | W | L | H | KG | m³/h | 2 | 6 | 10 | 16 | 20 | |
| SDF10/2 | 0.75 | 1 | 220 | 50 | 4.5 | 2900 | 9.5 | 25 | 450 | 2″ | 7 | 175 | 205 | 410 | 18.5 | mss | 8.5 | 6.5 | 5 | 2 | – |
| SDF14/2 | 1.1 | 1.5 | 220 | 50 | 5.5 | 2900 | 11.5 | 25 | 450 | 2″ | 7 | 175 | 205 | 410 | 19.5 | 10.5 | 8.5 | 7 | 4 | – | |
| SDF18/2 | 1.35 | 1.8 | 220 | 50 | 6 | 2900 | 13.5 | 30 | 450 | 2″ | 7 | 175 | 205 | 410 | 20 | 12.5 | 10.5 | 8 | 5 | 3 | |
| SDT18/2 | 1.35 | 1.8 | 380 | 50 | 3 | 2900 | 13.5 | – | – | 2″ | 7 | 175 | 205 | 410 | 22 | 12.5 | 10.5 | 8 | 5 | 3 | |
SDF20/2
Definition
These pumps are used in residential areas, industrial facilities, high flow excavation pits, discharge of rain and sewage water, waterfalls, basements, ornamental pools, standing water and water containing max. 30 mm particles.
Usage Areas
In residential units and industrial facilities, in high-flow earthmoving pits, max. it is used in the evacuation of waters containing 30 mm particles; in the discharge of rain and sewage waters; in waterfalls, basements, ornamental pools and puddles.
Pump Material Characteristics
| Pump Body | GG25 CAST IRON |
| Impeller | GG25 CAST IRON |
| Shaft | AISI 304 INOX |
| Flow Rate(max) | 40 m³/hour |
| Total Head (max) | 17 m |
| Liquid Temperature | 0-30°C |
| Protection Class | IP68 |
| Insulation | CI.F |
| Cable Lenght | 10 m |
| Mechanical Seal | SIC/SIC |
| Pump Durability Pressure (Pmax) | 6 bar |
| Type | Conrtol Panel | Open Impeller | Closed Impeller | Blade | Stainless(304) | Cast Iron Impeller(GG25) | Noryl Impeller |
| SDF20/2 | √ | √ | √ | ||||
| SDF20/3 | √ | √ | √ |
Technical Specifications
| MOTOR | PUMP | ||||||||||||||||||||
| TYPE | KW | HP | V | Hz | A | rpm | Hm | CAPACITOR uf Vc | Output | ∇ | W | L | H | KG | m³/h | 5 | 15 | 25 | 30 | 35 | |
| SDF20/2 | 1.6 | 2.2 | 220 | 50 | 9.5 | 2900 | 17.5 | 50 | 450 | 2″ | 7 | 240 | 309 | 520 | 44.5 | mss | 17 | 15 | 11 | 10 | 8 |
| SDT20/2 | 1.6 | 2.2 | 380 | 50 | 3.4 | 2900 | 17.5 | – | – | 2″ | 7 | 240 | 309 | 520 | 45 | 17 | 15 | 11 | 10 | 8 | |
| SDF20/3 | 1.6 | 2.2 | 220 | 50 | 10 | 2900 | 14 | 50 | 450 | 3″ | 7 | 250 | 350 | 530 | 46 | 13.5 | 12 | 10 | 9 | 8 | |
| SDT20/3 | 1.6 | 2.2 | 380 | 50 | 3.4 | 2900 | 14 | – | – | 3″ | 7 | 250 | 350 | 530 | 46.5 | 13.5 | 12 | 10 | 9 | 8 | |
SDT40/3
Definition
These pumps have cast iron body and cast iron impeller. It is designed to be used in the pumping of septic water containing fibrous solid particles.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Usage Areas
These pumps have cast iron body and cast iron impeller. It is designed to be used in the pumping of septic water containing fibrous solid particles.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Pump Material Characteristics
| Pump Body | GG25 CAST IRON |
| Impeller | GG25 CAST IRON |
| Shaft | AISI 304 INOX |
| Flow Rate(max) | 60 m³/hour |
| Total Head (max) | 21 m |
| Liquid Temperature | 0-30°C |
| Protection Class | IP68 |
| Insulation | CI.F |
| Cable Lenght | 10 m |
| Mechanical Seal | SIC/SIC |
| Pump Durability Pressure (Pmax) | 6 bar |
| Type | Control Panel | Open Impeller | Closed Impeller | Blade | Stainless(304) | Cast Iron Impeller(GG25) | Noryl Impeller |
| SDT30/2 | √ | √ | √ | ||||
| SDT40/3 | √ | √ | √ |
Technical Specifications
| MOTOR | PUMP | ||||||||||||||||||||
| TYPE | KW | HP | V | Hz | A | rpm | Hm | CAPACITOR Vc | output | ∇ | W | L | H | KG | m³/h | 10 | 20 | 30 | 40 | 50 | |
| SDT30/2 | 2.2 | 3 | 380 | 50 | 4 | 2900 | 21 | – | – | 2″ | 7 | 260 | 330 | 530 | 46.5 | mss | 18 | 14 | 10 | 7 | – |
| SDT40/3 | 3 | 4 | 380 | 50 | 6.7 | 2900 | 19 | – | – | 3″ | 7 | 260 | 330 | 530 | 48 | 17.5 | 16 | 14 | 12 | 9 | |
SDTK75/4
Definition
They are pumps with cast body and cast impeller. It is designed for use in the printing of septic waters containing fibrous solid particles.
It is manufactured at 50 Hz and 60 Hz frequencies.
Usage Areas
These pumps are used in residential areas and industrial facilities, in high flow excavation pits, for discharging rain and septic water, in high flow ornamental pools, in small waterfalls for ornamental purposes, and for discharging water containing maximum 30 mm particles.
Pump Material Characteristics
| Pump Body | GG25 CAST IRON |
| Impeller | GG25 CAST IRON |
| Shaft | AISI 304 INOX |
| Flow Rate(max) | 150 m³/hour |
| Total Head (max) | 35 m |
| Liquid Temperature | 0-30°C |
| Protection Class | IP68 |
| Insulation | CI.F |
| Cable Lenght | 10 m |
| Mechanical Seal | SIC/SIC |
| Pump Durability Pressure (Pmax) | 8 bar |
| Type | Control Panel | Open Impeller | Closed Impeller | Blade | Stainless(304) | Cast Iron ImpellerGG25) | Noryl Impeller |
| SDTK75/4 | √ | √ | √ | ||||
| SDTK100/4 | √ | √ | √ | ||||
| SDTK150/4 | √ | √ | √ |
Technical Specifications
| MOTOR | PUMP | |||||||||||||||||||
| TYPE | KW | HP | V | Hz | A | rpm | Hm | output | ∇ | W | L | H | KG | m³/h | 20 | 40 | 60 | 80 | 110 | 130 |
| SDTK75/4 | 5.5 | 7.5 | 380 | 50 | 10 | 2900 | 26 | 4″ | 7 | 320 | 525 | 660 | 88.5 | mss
| 23 | 19 | 15 | 10 | – | – |
| SDTK100/4 | 7.5 | 10 | 380 | 50 | 13 | 2900 | 33 | 4″ | 7 | 320 | 525 | 660 | 94 | 30 | 27 | 24 | 19 | 10 | – | |
| SDTK150/4 | 11 | 15 | 380 | 50 | 20 | 2900 | 35 | 4″ | 7 | 320 | 630 | 695 | 138 | 33 | 31 | 29 | 26 | 20 | 15 | |
SDTK300/6
Definition
These pumps have cast iron body, cast iron impeller and 1450 RPM. It is designed to be used in the pumping of septic water containing fibrous solid particles.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Usage Areas
These pumps are residential areas, industrial facilities, high flow excavation pits, sand and mines pits, treatment facilities, discharge of rain and septic water and water containing max. 50 mm particles.
These pumps are suitable for use in heavy septic waters because it is 1450 RPM.
Pump Material Characteristics
| Pump Body | GG25 CAST IRON |
| Impeller | GG25 CAST IRON |
| Shaft | AISI 420 INOX |
| Flow Rate(max) | 320 m³/hour |
| Total Head (max) | 30 m |
| Liquid Temperature | 0-30°C |
| Protection Class | IP68 |
| Insulation | CI.F |
| Cable Lenght | 10 m |
| Mechanical Seal | SIC/SIC |
| Pump Durability Pressure (Pmax) | 8 bar |
| Connection Flange | DN 150 PN 6 |
| Type | Control Panel | Open Impeller | Closed Impeller | Blade | Stainless(304) | Cast Iron Impeller(GG25) | Noryl Impeller |
| SDTK200/6 | √ | √ | √ | ||||
| SDTK250/6 | √ | √ | √ | ||||
| SDTK300/6 | √ | √ | √ |
Technical Specifications
| MOTOR | PUMP | ||||||||||||||||||
| TYPE | KW | HP | V | Hz | A | rpm | Hm | output | W | L | H | ∇ | KG | m³/h | 40 | 100 | 200 | 250 | 300 |
| SDTK200/6 | 15 | 20 | 380 | 50 | 30 | 1450 | 22 | 6″ | 465 | 568 | 1137 | 7 | 346 | mss
| 21 | 20 | 14 | 8 | – |
| SDTK250/6 | 18.5 | 25 | 380 | 50 | 32 | 1450 | 26 | 6″ | 465 | 568 | 1137 | 7 | 346 | 25 | 23 | 18 | 12 | 4 | |
| SDTK300/6 | 22 | 30 | 380 | 50 | 43 | 1450 | 30 | 6″ | 465 | 568 | 1137 | 7 | 368 | 29 | 27 | 21 | 15 | 8 | |

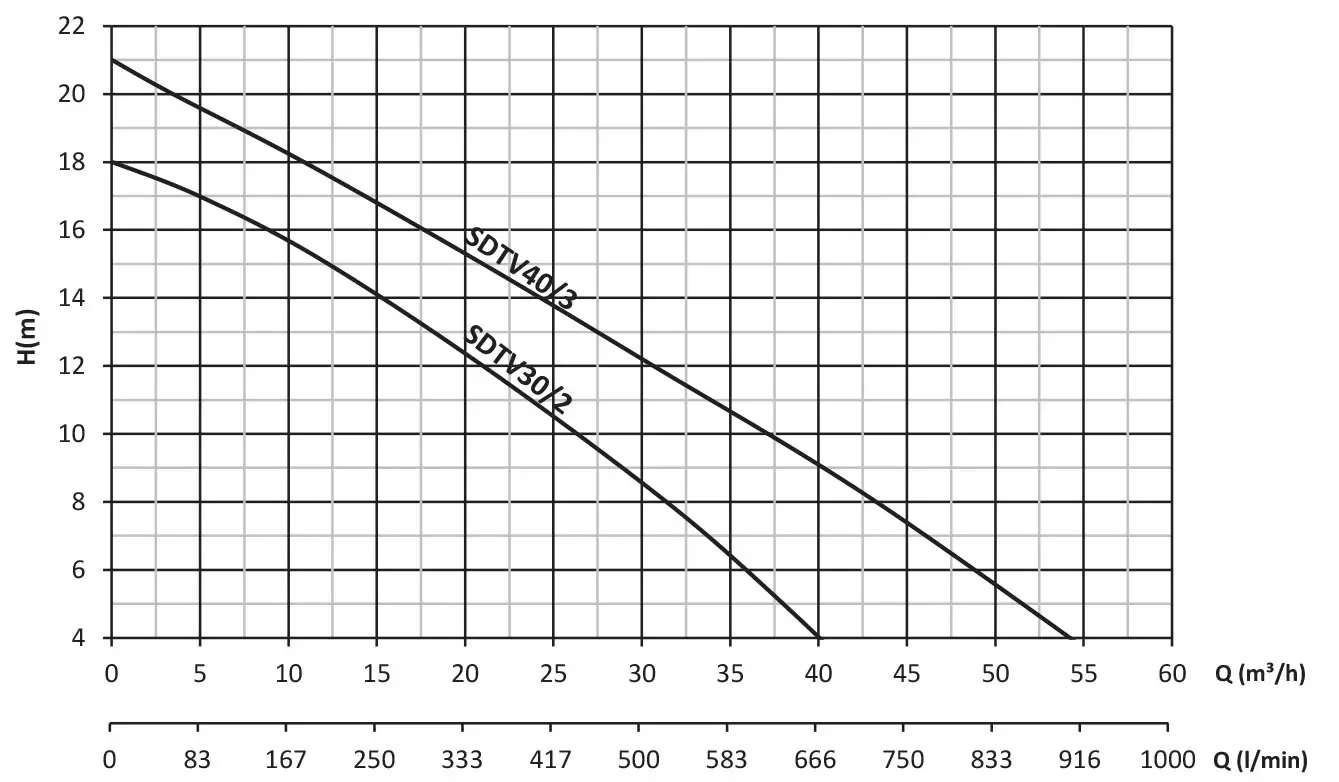

SDTV30/2
Definition
These pumps have cast body and vortex impeller. It is designed for use in the drainage of dirty water.
Having a suction filter provides an advantage against clogging risks.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Usage Areas
These pumps are used in residential areas, industrial facilities, tunnels, mines and quarries, construction foundation pits that require vertical discharge, and for the discharge of water containing max. 8 mm particles.
Pump Material Characteristics
| Pump Body | GG25 CAST IRON |
| Impeller | GG25 CAST IRON |
| Shaft | AISI 304 INOX |
| Flow Rate(max) | 50 m³/hour |
| Total Head (max) | 25 m |
| Liquid Temperature | 0-30°C |
| Protection Class | IP68 |
| Insulation | CI.F |
| Cable Lenght | 10 m |
| Mechanical Seal | SIC/SIC |
| Pump Durability Pressure (Pmax) | 10 bar |
| Type | Control Panel | Open Impeller | Closed Impeller | Blade | Stainless(304) | Cast Iron Impeller(GG25) | Noryl Impeller |
| SDTV30/2 | √ | √ | √ | ||||
| SDTV40/3 | √ | √ | √ |
Technical Specifications
| MOTOR | PUMP | ||||||||||||||||||
| Type | KW | HP | V | Hz | A | rpm | Hm | output | W | L | H | ∇ | KG | m³/h | 15 | 25 | 35 | 50 | 60 |
| SDTV30/2 | 2.2 | 3 | 380 | 50 | 4.4 | 2900 | 18 | 2″ | 260 | 330 | 410 | 7 | 47 | mss
| 14 | 10 | 6 | – | – |
| SDTV40/3 | 3 | 4 | 380 | 50 | 6.7 | 2900 | 21 | 3″ | 260 | 330 | 410 | 7 | 48.5 | 17 | 13 | 11 | 6 | 2 | |

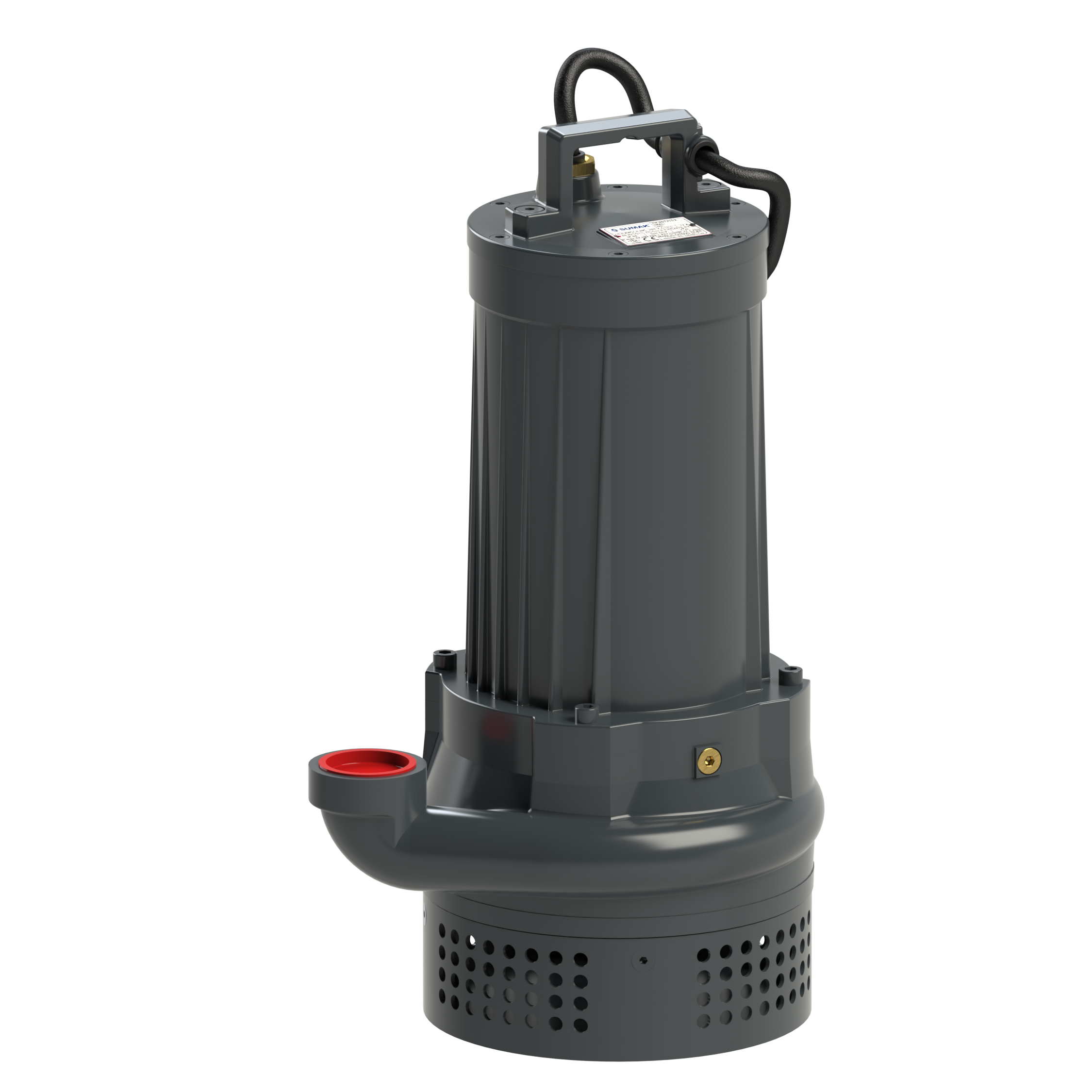

SDTV50/2
Definition
These pumps have cast iron body and vortex impeller. It is designed for use in the drainage of dirty water.
Having a suction filter provides an advantage against clogging risks.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Usage Areas
These pumps are used in residential areas, industrial facilities, tunnels, mines and quarries, construction foundation pits that require vertical discharge, and for the discharge of water containing max. 10 mm particles.
Pump Material Characteristics
| Pump Body | GG25 CAST IRON |
| Impeller | GG25 CAST IRON |
| Shaft | AISI 304 INOX |
| Flow Rate(max) | 54 m³/hour |
| Total Head (max) | 41 m |
| Liquid Temperature | 0-30°C |
| Protection Class | IP68 |
| Insulation | CI.F |
| Cable Lenght | 10 m |
| Mechanical Seal | SIC/SIC |
| Pump Durability Pressure (Pmax) | 10 bar |
| Type | Control panel | Open Impeller | Closed Impeller | Blade | Stainless(304) | Cast Iron Impeller(GG25) | Noryl Impeller |
| SDTV50/2 | √ | √ | √ | ||||
| SDTV75/2 | √ | √ | √ |
Technical Specifications
| MOTOR | PUMP | ||||||||||||||||||
| Type | KW | HP | V | Hz | A | rpm | Hm | output | W | L | H | ∇ | KG | m³/h | 15 | 25 | 35 | 50 | 60 |
| SDTV50/2 | 4 | 5.5 | 380 | 50 | 9.5 | 2900 | 32 | 2″ | 290 | 380 | 610 | 7 | 76.5 | mss
| 27 | 24 | 20 | – | – |
| SDTV75/2 | 5.5 | 7.5 | 380 | 50 | 12 | 2900 | 42 | 2″ | 290 | 380 | 610 | 7 | 81.5 | 37 | 35 | 30 | 16 | – | |
SDTV50/4
Definition
These pumps have cast iron body, cast iron vortex impeller and 1450 RPM. It is designed to be used in the pumping of septic water containing fibrous solid particles.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Usage Areas
These pumps are in residential areas, industrial facilities, high flow excavation pits, sand and mines pits, treatment facilities, discharge of rain and septic water and water containing max. 50 mm particles.
These pumps are suitable for use in heavy septic waters because it is 1450 RPM.
Pump Material Characteristics
| Pump Body | GG25 CAST IRON |
| Impeller | GG25 CAST IRON |
| Shaft | AISI 304 INOX |
| Flow Rate(max) | 110 m³/hour |
| Total Head (max) | 14 m |
| Liquid Temperature | 0-30°C |
| Protection Class | IP68 |
| Insulation | CI.F |
| Cable Lenght | 10 m |
| Mechanical Seal | SIC/SIC |
| Pump Durability Pressure (Pmax) | 8 bar |
| Type | Control Panel | Open Impeller | Closed Impeller | Blade | Stainless(304) | Cast Iron Impeller(GG25) | Noryl Impeller |
| SDTV50/4 | √ | √ | √ | ||||
| SDTV75/4 | √ | √ | √ |
Technical Specifications
| MOTOR | PUMP | ||||||||||||||||||
| Type | KW | HP | V | Hz | A | rpm | Hm | output | W | L | H | ∇ | KG | m³/h | 15 | 30 | 60 | 80 | 100 |
| SDTV50/4 | 4 | 5.5 | 380 | 50 | 9 | 1450 | 12.5 | 4″ | 320 | 525 | 660 | 7 | 91.5 | mss
| 11 | 10 | 7.5 | 5 | 3 |
| SDTV75/4 | 5.5 | 7.5 | 380 | 50 | 12 | 1450 | 14.5 | 4″ | 320 | 525 | 660 | 7 | 96 | 13.5 | 12 | 10 | 8 | 5 | |
SDTV150/4
Definition
These pumps have cast iron body and cast iron vortex impeller. It is designed to be used in the pumping of septic waters containing fibrous solid particles.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Usage Areas
These pumps are used in residential areas, industrial facilities, high flow excavation pits, sand and mines pits, treatment facilities, discharge of rain and septic water and water containing max. 50 mm particles.
Pump Material Characteristics
| Pump Body | GG25 CAST IRON |
| Impeller | GG25 CAST IRON |
| Shaft | AISI 304 INOX |
| Flow Rate(max) | 140 m³/hour |
| Total Head (max) | 18 m |
| Liquid Temperature | 0-30°C |
| Protection Class | IP68 |
| Insulation | CI.F |
| Cable Lenght | 10 m |
| Mechanical Seal | SIC/SIC |
| Pump Durability Pressure (Pmax) | 10 bar |
| Type | Control panel | Open Impeller | Closed Impeller | Blade | Stainless(304) | Cast Iron Impeller(GG25) | Noryl Impeller |
| SDTV100/4 | √ | √ | √ | ||||
| SDTV150/4 | √ | √ | √ |
Technical Specifications
| MOTOR | PUMP | ||||||||||||||||||
| Type | KW | HP | V | Hz | A | rpm | Hm | output | W | L | H | ∇ | KG | m³/h | 30 | 60 | 80 | 100 | 130 |
| SDTV100/4 | 7.5 | 10 | 380 | 50 | 14 | 1450 | 17 | 4″ | 290 | 525 | 661 | 7 | 91 | mss
| 16 | 12 | 7 | – | – |
| SDTV150/4 | 11 | 15 | 380 | 50 | 22 | 1450 | 18.5 | 4″ | 365 | 630 | 695 | 7 | 135.5 | 17 | 15 | 13 | 10 | 5 | |

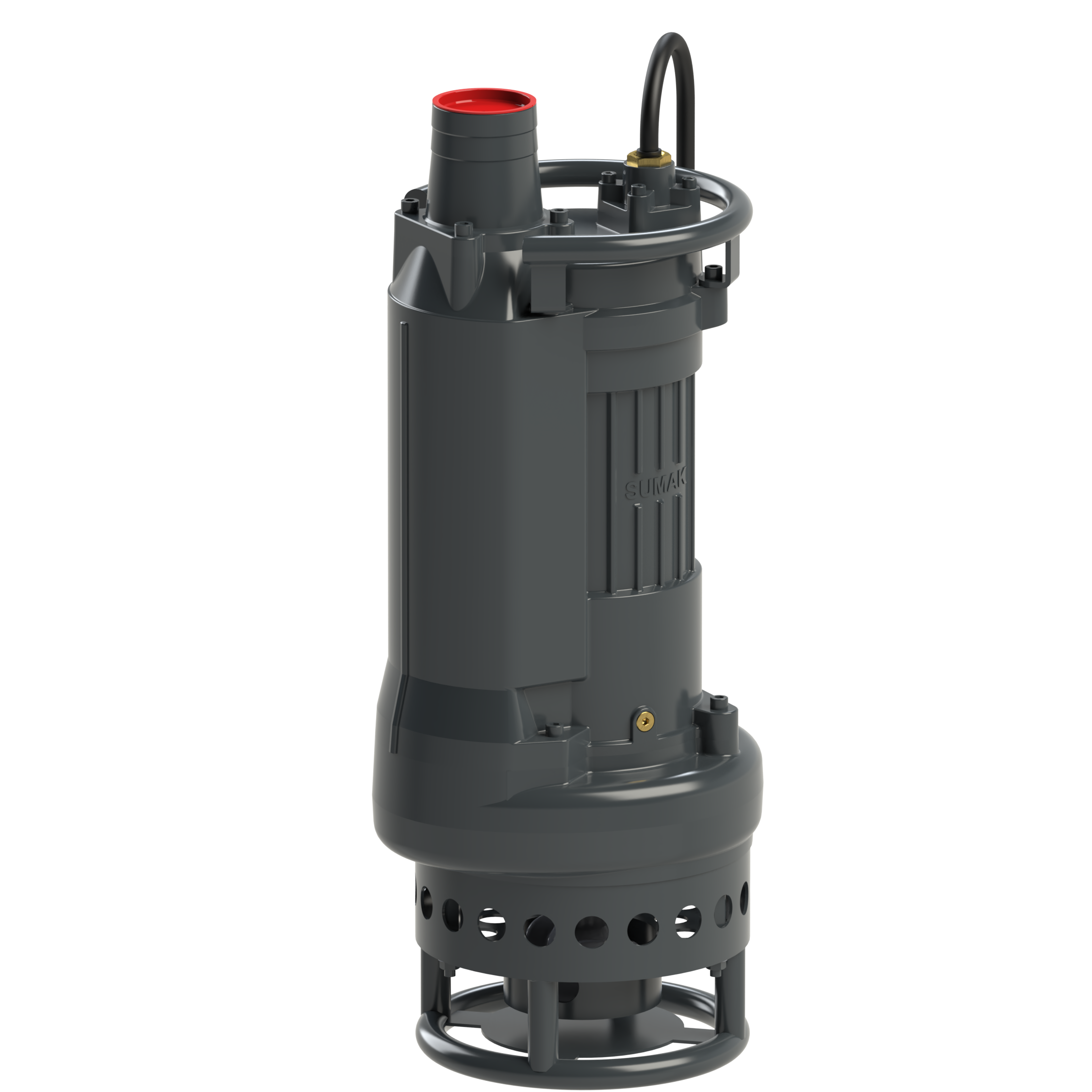

SDT75/3 C
Definition
These pumps have cast iron body, stainless steel vortex impeller, 1450 RPM, mixer, cooling jacket and high solid waste permeability. It is suitable for long term operation due to the cooling jacket.
Having a suction filter provides an advantage against clogging risks.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Usage Areas
These pump are used to discharge water with a density of up to 1.5 kg/m3 – 2.5 kg/m³ in dense septic waters, tunnels, beach areas, mines and high flow construction excavations.
It discharges the liquid by reducing its density Dues to the mixer mounted on the pump shaft.
These pumps are suitable for use in heavy septic waters because it is 1450 RPM.
Pump Material Characteristics
| Pump Body | GG25 CAST IRON |
| Impeller | AISI 430 INOX |
| Mixer | AISI 430 INOX |
| Shaft | AISI 420 |
| Flow Rate (max) | 120 m³/hour |
| Total Head (max) | 17.5 m |
| Liquid Temperature | 0-30°C |
| Protection Class | IP68 |
| Insulation | CI.F |
| Cable Lenght | 10 m |
| Mechanical Seal | SIC/SIC |
| Pump Durability Pressure (Pmax) | 8 bar |
| Type | Control Panel | Open Impeller | Closed Impeller | Mixer | Stainless(304) | Cast Iron Impeller(GG25) | Noryl Impeller |
SDT50/3 C | √ | √ | √ | √ | |||
| SDT75/3 C | √ | √ | √ | √ |

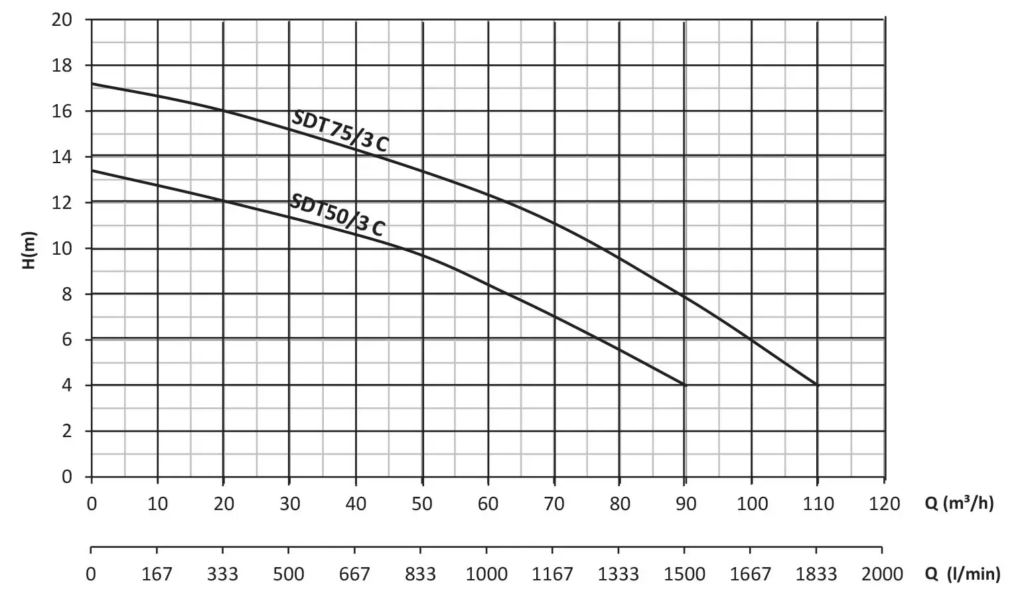

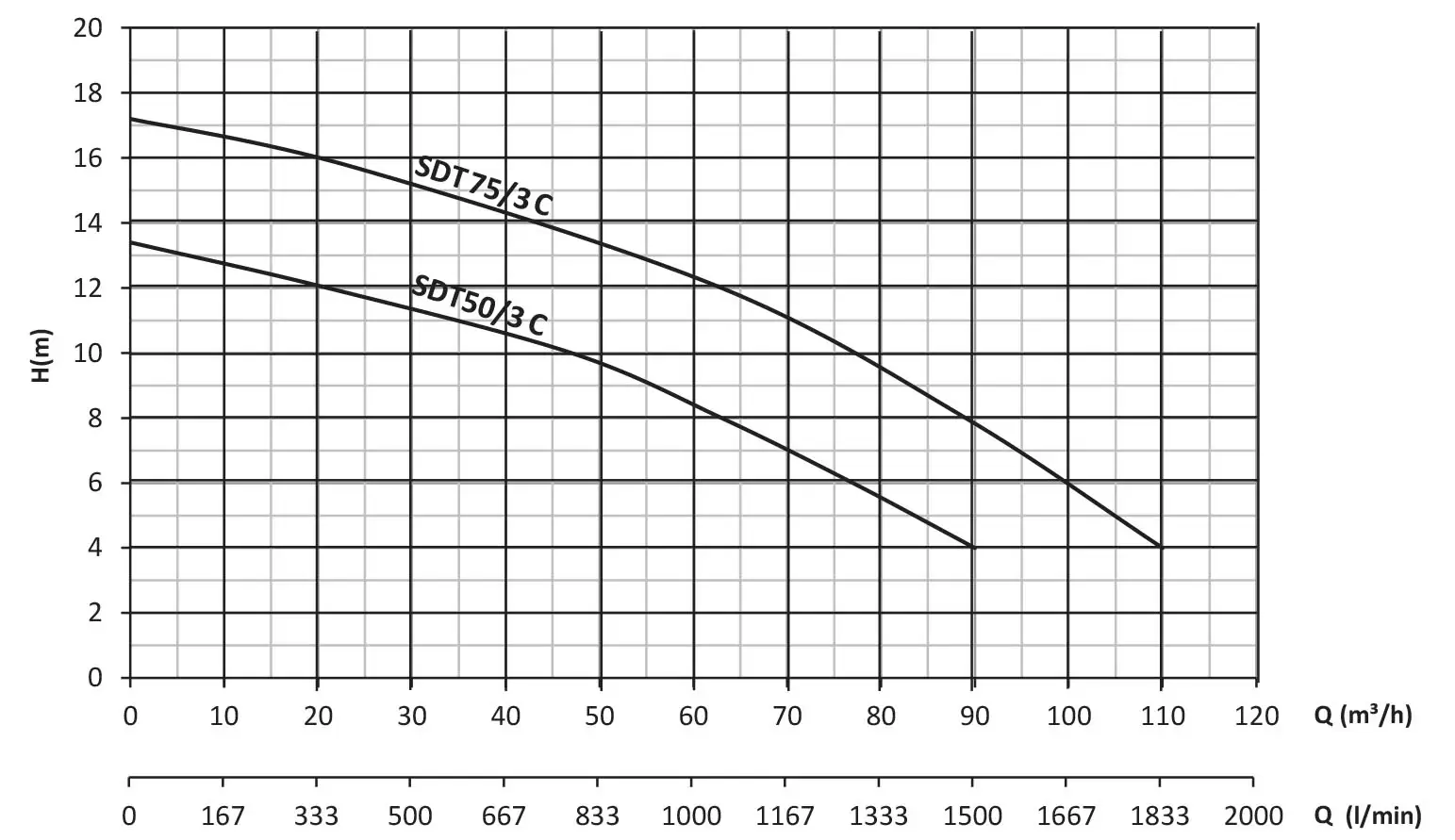

Technical Specifications
| MOTOR | PUMP | |||||||||||||||||
| Type | KW | HP | V | Hz | A | rpm | Hm | output | Q | H | ∇ | KG | m³/h | 20 | 40 | 60 | 80 | 100 |
| SDT50/3 C | 4 | 5.5 | 380 | 50 | 9.5 | 1450 | 13 | 3″ | 360 | 880 | 7 | 129.5 | mss
| 12 | 10.5 | 8.5 | 5.5 | – |
| SDT75/3 C | 5.5 | 7.5 | 380 | 50 | 12 | 1450 | 17 | 3″ | 360 | 880 | 7 | 136.5 | 16 | 14.5 | 12.5 | 9.5 | 6 | |
Dirty Water Submersible Pumps
Dirty water pump Single-phase electric, plastic body, hose union and plumbing connection, easy to install, automatic operation, float, high altitude, portable drainage submersible pumps. These types of pumps are used in waterfalls, basements, ornamental pools, buildings, drainage pits and puddles up to a maximum height of 22 m, and they discharge particles not exceeding 6 mm without any problems. Dirty water pumps manufactured by turkish dirty water pump producers are the ideal solution for draining water from flooded basements, pumping water from construction pits or draining your garden pond.
Dirty water submersible pumps produced by turkish dirty water submersible water pump manufacturers do not cause noise and vibration as they work in the fluid. They can provide comfortable communication. Dirty water submersible pumps are generally manufactured with a vortex (open) impeller, and the blade structure is curved to smooth the flow of liquid. At the same time, since the pump and motor are located in conditions that cannot be intervened by the users, the problems that may arise from errors are also reduced.
In the selection process of dirty water submersible pumps which is turkish dirty water submersible pump, pumps that can have high efficiency for the flow rates designed for the system should be evaluated. Low efficiency also affects power consumption. In pump selections, designs can be taken 10% larger than parameters, flow rate and total dynamic height.
These details will contribute to the operating conditions. These details should be paid attention to for dirty water submersible pumps that can operate with long-term and permanent performance. When the pump pressure height is greater than the total height of the installation, the desired pressure can be obtained.
Regarding the installation of turkish submersible pump , Before mounting the Dirty Water Pump to the well, it must be ensured that both the well and the pump are suitable for their intended use. It should be checked that the flow rate of the well is sufficient to meet the needs of the user, and it should be seen that the flow and head of the pump to be installed are suitable for the purpose.
Sand cleaning of the well must be done, sand, sediment, etc. in the fluid. It should be ensured that the amount of particles does not exceed the operating limits of the pump. The pump should never be lowered to the bottom of the well, the bottom of the engine should be mounted at least 2 m above the bottom of the well.
The Dirty Water Submersible pump has been developed for use with fluids with a temperature of up to 30°C. In cases where the fluid temperature is higher, specially manufactured submersible pumps and motors should be used. In order for the submersible motor to be cooled sufficiently, it must be ensured that sufficient fluid flow is provided around the motor.
