Turkey Manufacturer Of Submersible Pump. We are Sumak Pump, have production of largest drainage pumps in domestic group.
We produce drainage pump group between 0,33 HP- 30 HP in order to use for backwater discharges discharge of water in elevator shafts deep backwaters in canals advantage of light design can be used in mines and also practical applications basement backwaters and also will start 3 HP and 4 HP in serial production soon. With the advantage of Special light design drainage pump for backwaters discharging in eşevator shafts with float switch elevator float switch and septic float switch is included in threephase models with control panel also drainage pumps in construction excavaton areas with backwaters discharging with casting body has resistance agaisnt air effects are all in produced %100 locally in our factory. Turkey Manufacturer Of Drainage Submersible Pump.
Drainage Submersible Pumps

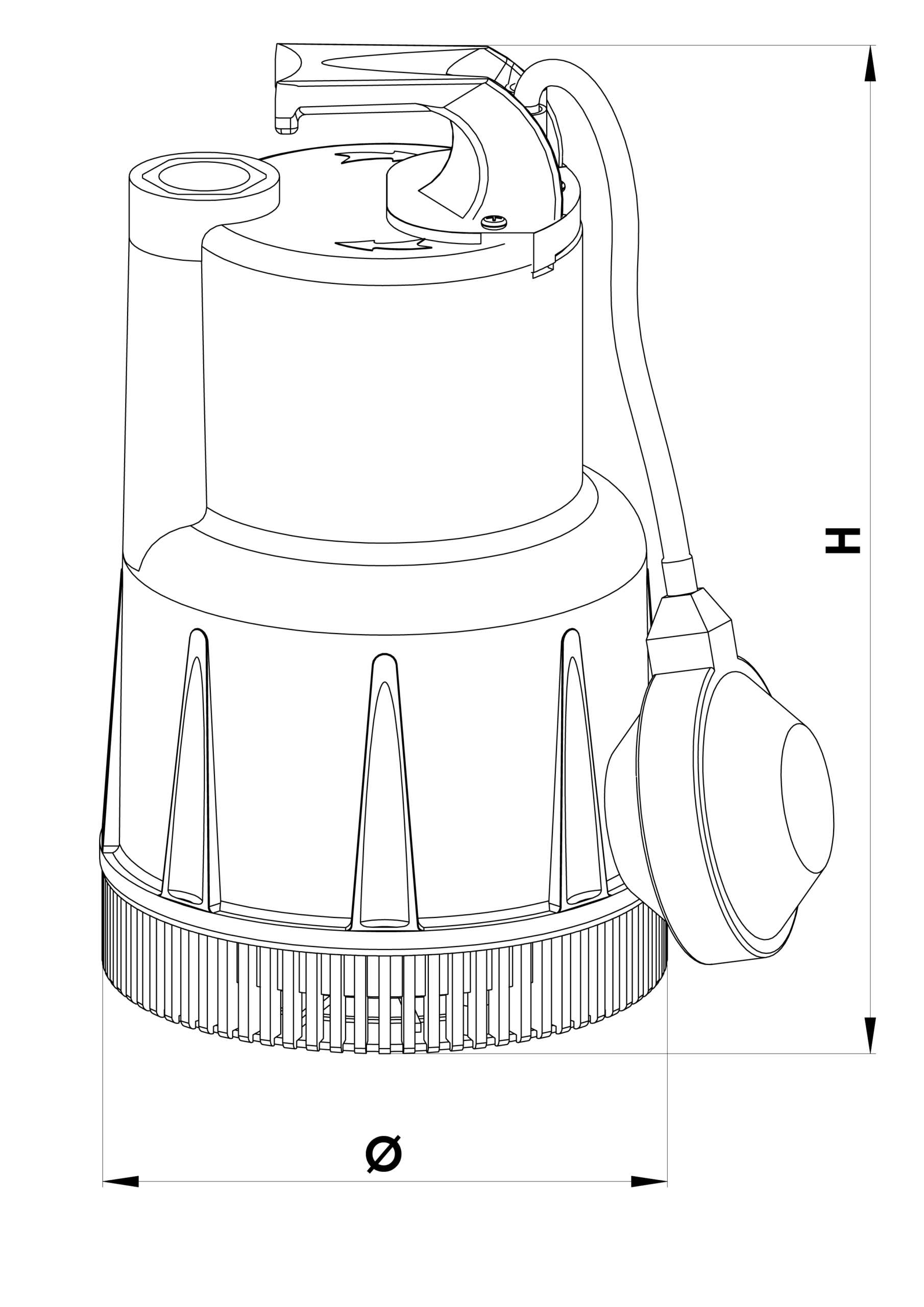

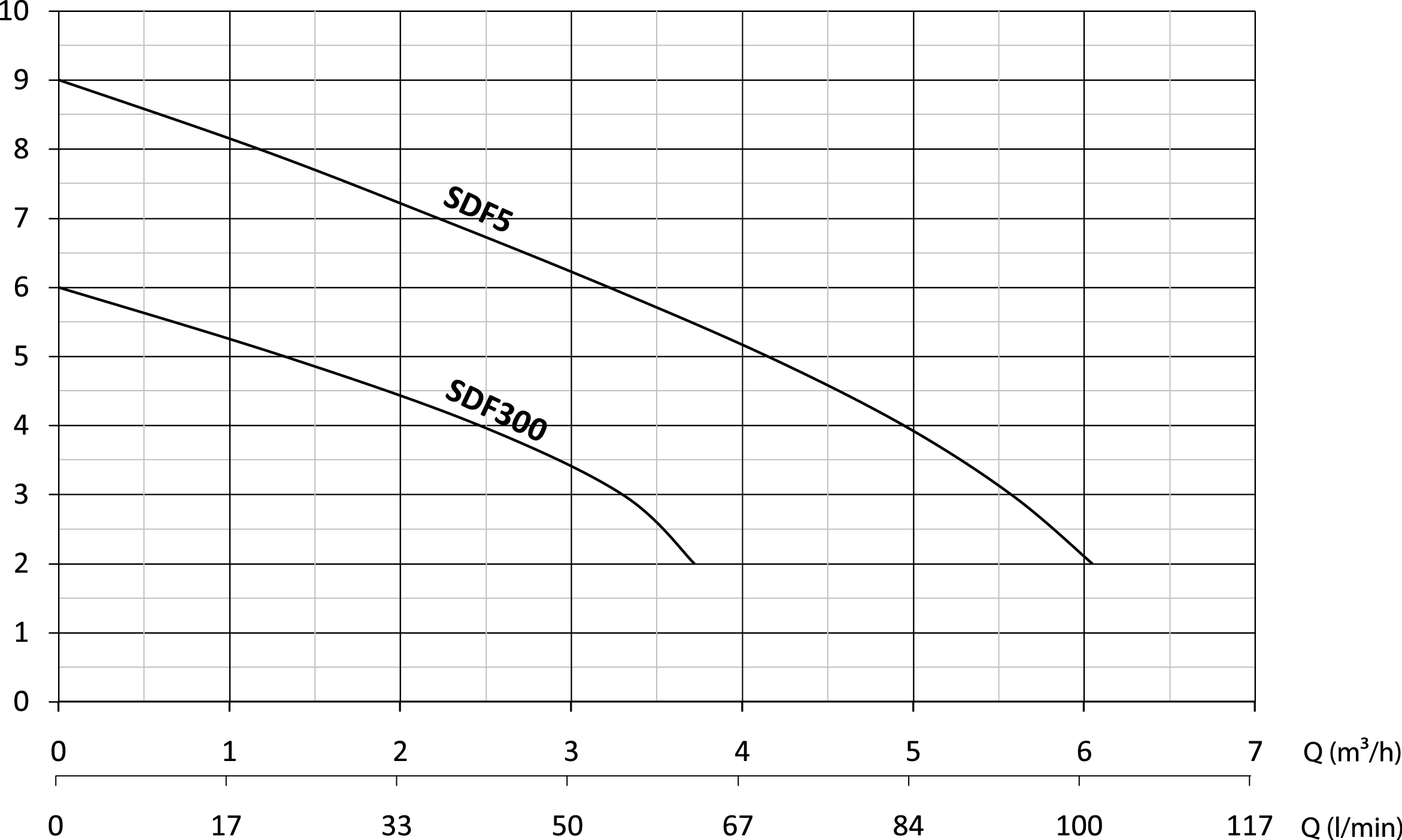

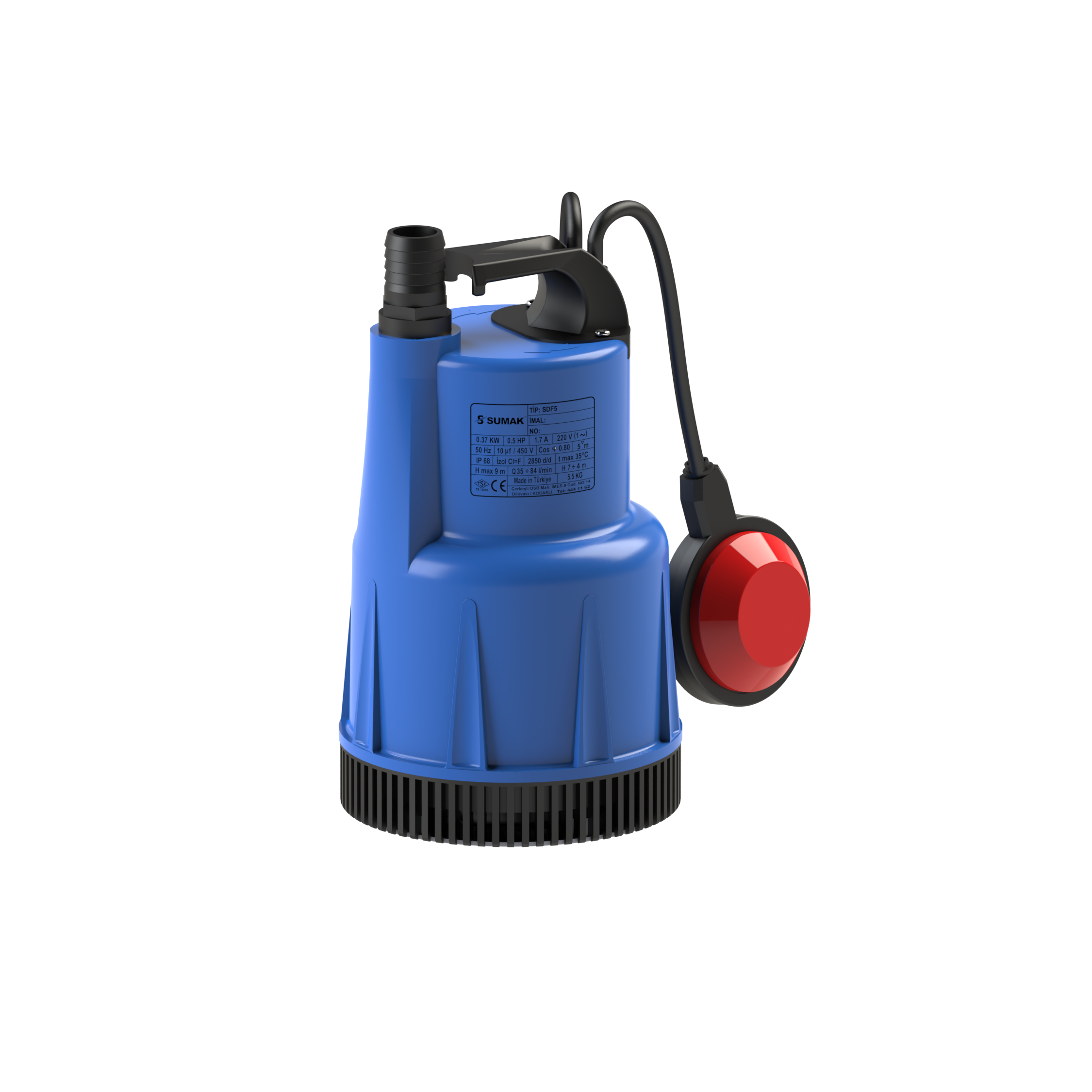

SDF300 - SDF5
Definition
These pumps with a techno Polymer body are easily portable, easy to install and automatically operating (with floater) pumps. Designed for use in the drainage of clear or few dirty water.
It has cooling Jacket, stainless engine body, internal thermal protection and automatic reset.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Usage Areas
These pumps are used in residential areas, basement water and elevator shafts, industrial facilities, waterfalls, basements water, ornamental pools, standing water and for the discharge of water containing max. 3 mm particles.
| Pump Body | PPH |
| Impeller | NORYL |
| Shaft | AISI 420 INOX |
| Flow Rate (max) | 6m³/hour |
| Total Head (max) | 9 m |
| Liquid Temperature | 0-30°C |
| Protection Class | IP68 |
| Insulation | CI.F |
| Cable Lenght | 10 m |
| Mechanical Seal | SIC/SIC |
| Pump Durability Pressure (Pmax) | 2 bar |
Pump Material Characteristics
| Type | Control Panel | Open Impeller | Closed Impeller | Blade | Stainless (304) | Cast Iron Impeller (GG25) | Noryl Impeller | Thermic Protection |
| SDF300 | √ | √ | √ | |||||
| SDF5 | √ | √ | √ |
Technical Specifications
| MOTOR | PUMP | |||||||||||||||||||
| TYPE | KW | HP | V | Hz | A | RPM | CAPACITOR uf Vc | Hm | Output | ∇ | Ø | H | KG | m³/h | 1 | 3 | 5 | 7 | 10 | |
| SDF300 | 0.25 | 0.33 | 220 | 50 | 1.3 | 2900 | 8 | 450 | 6 | 1″ | 5 | 147 | 248 | 4.5 | mss | 5.2 | 3.5 | – | – | – |
| SDF5 | 0.37 | 0.5 | 220 | 50 | 1.7 | 2900 | 10 | 450 | 9 | 1″ | 5 | 147 | 248 | 5.5 | 8 | 6 | 4 | – | – | |

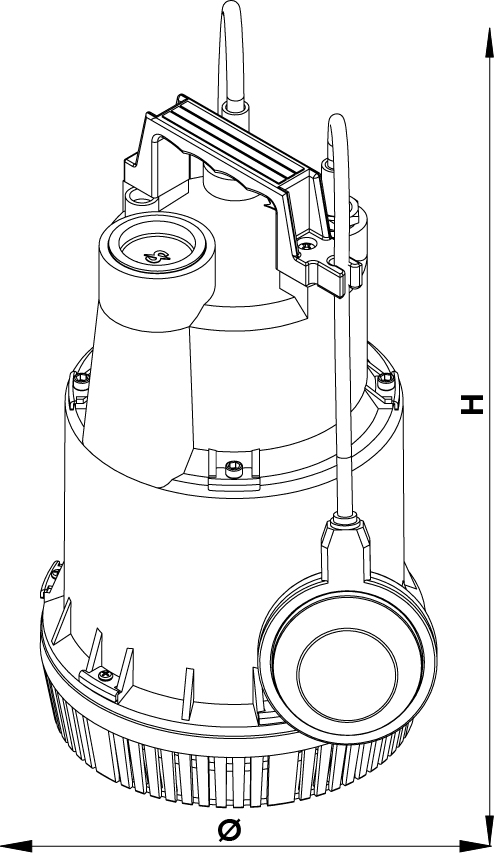

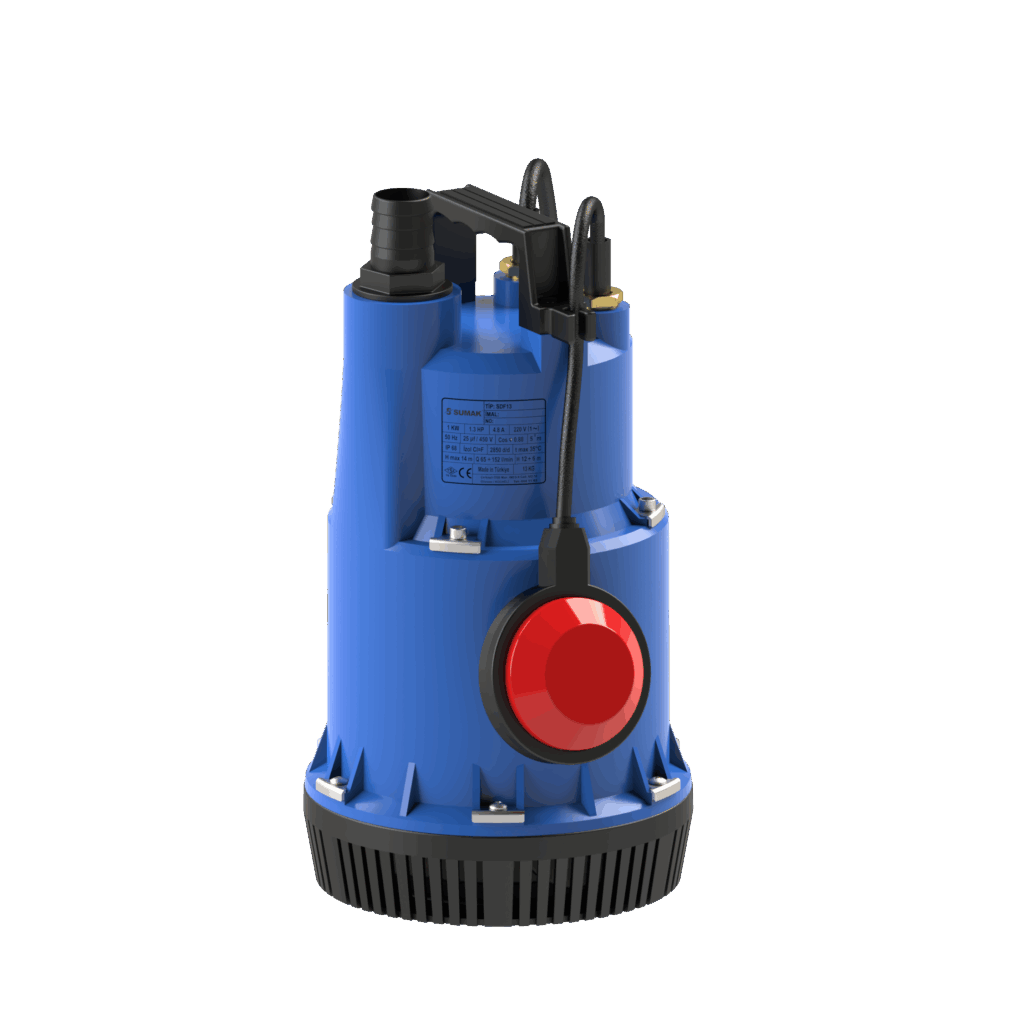

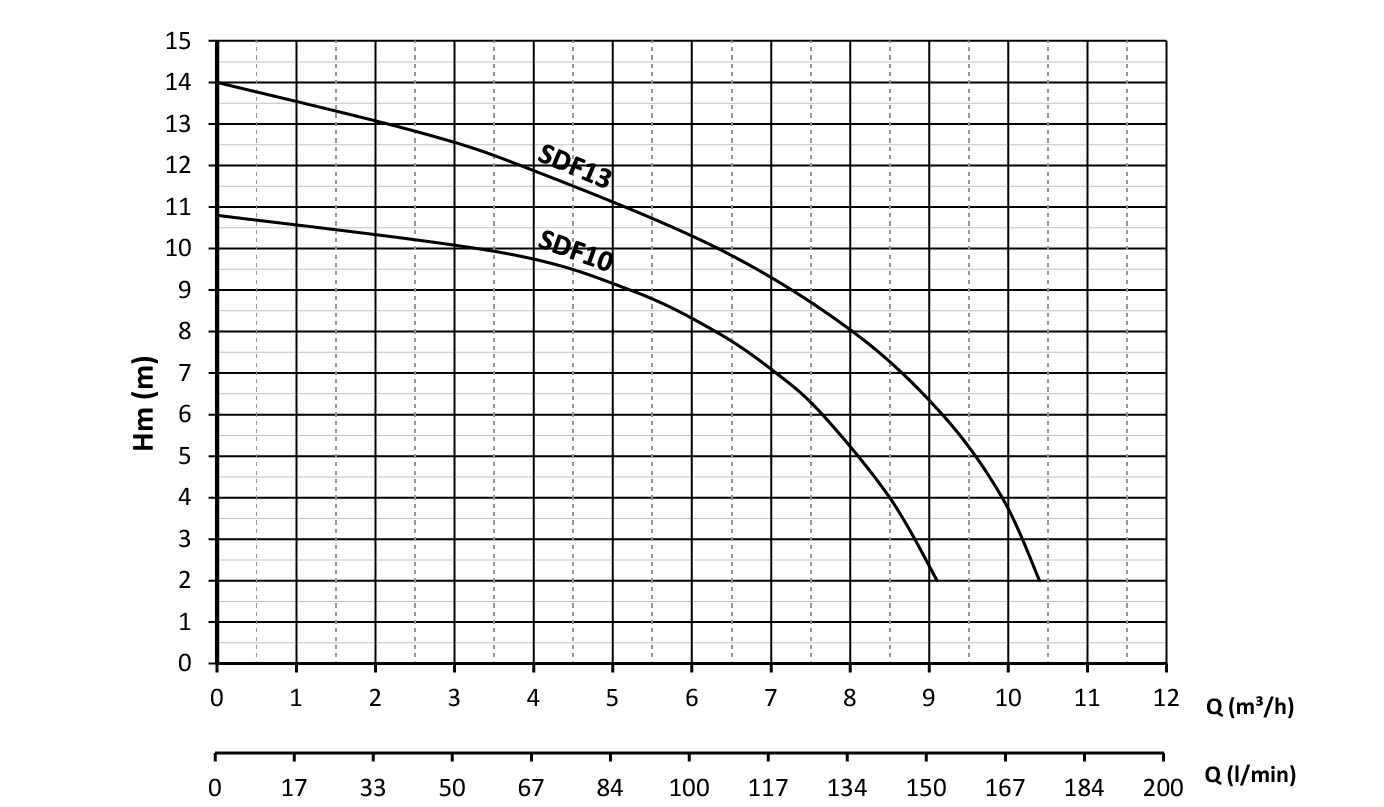

SDF10 - SDF13
Definition
These pumps with a Techno Polymer body are easily portable, easy to install and automatically operating (with floater) pumps. Designed for use in the drainage of clear or few dirty water.
It has cooling Jacket, stainless engine body, internal thermal protection and automatic reset.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Usage Areas
These pumps are used in residential areas, basement water and elevator shafts, industrial facilities, waterfalls, basements water, ornamental pools, standing water and for the discharge of water containing max. 3 mm particles.
Pump Material Characteristics
| Pump Body | PPH |
| Impeller | NORYL |
| Shaft | AISI 304 INOX |
| Flow Rate (max) | 10.5 m³/hour |
| Total Head (max) | 14 m |
| Liquid Temperature | 0-30°C |
| Protection Class | IP68 |
| Insulation | CI.F |
| Cable Lenght | 10 m |
| Mechanical Seal | SIC/SIC |
| Pump Durability Pressure (Pmax) | 3 bar |
| Type | Control Panel | Open Impeller | Closed Impeller | Blade | Stainless (304) | Cast Iron Impeller (GG25) | Norly Impeller | Thermic Protection |
| SDF10 | √ | √ | √ | |||||
| SDF13 | √ | √ | √ |
Technical Specifications
| MOTOR | PUMP | |||||||||||||||||||
| TYPE | KW | HP | V | Hz | A | RPM | CAPACITOR uf Vc | Hm | Output | ∇ | Ø | H | KG | m³/h | 1 | 3 | 5 | 7 | 10 | |
| SDF10 | 0.65 | 0.85 | 220 | 50 | 4.3 | 2900 | 20 | 450 | 10.7 | 1¼ | 7 | 180 | 326 | 12 | mss | 10.5 | 10 | 9 | 7 | – |
| SDF13 | 1 | 1.3 | 220 | 50 | 5.5 | 2900 | 25 | 450 | 14 | 1¼ | 7 | 180 | 326 | 13 | 13.5 | 12.5 | 11 | 9 | 4 | |

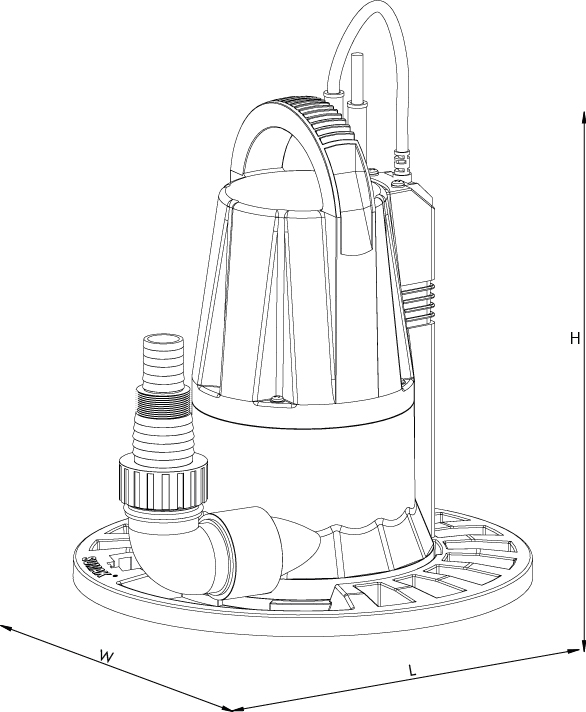

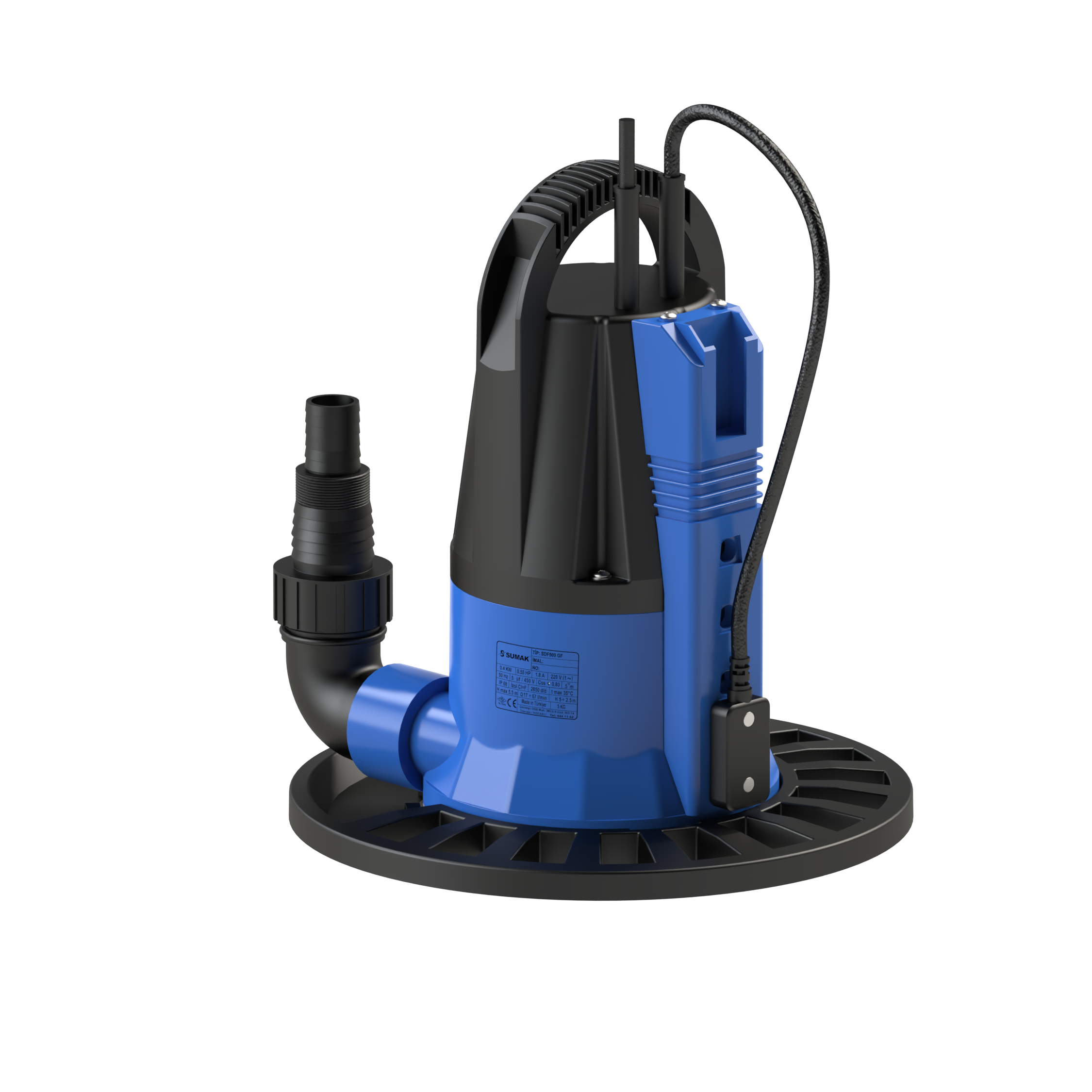

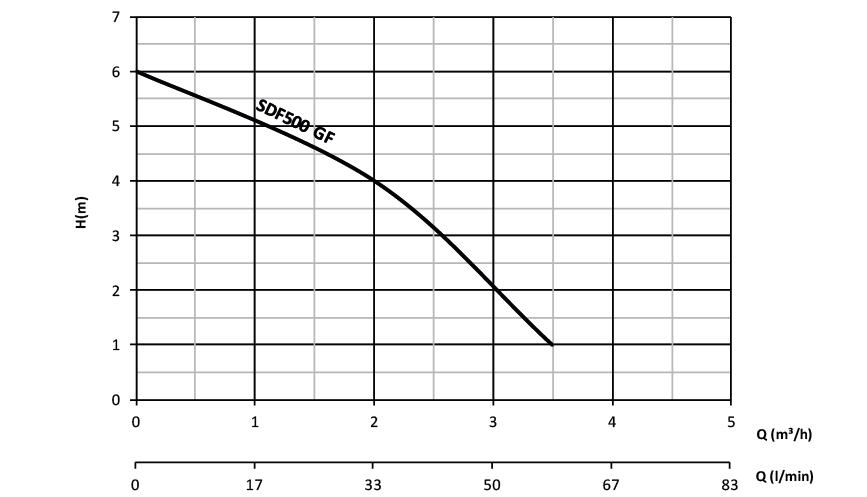

SDF500 GF
Definition
They are monophase electric, easy to install, automatically running drainage submersible pumps with a special design table foot with hidden electrode (flator) with a capacity to absorb water on the floor up to 3 mm.
It is manufactured at a frequency of 50 Hz.
Pump Material Characteristics
These types of pumps are used for water tank cleaning; rainwater, elevator well deposits and drainage of flooded waters. It was designed with an adjustable electrode (floater) that can work up to 3 mm water level in narrow wells that are not suitable for floater user.
Usage Areas
| Pump Body | PPH |
| Impeller | PPH |
| Shaft | AISI 304 INOX |
| Flow Rate (max) | 3.5 m³/hour |
| Total Head (max) | 6 m |
| Liquid Temperature | 0-30°C |
| Protection Class | IP68 |
| Insulation | CI.F |
| Cable Lenght | 10 m |
| Mechanical Seal | SIC/SIC |
| Pump Durability Pressure (Pmax) | 2 bar |
| Type | Control Panel | Open Impeller | Closed Impeller | Blade | Stainless(304) | Cast Iron (GG25) | PPH Impeller | Thermal Protection |
| SDF500 GF | √ | √ | √ |
Technical Specifications
| MOTOR | PUMP | |||||||||||||||||
| TYPE | KW | HP | V | Hz | A | RPM | CAPACITOR uf Vc | OUTPUT | ∇ | W | L | H | KG | m³/h | 1 | 2 | 3 | |
| SDF500 GF | 0.37 | 0.5 | 220 | 50 | 1.1 | 2900 | 6 | 450 | 1″-1¼ | 5 | 275 | 275 | 300 | 4.1 | mss | 5 | 4 | 2 |

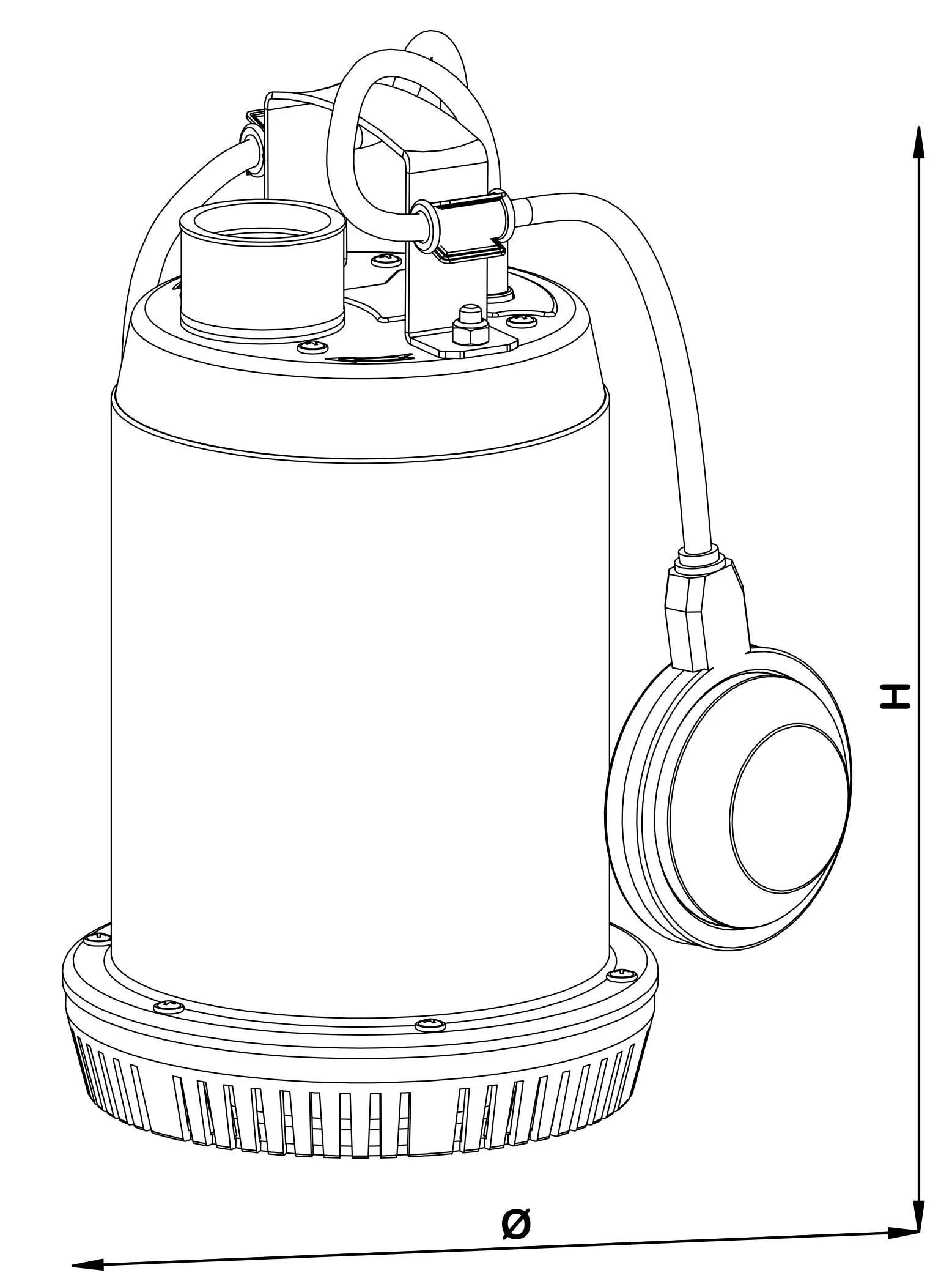

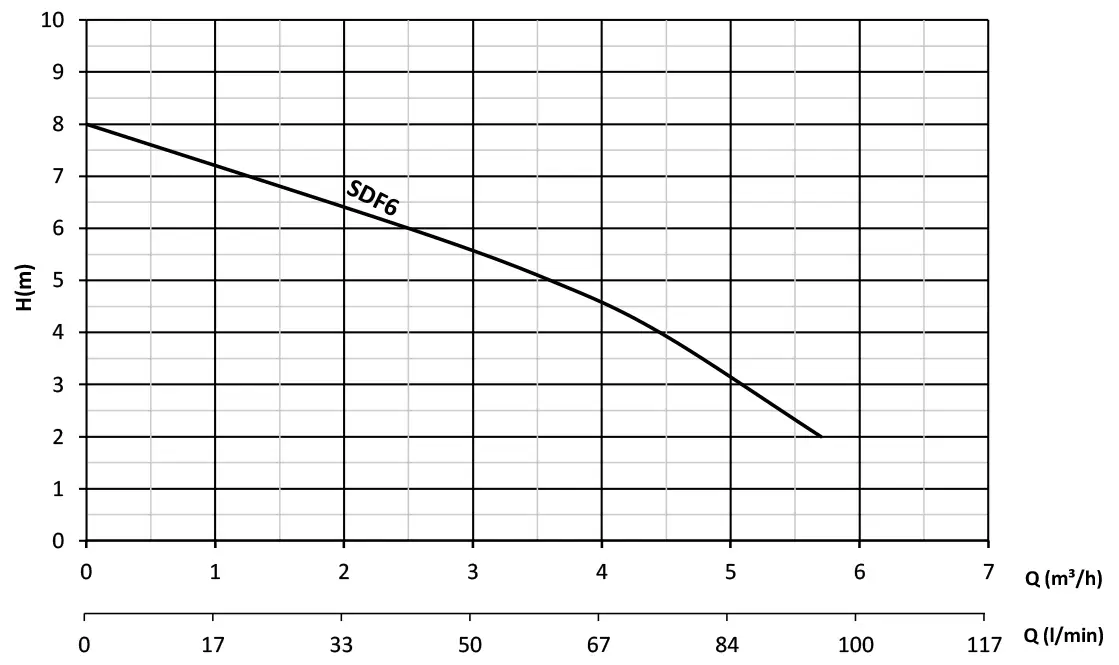

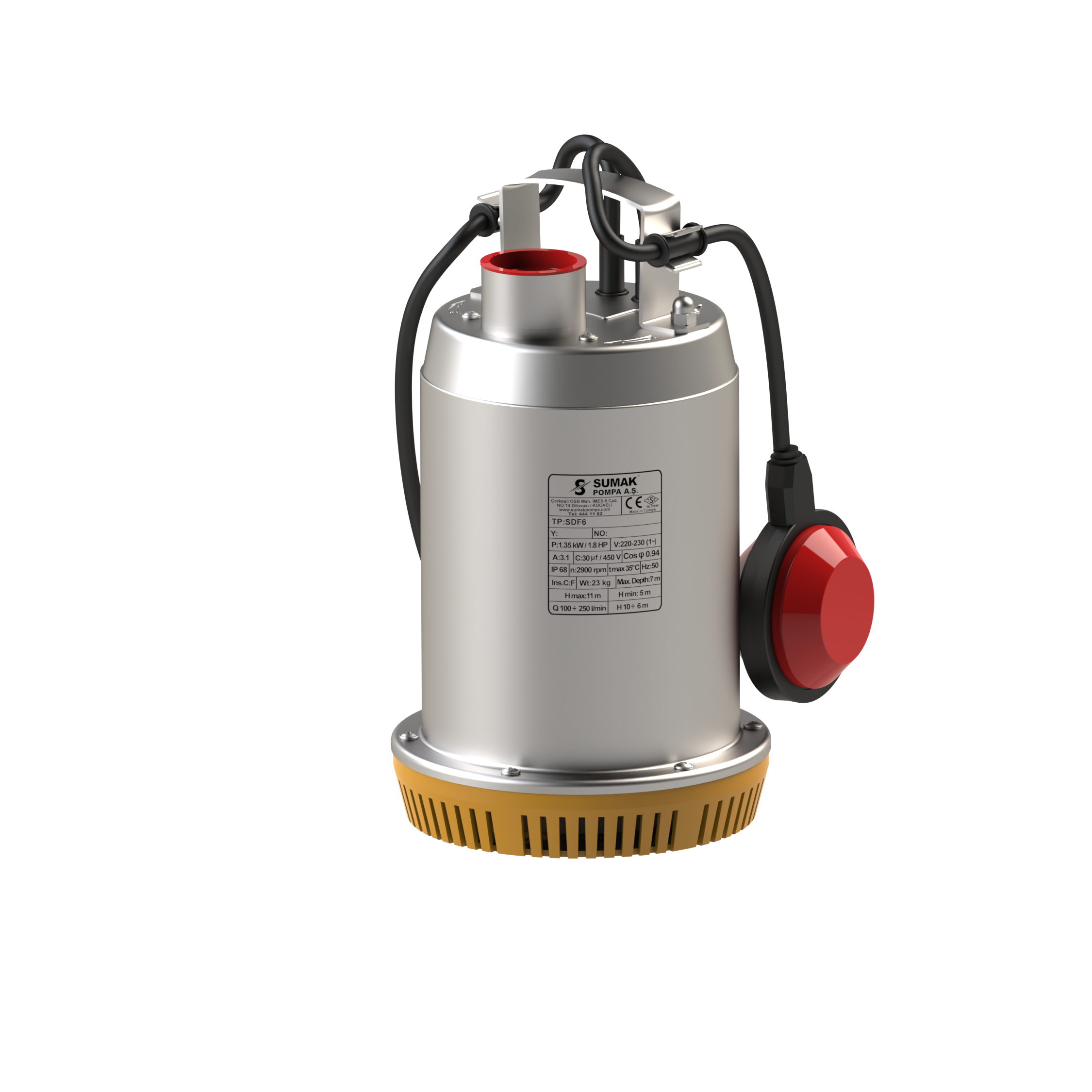

SDF6
Definition
These pumps with stainless steel body are easily portable, easy to install and automatically operating (with floater) pumps. It is designed for use in the drainage of clean or few dirty water.
It has cooling Jacket, stainless engine body, internal thermal protection and automatic reset.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Usage Areas
These pumps are used in residential areas, basement water and elevator shafts, industrial facilities, waterfalls, basements water, ornamental pools, standing water and for the discharge of water containing maximum 6 mm particles.
Pump Material Characteristics
| Pump Body | INOX |
| Impeller | NORYL |
| Shaft | AISI 420 INOX |
| Flow rate (max) | 6 m³/hour |
| Total Head (max) | 8 m |
| Liquid Temperature | 0-30°C |
| Protection Class | IP68 |
| İnsulation | CI.F |
| Cable Lenght | 10 m |
| Mechanical Seal | SIC/SIC |
| Pump Durability | 2 bar |
| Type | Control panel | Open Impeller | Closed Impeller | Blade | Stainless(304) | Cast Iron (GG25) | Noryl Impeller | Thermal Protection |
| SDF6 | √ | √ | √ |
Technical Specifications
| MOTOR | PUMP | |||||||||||||||||||
| Type | KW | HP | V | Hz | A | RPM | CAPACITOR uf Vc | Hm | Output | ∇ | ∅ | H | KG | m³/h | 1 | 2.5 | 3.5 | 4.5 | 5 | |
| SDF6 | 0.37 | 0.5 | 220 | 50 | 2.2 | 2900 | 10 | 450 | 8 | 1¼ | 5 | 150 | 248 | 6 | mss | 7 | 6 | 5 | 4 | 3 |

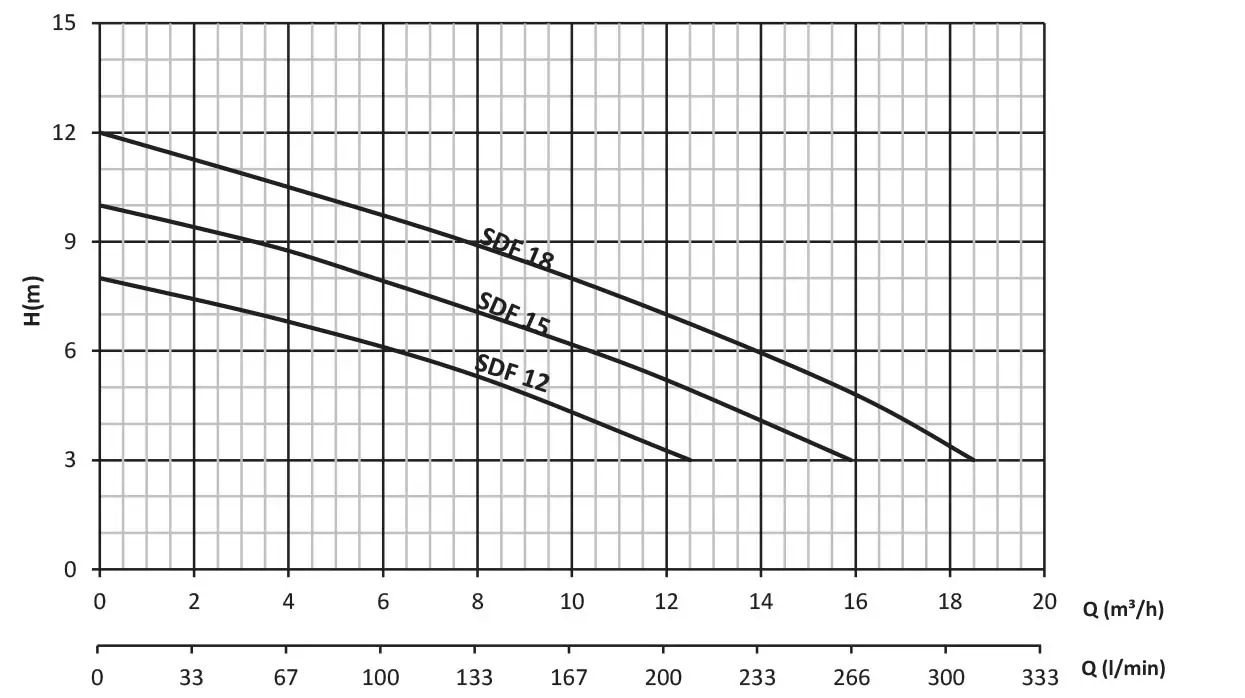

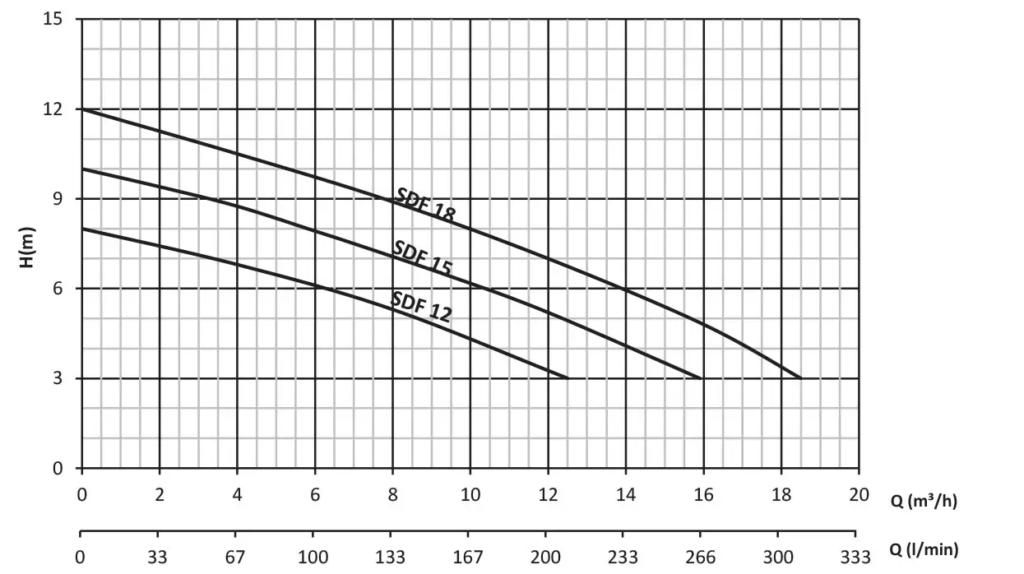

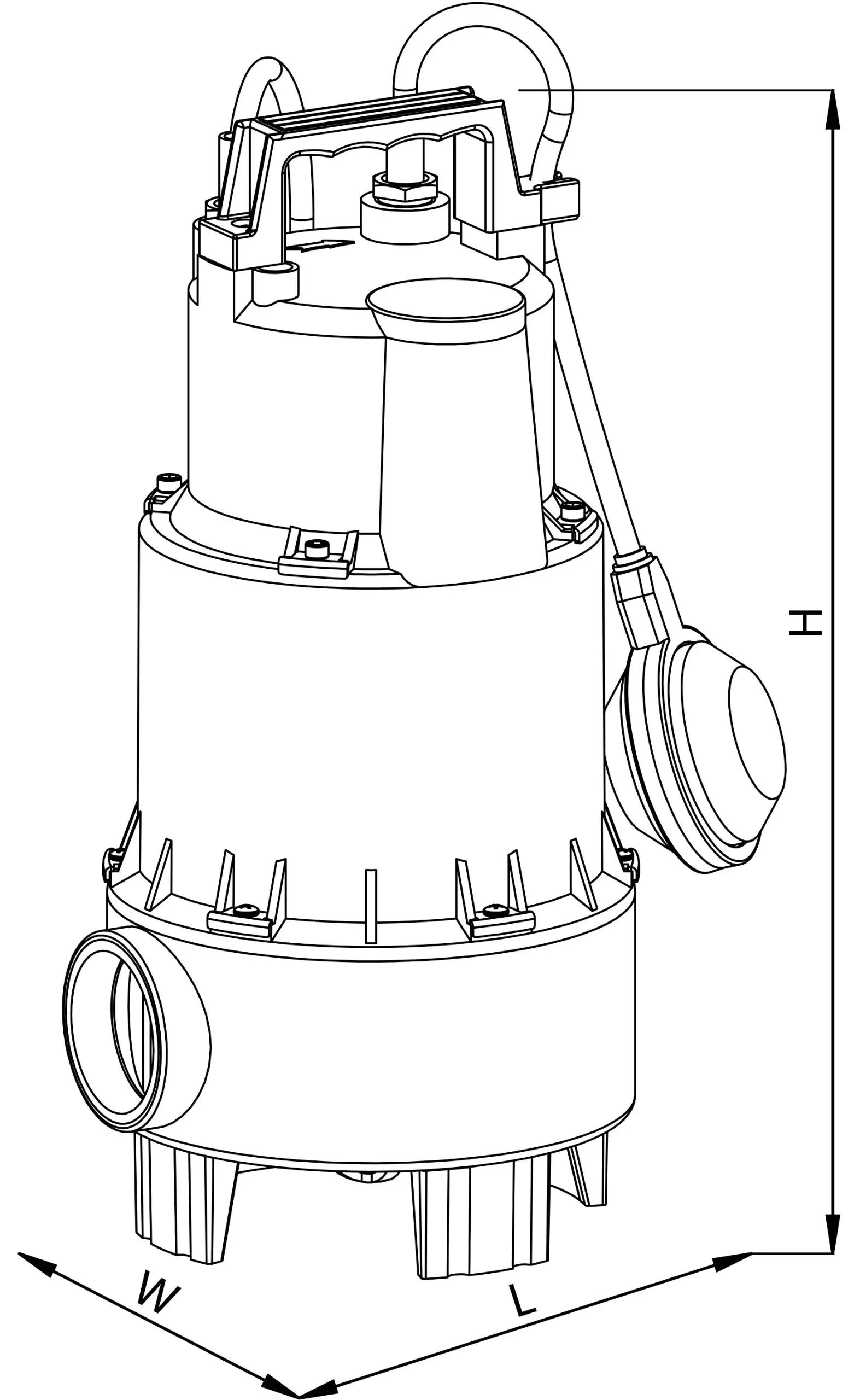

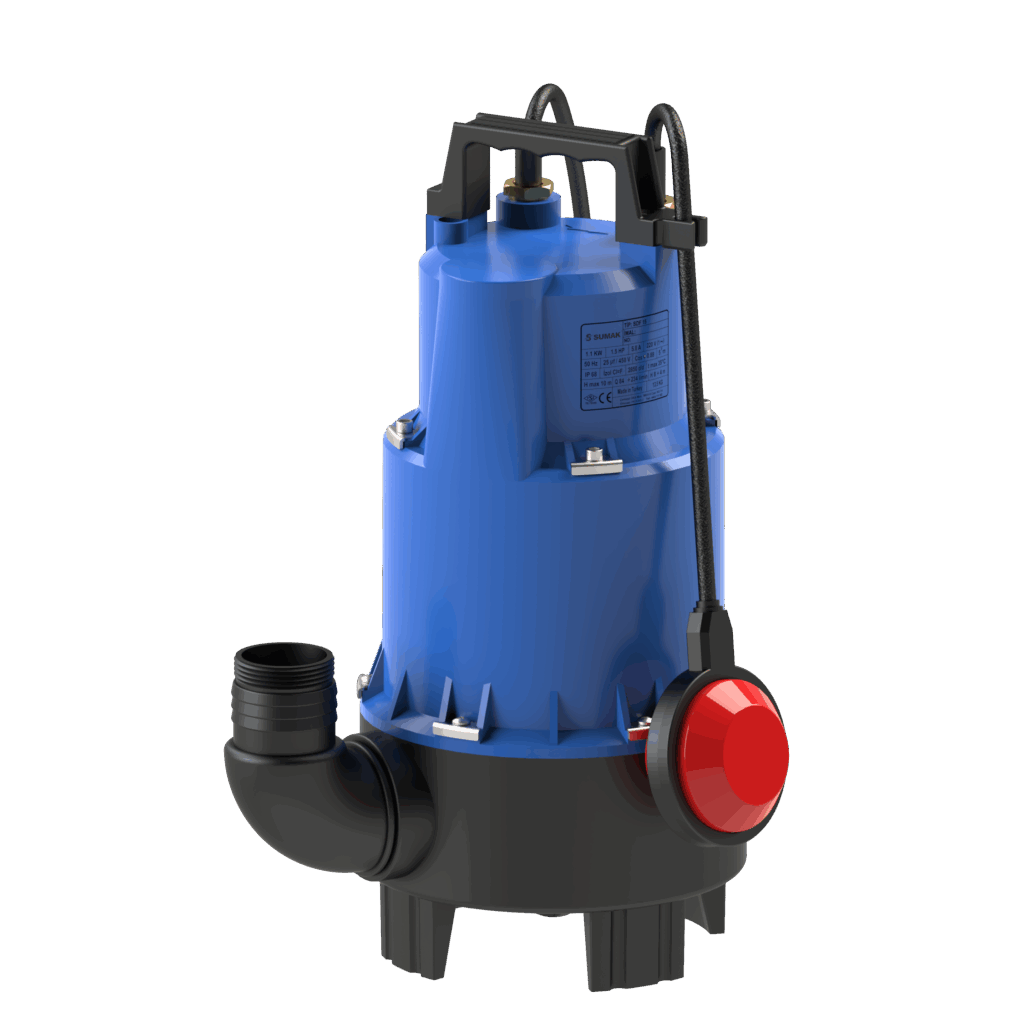

SDF12 - SDF15 - SDF18
Definition
These pumps with techno polymer body and stainless steel vortex impeller are easy to portable and automatic operation (with floater) pumps. It is designed for use in pumping septic water containing fibrous solid particles.
These are pumps with a cast motor body, internal thermal protection and automatic reset.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Usage Areas
These pumps are used in residential areas, industrial facilities, to discharge rain and sewage water, waterfalls, basements, ornamental pools, standing water and water containing max. 20 mm particles.
Pump Material Characteristics
| Pump Body | PPH |
| Impeller | AISI 304 INOX |
| Shaft | AISI 304 INOX |
| Flow rate(max) | 18 m³/hour |
| Total head (max) | 12 m |
| Liquid Temperature | 0-30°C |
| Protection Class | IP68 |
| Insulation | CI.F |
| Cable Lenght | 10 m |
| Mechanical Seal | SIC/SIC |
| Pump Durability Pressure (Pmax) | 2 bar |
| Type | Control Panel | Open Impeller | Clossed Impeller | Blade | Stainless(304) | Cast ıron Impeller(GG25) | Noryl Impeller | Thermal protection |
| SDF12 | √ | √ | √ | |||||
| SDF15 | √ | √ | √ | |||||
| SDF18 | √ | √ | √ |
Technical Specifications
| MOTOR | PUMP | ||||||||||||||||||||
| Type | KW | HP | V | Hz | A | RPM | Hm | CAPACITOR uf Vc | OUTPUT | ∇ | W | L | H | KG | m³/h | 3 | 6 | 9 | 11 | 16 | |
| SDF12 | 0.75 | 1 | 220 | 50 | 4.5 | 2900 | 7 | 25 | 450 | 2″ | 7 | 185 | 195 | 400 | 14 | mss | 7 | 6 | 5 | 4 | – |
| SDF15 | 1.1 | 1.5 | 220 | 50 | 5.2 | 2900 | 10 | 25 | 450 | 2″ | 7 | 185 | 195 | 400 | 14 | 9 | 8 | 7 | 6 | 3 | |
| SDF18 | 1.35 | 1.8 | 220 | 50 | 6 | 2900 | 12 | 30 | 450 | 2″ | 7 | 185 | 195 | 400 | 14.5 | 11 | 10 | 8 | 7 | 5 | |

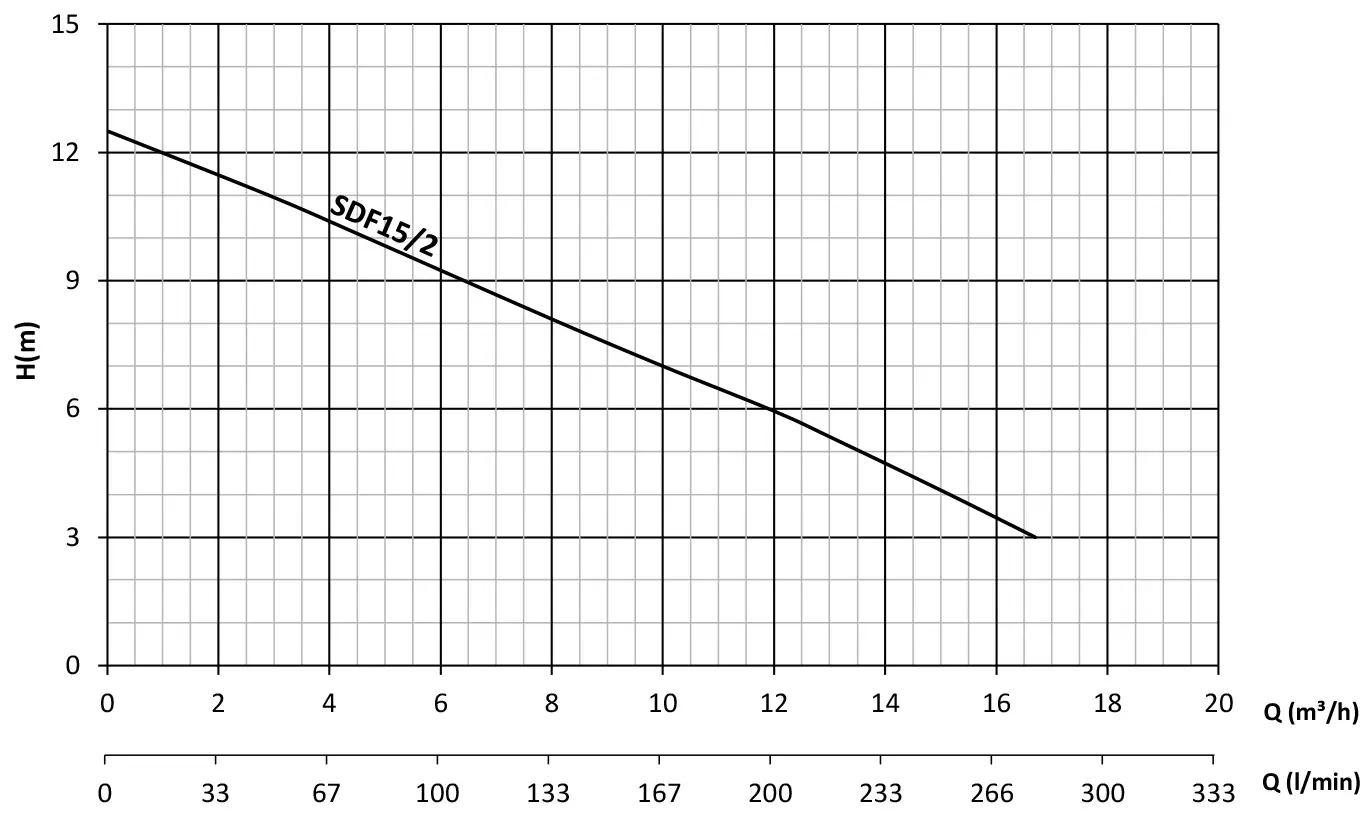

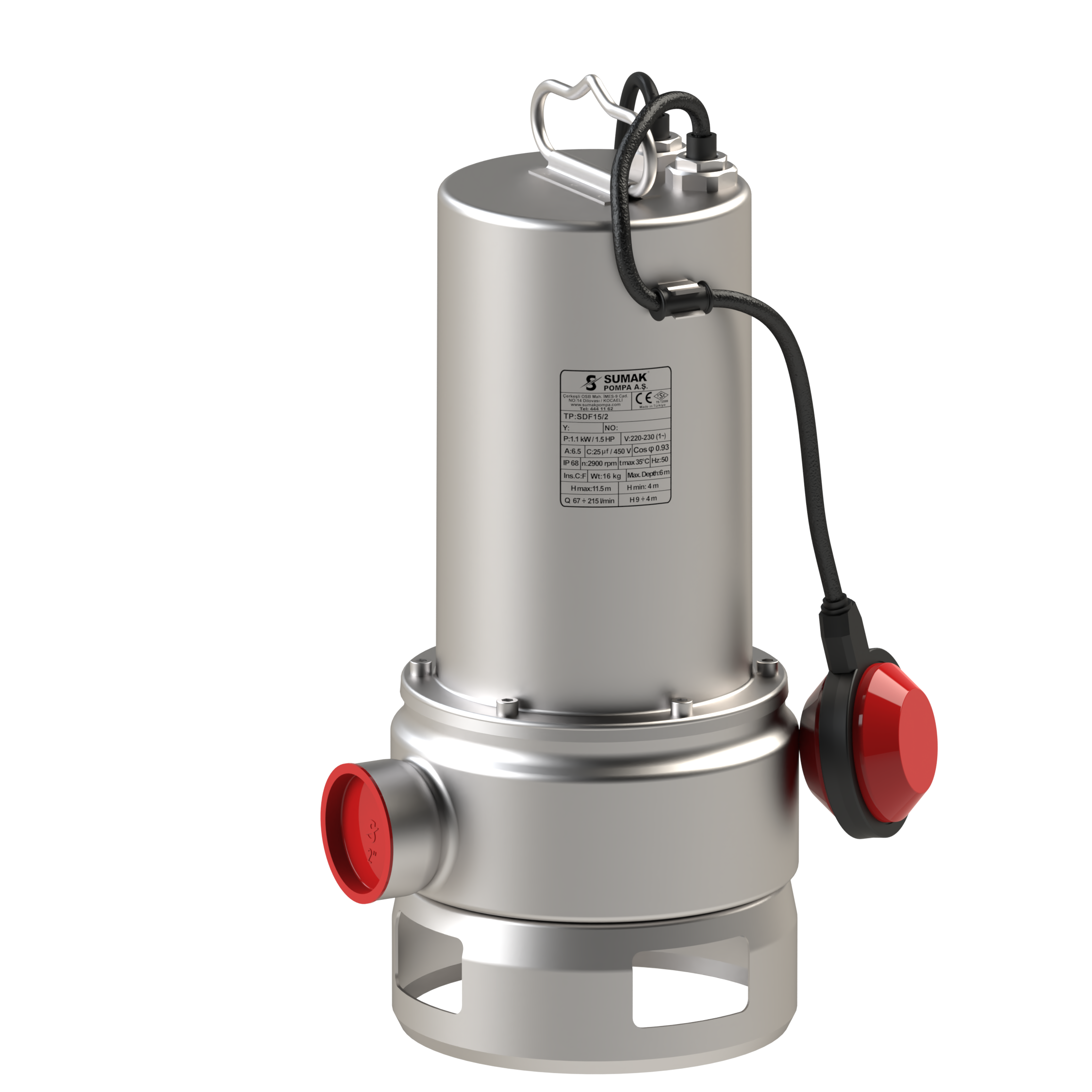

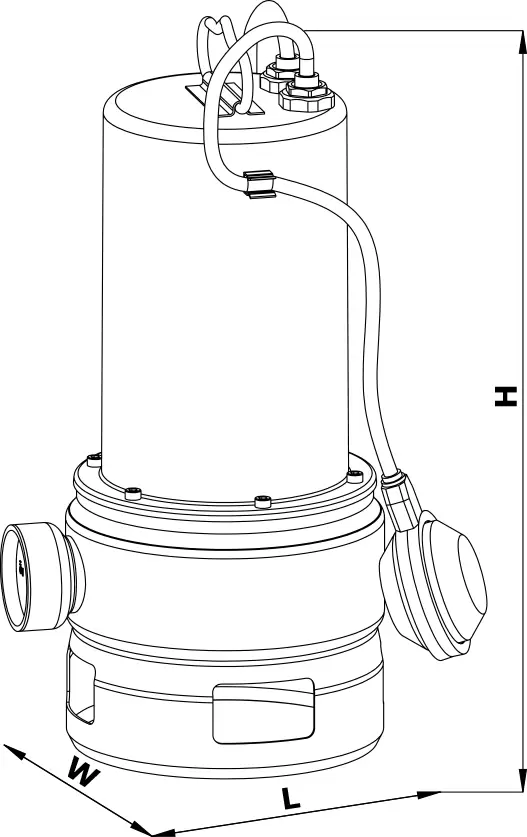

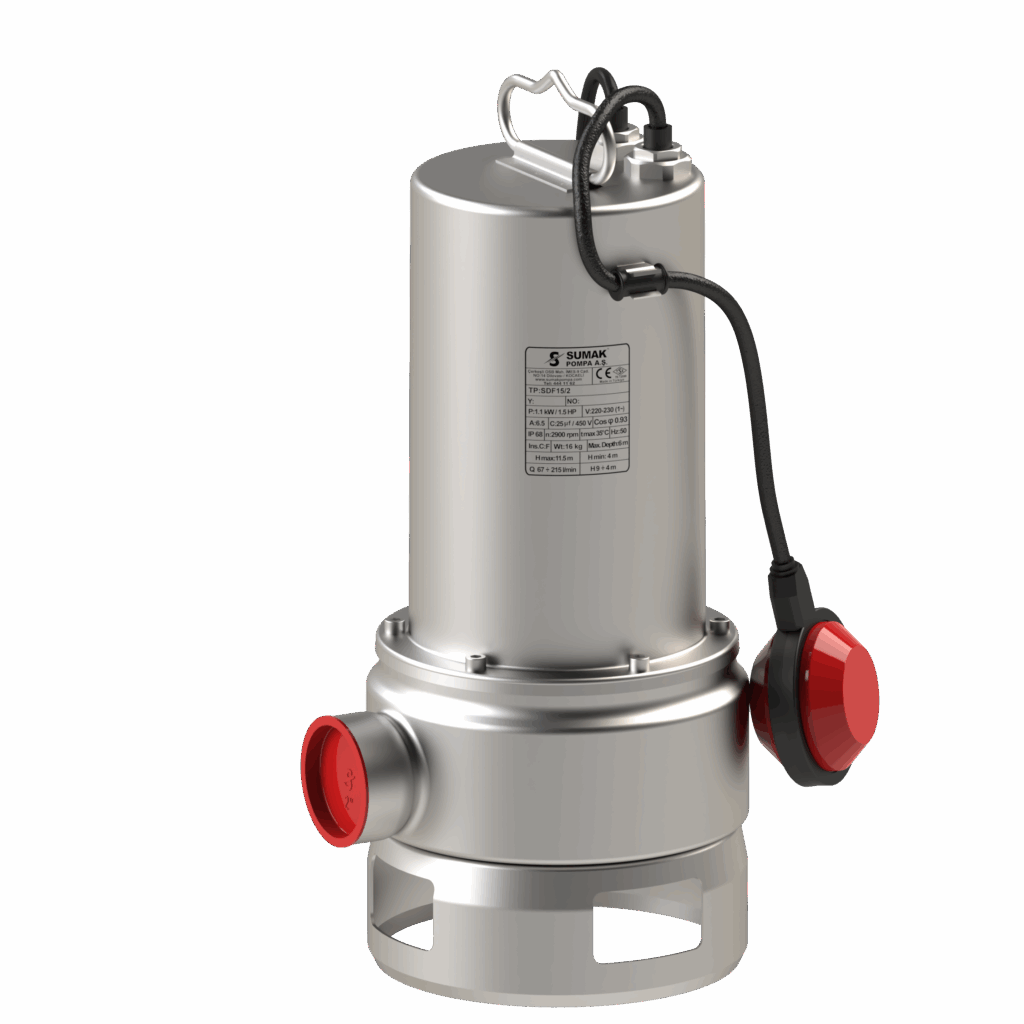

SDF15/2
Definition
They are easily portable, automatic working (with a floater) pumps with a complete stainless body and stainless vortex impeller. It is designed for use in the printing of slightly corrosive corrosive liquids, in the printing of septic waters containing fibrous solid particles.
Thanks to the oil-cooled engine design, it has a long service life and provides quiet operation.
It is manufactured at 50 Hz and 60 Hz frequencies.
Usage Areas
These pumps with completely stainless steel body and stainless steel vortex impeller are easy to portable and automatic operation (with floater) pumps. It is designed to be used in the pumping of few abrasive corrosive liquids and in the pumping of septic water containing fibrous solid particles.
It provides long life and quiet operation due to its oil cooled engine design.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Pump Material Characteristics
| Pump Body | AISI 304 INOX |
| Impeller | AISI 304 INOX |
| Shaft | AISI 304 INOX |
| Flow rate (max) | 17 m³/hour |
| Total head (max) | 12.5 m |
| Liquid Temperature | 0-30°C |
| Protection Class | IP68 |
| Insulation | CI.F |
| Cable Lenght | 10 m |
| Mechanical Seal | SIC/SIC |
| Pump Durability Pressure (Pmax) | 4 bar |
| Type | Control panel | Open Impeller | Closed Impeller | Blade | Stainless(304) | Cast Iron(GG25) | Noryl Impeller | Thermal Protection |
| SDF15/2 | √ | √ | √ |
Technical Specifications
| MOTOR | PUMP | ||||||||||||||||||||
| TYPE | KW | HP | V | Hz | A | RPM | Hm | CAPACITOR uf Vc | OUTPUT | ∇ | W | L | H | KG | m³/h | 3 | 6 | 9 | 11 | 16 | |
| SDF15/2 | 1.1 | 1.5 | 220 | 50 | 6.5 | 2900 | 12.5 | 25 | 450 | 2″ | 7 | 185 | 215 | 395 | 16 | mss | 11 | 9 | 8 | 7 | 3.5 |

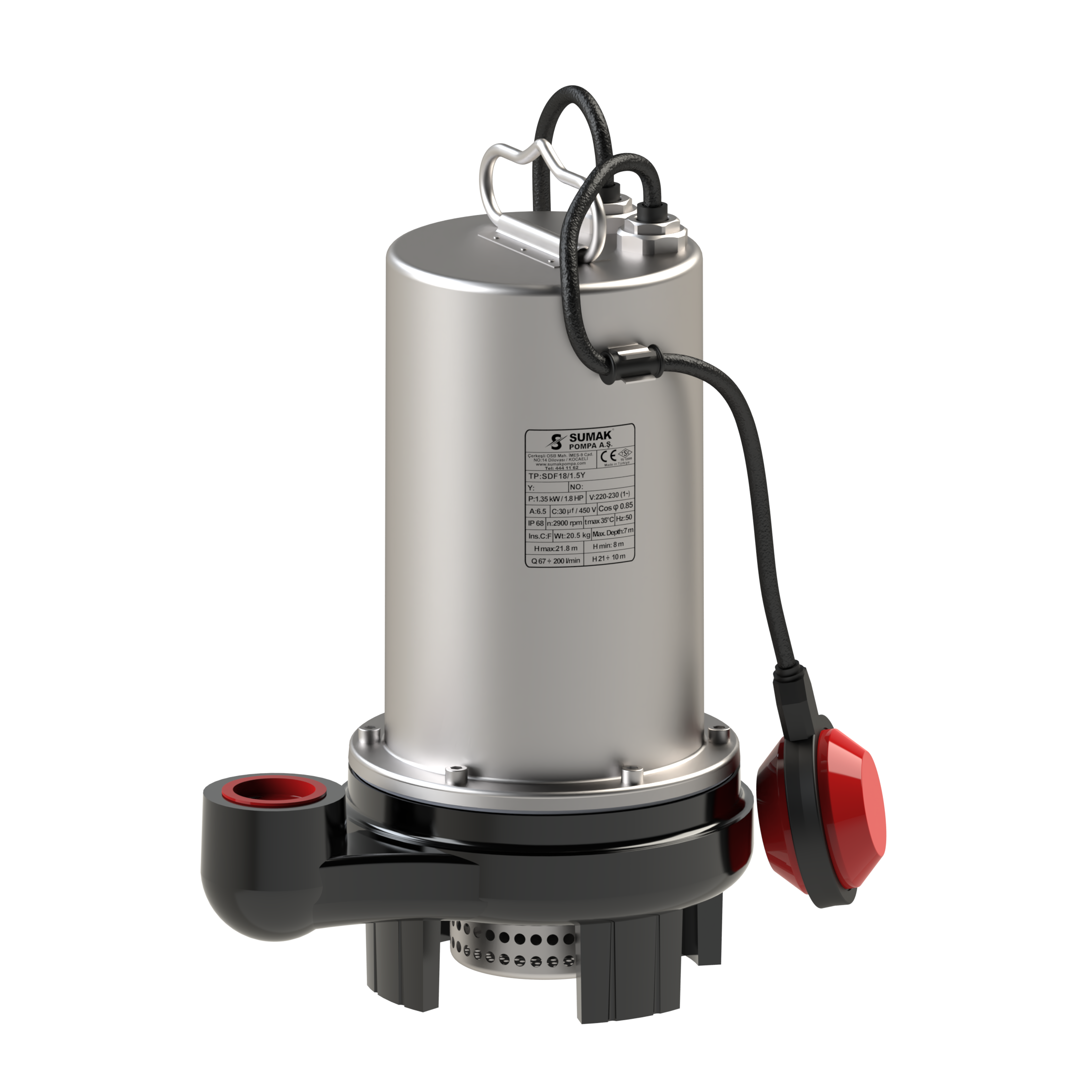

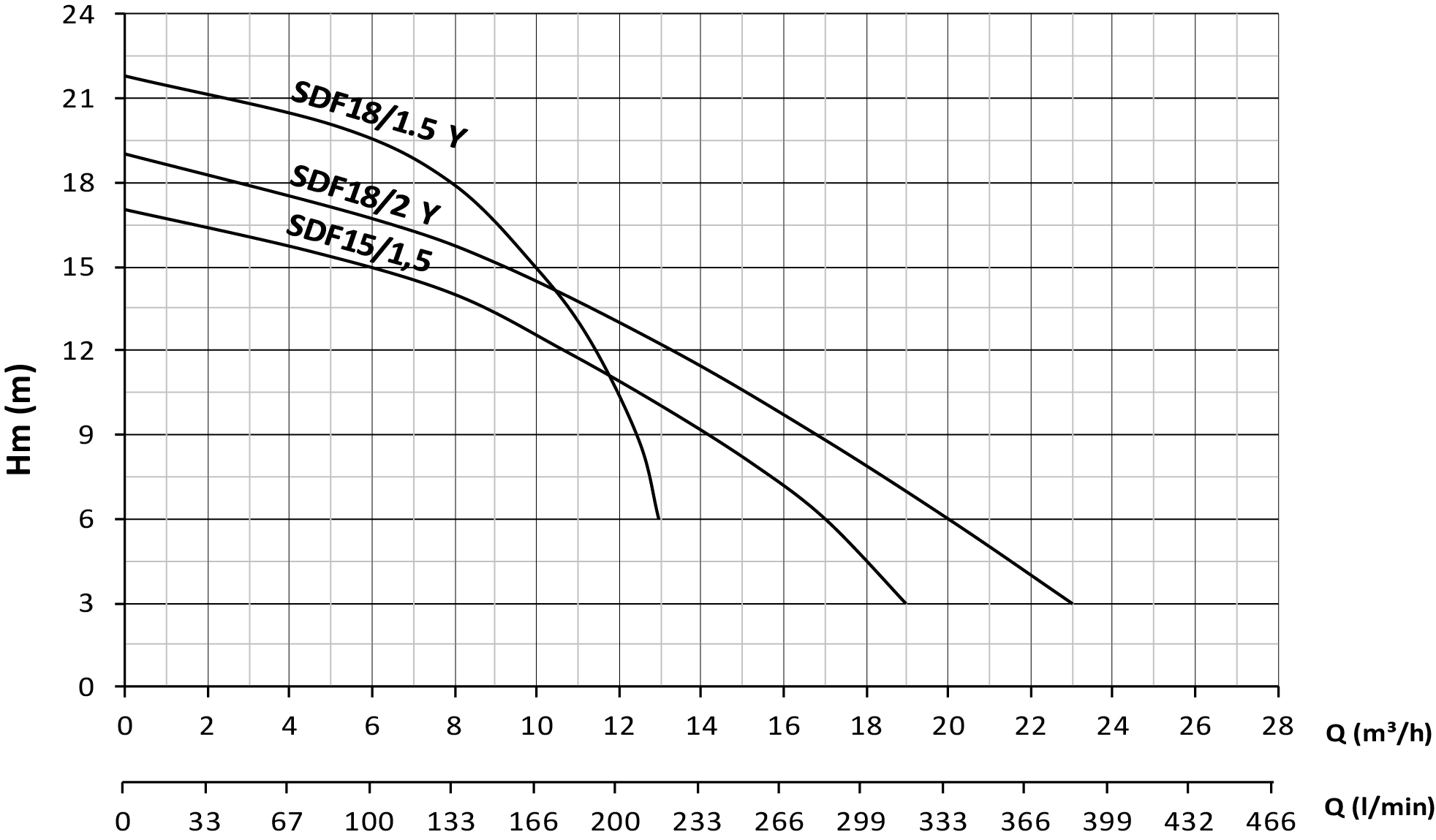

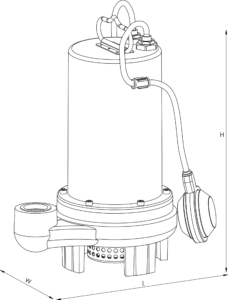

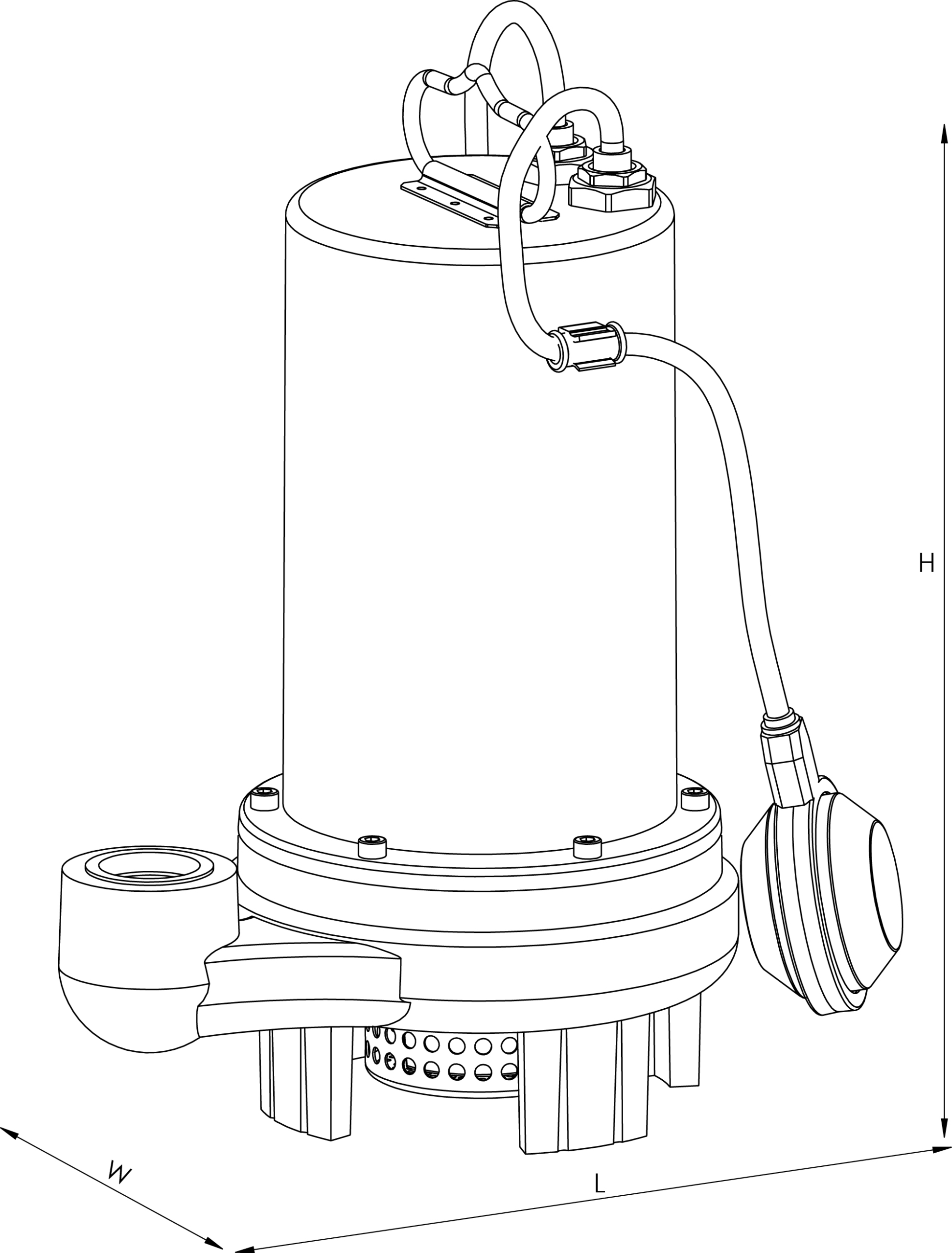

SDF15/1.5

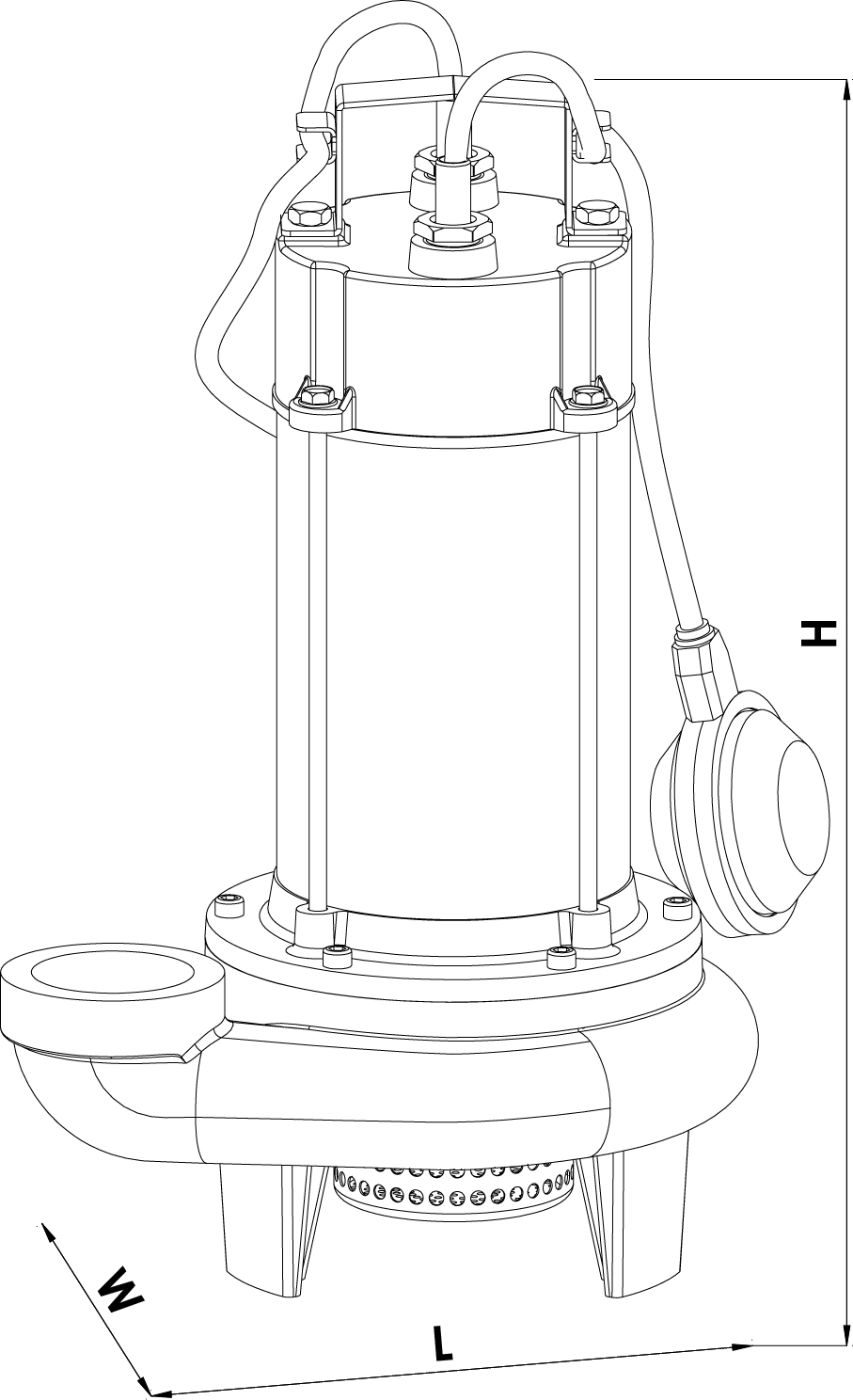

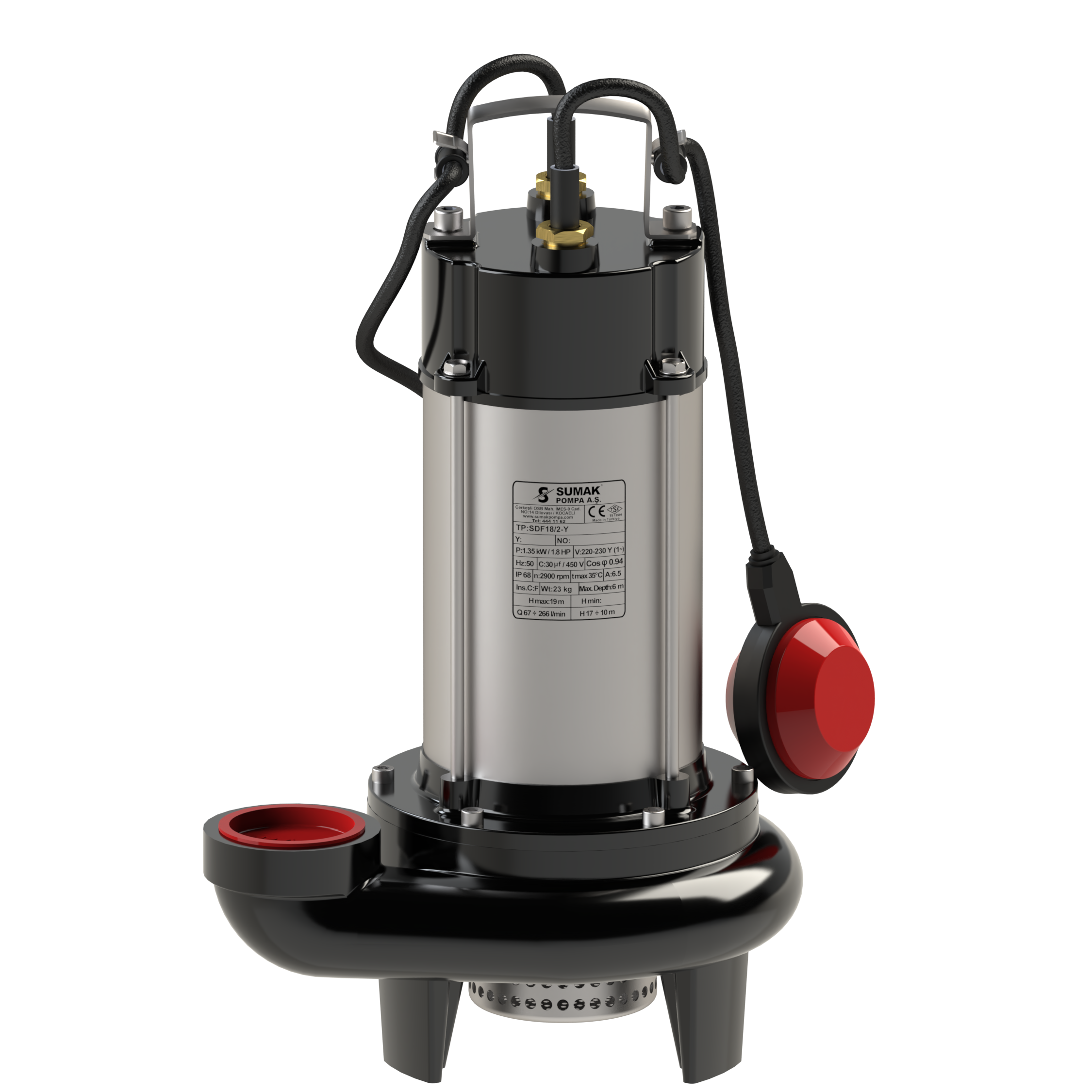

SDF18/2-Y
Definition
These high altitude pumps with a stainless body are easily portable, easy to install and automatically operating (with floaters). It is designed for use in the drainage of clean or few dirty water.
Having a suction filter provides an advantage against clogging risks.
It has a long life and provides quiet operation due to its oil cooled engine design.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Usage Areas
These pumps are used in residential areas, basement water and elevator shafts, industrial facilities, waterfalls, basement water, ornamental pools, standing water and for the discharge of water containing max. 6 mm particles
Pump Material Characteristics
| Pump Body | AISI 304 INOX |
| Impeller | AISI 304 INOX(SDF15/1.5)- GG25 CAST IRON (SDF18/2 Y) – NORYL(SDF18/1.5 Y) |
| Shaft | AISI 304 INOX |
| Flow Rate(max) | 23 m³/hour |
| Total Head (max) | 22 m |
| Liquid Temperature | 0-30°C |
| Protection Class | IP68 |
| Insulation | CI.F |
| Cable Lenght | 10 m |
| Mechanical Seal | SIC/SIC |
| Pump Durability Pressure (Pmax) | 4 bar |
| Type | Control Panel | Open Impeller | Closed Impeller | Blade | Stainless(304) | Cast Iron Impeller(GG25) | Noryl Impeller |
| SDF15/1.5 | √ | √ | √ | ||||
| SDF18/1.5Y | √ | √ | √ | ||||
| SDF18/2Y | √ | √ | √ |
Technical Specifications
| MOTOR | PUMP | ||||||||||||||||||||
| TYPE | KW | HP | V | Hz | A | RPM | Hm | CAPACITOR uf Vc | output | ∇ | W | L | H | KG | m³/h | 3 | 8 | 12 | 16 | 20 | |
| SDF15/1.5 | 1.1 | 1.5 | 220 | 50 | 6.2 | 2900 | 17 | 25 | 450 | 1½ | 7 | 185 | 260 | 350 | 21 | mss | 16.5 | 14 | 11 | 7.5 | – |
| SDF18/1.5 Y | 1.35 | 1.8 | 220 | 50 | 6.5 | 2900 | 22 | 25 | 450 | 1½ | 7 | 185 | 260 | 350 | 20 | 21 | 18 | 10 | – | – | |
| SDF18/2Y | 1.35 | 1.8 | 220 | 50 | 6.5 | 2900 | 19 | 30 | 450 | 2″ | 7 | 200 | 280 | 430 | 23 | 18 | 16 | 13 | 10 | 6 | |

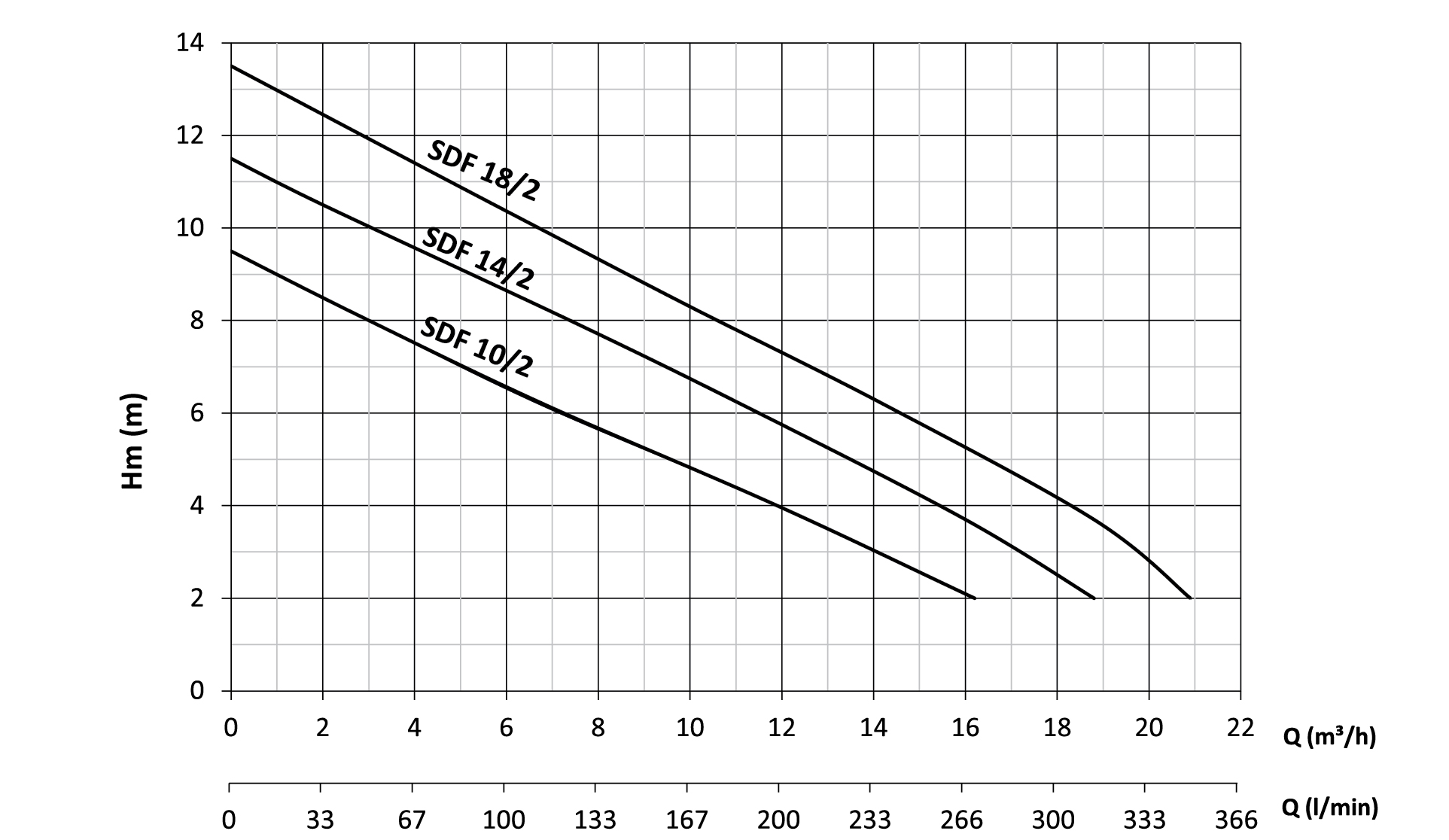

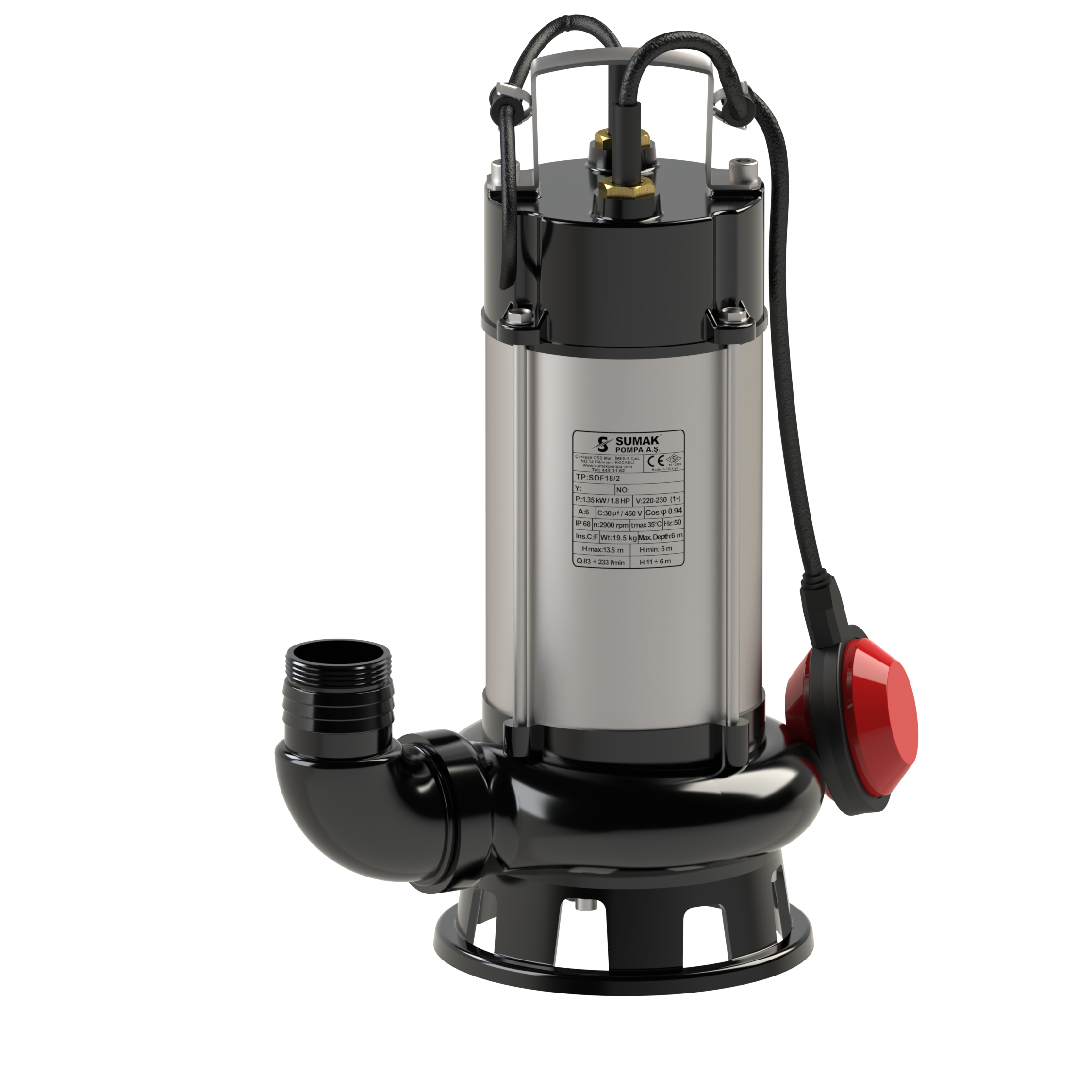

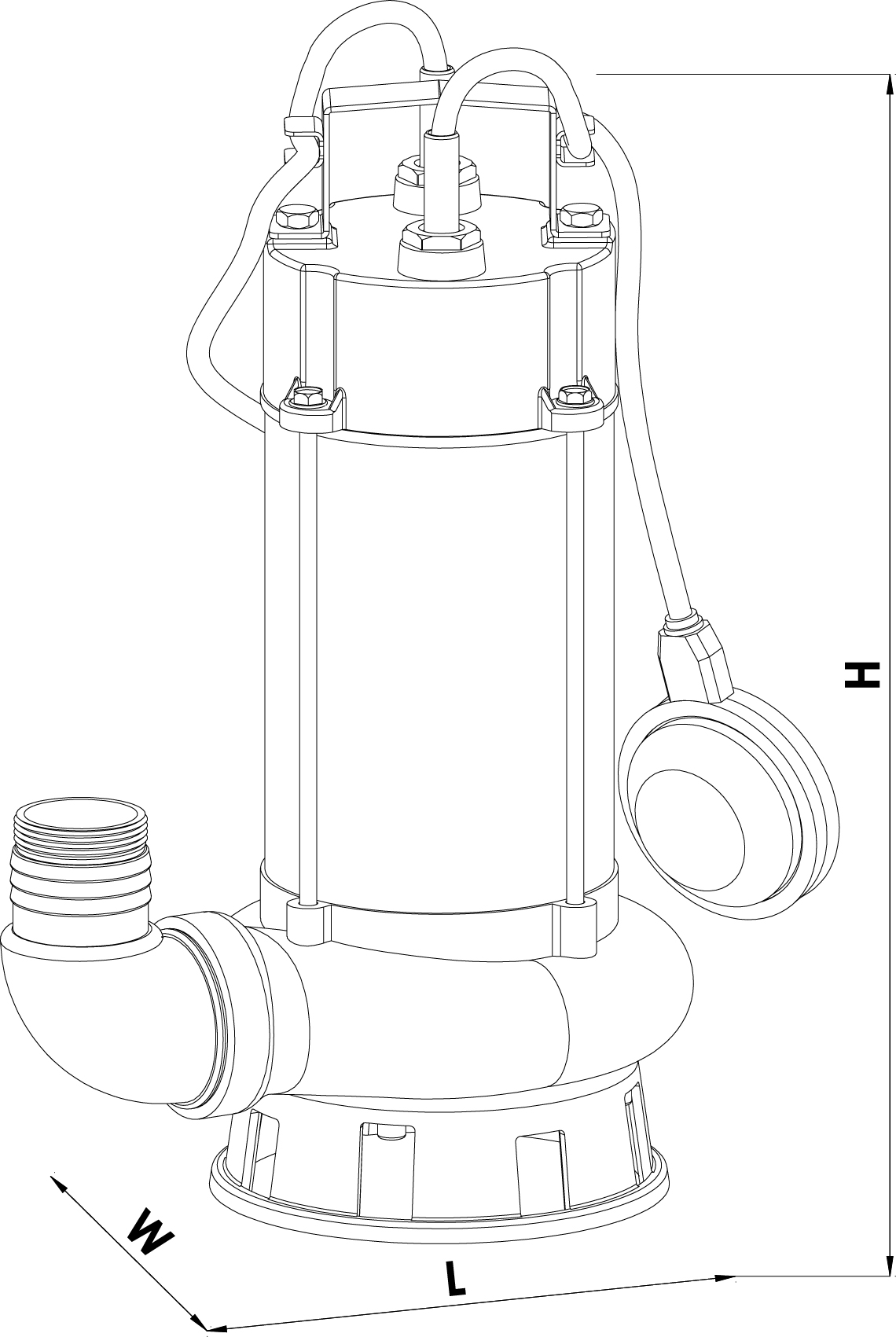

SDF18/2
Definition
These pumps with stainless steel body and cast iron vortex impeller are easy to portable and automatic operation (with floater) pumps. It is designed to be used in the pumping of septic water containing fibrous solid particles.
It provides long life and quiet operation due to its oil cooled engine design.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Usage Areas
In residential units and industrial facilities, max. it is used in the discharge of waters containing 20 mm particles; in the discharge of rain and sewage waters; in waterfalls, basements, ornamental pools and puddles.
Pump Material Characteristics
| Pump Body | AISI 304 INOX |
| Impeller | GG25 CAST IRON |
| Shaft | AISI 304 INOX |
| Flow Rate(max) | 21 m³/hour |
| Total Head (max) | 13.5 m |
| Liquid Temperature | 0-30°C |
| Protection Class | IP68 |
| Insulation | CI.F |
| Cable Lenght | 10 m |
| Mechanical Seal | SIC/SIC |
| Pump Durability Pressure (Pmax) | 6 bar |
| Type | Control Panel | Open Impeller | Closed Impeller | Blade | Stainless(304) | Cast Iron Impeller(GG25) | Noryl Impeller |
| SDF10/2 | √ | √ | √ | ||||
| SDF14/2 | √ | √ | √ | ||||
| SDF18/2 | √ | √ | √ |
Technical Specifications
| MOTOR | PUMP | ||||||||||||||||||||
| TYPE | KW | HP | V | Hz | A | RPM | Hm | CAPACITOR uf Vc | OUTPUT | ∇ | W | L | H | KG | m³/h | 2 | 6 | 10 | 16 | 20 | |
| SDF10/2 | 0.75 | 1 | 220 | 50 | 4.5 | 2900 | 9.5 | 25 | 450 | 2″ | 7 | 175 | 205 | 410 | 18.5 | mss | 8.5 | 6.5 | 5 | 2 | – |
| SDF14/2 | 1.1 | 1.5 | 220 | 50 | 5.5 | 2900 | 11.5 | 25 | 450 | 2″ | 7 | 175 | 205 | 410 | 19.5 | 10.5 | 8.5 | 7 | 4 | – | |
| SDF18/2 | 1.35 | 1.8 | 220 | 50 | 6 | 2900 | 13.5 | 30 | 450 | 2″ | 7 | 175 | 205 | 410 | 20 | 12.5 | 10.5 | 8 | 5 | 3 | |
| SDT18/2 | 1.35 | 1.8 | 380 | 50 | 3 | 2900 | 13.5 | – | – | 2″ | 7 | 175 | 205 | 410 | 22 | 12.5 | 10.5 | 8 | 5 | 3 | |

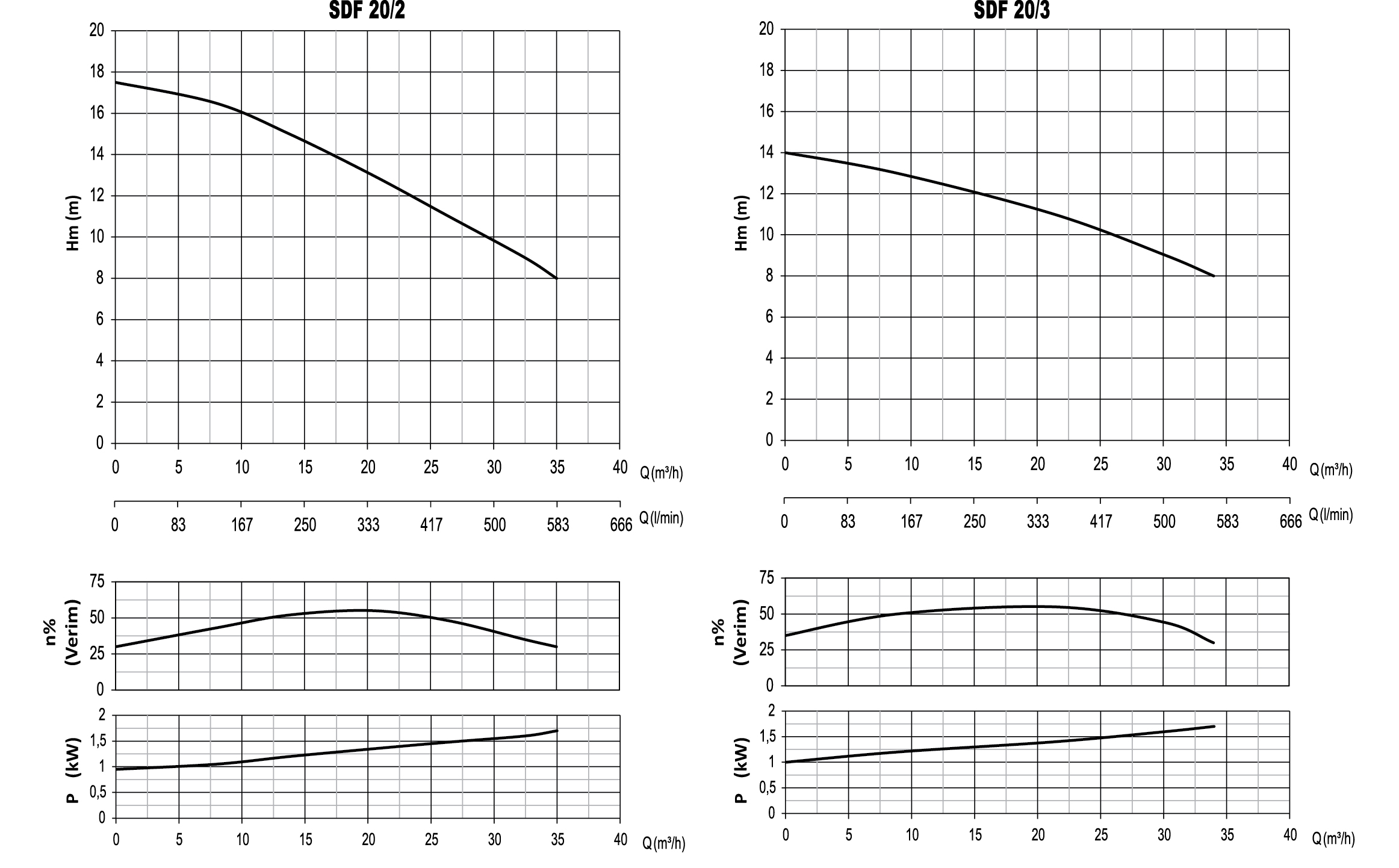

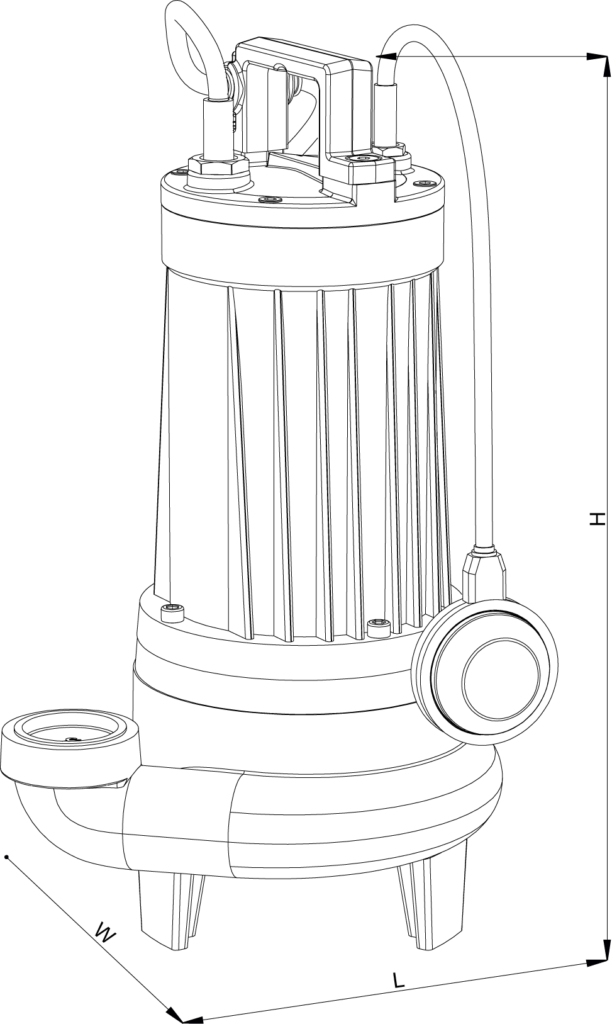

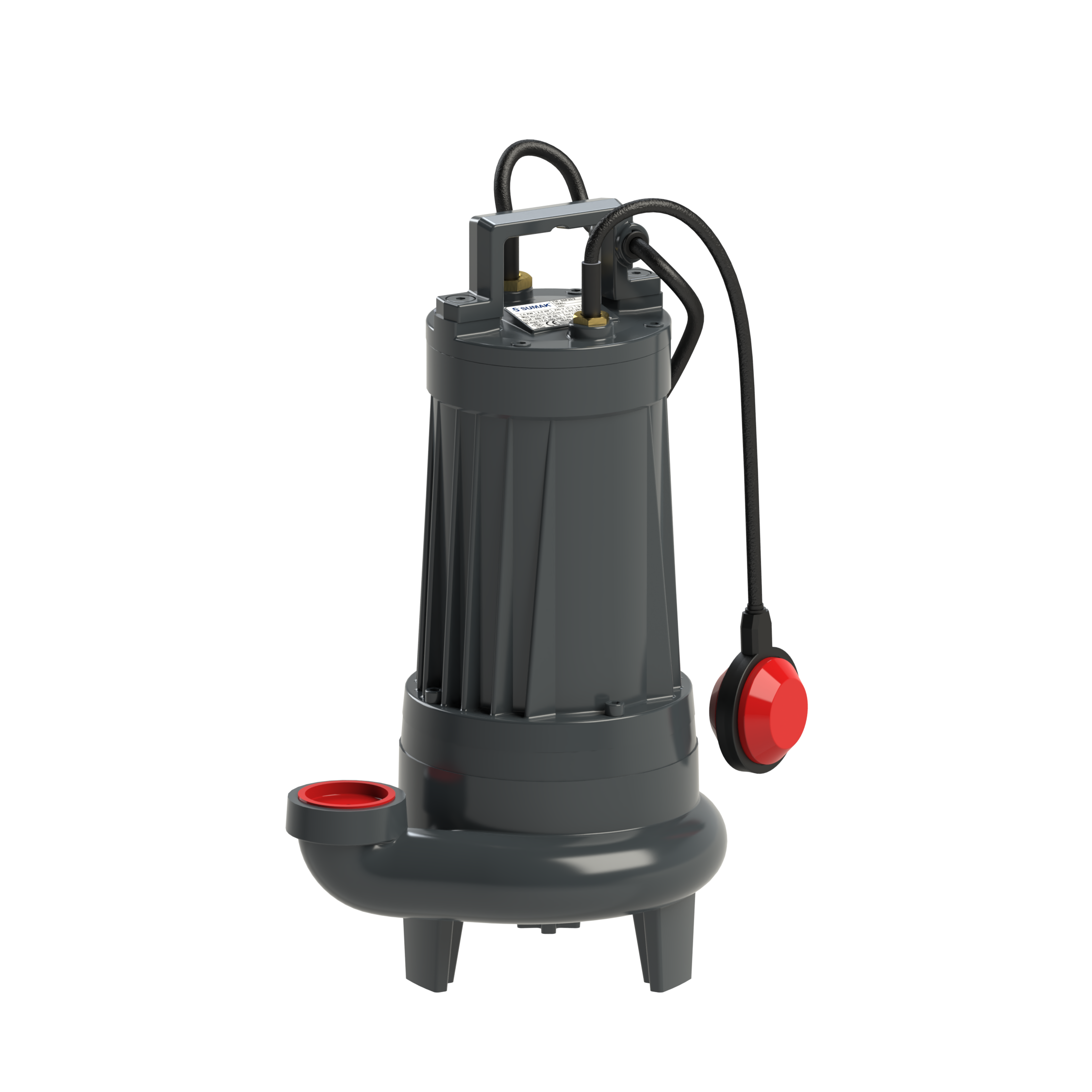

SDF20/2
Definition
These pumps with cast iron body and cast iron impeller are automatically operating ( With floater ) pumps. It is designed to be used in the pumping of septic water containing fibrous solid particles.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
.
Usage Areas
In residential units and industrial facilities, in high-flow earthmoving pits, max. it is used in the evacuation of waters containing 30 mm particles; in the discharge of rain and sewage waters; in waterfalls, basements, ornamental pools and puddles.
Pump Material Characteristics
| Pump Body | GG25 CAST IRON |
| Impeller | GG25 CAST IRON |
| Shaft | AISI 304 INOX |
| Flow Rate (max) | 40 m³/hour |
| Total Heas (max) | 17 m |
| Liquid Temperature | 0-30°C |
| Protection Class | IP68 |
| Insulation | CI.F |
| Cable Lenght | 10 m |
| Mechanical Seal | SIC/SIC |
| Pump Durability Pressure (Pmax) | 6 bar |
Technical Specifications
| Type | Control Panel | Open Impeller | Closed Impeller | Blade | Stainless(304) | Cast Iron Impeller(GG25) | Noryl Impeller |
| SDF20/2 | √ | √ | √ | ||||
| SDF20/3 | √ | √ | √ |
| MOTOR | PUMP | ||||||||||||||||||||
| TYPE | KW | HP | V | Hz | A | RPM | Hm | CAPACITOR uf Vc | output | ∇ | W | L | H | KG | m³/h | 5 | 15 | 25 | 30 | 35 | |
| SDF20/2 | 1.6 | 2.2 | 220 | 50 | 9.5 | 2900 | 17.5 | 50 | 450 | 2″ | 7 | 240 | 309 | 520 | 44.5 | mss | 17 | 15 | 11 | 10 | 8 |
| SDT20/2 | 1.6 | 2.2 | 380 | 50 | 3.4 | 2900 | 17.5 | – | – | 2″ | 7 | 240 | 309 | 520 | 45 | 17 | 15 | 11 | 10 | 8 | |
| SDF20/3 | 1.6 | 2.2 | 220 | 50 | 10 | 2900 | 14 | 50 | 450 | 3″ | 7 | 250 | 350 | 530 | 46 | 13.5 | 12 | 10 | 9 | 8 | |
| SDT20/3 | 1.6 | 2.2 | 380 | 50 | 3.4 | 2900 | 14 | – | – | 3″ | 7 | 250 | 350 | 530 | 46.5 | 13.5 | 12 | 10 | 9 | 8 | |

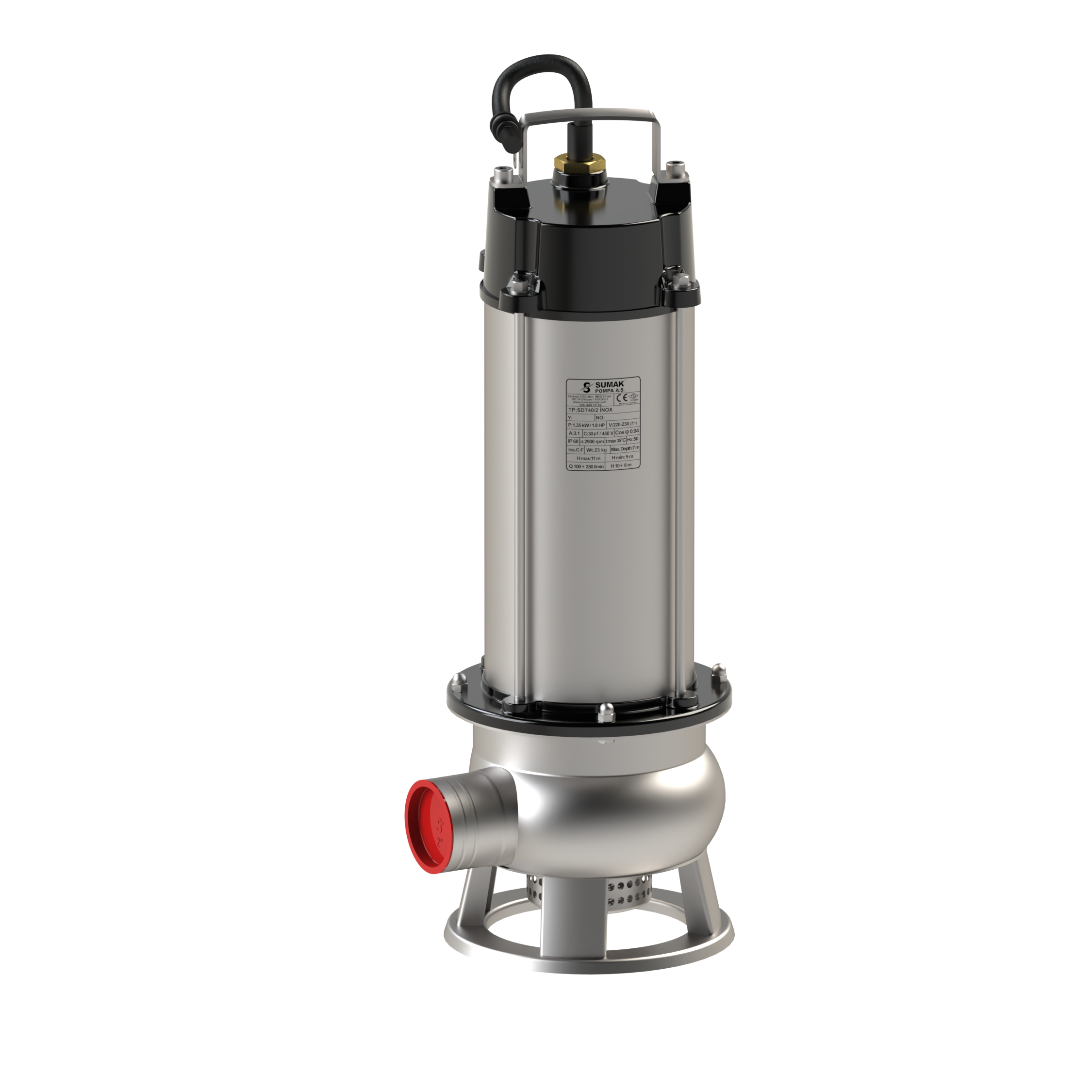

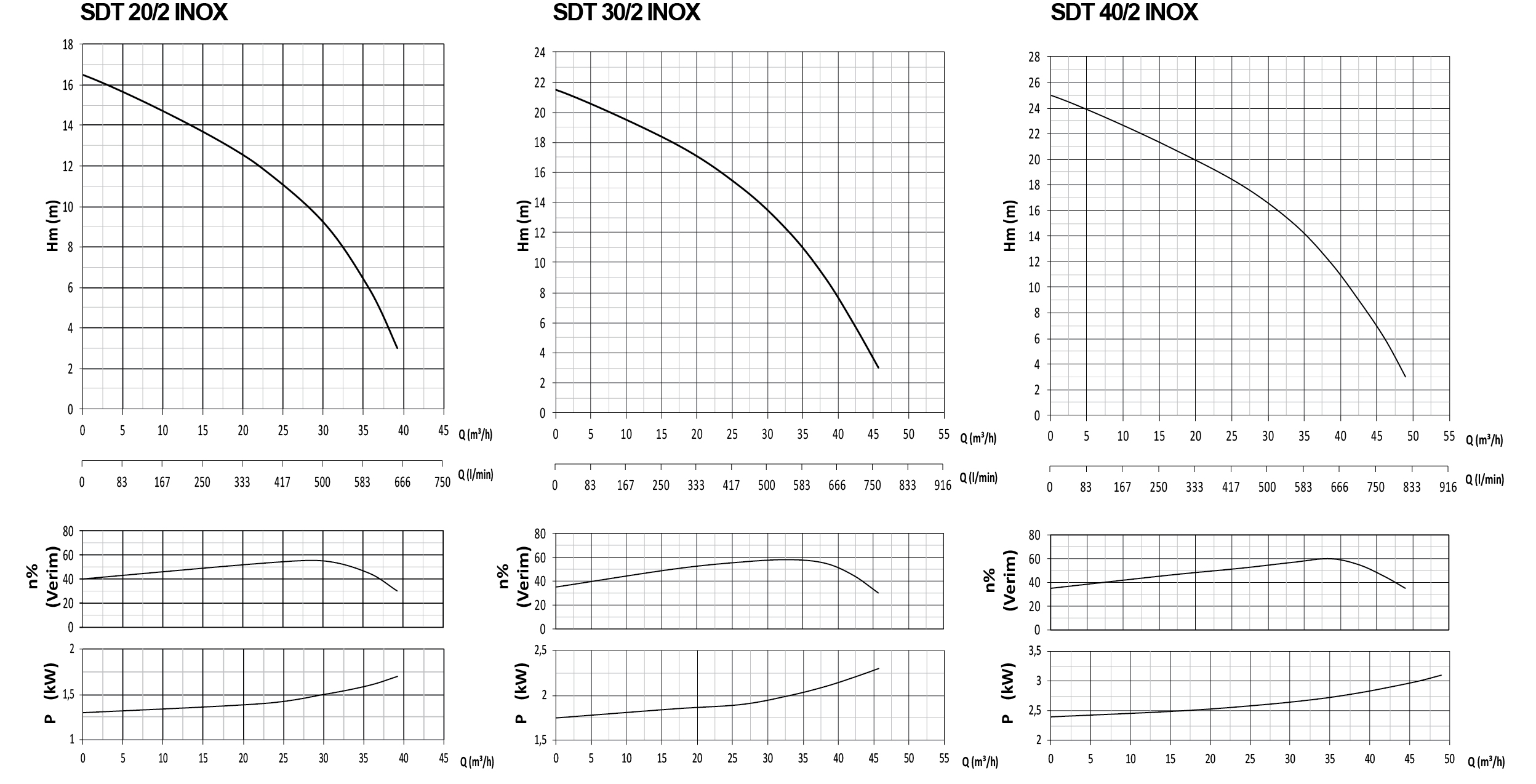

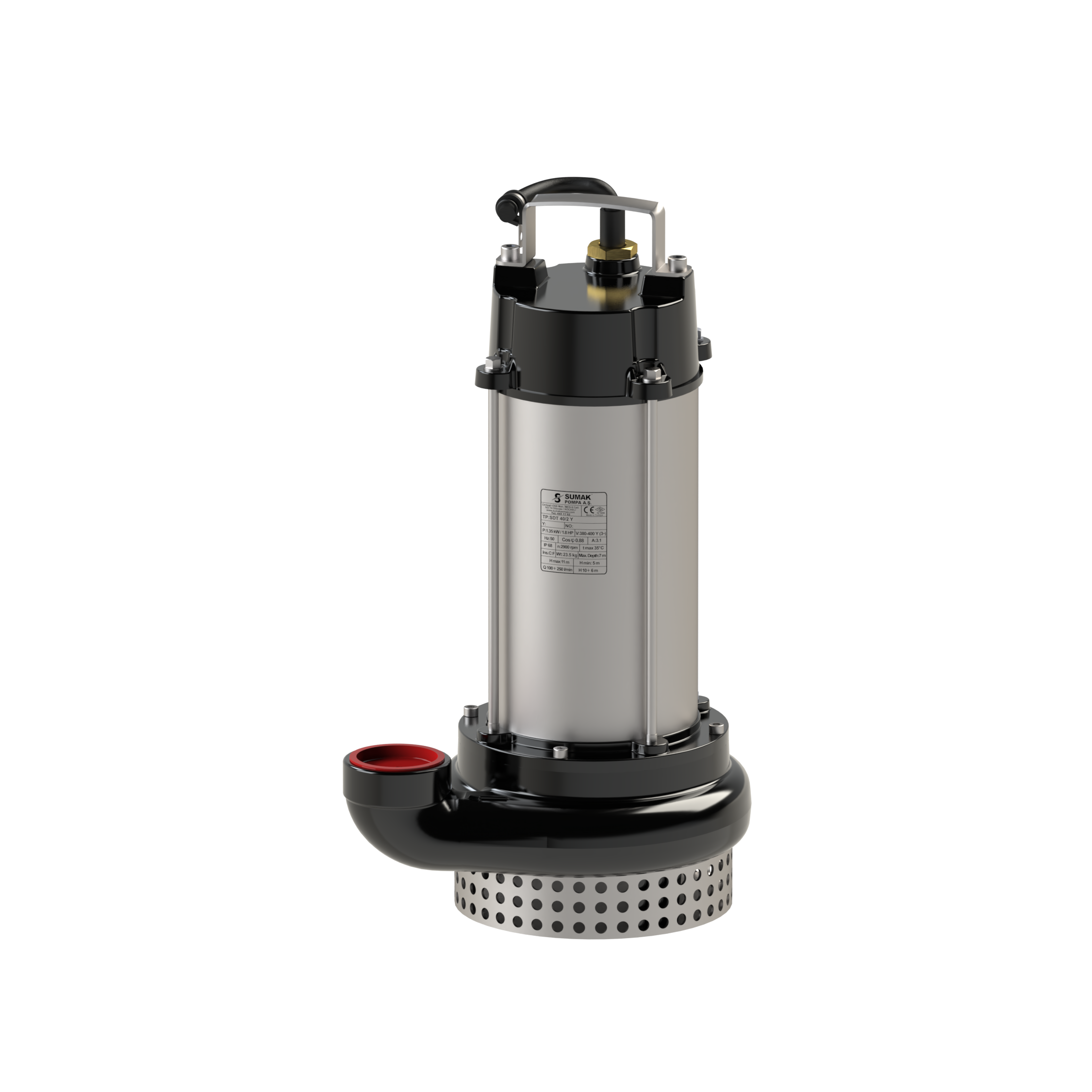

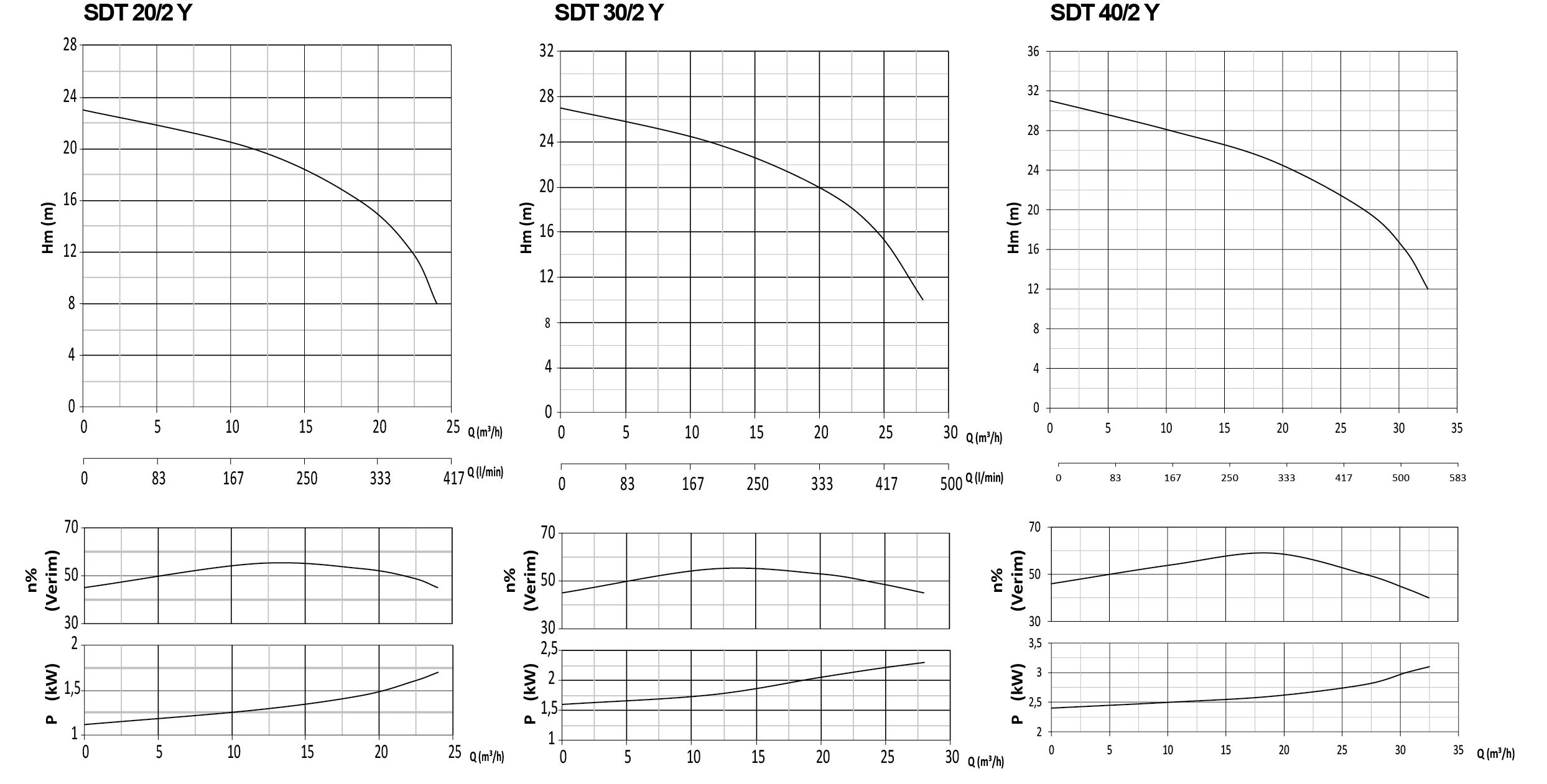

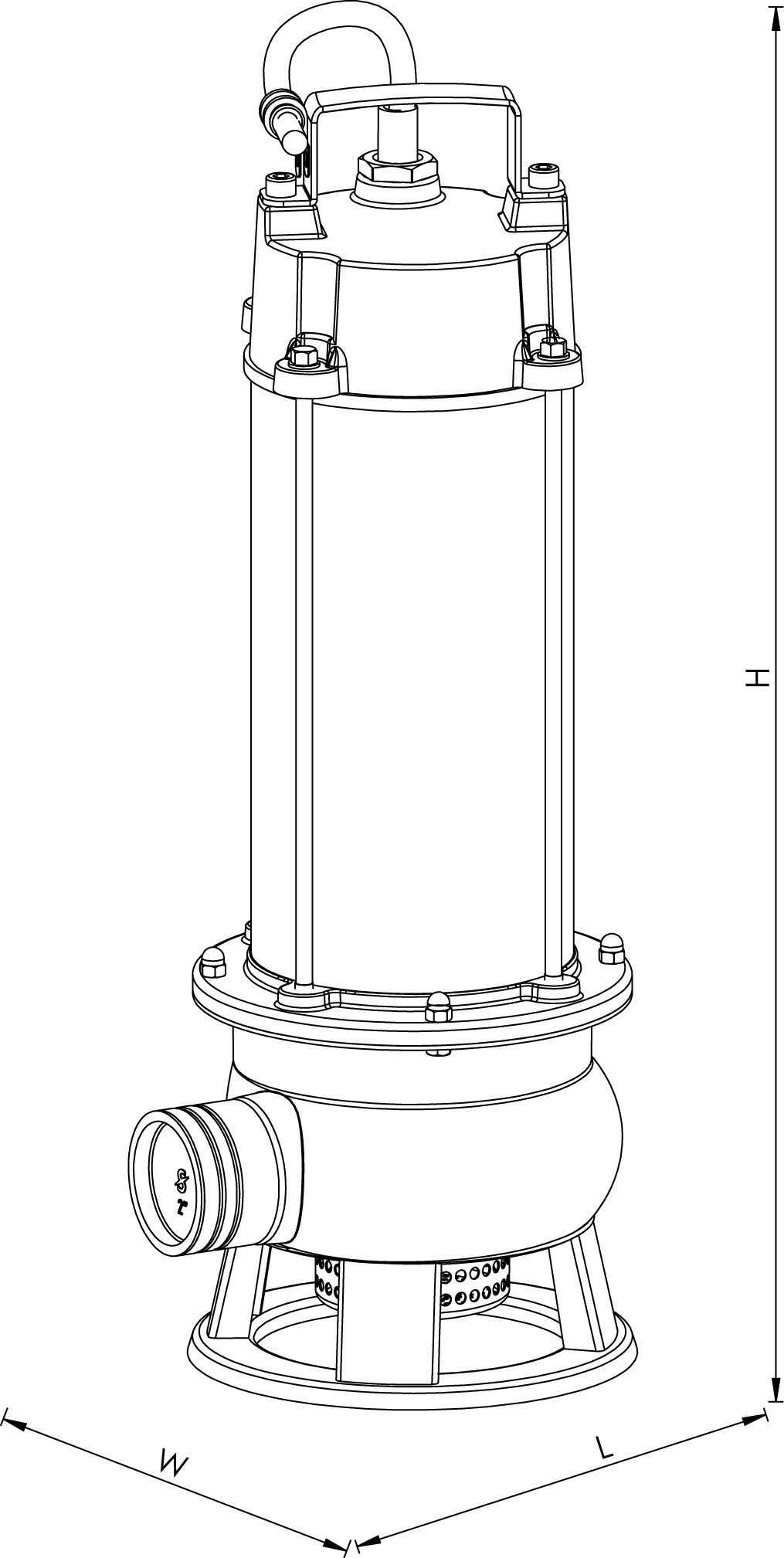

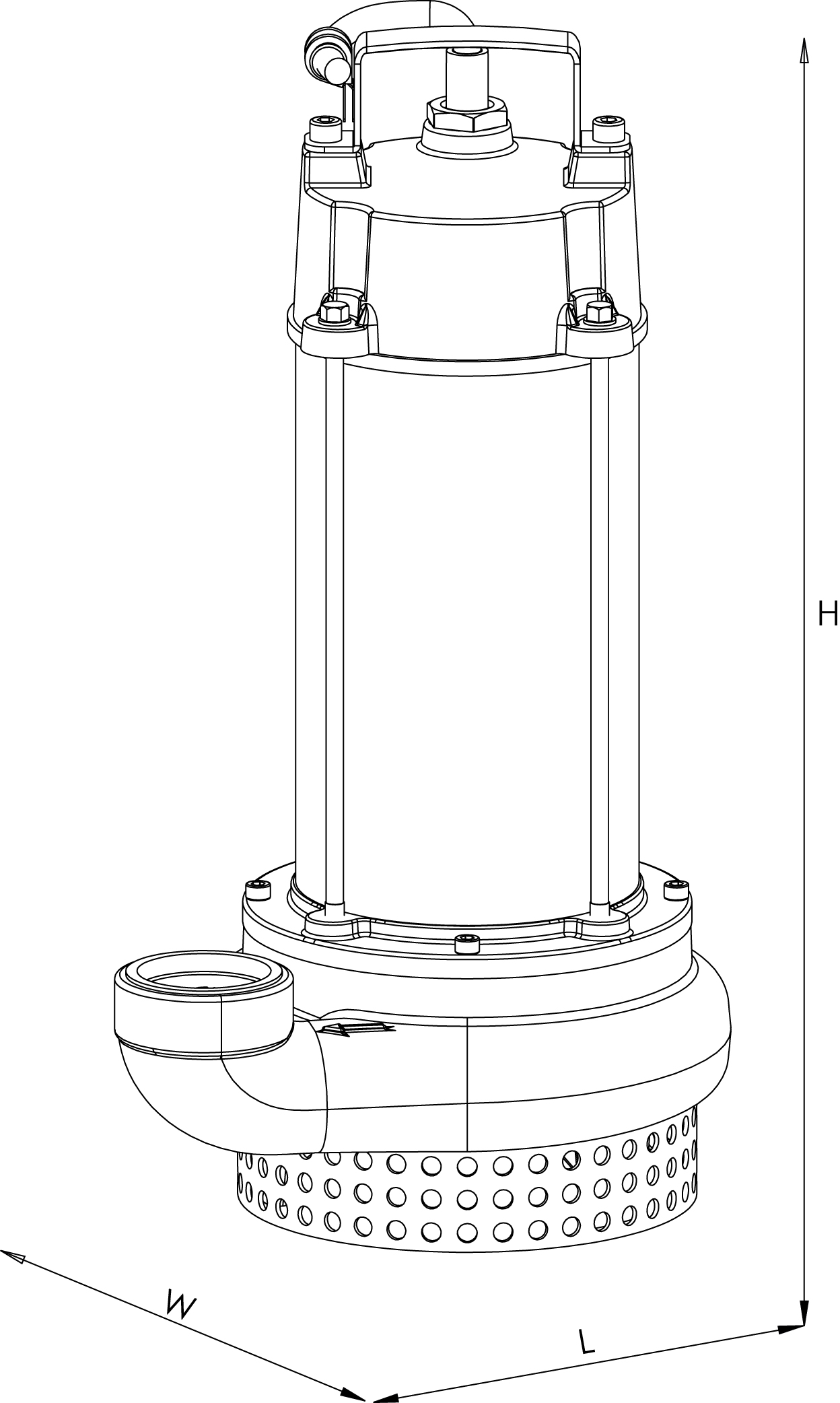

SDT40/2 Y
Definition
These pumps have stainless steel body and cast impeller. It is designed for use in the drainage of clean or few dirty water.
It has a long life and provides quiet operation due to its oil cooled engine design.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Usage Areas
These pumps are used in residential areas, industrial facilities, waterfalls, basements, ornamental pools, standing water and sewage water containing max. 8 mm particles.
Pump Material Characteristics
| Pump Body | AISI 304 INOX |
| Impeller | GG25 CAST IRON |
| Shaft | AISI 304 INOX |
| Flow Rate (max) | 32.5 m³/hour |
| Total Head (max) | 32 m |
| Liquid Temperature | 0-30°C |
| Protection Class | IP68 |
| Insulation | CI.F |
| Cable Lengt | 10 m |
| Mechanical Seal | SIC/SIC |
| Pump Durability Pressure (Pmax) | 6 bar |
| Type | Control Panel | Open Impeller | Closed Impeller | Blade | Stainless(304) | Cast Iron Impeller(GG25) | Noryl Impeller |
| SDT20/2 Y | √ | √ | √ | ||||
| SDT30/2 Y | √ | √ | √ | ||||
| SDT40/2 Y | √ | √ | √ |
Technical Specifications
| MOTOR | PUMP | ||||||||||||||||||||
| TYPE | KW | HP | V | Hz | A | RPM | Hm | CAPACITOR uf Vc | output | ∇ | W | L | H | KG | m³/h | 5 | 10 | 15 | 20 | 30 | |
| SDT20/2 Y | 1.6 | 2.2 | 380 | 50 | 4.2 | 2900 | 23 | – | – | 2″ | 7 | 220 | 290 | 485 | 34 | mss
| 22 | 20.5 | 18 | 15 | – |
| SDF20/2 Y | 1.6 | 2.2 | 220 | 50 | 11.5 | 2900 | 23 | 45 | 450 | 2″ | 7 | 220 | 290 | 485 | 34.5 | 22 | 20.5 | 18 | 15 | – | |
| SDT30/2 Y | 2.2 | 3 | 380 | 50 | 5 | 2900 | 27 | – | – | 2″ | 7 | 220 | 290 | 485 | 35.5 | 26 | 24.5 | 22.5 | 20 | – | |
| SDF30/2 Y | 2.2 | 3 | 220 | 50 | 14 | 2900 | 27 | 50 | 450 | 2″ | 7 | 220 | 290 | 485 | 36.5 | 26 | 24.5 | 22.5 | 20 | – | |
| SDT40/2 Y | 3 | 4 | 380 | 50 | 6.7 | 2900 | 31 | – | – | 2″ | 7 | 220 | 290 | 515 | 39 | 30 | 28 | 26.5 | 24 | 17 | |
SDT40/2 INOX
Definition
These pumps have stainless steel body and stainless steel impeller. It is designed for use in the drainage of clean or few dirty water.
It has a long life and provides quiet operation due to its oil cooled engine design.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Usage Areas
These pumps are used in residential areas, industrial facilities, waterfalls, basements, ornamental pools, standing water and sewage water containing max. 6 mm particles.
| Pump Body | AISI 304 INOX |
| Impeller | AISI 304 INOX |
| Shaft | AISI 304 INOX |
| Flow Rate (max) | 49 m³/hour |
| Total Head (max) | 25 m |
| Liquid Temperature | 0-30°C |
| Protection Class | IP68 |
| Insulation | CI.F |
| Cable Lengt | 10 m |
| Mechanical Seal | SIC/SIC |
| Pump Durability Pressure (Pmax) | 6 bar |
Pump Material Characteristics
| Type | Control Panel | Open Impeller | Closed Impeller | Blade | Stainless(304) | Cast Iron Impeller(GG25) | Noryl Impeller |
| SDT20/2 INOX | √ | √ | √ | ||||
| SDT30/2 INOX | √ | √ | √ | ||||
| SDT40/2 INOX | √ | √ | √ |
Technical Characteristics of The Pump
| MOTOR | PUMP | ||||||||||||||||||||
| TYPE | KW | HP | V | Hz | A | RPM | Hm | CAPACITOR uf Vc | output | ∇ | W | L | H | KG | m³/h | 5 | 10 | 20 | 30 | 40 | |
| SDT20/2 INOX | 1.6 | 2.2 | 380 | 50 | 4 | 2900 | 16.5 | – | – | 2″ | 7 | 195 | 225 | 530 | 28.5 | mss
| 15.5 | 14.5 | 12.5 | 9 | 3 |
| SDF20/2 INOX | 1.6 | 2.2 | 220 | 50 | 11.5 | 2900 | 16.5 | 45 | 450 | 2″ | 7 | 195 | 225 | 530 | 29 | 15.5 | 14.5 | 12.5 | 9 | 3 | |
| SDT30/2 INOX | 2.2 | 3 | 380 | 50 | 5 | 2900 | 21.5 | – | – | 2″ | 7 | 195 | 225 | 530 | 30.5 | 20.5 | 19.5 | 17 | 13.5 | 7 | |
| SDF30/2 INOX | 2.2 | 3 | 220 | 50 | 15 | 2900 | 21.5 | 50 | 450 | 2″ | 7 | 195 | 225 | 530 | 31 | 20.5 | 19.5 | 17 | 13.5 | 7 | |
| SDT40/2 INOX | 3 | 4 | 380 | 50 | 6.8 | 2900 | 25 | – | – | 2″ | 7 | 195 | 225 | 560 | 33.5 | 23.5 | 22.5 | 20 | 16.5 | 11 | |
Drainage Submersible Pumps with Elevator Float
They are used for the smooth and easy discharge of fluids containing little particles (excavation water, rain water, flood waters, surface waters, seepage waters, etc.). As float submersible pumps, they are drainage submersible pumps with lift floater designed to minimize the problems experienced by liquid level floats in places where the working area is narrow. Drainage submersible pump is used in narrow drainage pits(max. 45*45 cm ), elevator pits, waterfalls, basements, ornamental pools, buildings, drainage pits and puddles up to a maximum height of 14 m, due to its elevator float, it is suitable for use in evacuating particles(small than 6 mm). Elevator Floater is preferred in narrow wells because its working principle works vertically unlike other floaters. The floater rises when full of water, like an elevator, and the electromagnet inside pulls the electrical contact, allowing the pump to work.
When the water reaches a certain level, the self-floating water pumps are automatically activated and start to drain the water.
Drainage pumps produced by Turkish drainage pump manufacturer are generally manufactured with a vortex (open) impeller, and the blade structure is curved to smooth the flow of liquid. Floaterless drainage pumps are also activated or stopped manually. Elevator Float Drainage Pumps are used in septic tanks as well as clean or dirty water discharge.
Drainage, as a word meaning, is the work done to remove the water in any place by natural or artificial means. It has applications in construction, mining and agriculture sectors.
Drainage water pumps manufactured by Turkish drainage water pump producers can be used in all areas where water containing less particles must be discharged. Drainage pumps can be preferred for the evacuation of water in places with ornamental pools and waterfalls, and rainwater puddles.
Self Floater water pump can be mounted on a fixed water collection tank; can be carried portable, rain, flood, etc. It can be easily used to drain the water in case the areas below the elevation level are filled with water due to various reasons.
Self Floater submersible pumps are designed to operate at regular intervals to evacuate the accumulated water. The pumped water is transferred to the outside of the building with the help of pipes.
Thus, the risk of flooding is prevented and the water level in the collection area is kept under control. They offer very healthy operating performance unless extraordinary conditions such as very high floods occur.
Self-float submersible pumps produced by Turkish submersible water pump manufacturers are used in septic tanks as well as clean or dirty water discharge. Elevator Float Drainage Pump types are used for draining pools and tanks as well as draining water accumulated due to rain.
Turkey drainage pump manufacturer / Drainage water pump / turkey drainage pump manufacturer / Turkey drainage submersible pump manufacturer / quality drainage water pump / drainage pump / drainage water discharge pump /
