Electromagnetic Submersible Pumps
These products, which are practical to use and very economical, are manufactured as 6 types of products suitable for different uses.

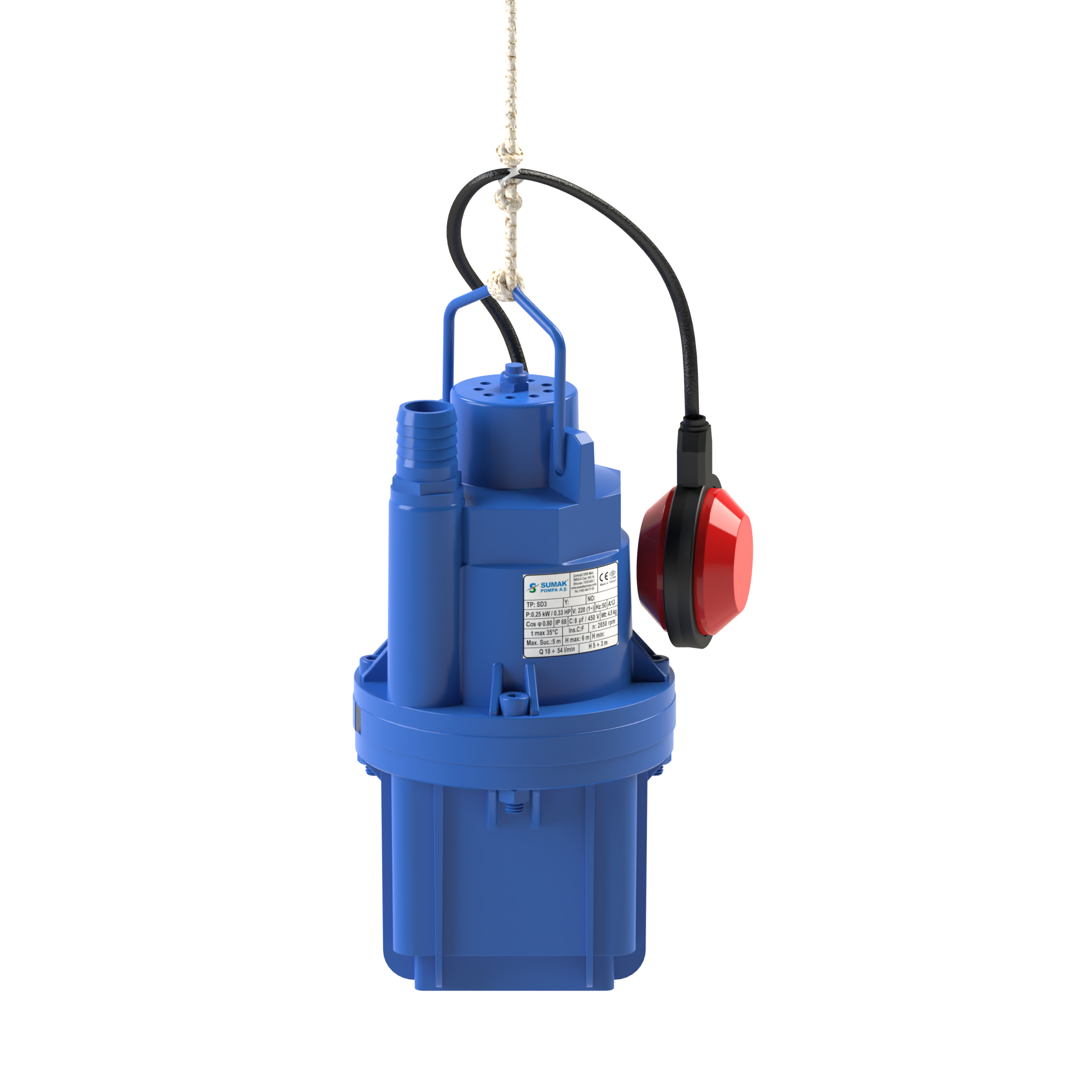

Our SDF3 and SDF4 models are manufactured with automatic floaters. Turkey manufacturer of submersible pumps.

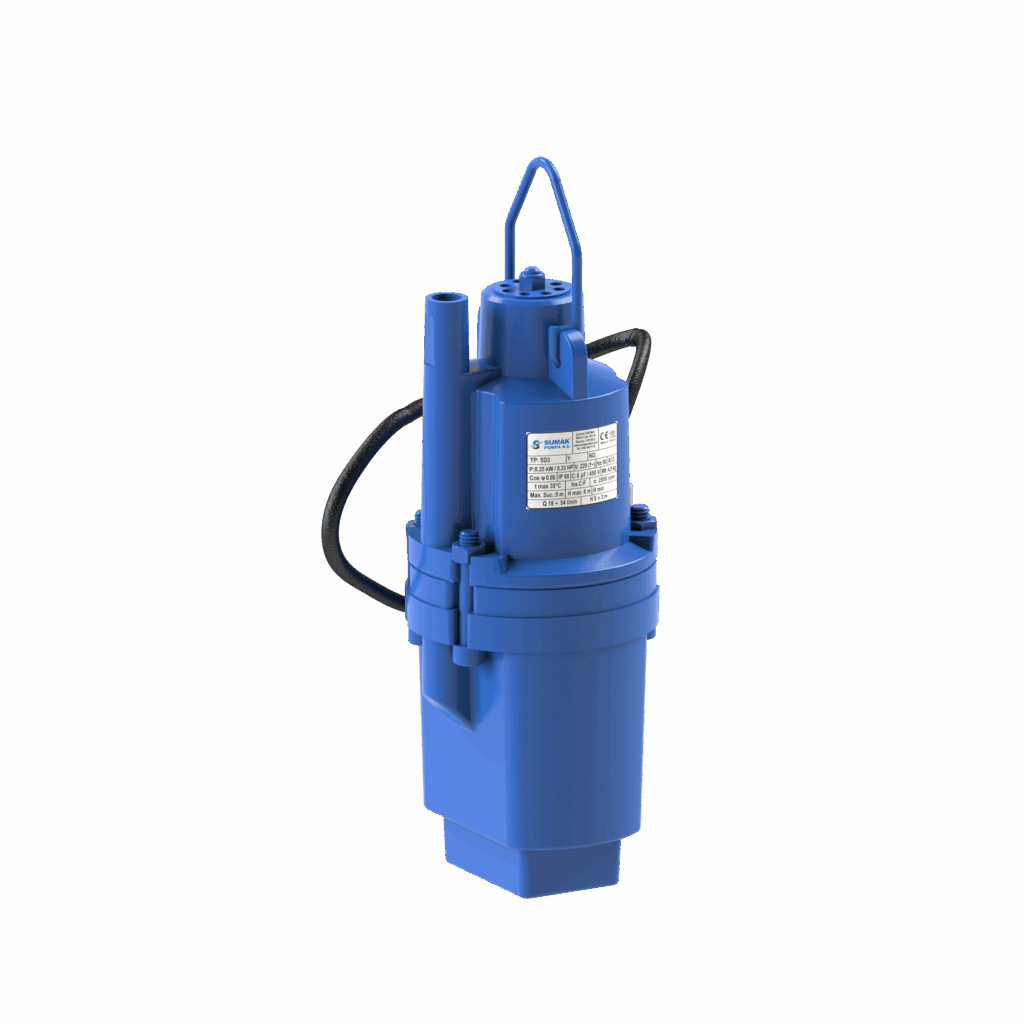

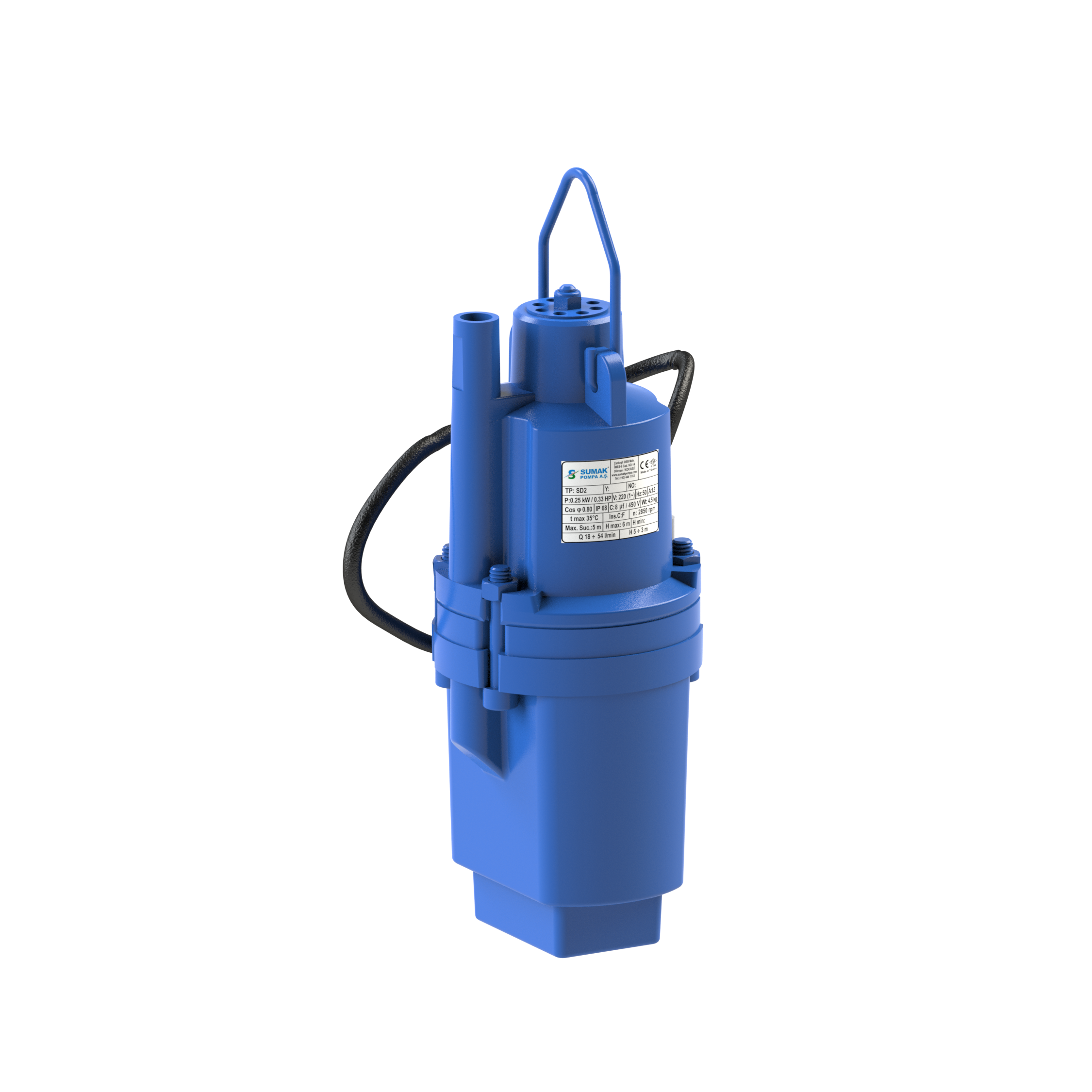

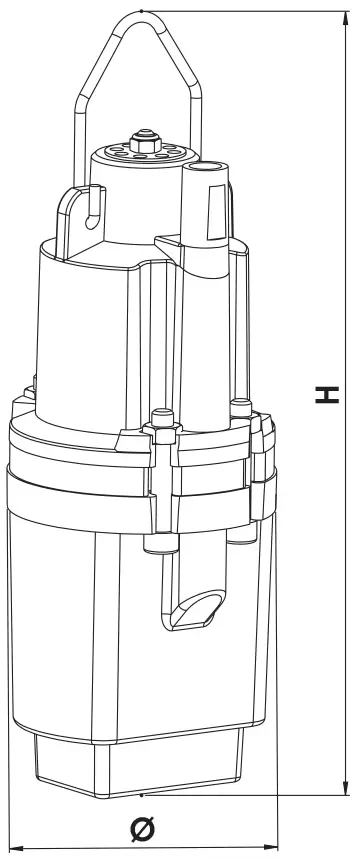

SD1
Definition
These pumps with aluminum body, electromagnetic vibration are practical and easy to use. No need maintenance. It is designed for use in clean water supply.
Usage Areas
These pumps are used in caisson wells, boreholes, clean water needs like streams and amateur garden irrigation.
Pump Material Characteristics
| Pump Body | Aluminum |
| Shaft | AISI 420 |
| Flow Rate (max) | 1.1 m³/hour |
| Pressing Height | 60 m |
| Liquid Temperature | 0-30°C |
| Protection Class | IP 68 |
| Insulation | CI.F |
| Cable | 10 m – 20 m – 30 m – 40 m |
| Pump Durability Pressure(Pmax) | 6 bar |

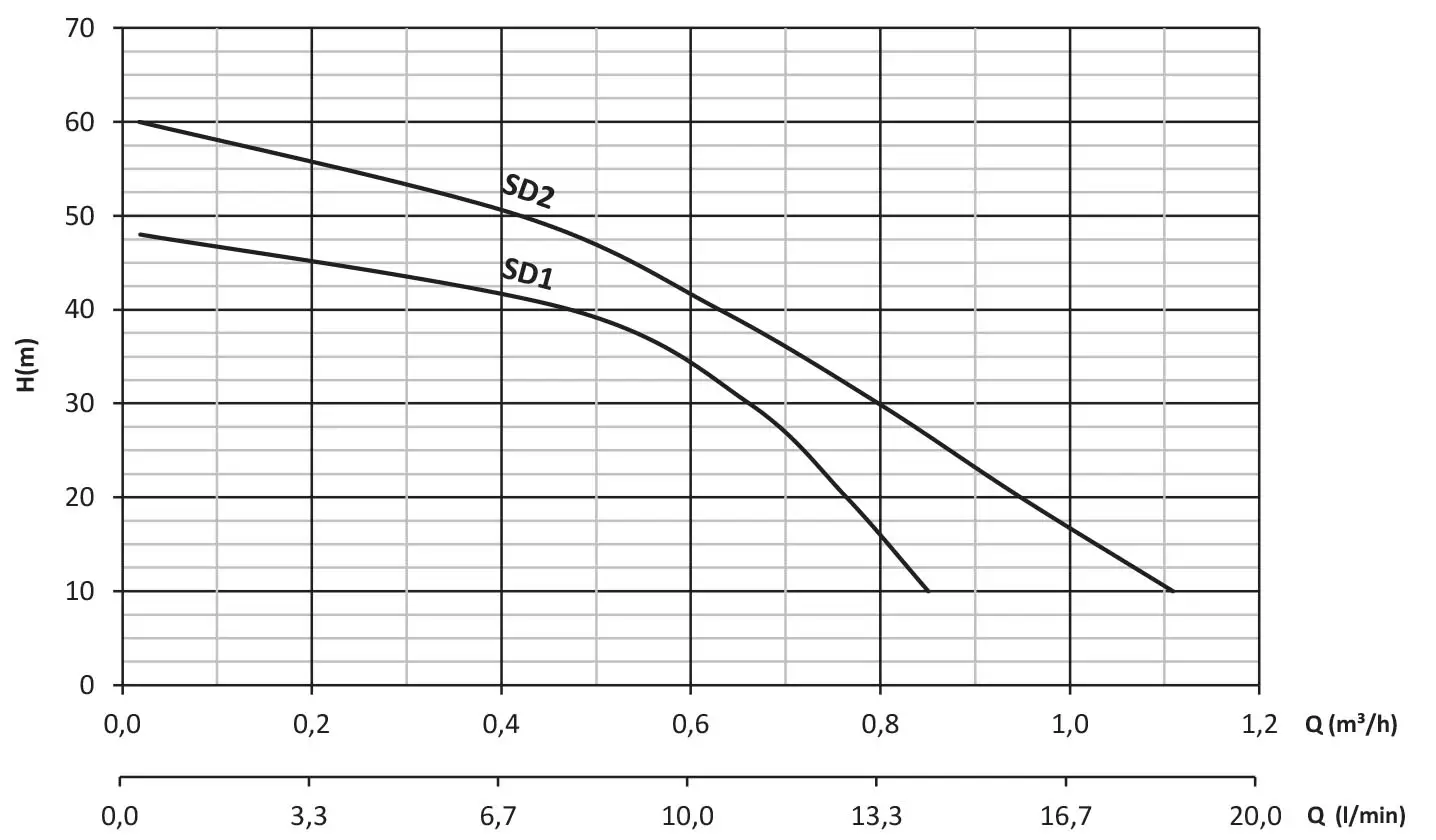

Technical Specifications
| MOTOR | PUMP | |||||||||||||||||||
| Type | W | V | Hz | A | output | Q | H | KG | Hm | m³/h | 55 | 50 | 45 | 40 | 35 | 30 | 25 | 20 | 15 | 10 |
SD 1 | 250 | 220 | 50 | 3 | 1/2 | 97 | 290 | 4.5 | 48 | mss | – | – | 300 | 520 | 600 | 650 | 690 | 720 | 790 | 850 |
SD 2 | 250 | 220 | 50 | 3.2 | 1/2 | 97 | 270 | 4.5 | 60 | 300 | 450 | 550 | 600 | 650 | 700 | 750 | 850 | 1000 | 1100 | |

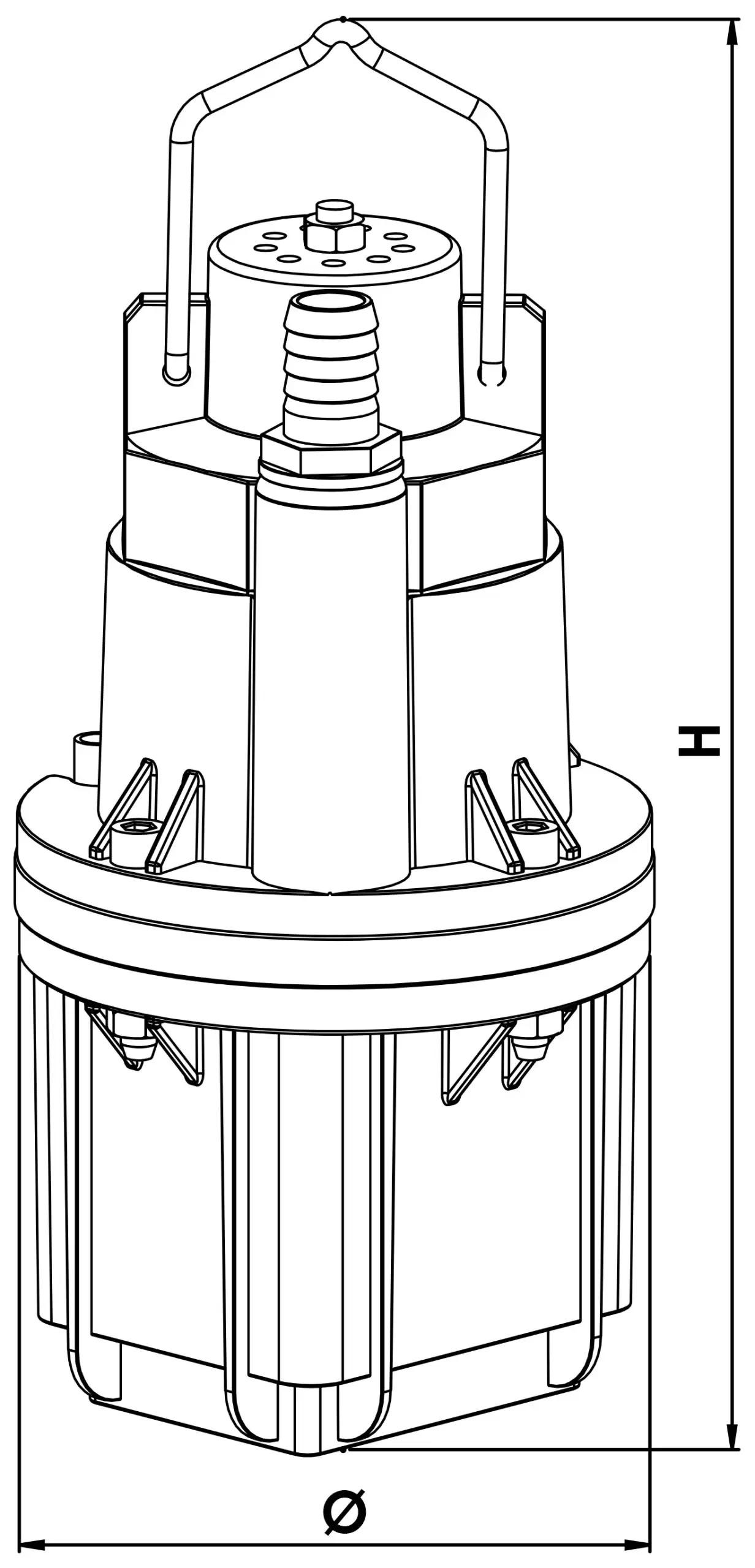

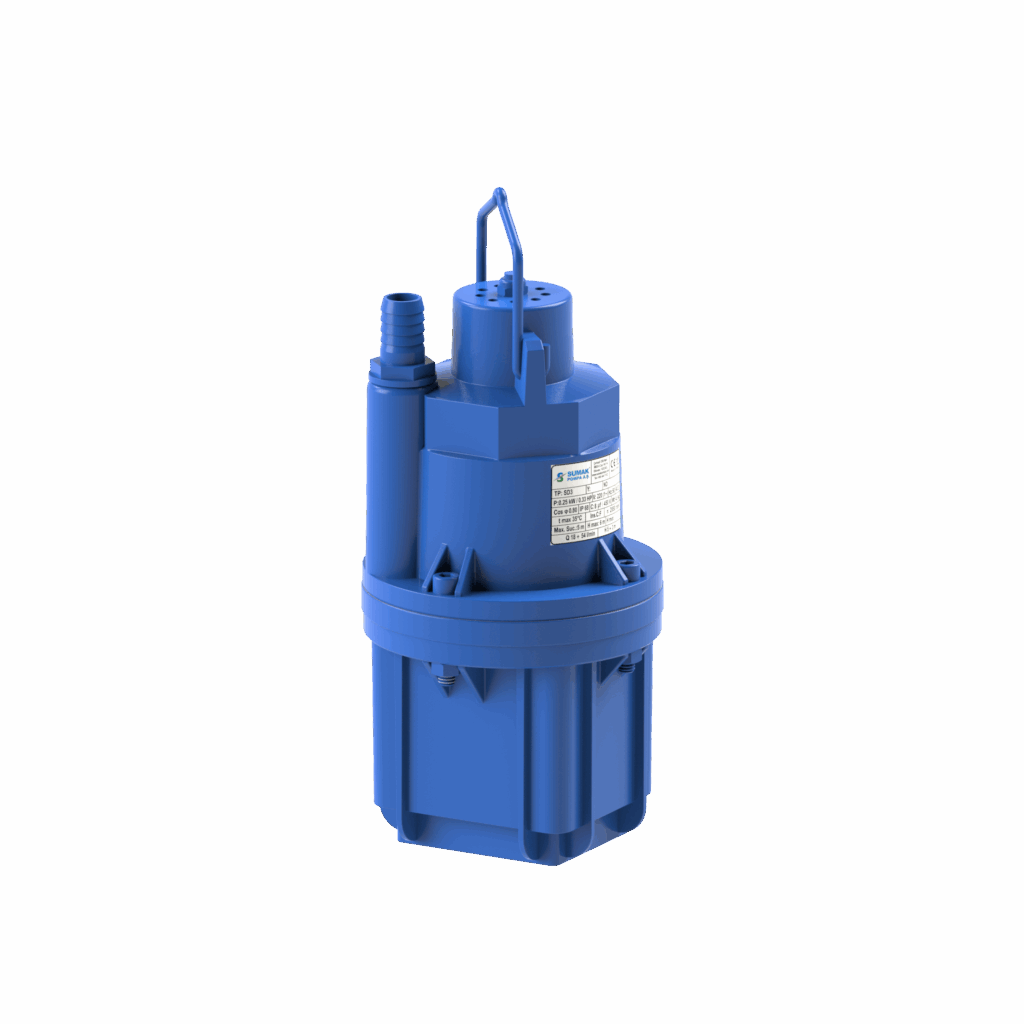

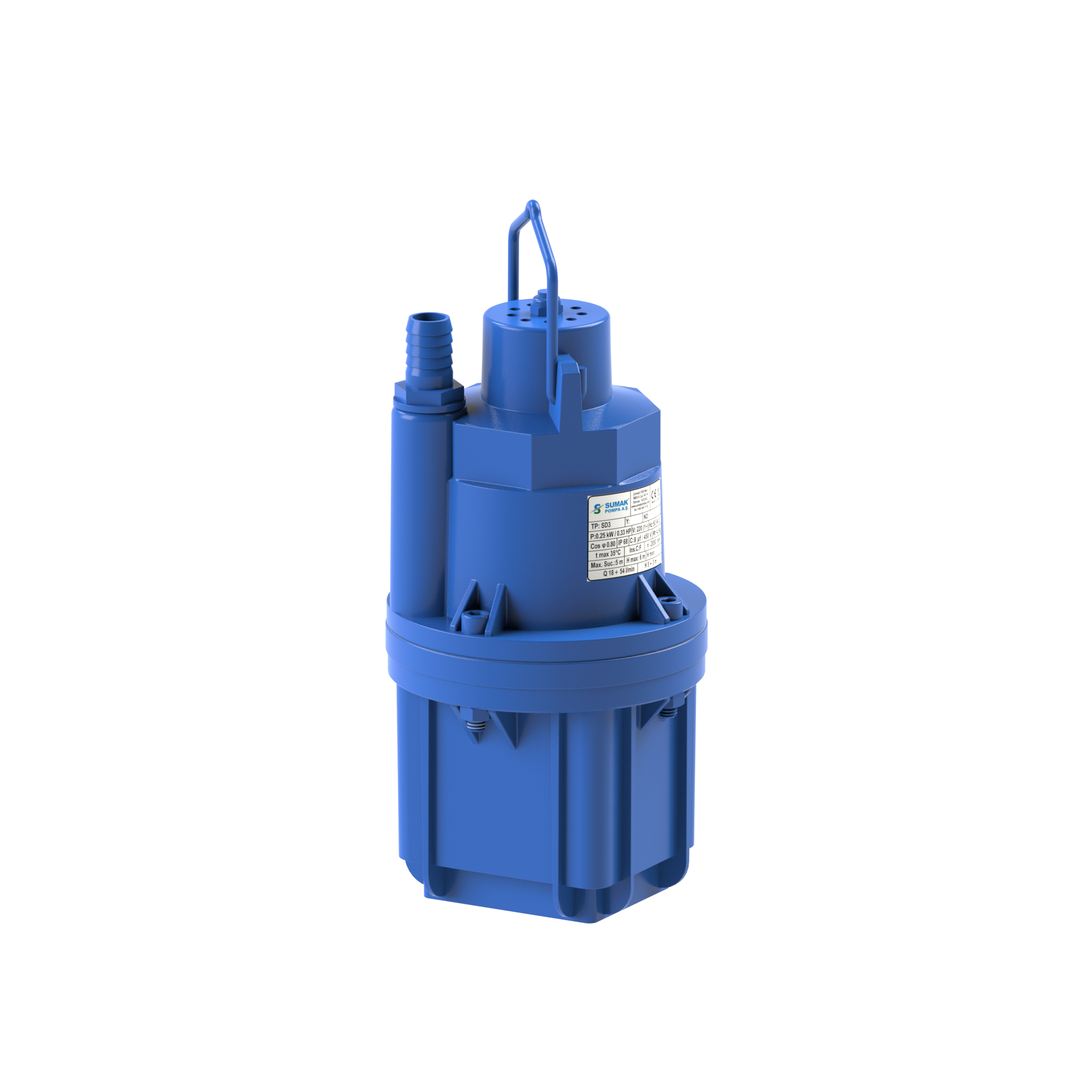

SD3
SDF3
Definition
These pumps have aluminum body, electromagnetic vibration, practical and easy to use. No need maintenance. It is designed for use in clean water supply.
Usage Areas
These pumps are used in caisson wells, boreholes, clean water needs like streams and amateur garden irrigation.
Pump Material Characteristics
| Pump Body | Aluminum |
| Shaft | AISI 420 |
| Flow Rate (max) | 2.2 m³/hous |
| Pressing Height | 55 m |
| Liquid Temperature | 0-30°C |
| Protection Class | IP 68 |
| Insulation | CI.F |
| Cable | 10 m – 20 m – 30 m – 40 m |
| Pump Durability Pressure(Pmax) | 6 bar |

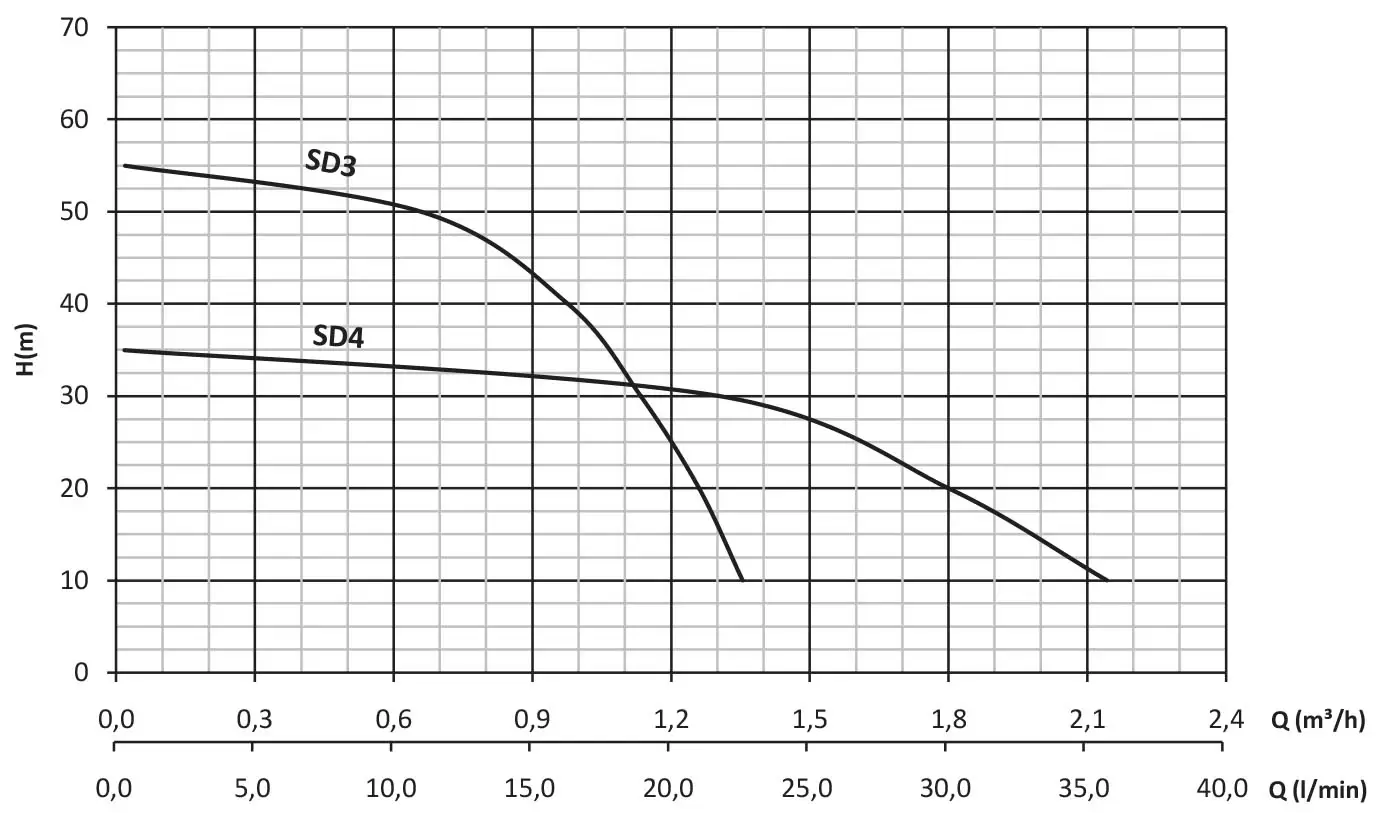

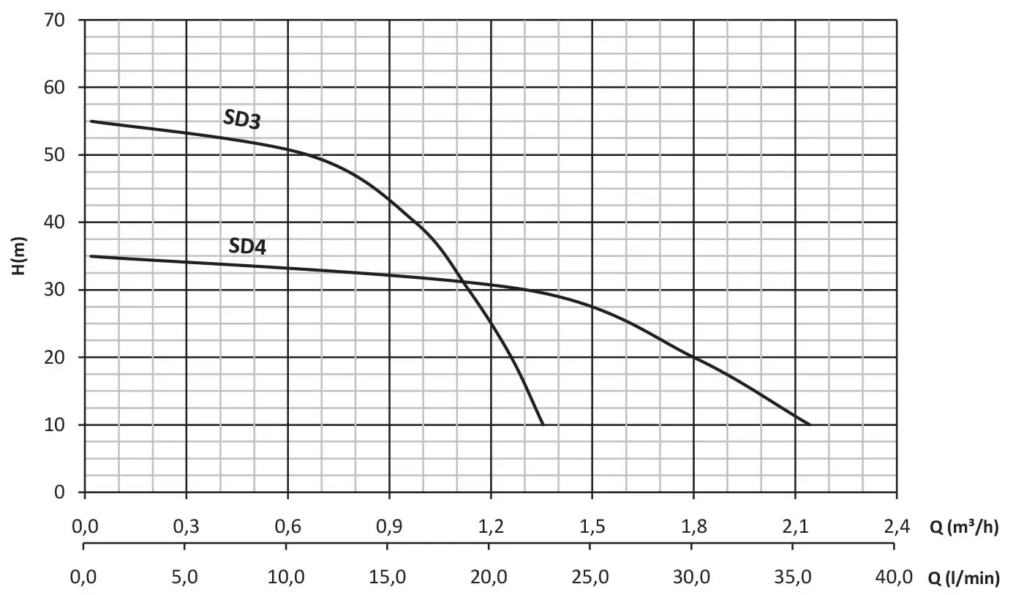

Technical Specifications
| MOTOR | PUMP | ||||||||||||||||||
| Type | W | V | Hz | A | output | Q | H | KG | Hm | m³/h | 50 | 45 | 40 | 35 | 30 | 25 | 20 | 15 | 10 |
SD3-SDF3 | 700 | 220 | 50 | 3.5 | 3/4 | 142 | 310 | 7 | 55 | mss | 700 | 810 | 900 | 1000 | 1100 | 1150 | 1270 | 1300 | 1350 |
SD4-SDF4 | 700 | 220 | 50 | 3.5 | 1″ | 142 | 310 | 7 | 35 | – | – | – | 1100 | 1400 | 1650 | 1850 | 1900 | 2200 | |
Electromagnetic Submersible Pumps
Electromagnetic Submersible Pumps produced by turkish electromagnetic pump manufacturers do not flood water with a rotating impeller by means of an asynchronous motor as in other pumps. These pumps, also known as vibrating submersible pumps, evacuate water by pushing it with its fully magnetized feature. Due to its structure, it works by pushing the water to the outlet of the pump by compressing the water with the magnetizing action of a rubber-coated plate fixed on a moving magnet material, opposite a fixed transformer, in the sinusoidal frequency fluctuation of the alternating voltage. Unlike other pumps, vibrating submersible pumps are not suitable for long-term use. Since the suction pump works with the logic of compressing the water, they can discharge water up to a distance of 60 meters. It is designed to operate in completely clean particle-free waters.
Variables of operating conditions that should be known in the selection of Electromagnetic Submersible Pumps manufactured my electromagnetic submersiblem pump producers are mainly as follows: The flow rate and the desired head values at the operating point. The submersible pump is one of the products that enables operations such as water supply and irrigation, thanks to its motorized system. It is used to pressurize clean or less polluted sources in the level control of groundwater. Vibrating submersible pumps, which operate without being exposed to external influences, provide great advantages in the area they are used. In situations where resources are insufficient, these products help to bring underground water to the surface. This product, which finds use in many different fields with its technical features, is sometimes preferred even in the agricultural sector. These tools, which provide highly effective results if the appropriate choices are made for the area in which they will be used, are among the safe and practical solutions. Working without water and air leaks, this product helps to achieve efficient results in a short time.
They are electromagnetic submersible pumps produced in 250 Watt and 700 Watt power working at 220 Volt 50 Hz. Submersible pumps are produced for the supply of clean water from boreholes and caisson wells, lakes and cisterns.
With suction pressure Pump body is cast aluminum, pump shaft is c-1040 steel. The product is a cheap and easy-to-use pump that pumps plenty of water from wells, rivers, lakes, pools, cisterns, etc. to a height of 60 meters. Electromagnetic pumps produced by turkish electromagnetic pump manufacturers, which are easy to use, should be at the depth of the water in the environment where they work, at least in such a way that the entire pump remains in the water. The water to be pumped should be clean and there should be no objects blocking the pump suction holes. The water pump with suction must not touch a hard surface from the bottom or the sides. Since it works by vibrating, there may be cracks in the body in case of contact with a hard object. In order to determine the location of the pump in the well and the borehole, the vibrating submersible pump is lowered to the bottom, then it is pulled about 40 or 50 cm and tied tightly to the well mouth with a rope. While the Vibrating Submersible pump is suspended into the well or the borehole, the hanging rope, hose and energy cable should be connected to each other with a rubber band every two meters.
