Hot Water Centrifugal Pump
Hot water centrifugal pumps are used in hot water applications up to 120 °C and used as booster systems by utilizing groundwater resources. Pressurization in solar energy systems, hot water circulation in heating systems, hot water circulation in industrial irons and steam boilers, hot water circulation in houses are the main fields which hot water centrigugal pumps are used.
All of our Hot Water Centrifuge pumps that we manufacture are TSE certified. Turkey Manufacturer Of Centrifugal Pump.

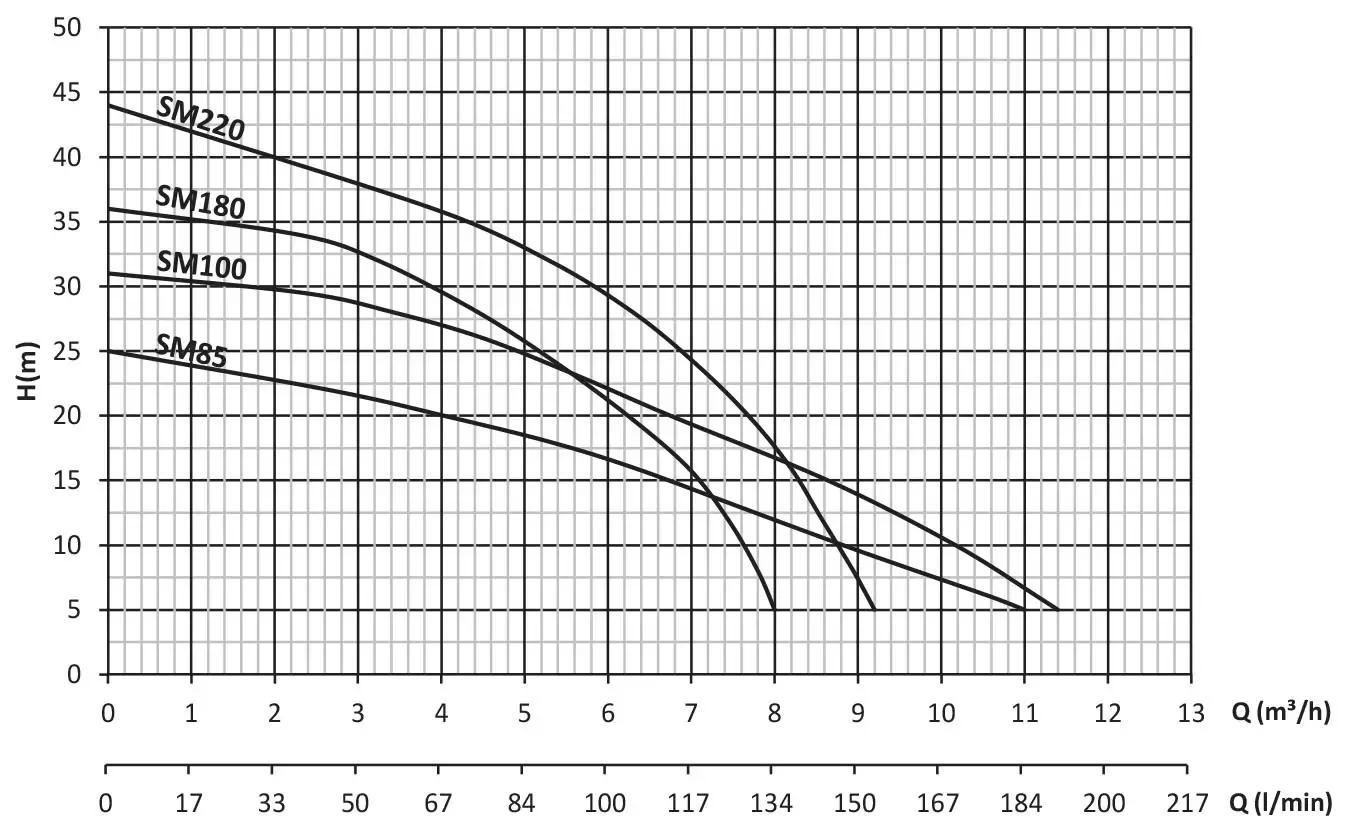

SM100-S
Definition
These pumps are used to supply clean water in residential areas, industrial facilities, irrigation applications, places requiring high temperature and pressure such as ironing machines and steam boilers, heating-cooling systems, yacht and shipping industry, small gardens, villas and summer houses.
Usage Areas
These pumps are used in residential areas, industrial facilities, irrigation applications, heating – cooling systems, paint booths, industrial wash machines and water supply and pressurization.
Pump Material Characteristics
| Pump Body | GG25 CAST IRON |
| Impeller | AISI 304 INOX |
| Shaft | AISI 304 INOX |
| Flow Rate(max) | 11.5 m³/hous |
| Total Head (max) | 41 m |
| Liquid Temperature | 0-45°C |
| Protection Class | IP54 |
| Insulation | CI.F |
| Mechanical Seal | CERAMIC/CARBON |
| Pump Durability Pressure (Pmax) | 6 bar |

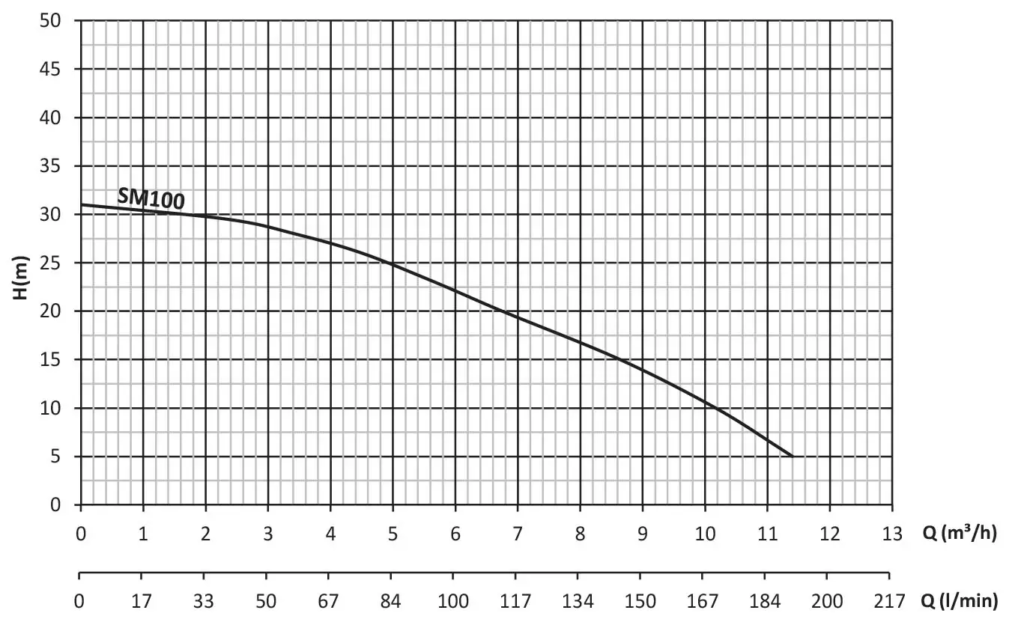

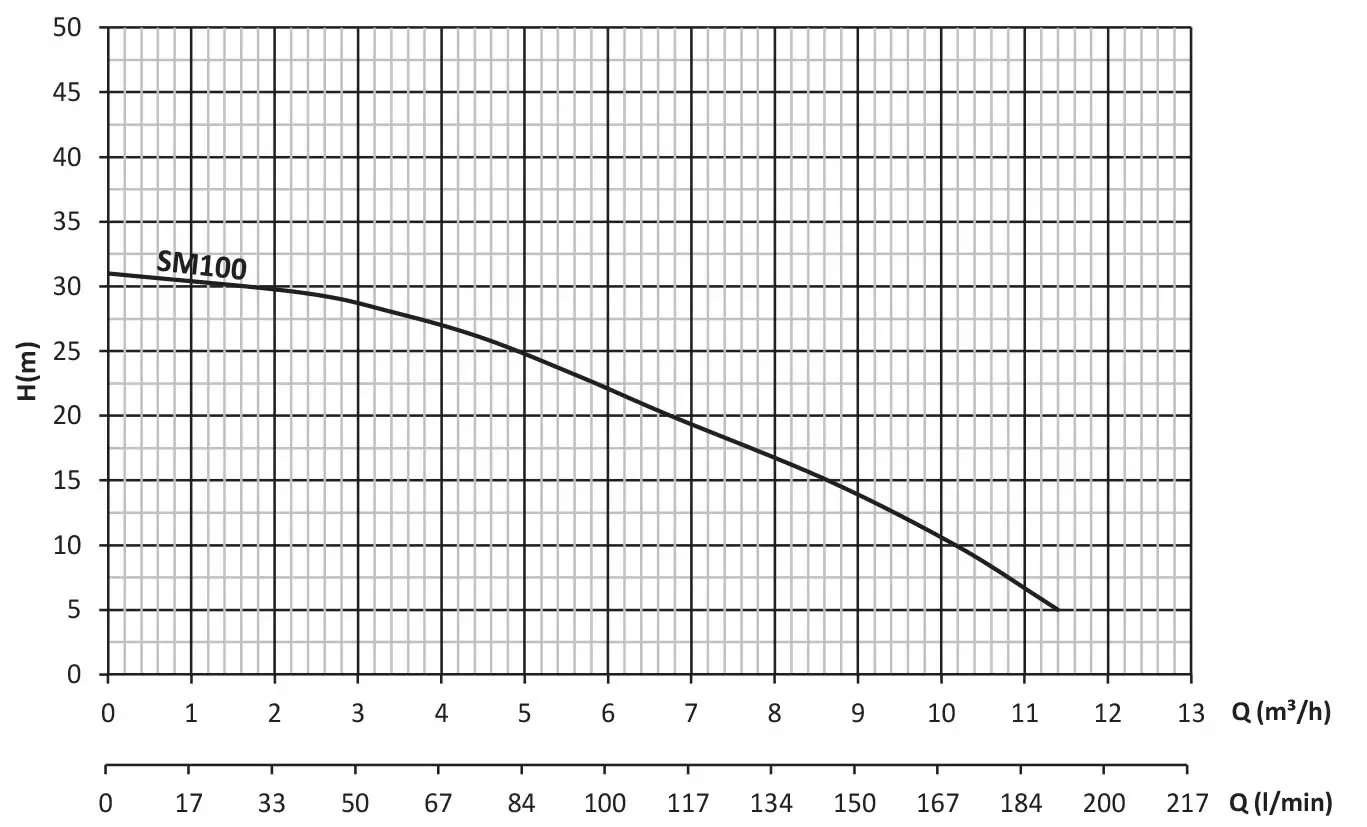

Technical Specifications
| MOTOR | PUMP | ||||||||||||||||||
| Type | KW | HP | V | Hz | A | rpm | capacitor uf Vc | output | W | L | H | KG | m³/h | 2 | 4 | 6 | 8 | 10 | |
| SM100-S | 0.75 | 1 | 220 | 50 | 5.7 | 2900 | 25 | 450 | 1″ | 180 | 303 | 233 | 14 | mss | 29 | 26 | 22 | 16 | 11 |
| SMT100-S | 0.75 | 1 | 380 | 50 | 2.2 | 2900 | – | – | 1″ | 180 | 303 | 233 | 14 | 29 | 26 | 22 | 16 | 11 | |
| Dimensions | ||||||||||
| TYPE | A | B | L | W | E | F | H1 | H2 | DNA | DNM |
| SM100-S | 120 | 50 | 299 | 180 | 140 | 205 | 98 | 236 | G1″ | G1″ |

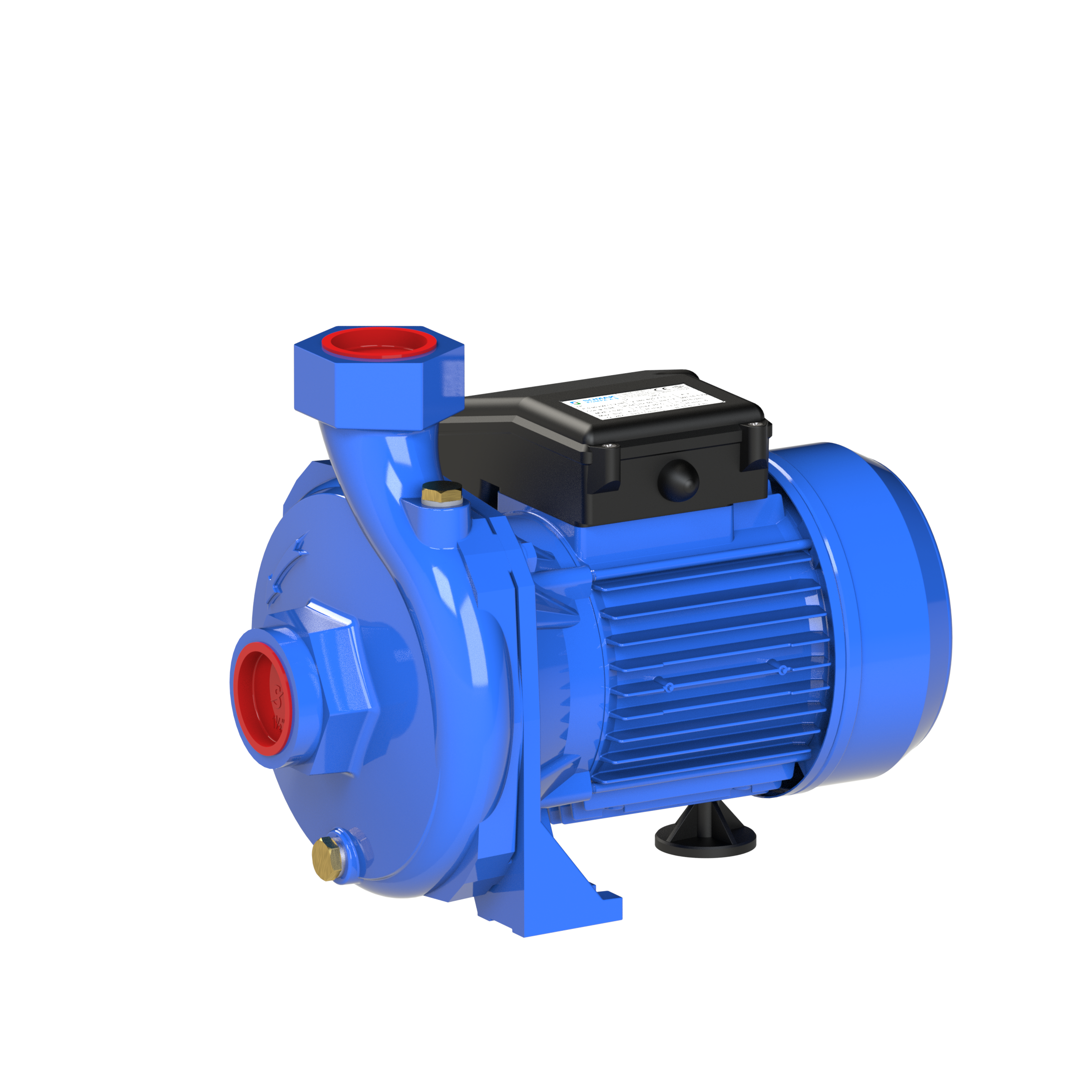

SM150-S

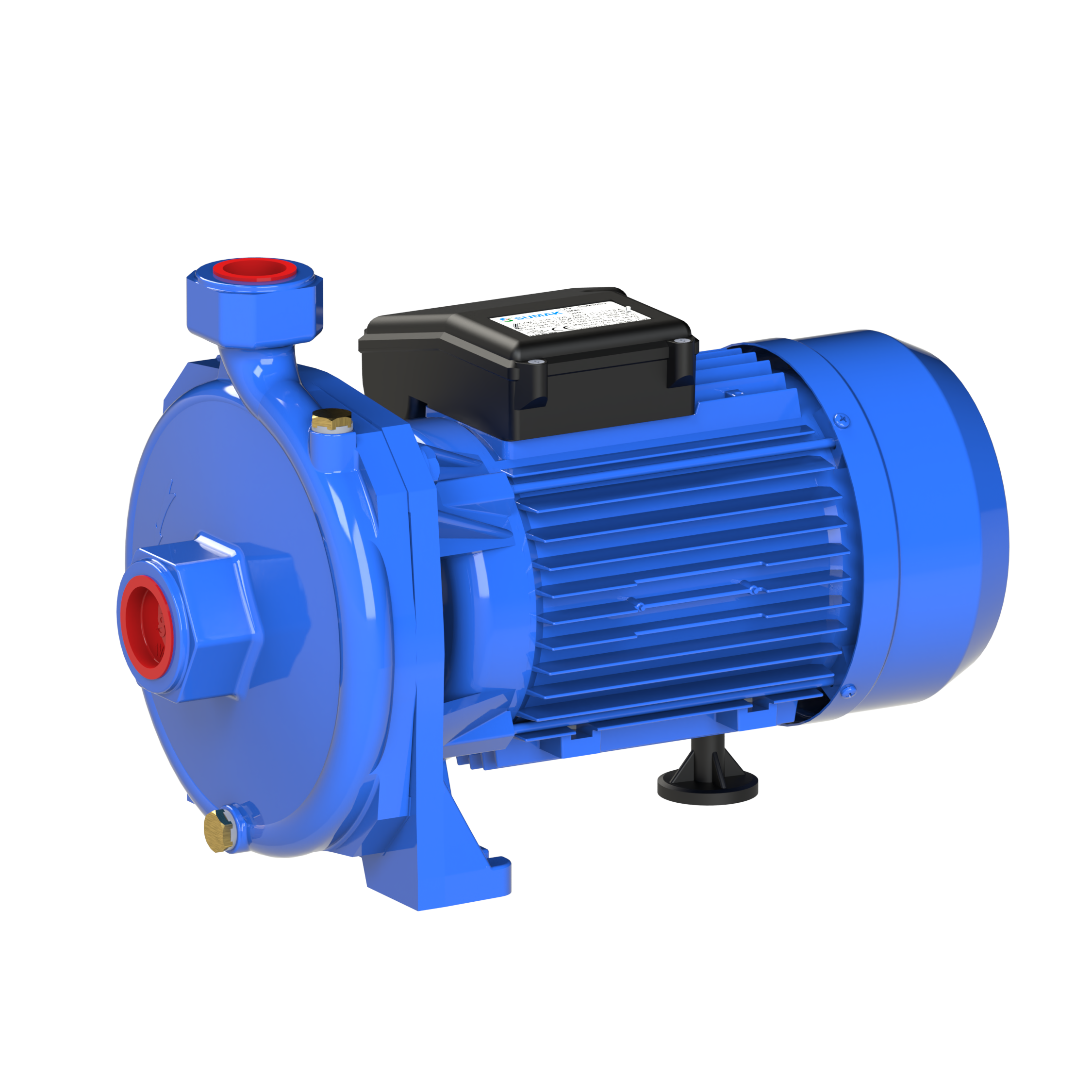

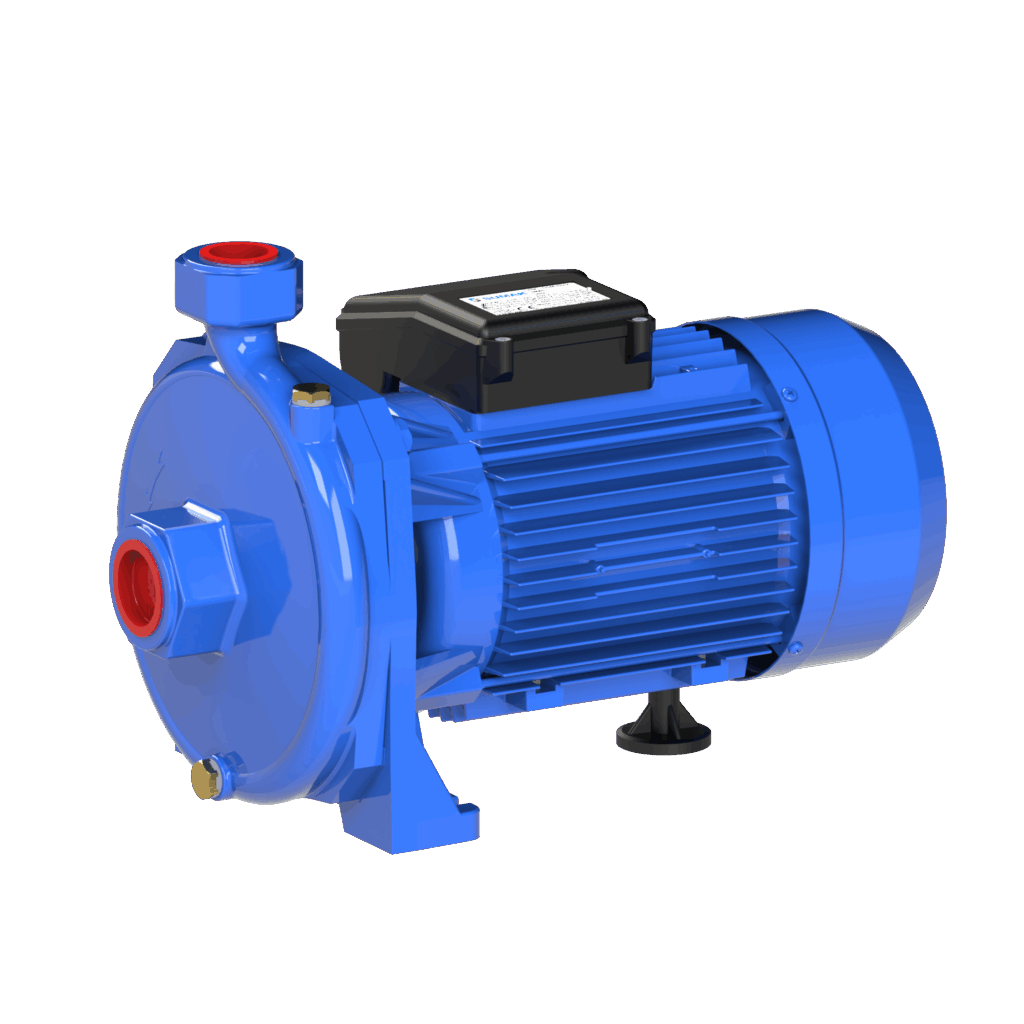

SM220/1.5-S
Definition
These pumps with cast iron body are high altitude and a suction power of up to 6 meter pumps. It is designed for use in clean water supply.
SM150 model has thermal protection and automatic reset.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Usage Areas
These pumps are used in residential areas, industrial facilities, irrigation applications, heating – cooling systems, paint booths, industrial wash machines and water supply and pressurization.
Pump Material Characteristics
| Pump Body | GG25 CAST IRON |
| Impeller | SM150 NORYL – SM220/1.5 GG25 CAST IRON |
| Shaft | AISI 304 INOX |
| Flow Rate (max) | 12 m³/hour |
| Total Head (max) | 36 m |
| Liquid Temperature | 0-45°C |
| Protection Class | IP54 |
| Insulation | CI.F |
| Mechanical Seal | CERAMIC/CARBON |
| Pump Durability Pressure (Pmax) | 6 bar |
Technical Specifications
| MOTOR | PUMP | ||||||||||||||||||
| Type | KW | HP | V | Hz | A | rpm | capacitor uf Vc | output | W | L | H | KG | m³/h | 2 | 4 | 6 | 9 | 12 | |
| SM150-S | 1.1 | 1.5 | 220 | 50 | 6.3 | 2900 | 25 | 450 | 1½ | 180 | 312 | 250 | 14.5 | mss | 30 | 28 | 25 | 16 | 5 |
| SMT150-S | 1.1 | 1.5 | 380 | 50 | 2.6 | 2900 | – | – | 1½ | 180 | 312 | 250 | 14.5 | 30 | 28 | 25 | 16 | 5 | |
| SM220/1.5-S | 1.6 | 2.2 | 220 | 50 | 9.8 | 2900 | 45 | 450 | 1½ | 207 | 415 | 277 | 28 | 35 | 34 | 33 | 31 | 21 | |
| SMT220/1.5-S | 1.6 | 2.2 | 380 | 50 | 4.4 | 2900 | – | – | 1½ | 207 | 415 | 277 | 28 | 35 | 34 | 33 | 31 | 21 | |

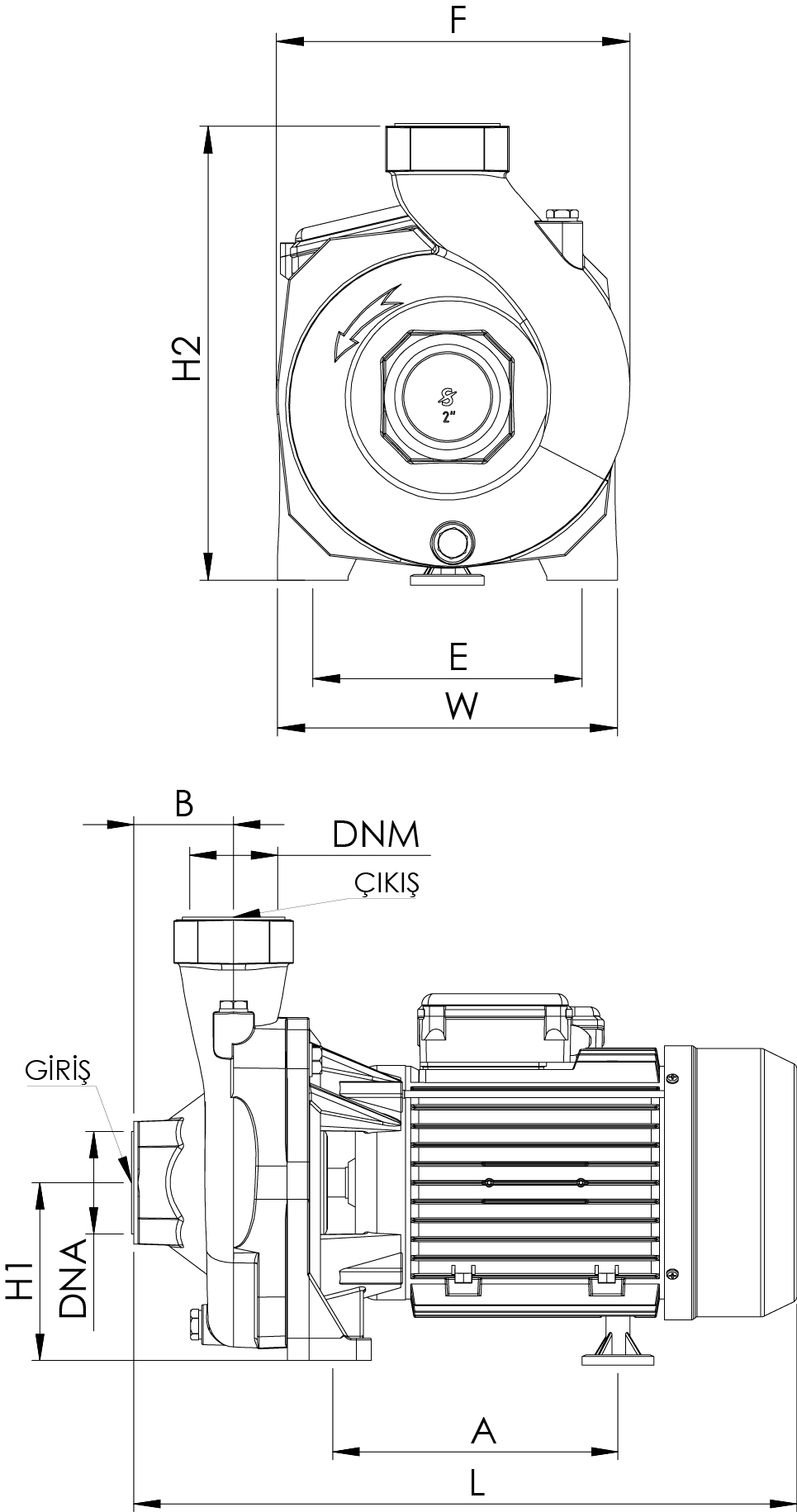

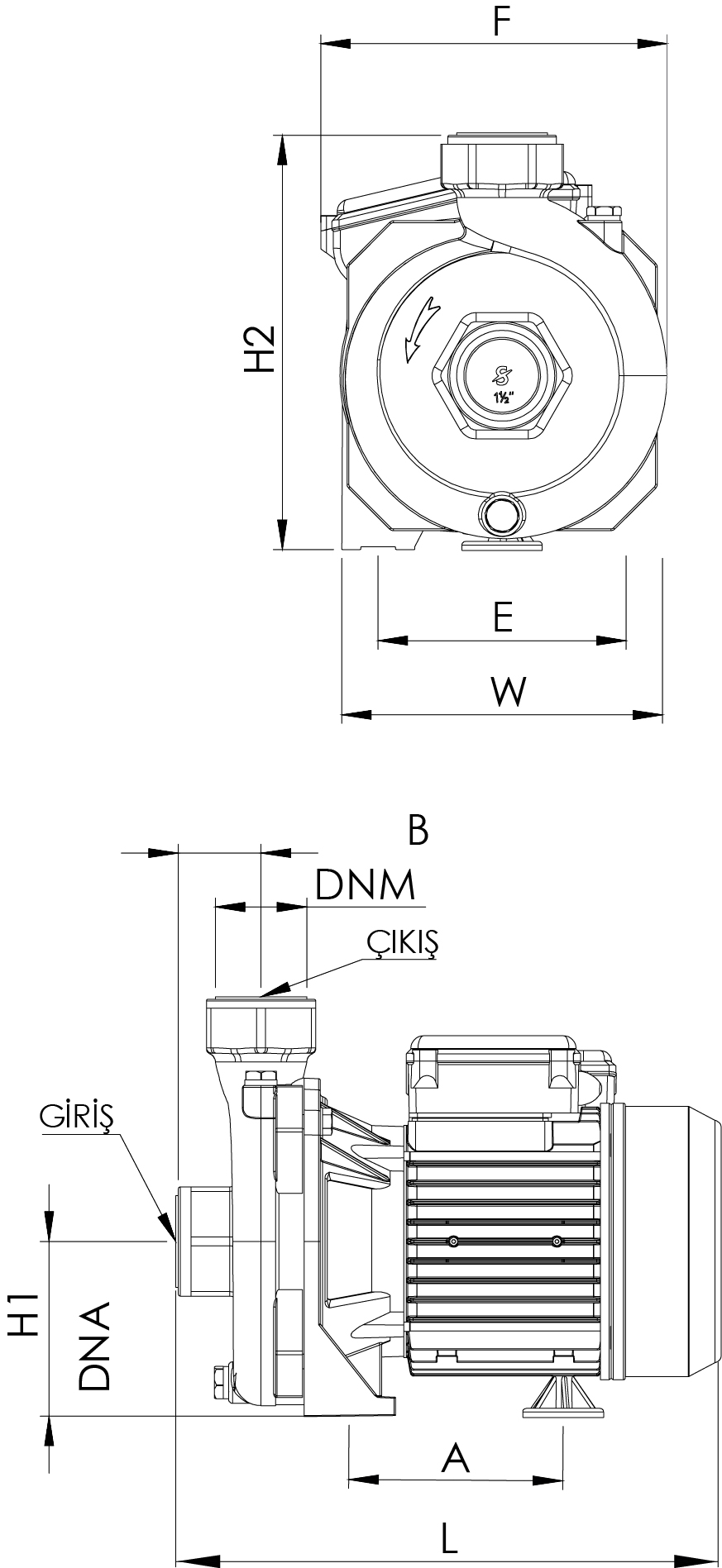

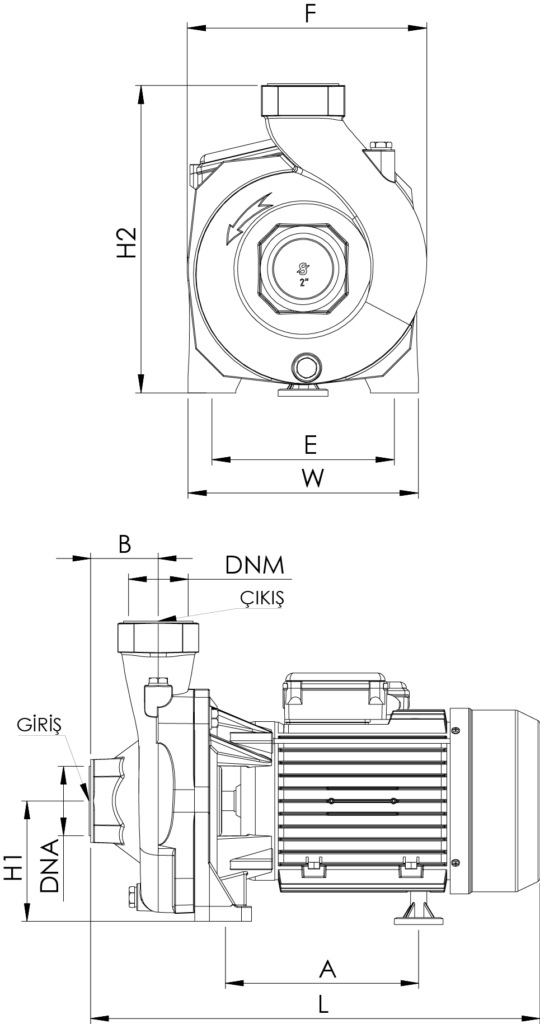

| Dimensions | ||||||||||
| Type | A | B | L | W | E | F | H1 | H2 | DNA | DNM |
| SM150-S | 120 | 58 | 312 | 180 | 140 | 201 | 98 | 250 | G1½ | G1½ |
| SM220/1.5-S | 179 | 63 | 415 | 207 | 164 | 216 | 112 | 277 | G1½ | G1½ |

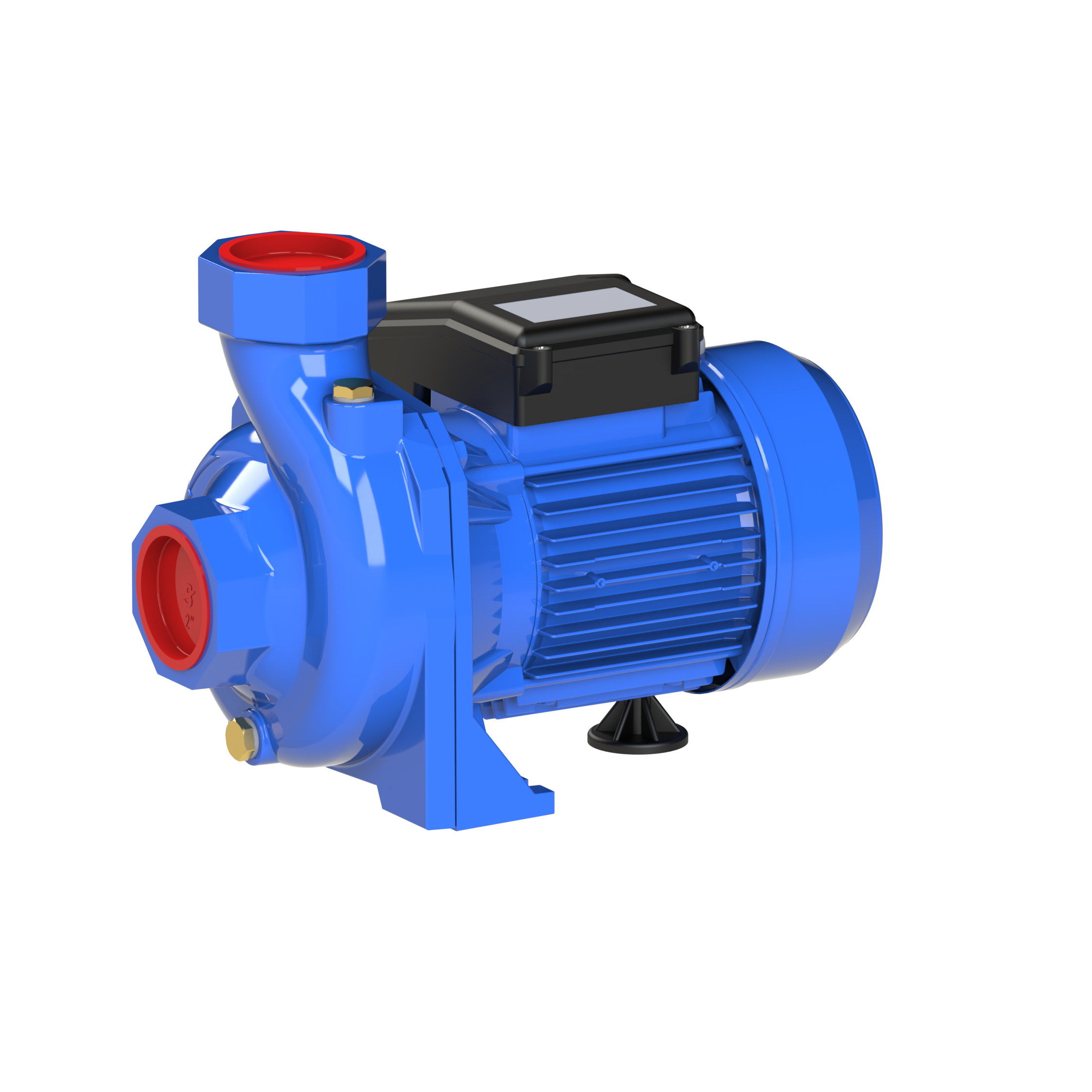

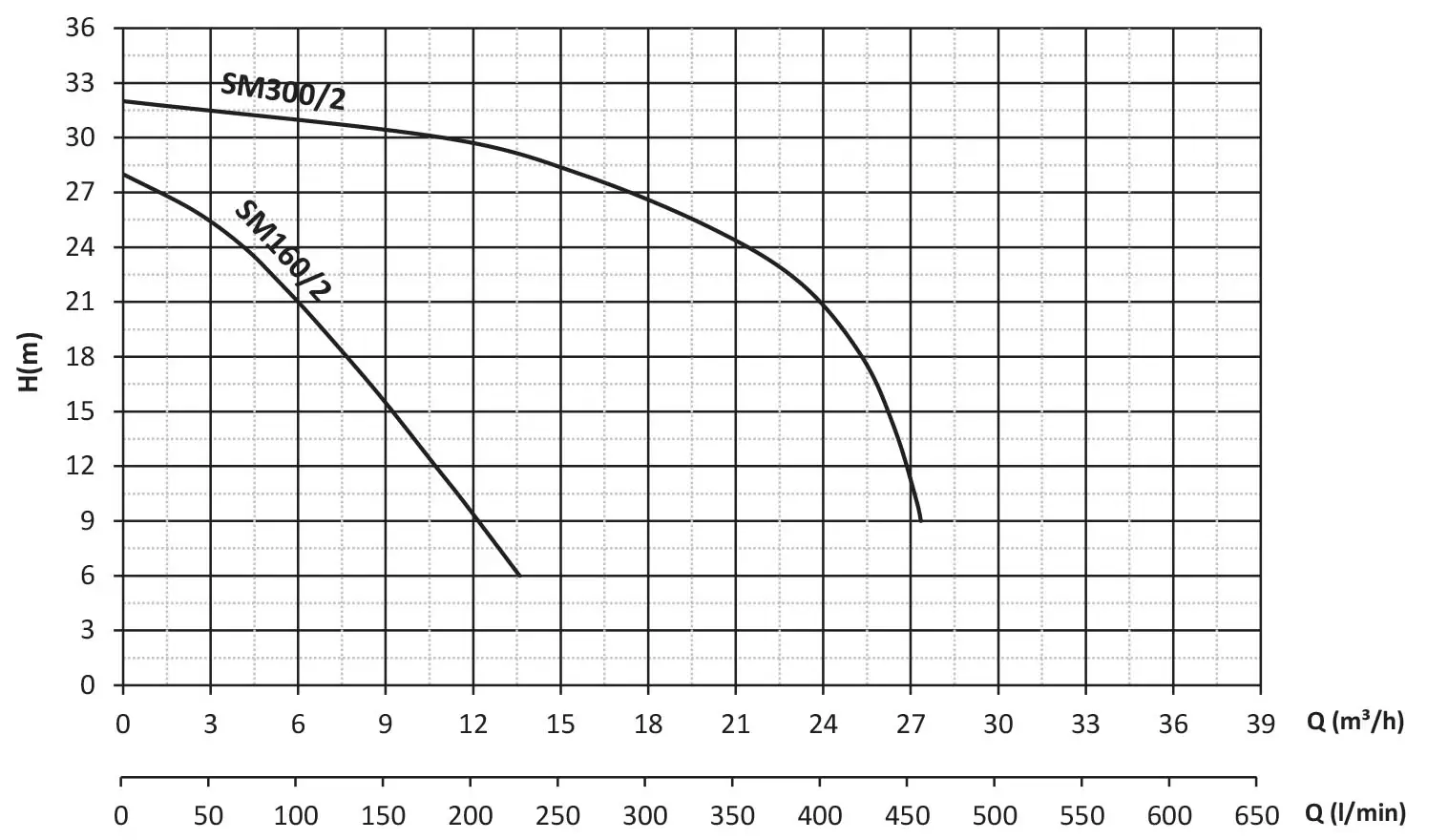

SM160/2-S

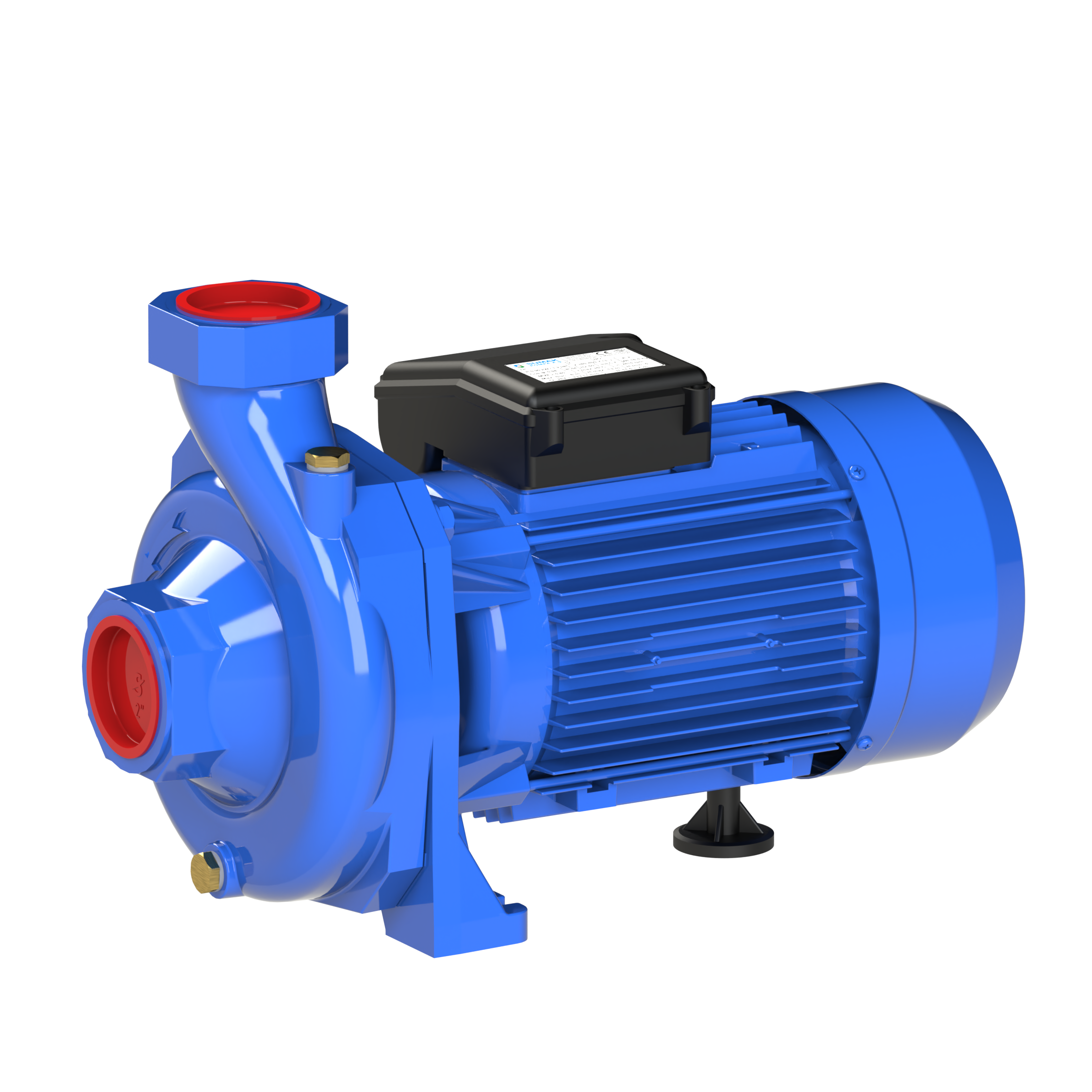

SM300/2-S
Definition
These pumps with cast iron body are high altitude, high flow rate and a suction power of up to 6 meter pumps. It is designed for use in clean water supply.
SM300/2 model has cast iron impeller.
SM150/2 and SM160/2 models have thermal protection and automatic reset.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Usage Areas
These pumps are used in residential areas, industrial facilities, irrigation applications, heating – cooling systems, paint booths, industrial wash machines and water supply and pressurization.
Pump Material Characteristics
| Pump Body | GG25 CAST IRON |
| Impeller | NORYL (SM300/2 GG25 CAST IRON) |
| Shaft | AISI 304 INOX |
| Flow Rate(max) | 34 m³/hour |
| Total Head (max) | 32 m |
| Liquid Temperature | 0-45°C |
| Protection Class | IP54 |
| Insulation | CI.F |
| Mechanical Seal | CERAMIC/CARBON |
| Pump Durability Pressure (Pmax) | 6 bar |
Technical Specifications
| MOTOR | PUMP | |||||||||||||||||
| Type | KW | HP | V | Hz | A | rpm | capacitor uf Vc | Hm | suc. m | output | KG | m³/h | 6 | 12 | 18 | 24 | 32 | |
| SM160/2-S | 1.1 | 1.5 | 220 | 50 | 6.3 | 2900 | 25 | 450 | 28 | 6 | 2″ | 14.5 | mss | 21 | 9 | – | – | – |
| SMT160/2-S | 1.1 | 1.5 | 380 | 50 | 2.6 | 2900 | – | – | 28 | 6 | 2″ | 13.5 | 21 | 9 | – | – | – | |
| SM300/2-S | 2.2 | 3 | 220 | 50 | 13.7 | 2900 | 50 | 450 | 32 | 6 | 2″ | 30 | 31 | 29 | 26 | 21 | – | |
| SMT300/2-S | 2.2 | 3 | 380 | 50 | 4.9 | 2900 | – | – | 32 | 6 | 2″ | 29 | 31 | 29 | 26 | 21 | – | |
| Dimensions | ||||||||||
| TYPE | A | B | L | W | E | F | H1 | H2 | DNA | DNM |
| SM160/2-S | 120 | 60 | 324 | 180 | 140 | 201 | 98 | 246 | G2″ | G2″ |
| SM300/2-S | 179 | 63 | 416 | 207 | 164 | 216 | 112 | 277 | G2″ | G2″ |
SMT400/3-S
Definition
These pumps with cast iron body and cast iron impeller are high flow rate and a suction power of up to 6 meter pumps. It is designed for use in the supply and discharge of clean or few dirty water.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Usage Areas
These pumps are used in residential areas, industrial facilities, irrigation applications, heating – cooling systems, paint booths, industrial wash machines and water supply and pressurization.
Pump Material Characteristics
| Pump Body | GG25 CAST IRON |
| Impeller | GG25 CAST IRON |
| Shaft | AISI 304 INOX |
| Flow Rate(max) | 58 m³/hour |
| Total Head (max) | 18 m |
| Liquid Temperature | 0-45°C |
| Protection Class | IP54 |
| Insulation | CI.F |
| Mechanical Seal | CERAMIC/CARBON |
| Pump Durability Pressure(Pmax) | 4 bar |

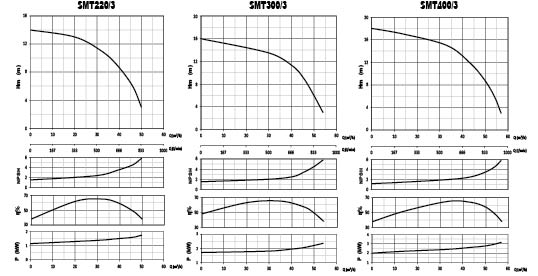

Technical Specifications
| MOTOR | PUMP | |||||||||||||||||
| Type | KW | HP | V | Hz | A | rpm | capacitor uf Vc | Hm | suc. m | output | KG | m³/h | 20 | 25 | 35 | 45 | 60 | |
| SM220/3-S | 1.6 | 2.2 | 220 | 50 | 8.8 | 2900 | 45 | 450 | 14 | 6 | 3″ – 2½ | 28.5 | mss | 13 | 12 | 10 | 6 | – |
| SMT220/3-S | 1.6 | 2.2 | 380 | 50 | 4.6 | 2900 | – | – | 14 | 6 | 3″ – 2½ | 27 | 13 | 12 | 10 | 6 | – | |

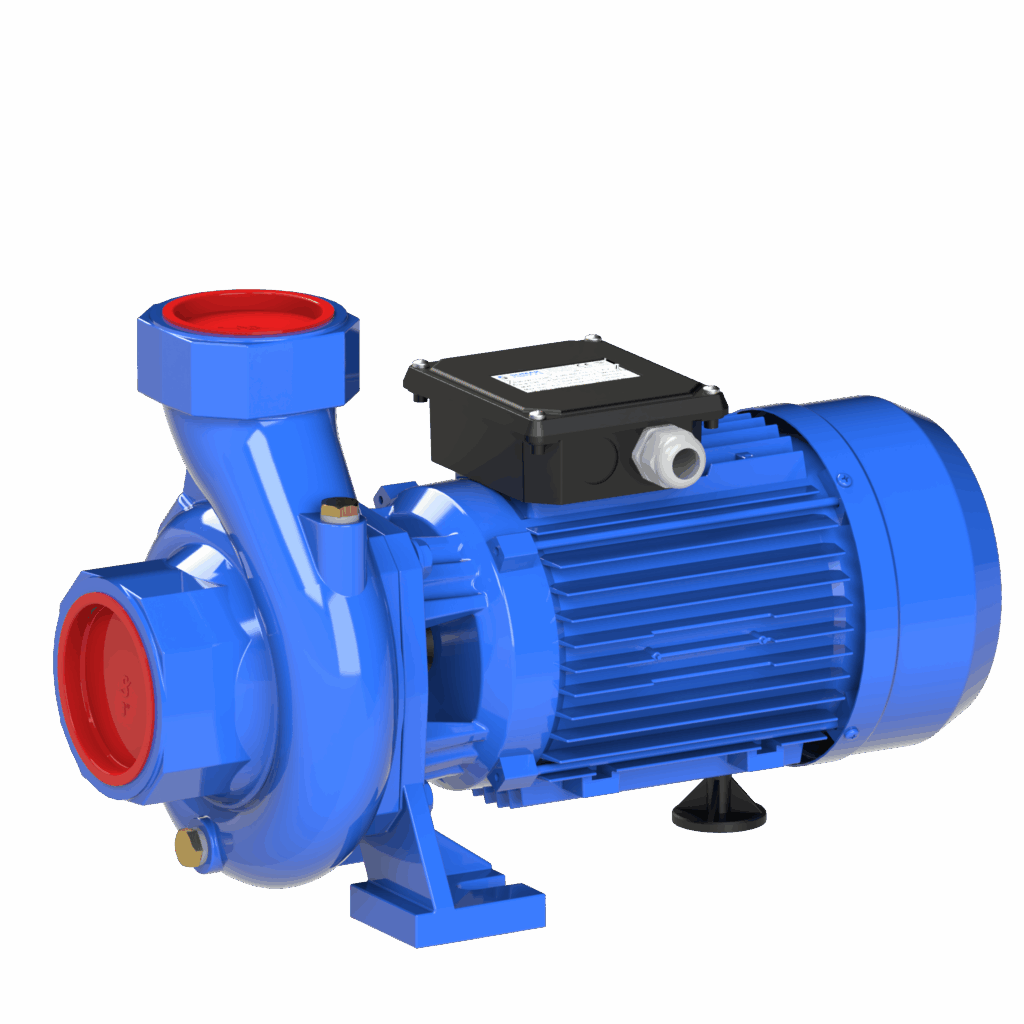

| SM300/3-S | 2.2 | 3 | 220 | 50 | 12 | 2900 | 50 | 450 | 16 | 6 | 3″ – 2½ | 30 | 14.5 | 14 | 13 | 9 | – | |
| SMT300/3-S | 2.2 | 3 | 380 | 50 | 4.8 | 2900 | – | – | 16 | 6 | 3″ – 2½ | 28.5 | 14.5 | 14 | 13 | 9 | – | |
| SMT400/3-S | 3 | 4 | 380 | 50 | 7 | 2900 | – | – | 18 | 6 | 3″ | 33.5 | 16.5 | 16 | 14 | 11 | – | |
| Dimensions | ||||||||||
| TYPE | A | B | L | W | E | F | H1 | H2 | DNA | DNM |
| SM220/3-S | 179 | 76 | 444 | 204 | 141 | 203 | 116 | 288 | G3″ | G2½ |
| SM300/3-S | 179 | 76 | 444 | 204 | 141 | 203 | 116 | 288 | G3″ | G2½ |
| SMT400/3-S | 202 | 83 | 479 | 204 | 141 | 224 | 116 | 300 | G3″ | G3″ |

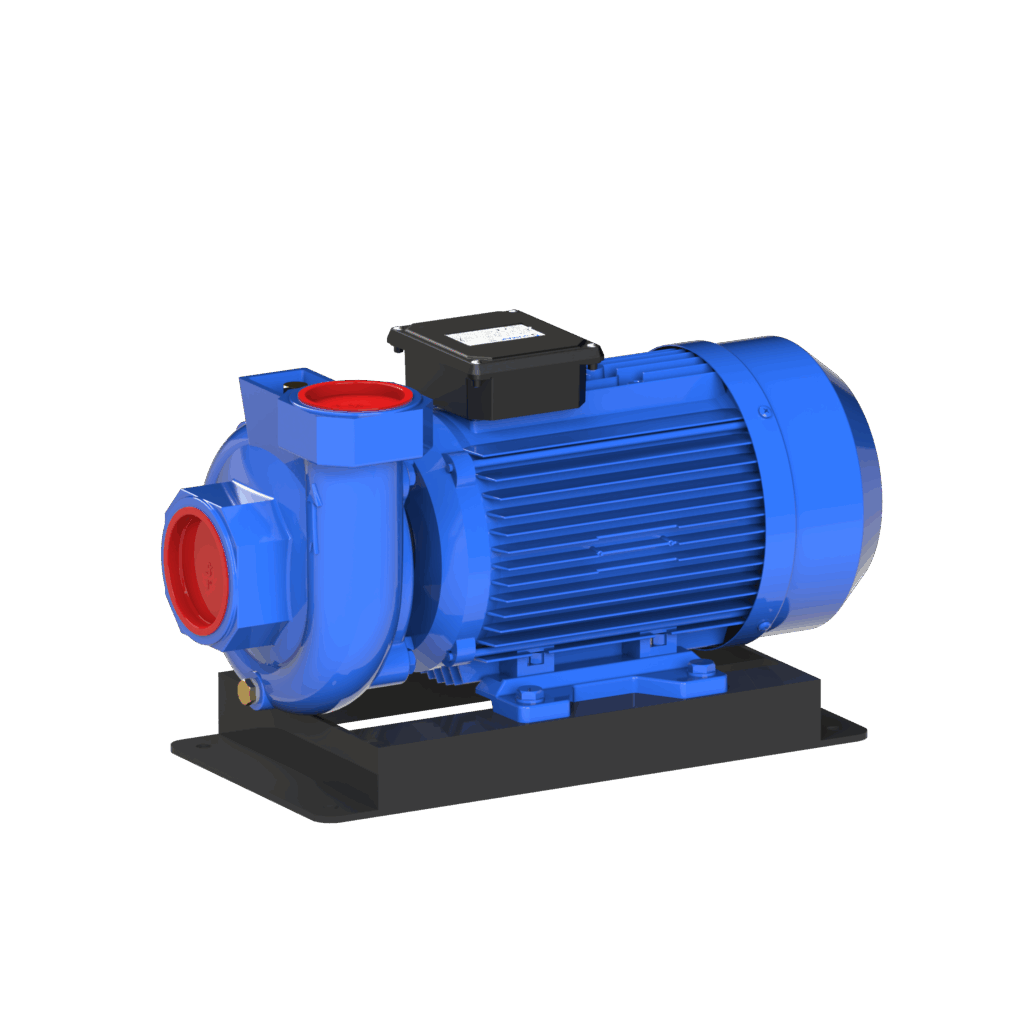

SMT550/3-S
Definition
These pumps with cast iron body and cast iron impeller are high flow rate and a suction power of up to 6 meter pumps. It is designed for use in the supply and discharge of clean or few dirty water.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Usage Area
These pumps are used in residential areas, industrial facilities, irrigation applications, heating – cooling systems, paint booths, industrial wash machines and water supply and pressurization.
Pump Material Characteristics
| Pump Body | GG25 CAST IRON |
| Impeller | GG25 CAST IRON |
| Shaft | AISI 304 INOX |
| Flow Rate (max) | 60 m³/hour |
| Total Head (max) | 40 m |
| Liquid Temperature | 0-45°C |
| Protection Class | IP54 |
| Insulation | CI.F |
| Mechanical Seal | CERAMIC/CARBON |
| Pump Durability Pressure (Pmax) | 6 bar |

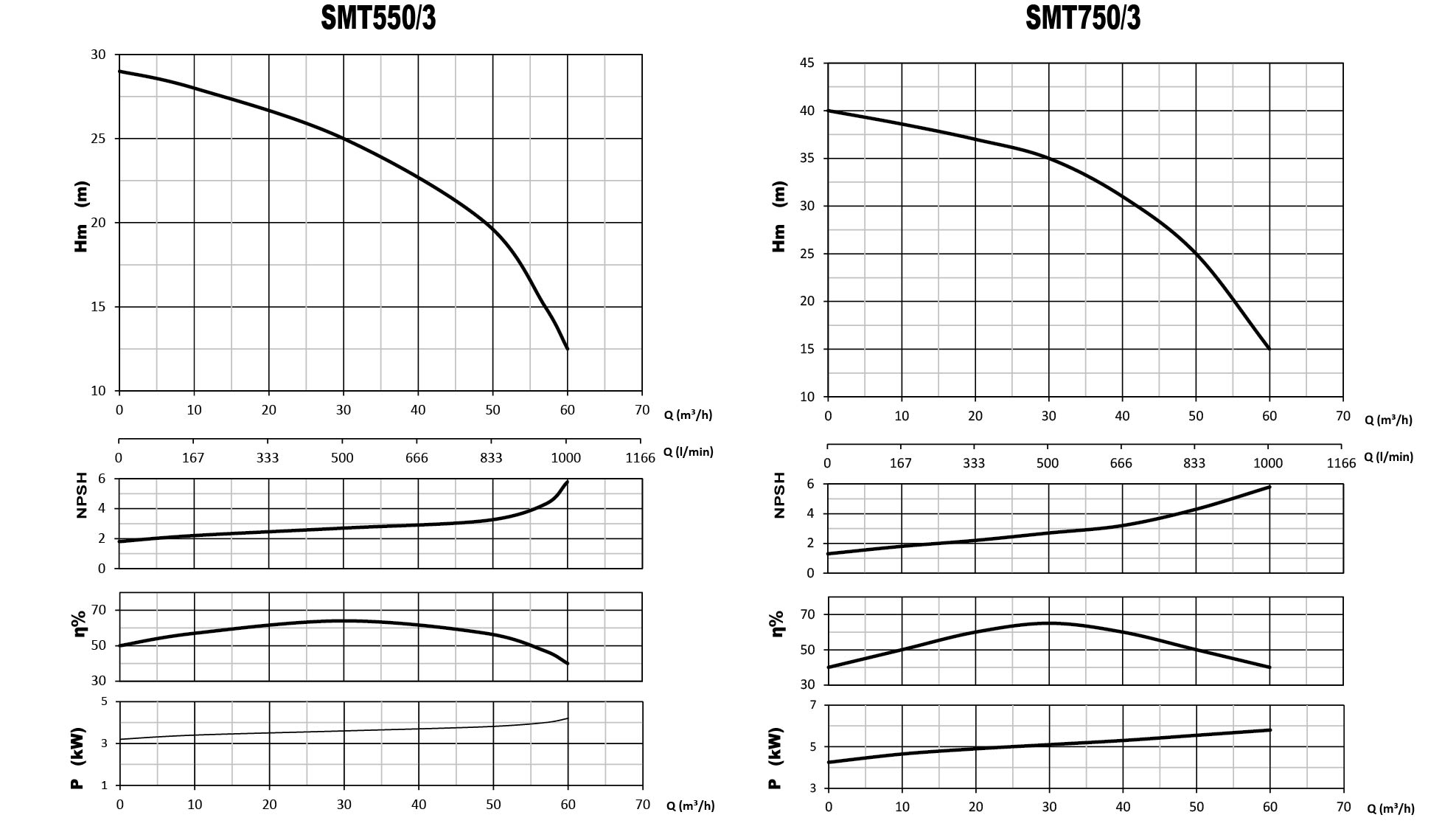

Technical Specifications
| MOTOR | PUMP | |||||||||||||||
| Type | KW | HP | V | Hz | A | rpm | Hm | suc. m | input output | KG | m³/h | 10 | 20 | 30 | 40 | 55 |
| SMT550/3-S | 4 | 5.5 | 380 | 50 | 10.5 | 2900 | 28 | 6 | 3″ 2½ | 44 | mss | 28 | 27 | 25 | 23 | 17 |
| SMT750/3-S | 5.5 | 7.5 | 380 | 50 | 12 | 2900 | 40 | 6 | 3″ 2½ | 56 | 38 | 37 | 35 | 31 | 20 | |

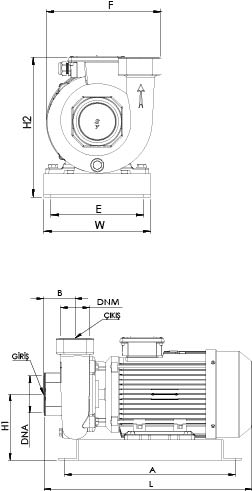

| Dimensions | ||||||||||
| TYPE | A | B | L | W | E | F | H1 | H2 | DNA | DNM |
| SMT550/3-S | 420 | 77 | 511 | 229 | 199 | 247 | 112 | 300 | G3″ | G2½ |
| SMT750/3-S | 490 | 90 | 526 | 229 | 199 | 345 | 162 | 485 | G3″ | G2½ |

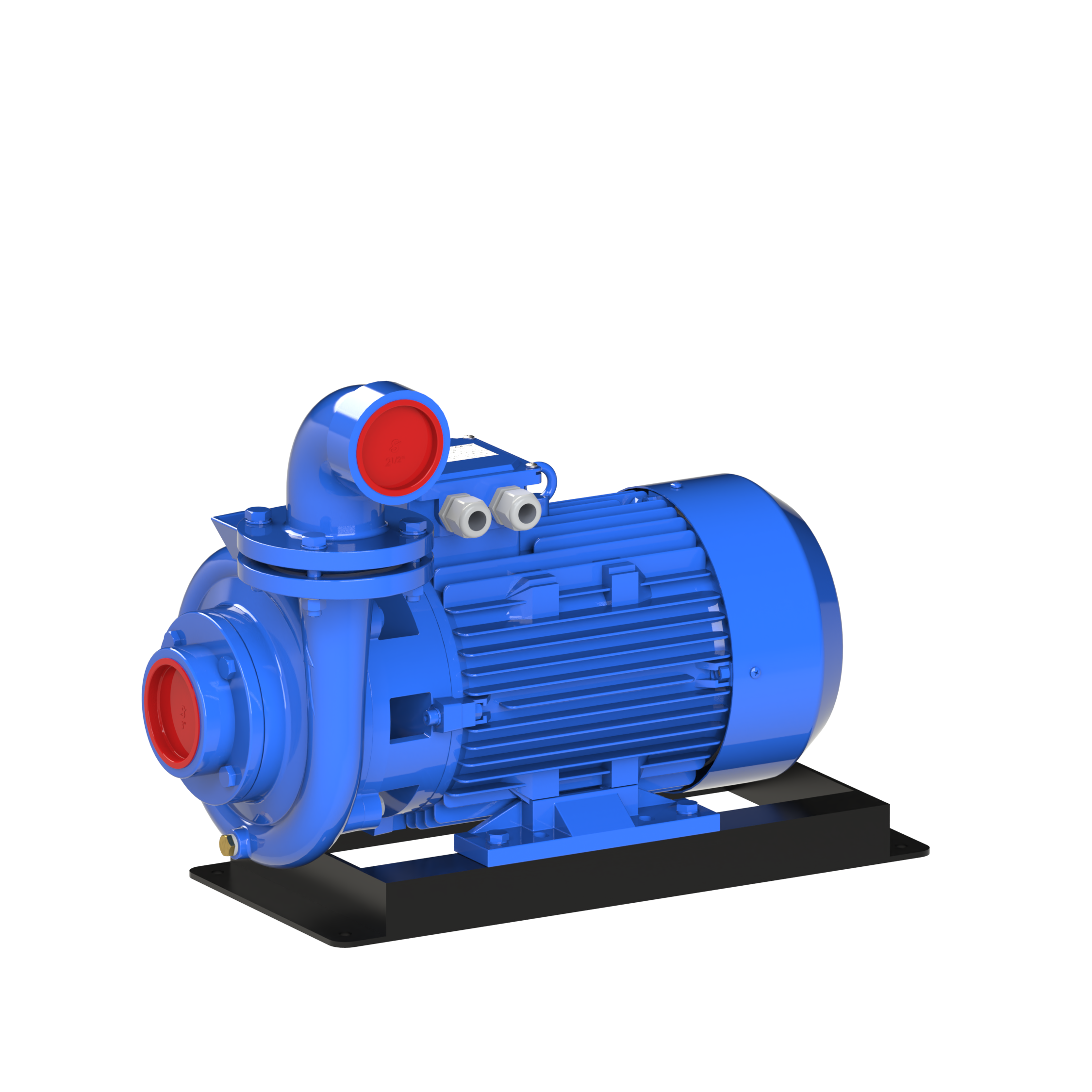

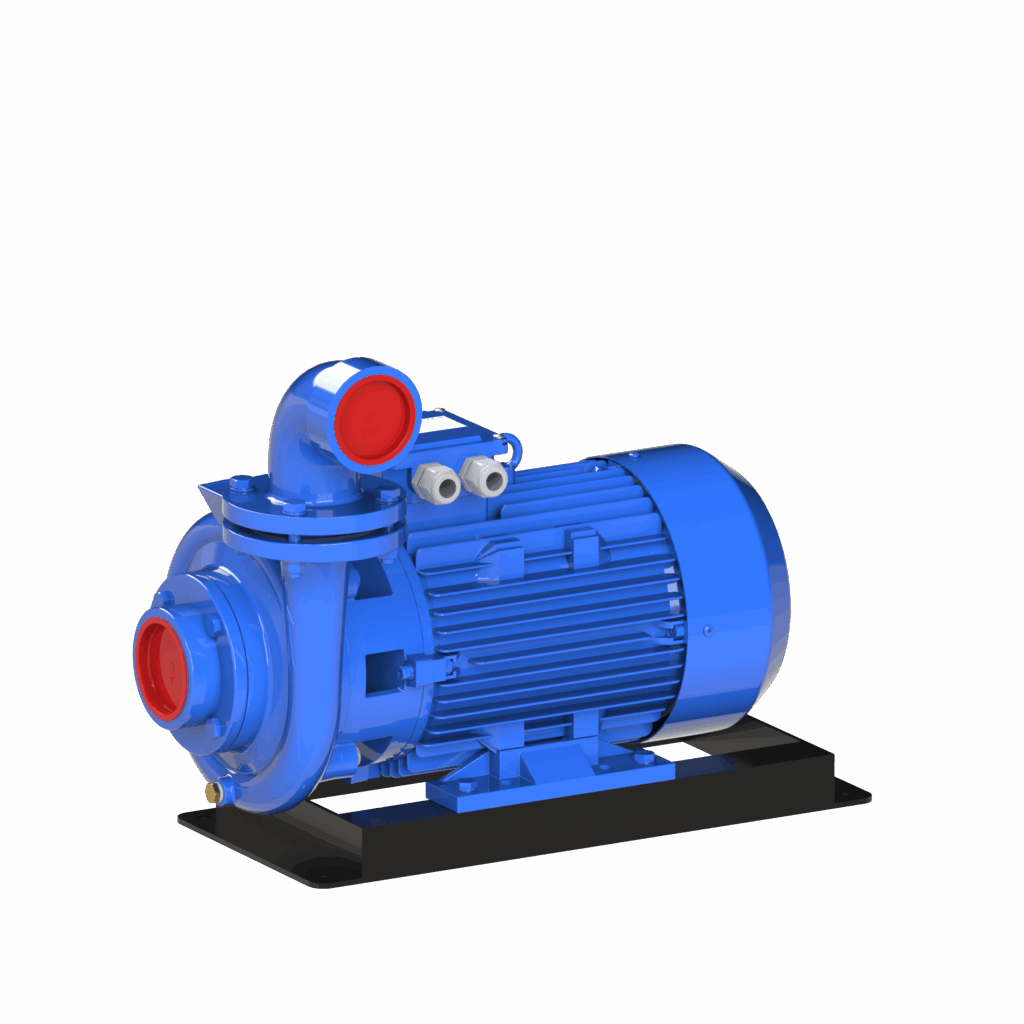

SMT1500/3-S
Definition
These pumps with cast iron body and cast iron impeller are high flow rate and a suction power of up to 6 meter pumps. It is designed for use in the supply and discharge of clean or few dirty water.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Usage Areas
These pumps are used in residential areas, industrial facilities, irrigation applications, heating – cooling systems, paint booths, industrial wash machines and water supply and pressurization.
Pump Material Characteristics
| Pump Body | GG25 CAST IRON |
| Impeller | GG25 CAST IRON |
| Shaft | AISI 304 INOX |
| Flow Rate(max) | 60 m³/hour |
| Total Head (max) | 40 m |
| Liquid Temperature | 0-45°C |
| Protection Class | IP54 |
| Insulation | CI.F |
| Mechanical Seal | CERAMIC/CARBON |
| Pump Durability Pressure(Pmax) | 6 bar |

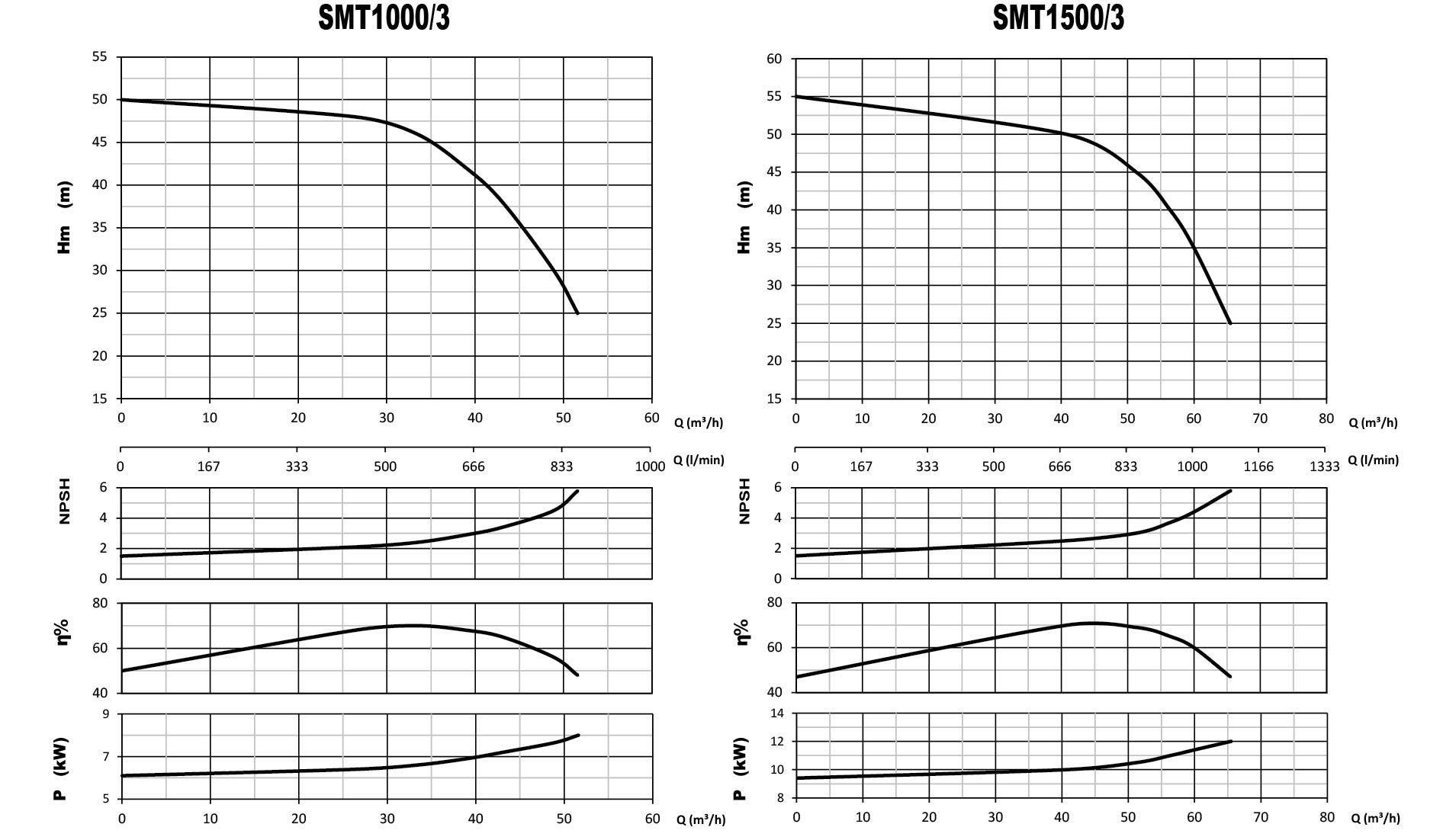

Technical Specifications
| MOTOR | PUMP | |||||||||||||||
| Type | KW | HP | V | Hz | A | rpm | Hm | suc. m | input output | KG | m³/h | 10 | 20 | 30 | 40 | 50 |
| SMT1000/3-S | 7.5 | 10 | 380 | 50 | 14.7 | 2900 | 50 | 6 | 3″ 2½ | 74.5 | mss | 49 | 48 | 47 | 41 | 27 |
| SMT1500/3-S | 11 | 15 | 380 | 50 | 22 | 2900 | 55 | 6 | 3″ 2½ | 85 | 54 | 53 | 52 | 50 | 45 | |

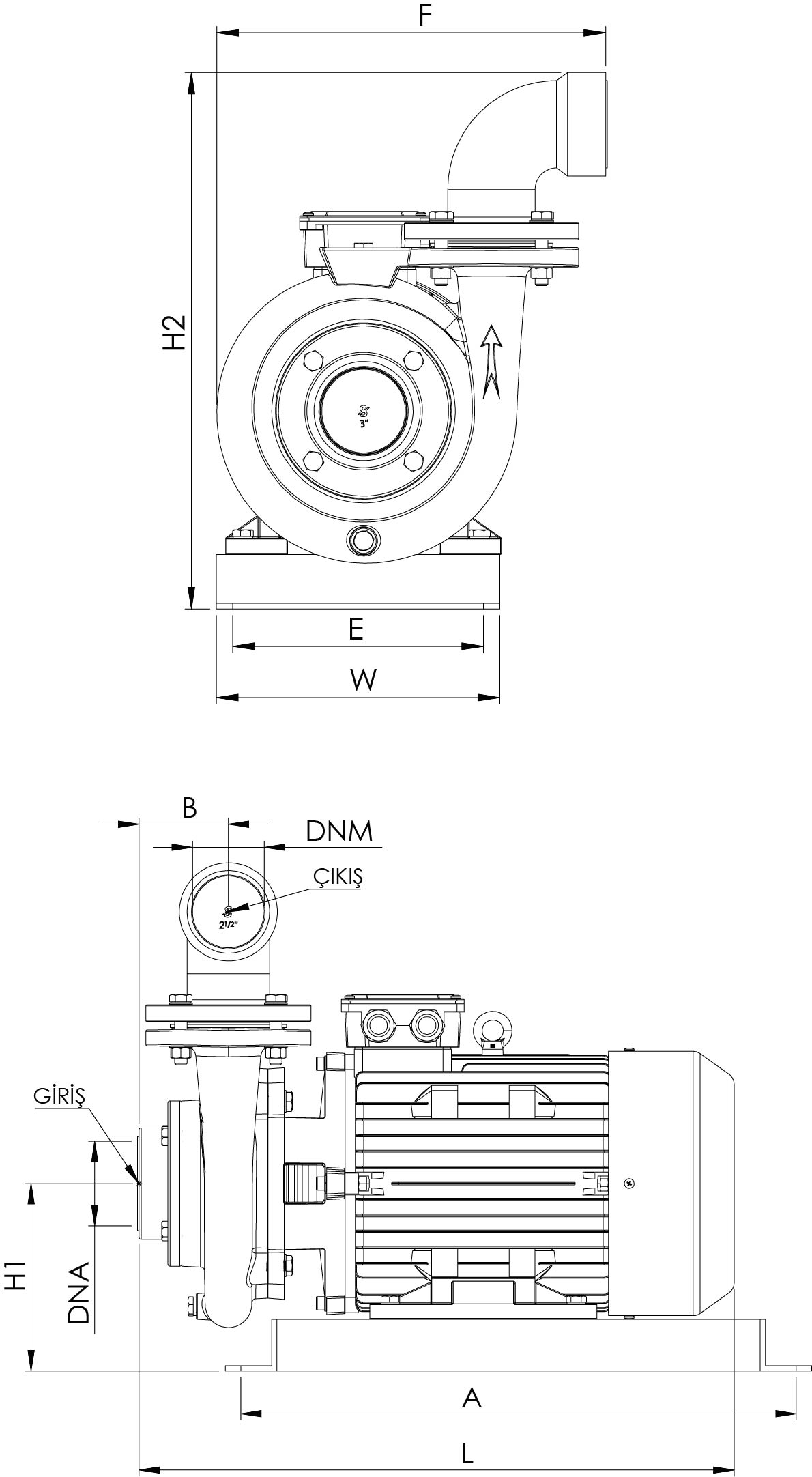

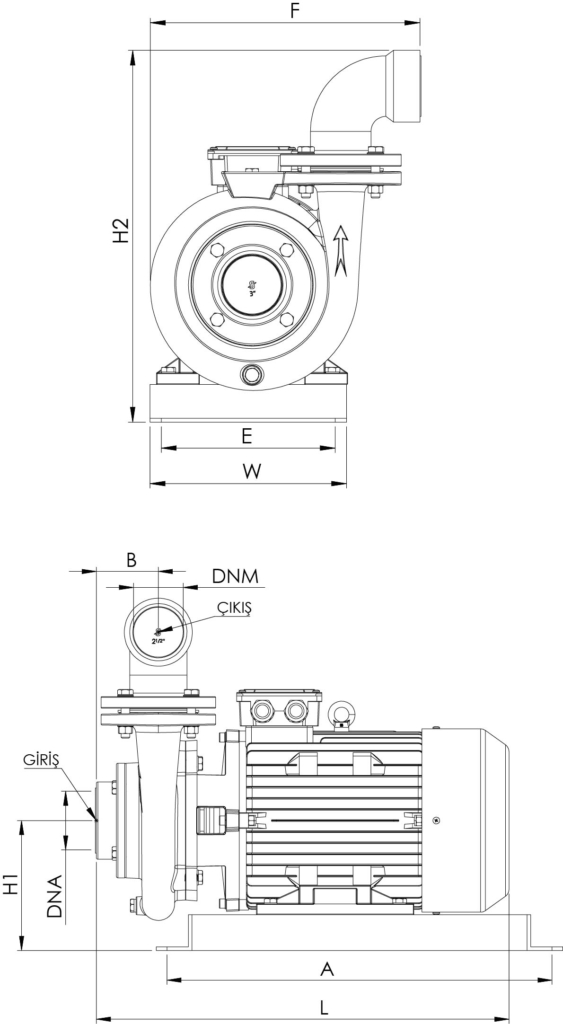

| Dimensions | ||||||||||
| TYPE | A | B | L | W | E | F | H1 | H2 | DNA | DNM |
| SMT1000/3-S | 538 | 87 | 577 | 260 | 230 | 357 | 182 | 492 | G3″ | G2½ |
| SMT1500/3-S | 538 | 87 | 577 | 260 | 230 | 357 | 182 | 492 | G3″ | G2½ |

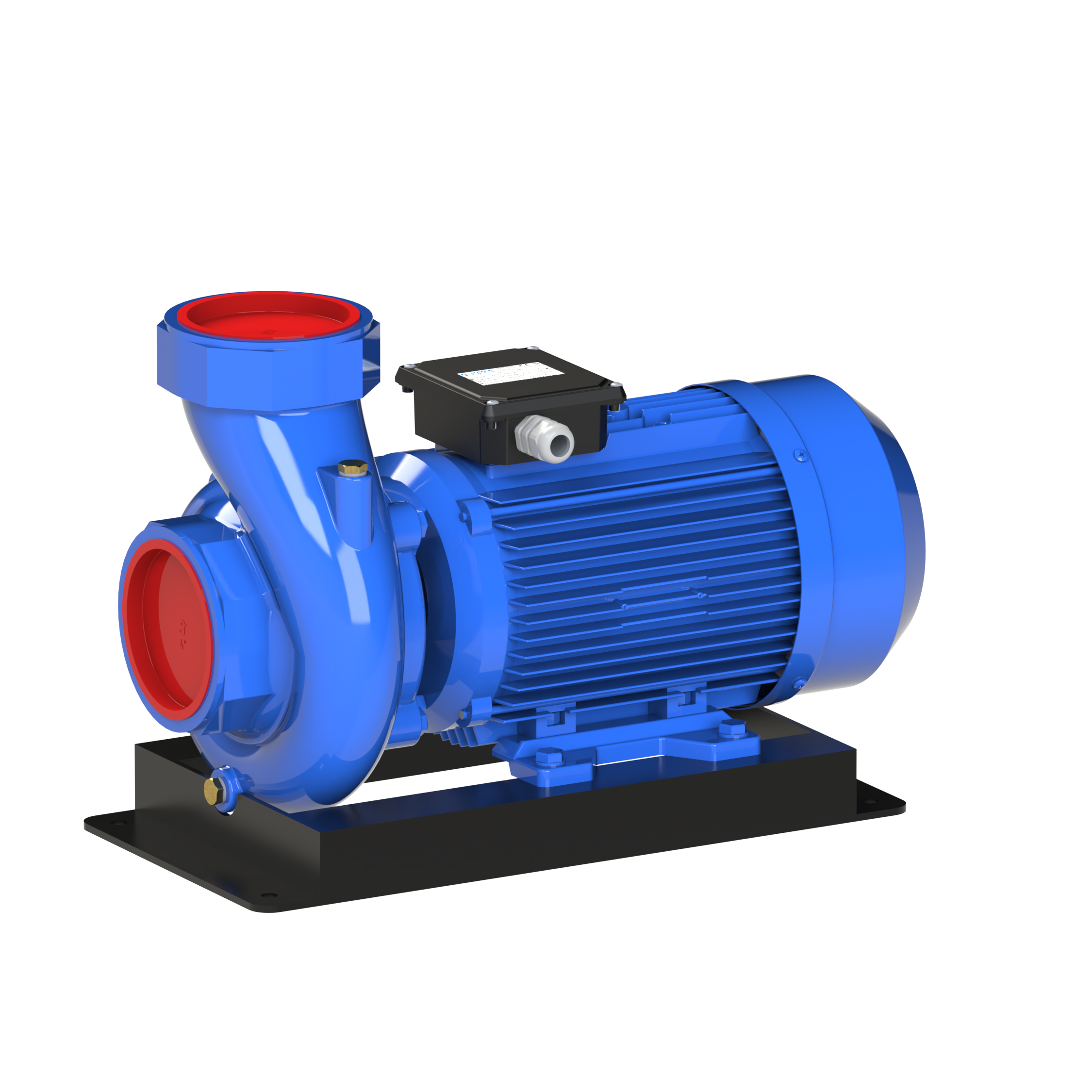

SMT550/4-S
Definition
These pumps with cast iron body and cast iron impeller are high flow rate and a suction power of up to 6 meter pumps. It is designed for use in the supply and discharge of clean or few dirty water.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Usage Areas
These pumps are used in residential areas, industrial facilities, irrigation applications, heating – cooling systems, paint booths, industrial wash machines and water supply and pressurization.
Pump Material Characteristics
| Pump Body | GG25 CAST IRON |
| Impeller | GG25 CAST IRON |
| Shaft | AISI 304 INOX |
| Flow Rate (max) | 115 m³/hour |
| Total Head (max) | 20 m |
| Liquid Temperature | 0-45°C |
| Protection Class | IP54 |
| Insulation | CI.F |
| Mechanical Seal | CERAMIC/CARBON |
| Pump Durability Pressure(Pmax) | 4 bar |

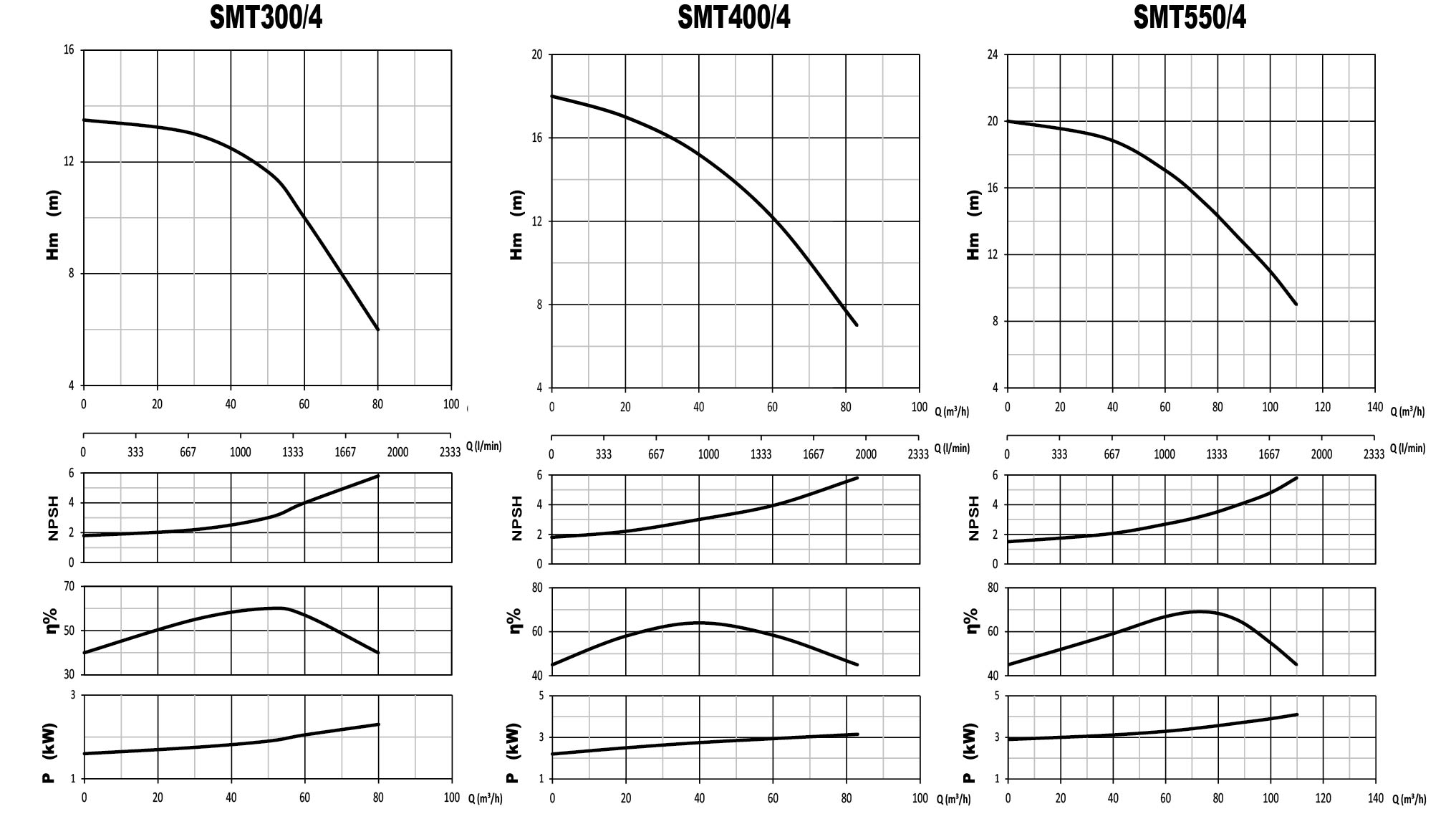

Technical Specifications
| MOTOR | PUMP | |||||||||||||||||
| Type | KW | HP | V | Hz | A | rpm | capacitor uf Vc | Hm | suc. m | input output | KG | m³/h | 15 | 30 | 50 | 80 | 115 | |
| SM300/4-S | 2.2 | 3 | 220 | 50 | 13.3 | 2900 | 50 | 450 | 14 | 6 | 4″ | 34.5 | mss | 13.5 | 13 | 11.5 | 6 | – |
| SMT300/4-S | 2.2 | 3 | 380 | 50 | 4.8 | 2900 | – | – | 14 | 6 | 4″ | 33 | 13.5 | 13 | 11.5 | 6 | – | |
| SMT400/4-S | 3 | 4 | 380 | 50 | 6.3 | 2900 | – | – | 18 | 6 | 4″ | 37 | 17.5 | 16 | 14 | 8 | – | |
| SMT550/4-S | 4 | 5.5 | 380 | 50 | 9.8 | 2900 | – | – | 20 | 6 | 4″ | 51 | 19.5 | 19 | 18 | 14 | 8 | |
| SMT750/4-S | 5.5 | 7.5 | 380 | 50 | 14 | 2900 | – | – | 23 | 6 | 4″ | 55 | 22.5 | 22 | 21.5 | 18 | 11 | |

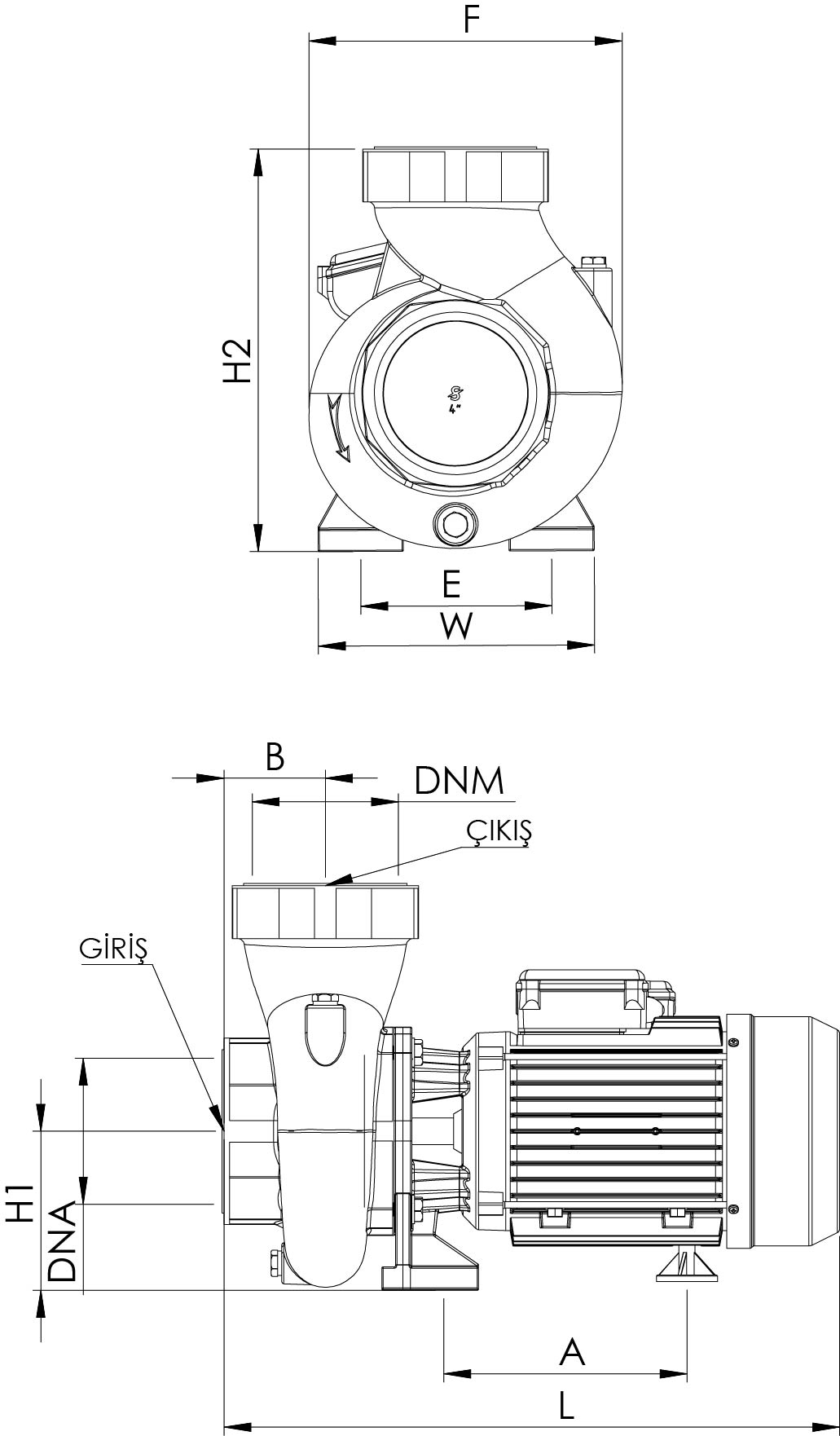

| Dimensions | ||||||||||
| TYPE | A | B | L | W | E | F | H1 | H2 | DNA | DNM |
| SMT300/4-S | 179 | 75 | 453 | 204 | 141 | 232 | 117 | 298 | G4″ | G4″ |
| SMT400/4-S | 202 | 75 | 470 | 204 | 141 | 232 | 116 | 292 | G4″ | G4″ |
| SMT550/4-S | 468 | 76 | 531 | 250 | 220 | 259 | 162 | 365 | G4″ | G4″ |
| SMT750/4-S | 468 | 76 | 531 | 250 | 220 | 259 | 162 | 365 | G4″ | G4″ |
Hot Water Centrifugal Pumps
Hot Water Centrifugal Pumps produced by turkish hot water centrifugal pump manufacturers , are machines that increase the energy or pressure of liquids. In this regard, pumps are used to send a liquid from low to high or from low pressure to high pressure. Centrifugal water pump inlets and outlets are manufactured in 2900 cycles between 1 -15 HP in types ranging from 1” to 4” inches. The selection of the Hot Water pump is very important in terms of choosing the one that suits the needs.
Our hot water centrifugal pumps manufactured by turkish hot water cantrifugal pump producers are used in hot water applications up to 120°C, in the pressurization of solar energy systems, water circulation in heating systems, industrial iron pump, boiler boiler pump hot water circulation, domestic hot water circulation and underground spring water as a hot water booster systemThere are more than one type of pumps used for 90°C hot water pump. every model can be used in different areas.
Hot water pumps produced by turkish hot water centrifugal pump suppliers can be examined in three categories as centrifugal pumps, water preferical pumps and jet pumps.
The working principle of the hot water pump has a different working system compared to the normal pumps. The biggest difference from normal pumps is that they work with hotter liquid. It is produced from materials that are resistant to high temperatures, working with hotter liquids. Therefore, their sensitivity to any temperature is quite high.
As for the hot water pumps, in these pumps, which consist of a vane impeller in a body, the liquid enters the pump through a suction pipe. The path of the liquid in a hot water centrifugal dynamo is as follows.
Regarding the installation of hot water centrifugal pumps , Due to the vacuum created on the suction side of the impeller, the liquid enters between the blades of the impeller. The fluid passing between the impeller blades gains a great tangential velocity with the rotational movements of the impeller. Between the impeller blades and the channels bounded by the front and rear profiles of the impeller, the liquid is pushed towards the exit side of the impeller by the centrifugal force that occurs during the rotational movement. The movement created in this way ensures the continuous flow of liquid and suction from the suction side of the pump. The kinetic energy contained in the liquid leaving the impeller blades with a great tangential velocity is converted into a pressure force in the volute cavity between the fixed diffuser blades. The highest pressure is achieved with a given rotational speed. Such a pump can be said to be a hydrodynamic pump.
