Inline Centrifugal Pumps
Single Stage, non-self-priming, suction and pressure flanges can be assamblied in axial through one straight pipe, single stage, within scroll, closed impeller, mono block centrifugal pumps.
Line type pumps designed with SML 160/65 vs SML 160/80 models have started to serial production with 2900 rpm and 1450 rpm options. These type of pumps have designed according to usage in Industrial facilities, swimming pools, geothermal facilities, heating and cooling systems, air conditioning systems, water distribution systems, fire fighting systems and power plants.
SML 160/50
Definition
These pumps are high altitude, high flow and easy to maintain pumps with cast iron body, cast iron impeller, vertical shaft, single stage, non self suction and coupling connection.
It is designed to be used in pressurizing low viscosity liquids that are non-corrosive, non-flammable, and do not contain solid particles and fibers.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Usage Areas
These pumps are used for high flow water needs in industrial facilities, treatment facilities, heating and cooling systems, water mainses and pressurization facilities, booster and fire systems, in refineries and power plants.
Pump Material Characteristics
| Pump Body | GG25 CAST IRON |
| Impeller | GG25 CAST IRON |
| Shaft | AISI 420 |
| Flow Rate (max) | 130 m³/hour |
| Total Head (max) | 50 m |
| Liquid Temperature | 0-110°C |
| Protection Class | IP54 |
| Insulation | CI.F |
| Mechanical Seal | CERAMIC/CARBON |
| Input-Output | DN65 PN16(SML160/65) – DN80 PN16(SML160/80) |
| Pump Durability Pressure (Pmax) | 16 bar |

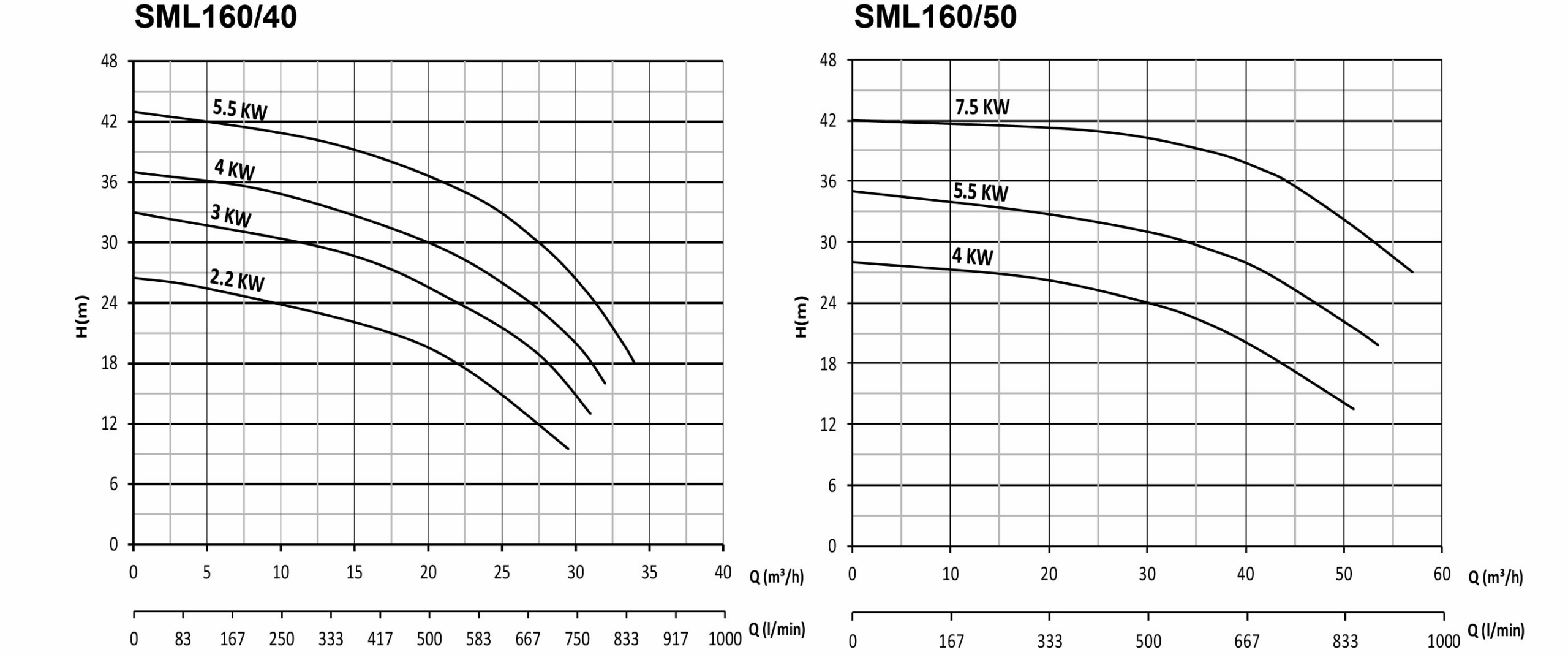

Technical Specifications
| MOTOR | PUMP | ||||||||||||||

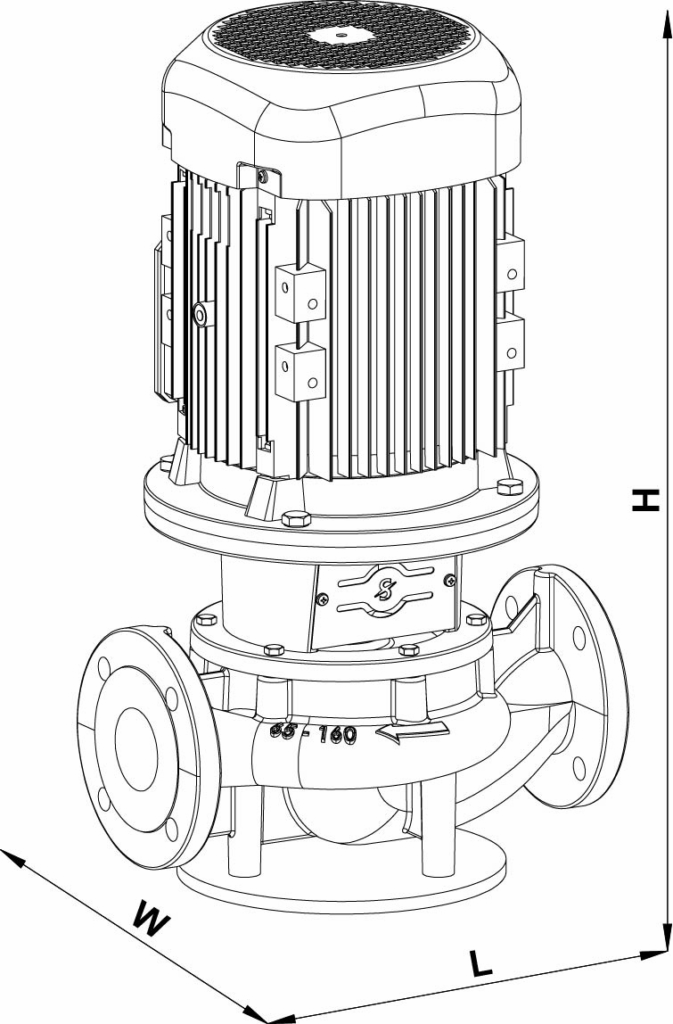

| TYPE | KW | HP | Hz | rpm | input output | W | L | H | KG | m³/h | 10 | 15 | 20 | 25 | 30 |
| SML160/40 | 2.2 | 3 | 50 | 2900 | DN40 | 270 | 350 | 550 | 46.5 | mss | 24 | 22 | 19.5 | 15 | – |
| 3 | 4 | 50 | 2900 | DN40 | 270 | 350 | 550 | 48 | 30.5 | 29 | 25.5 | 21.5 | 15 | ||
| 4 | 5.5 | 50 | 2900 | DN40 | 270 | 350 | 630 | 55.6 | 35 | 33 | 30 | 26 | 20 | ||
| 5.5 | 7.5 | 50 | 2900 | DN40 | 270 | 350 | 630 | 62.6 | 41 | 39 | 36.5 | 33 | 26 | ||
| MOTOR | PUMP | ||||||||||||||
| Type | KW | HP | Hz | rpm | input output | W | L | H | KG | m³/h | 18 | 30 | 35 | 45 | 50 |
| SML160/50 | 4 | 5.5 | 50 | 2900 | DN50 | 270 | 340 | 660 | 65 | mss | 26.5 | 24 | 21.5 | 17 | 13 |
| 5.5 | 7.5 | 50 | 2900 | DN50 | 270 | 340 | 660 | 70 | 33 | 31 | 30 | 24.5 | 21 | ||
| 7.5 | 10 | 50 | 2900 | DN50 | 330 | 340 | 700 | 85 | 41.5 | 40 | 39 | 35 | 32 | ||
SML 160/80
Definition
These pumps are high altitude, high flow and easy to maintain pumps with cast iron body, cast iron impeller, vertical shaft, single stage, non self suction and coupling connection.
It is designed to be used in pressurizing low viscosity liquids that are non-corrosive, non-flammable, and do not contain solid particles and fibers.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Usage Areas
These pumps are used for high flow water needs in industrial facilities, treatment facilities, heating and cooling systems, water mainses and pressurization facilities, booster and fire systems, in refineries and power plants.
Pump Material Characteristics
| Pump Body | GG25 CAST IRON |
| Impeller | GG25 CAST IRON |
| Shaft | AISI 420 |
| Flow Rate (max) | 130 m³/hour |
| Total Head (max) | 50 m |
| Liquid Temperature | 0-110°C |
| Protection Class | IP54 |
| Insulation | CI.F |
| Mechanİcal Seal | CERAMIC/CARBON |
| Input-Output | DN65 PN16(SML160/65) – DN80 PN16(SML160/80) |
| Pump Durability Pressure (Pmax) | 16 bar |

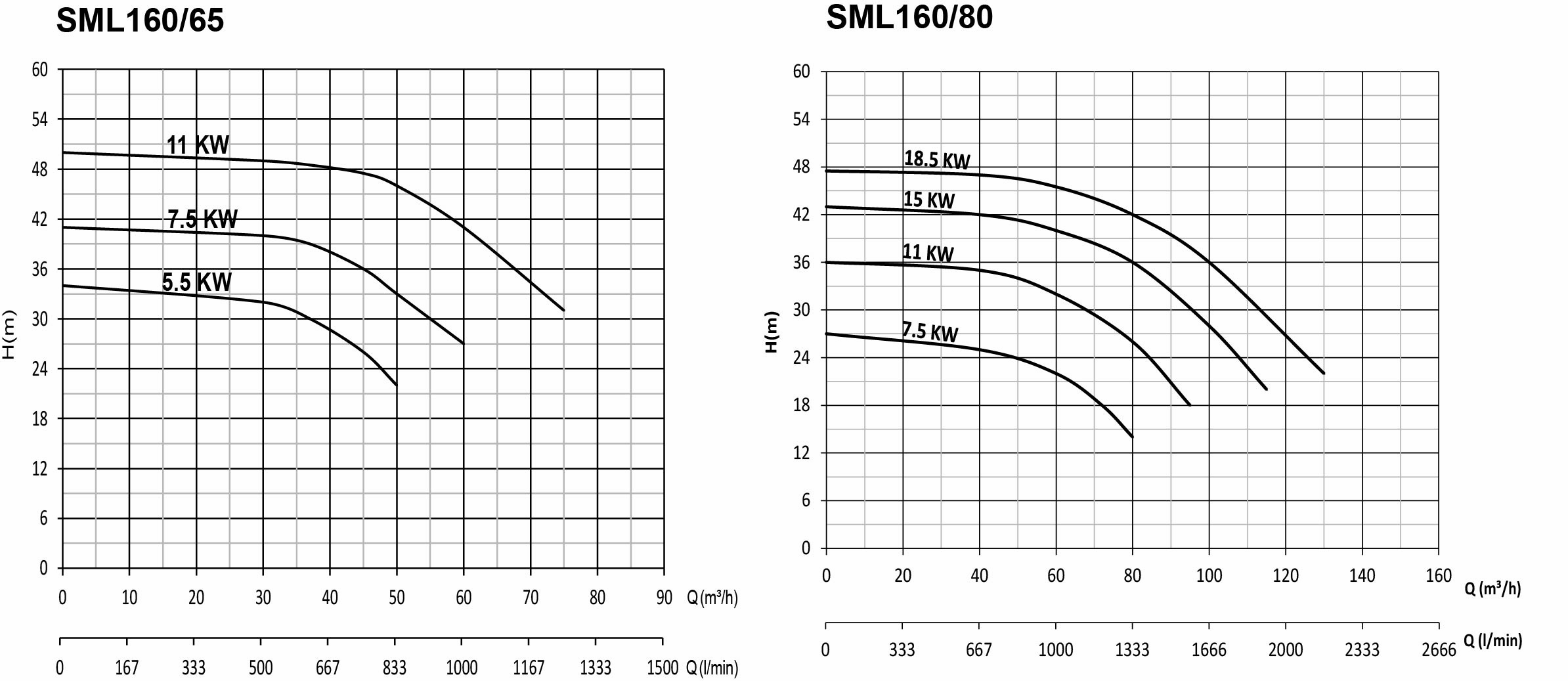

Technical Specifications
| MOTOR | PUMP | ||||||||||||||
| TYPE | KW | HP | Hz | rpm | input output | W | L | H | KG | m³/h | 20 | 40 | 50 | 60 | 70 |
| SML160/65 | 5.5 | 7.5 | 50 | 2900 | DN65 | 252 | 380 | 640 | 71 | mss | 33 | 27 | 20 | – | – |
| 7.5 | 10 | 50 | 2900 | DN65 | 252 | 380 | 700 | 87 | 39 | 37 | 33 | 27 | – | ||
| 11 | 15 | 50 | 2900 | DN65 | 252 | 380 | 730 | 96 | 49 | 48 | 46 | 40 | 34 | ||
| MOTOR | PUMP | ||||||||||||||
| TYPE | KW | HP | Hz | rpm | input output | W | L | H | KG | m³/h | 40 | 60 | 80 | 100 | 120 |
| SML160/80 | 7.5 | 10 | 50 | 2900 | DN80 | 280 | 425 | 750 | 95 | mss | 23.5 | 22 | 15 | 6 | – |
| 11 | 15 | 50 | 2900 | DN80 | 280 | 425 | 750 | 107 | 35 | 32 | 26 | 14 | – | ||
| 15 | 20 | 50 | 2900 | DN80 | 280 | 425 | 810 | 125 | 42 | 39 | 36 | 27 | – | ||
| 18.5 | 25 | 50 | 2900 | DN80 | 280 | 425 | 810 | 145 | 46 | 44 | 42 | 36 | 26 | ||
SML 200/40 - SML 200/50
Definition
These pumps are high altitude, high flow and easy to maintain pumps with cast iron body, cast iron impeller, vertical shaft, single stage, non self suction and coupling connection.
It is designed to be used in pressurizing low viscosity liquids that are non-corrosive, non-flammable, and do not contain solid particles and fibers.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Usage Areas
These pumps are used for high flow water needs in industrial facilities, treatment facilities, heating and cooling systems, water mainses and pressurization facilities, booster and fire systems, in refineries and power plants.
Pump Material Characteristics
| Pump Body | GG25 CAST IRON |
| Impeller | GG25 CAST IRON |
| Shaft | AISI 420 |
| Flow Rate (max) | 42 m³/hour |
| Total Head (max) | 13 m |
| Liquid Temperature | 0-110°C |
| Protection Class | IP54 |
| Insulation | CI.F |
| Mechanical Seal | CERAMIC/CARBON |
| Input-Output | DN40 PN16(SML200/40) – DN50 PN16(SML200/50) |
| Pump Durability Pressure (Pmax) | 16 bar |

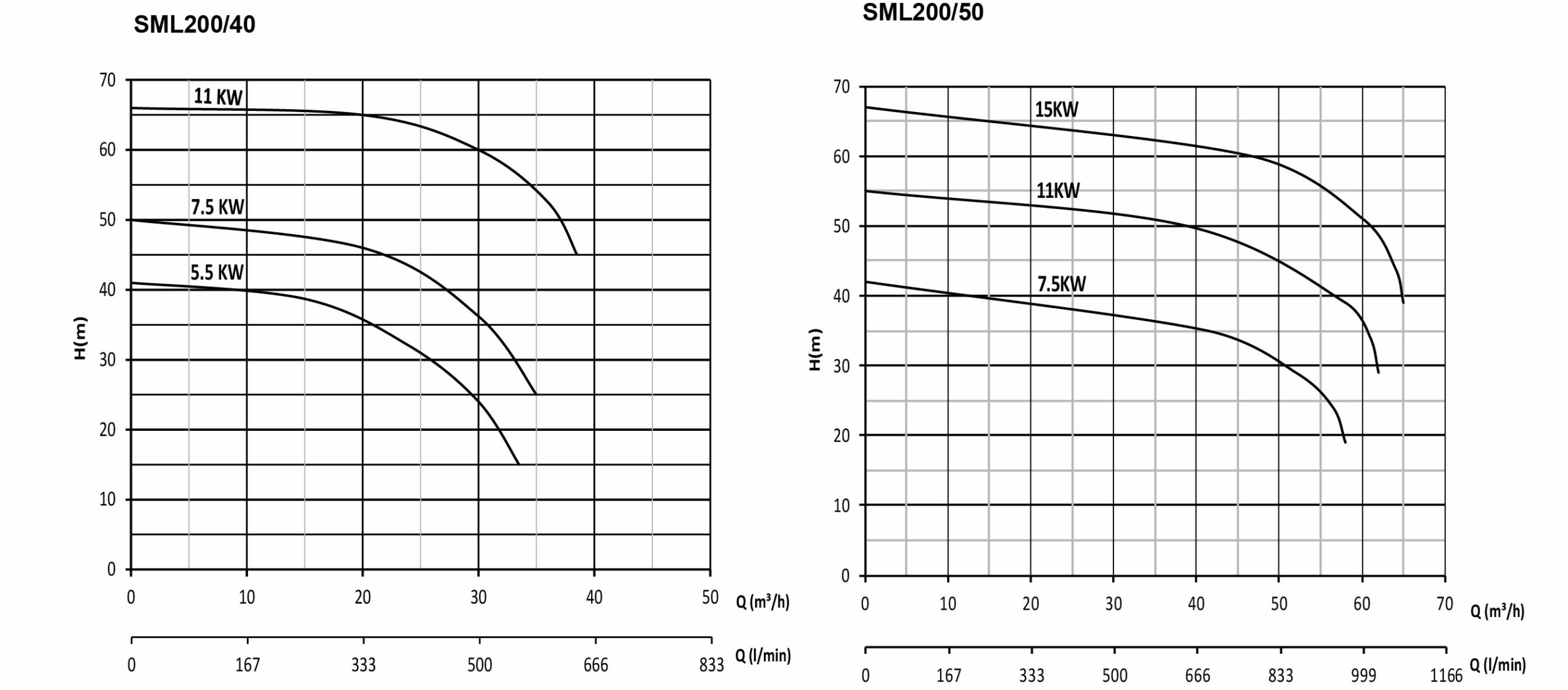

Technical Specifications
| MOTOR | PUMP | ||||||||||||||
| Type | KW | HP | Hz | rpm | input output | W | L | H | KG | m³/h | 5 | 10 | 20 | 30 | 35 |
| SML200/40 | 5.5 | 7.5 | 50 | 2900 | DN40 | 275 | 380 | 585 | 80 | mss | 40.5 | 40 | 35.5 | 24 | – |
| 7.5 | 10 | 50 | 2900 | DN40 | 300 | 380 | 650 | 87 | 49.5 | 48 | 46 | 36 | 25 | ||
| 11 | 15 | 50 | 2900 | DN40 | 300 | 380 | 650 | 90 | 65.5 | 65 | 64.5 | 60 | 54.5 | ||
| MOTOR | PUMP | ||||||||||||||
| Type | KW | HP | Hz | rpm | input output | W | L | H | KG | m³/h | 20 | 30 | 40 | 50 | 60 |
| SML200/50 | 7.5 | 10 | 50 | 2900 | DN50 | 300 | 425 | 700 | 90 | mss | 39 | 38 | 35 | 30 | – |
| 11 | 15 | 50 | 2900 | DN50 | 300 | 425 | 730 | 101 | 53 | 52 | 50 | 45 | 37 | ||
| 15 | 20 | 50 | 2900 | DN50 | 350 | 425 | 820 | 136 | 64.5 | 63 | 61 | 58 | 51 | ||
SML 250/50
Definition
These pumps are high altitude, high flow and easy to maintain pumps with cast iron body, cast iron impeller, vertical shaft, single stage, non self suction and coupling connection.
It is designed to be used in pressurizing low viscosity liquids that are non-corrosive, non-flammable, and do not contain solid particles and fibers.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Usage Areas
These pumps are used for high flow water needs in industrial facilities, treatment facilities, heating and cooling systems, water mainses and pressurization facilities, booster and fire systems, in refineries and power plants.
Pump Material Characteristics
| Pump Body | GG25 CAST IRON |
| Impeller | GG25 CAST IRON |
| Shaft | AISI 420 |
| Flow Rate (max) | 65 m³/hour |
| Total Head (max) | 94 m |
| Liquid Temperature | 0-110°C |
| Protection Class | IP54 |
| Insulation | CI.F |
| Mechanical Seal | CERAMIC/CARBON |
| Input-Output | DN50 PN16 |
| Pump Durability Pressure (Pmax) | 16 bar |

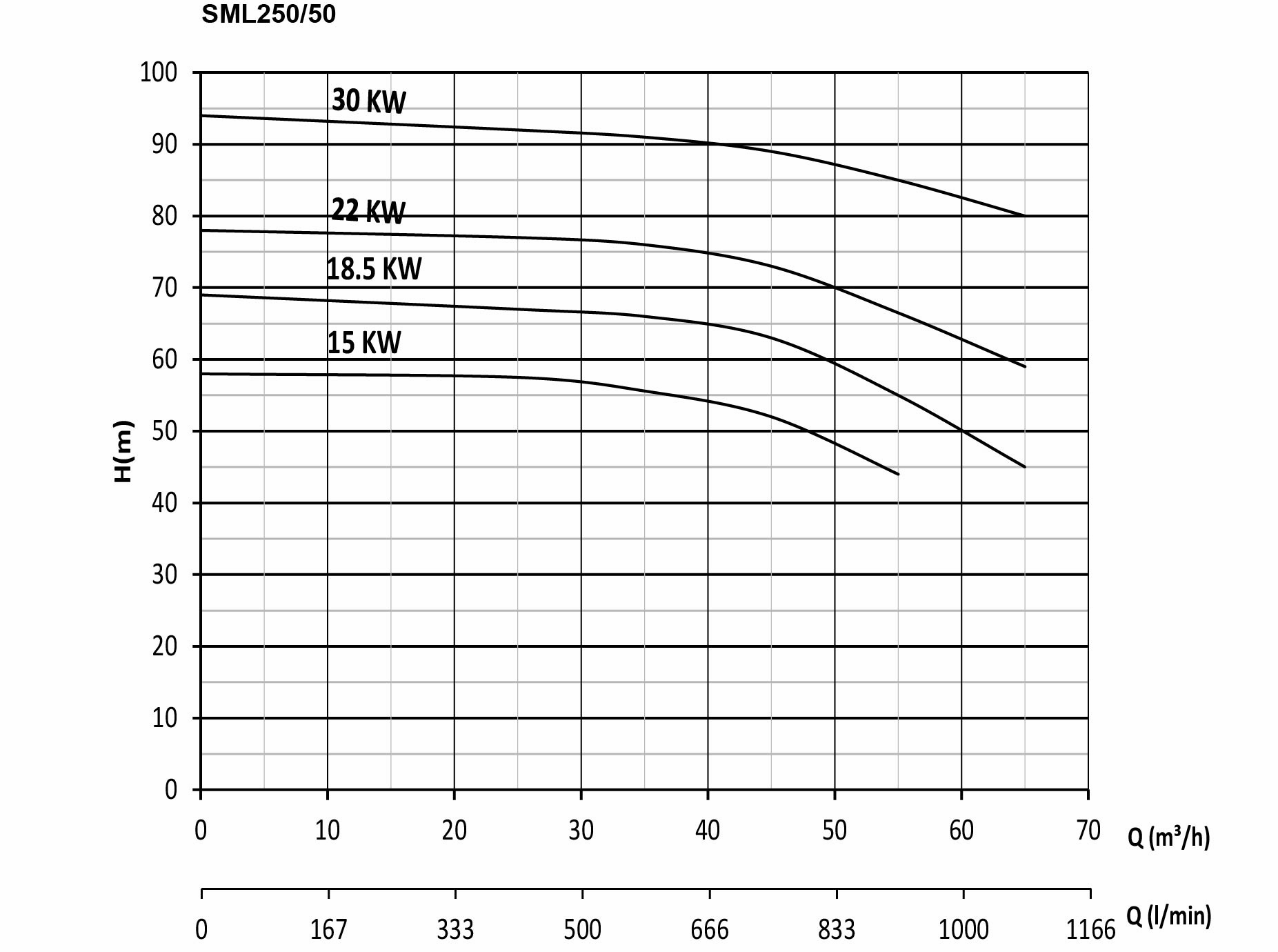

Technical Specifications
| MOTOR | PUMP | ||||||||||||||
| TYPE | KW | HP | Hz | rpm | input output | W | L | H | KG | m³/h | 10 | 20 | 40 | 50 | 60 |
| SML250/50 | 15 | 20 | 50 | 2900 | DN50 | 342 | 475 | 820 | 150 | mss | 56.5 | 56 | 55 | 48 | – |
| 18.5 | 25 | 50 | 2900 | DN50 | 342 | 475 | 820 | 160 | 68 | 67 | 65 | 60 | 50 | ||
| 22 | 30 | 50 | 2900 | DN50 | 375 | 475 | 870 | 182 | 77 | 76 | 75 | 70 | 62.5 | ||
| 30 | 40 | 50 | 2900 | DN50 | 375 | 475 | 870 | 190 | 93 | 92 | 90.5 | 87 | 82.5 | ||
SML 160/50 - SML 160/65
- SML 160/80
Definition
These pumps are high altitude, high flow and easy to maintain pumps with cast iron body, cast iron impeller, vertical shaft, single stage, non self suction and coupling connection.
It is designed to be used in pressurizing low viscosity liquids that are non-corrosive, non-flammable, and do not contain solid particles and fibers.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Usage Areas
These pumps are used for high flow water needs in industrial facilities, treatment facilities, heating and cooling systems, water mainses and pressurization facilities, booster and fire systems, in refineries and power plants.
Pump Material Characteristics
| Pump Body | GG25 CAST IRON |
| Impeller | GG25 CAST IRON |
| Shaft | AISI 420 |
| Flow Rate (max) | 54 m³/hour |
| Total Head (max) | 12 m |
| Liquid Temperature | 0-110°C |
| Protection Class | IP54 |
| Insulation | CI.F |
| Mechanical Seal | CERAMIC/CARBON |
| Input-Output | DN65 PN16(SML 160/65)-DN80 PN16(SML 160/80) |
| Pump Durability Pressure (Pmax) | 16 bar |

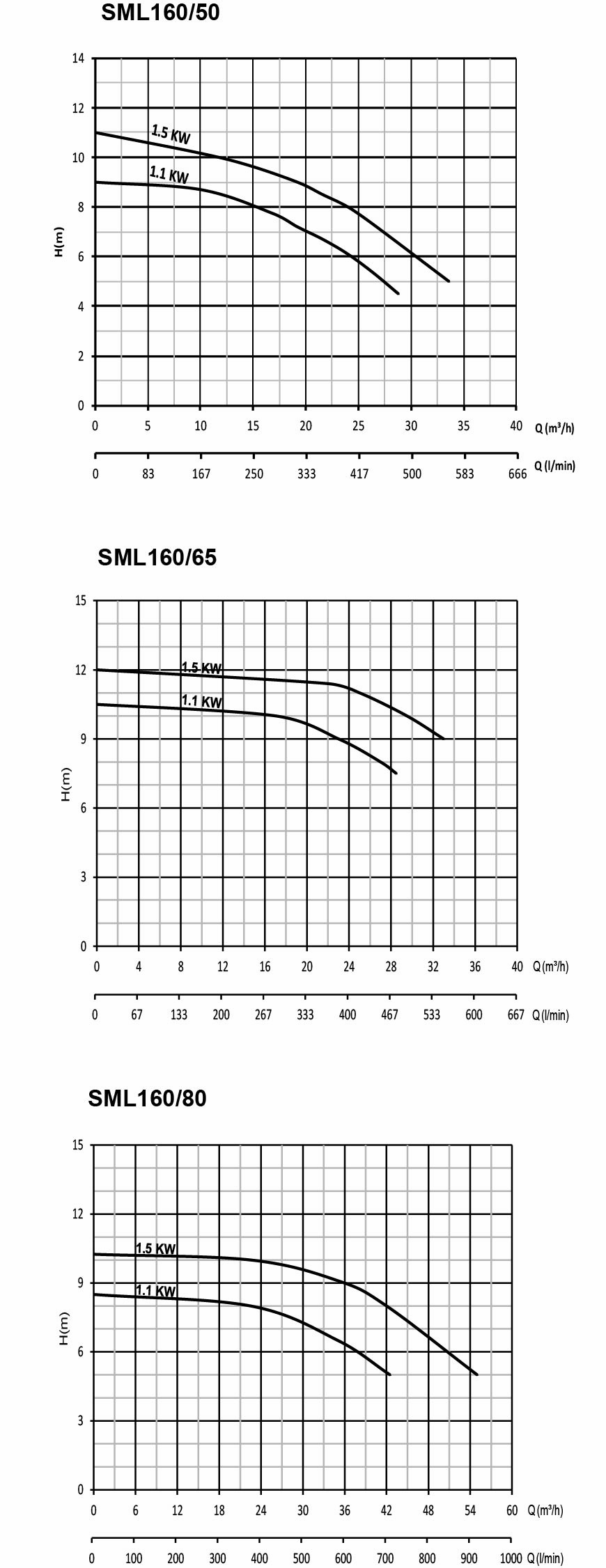

Technical Specifications
| MOTOR | Pump | ||||||||||||||
| Type | KW | HP | Hz | rpm | input output | W | L | H | KG | m³/h | 10 | 15 | 20 | 25 | 30 |
| SML160/50 | 1.1 | 1.5 | 50 | 1450 | DN50 | 270 | 340 | 550 | 49 | mss | 8.5 | 8 | 7 | 6 | 4 |
| 1.5 | 2 | 50 | 1450 | DN50 | 270 | 340 | 550 | 51 | 10 | 9.5 | 9 | 7.5 | 6 | ||
| Type | KW | HP | Hz | rpm | input output | W | L | H | KG | m³/h | 8 | 12 | 20 | 28 | 32 |
| SML160/65 | 1.1 | 1.5 | 50 | 1450 | DN65 | 252 | 380 | 550 | 37 | mss | 10.4 | 10 | 9.5 | 7.5 | – |
| 1.5 | 2 | 50 | 1450 | DN65 | 252 | 380 | 550 | 37 | 11.8 | 11.6 | 11.4 | 10.4 | 9.2 |
| Type | KW | HP | Hz | rpm | input output | W | L | H | KG | m³/h | 18 | 30 | 42 | 48 | 54 |
| SML160/80 | 1.1 | 1.5 | 50 | 1450 | DN80 | 280 | 425 | 570 | 41 | mss | 8 | 7 | 5 | – | – |
| 1.5 | 2 | 50 | 1450 | DN80 | 280 | 425 | 570 | 41 | 10 | 9.5 | 8 | 6.5 | 5 |
SML 200/40 - SML 200/50
Definition
These pumps are high altitude, high flow and easy to maintain pumps with cast iron body, cast iron impeller, vertical shaft, single stage, non self suction and coupling connection.
It is designed to be used in pressurizing low viscosity liquids that are non-corrosive, non-flammable, and do not contain solid particles and fibers.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Usage Areas
These pumps are used for high flow water needs in industrial facilities, treatment facilities, heating and cooling systems, water mainses and pressurization facilities, booster and fire systems, in refineries and power plants.
Pump Material Characteristics
| Pump Body | GG25 CAST IRON |
| Impeller | GG25 CAST IRON |
| Shaft | AISI 420 |
| Flow Rate (max) | 42 m³/hour |
| Total Head (max) | 13 m |
| Liquid Temperature | 0-110°C |
| Protection Class | IP54 |
| Insulation | CI.F |
| Mechanical Seal | CERAMIC/CARBON |
| Input-Output | DN40 PN16(SML 200/40)-DN50 PN16(SML 200/50) |
| Pump Durability Pressure (Pmax) | 16 bar |

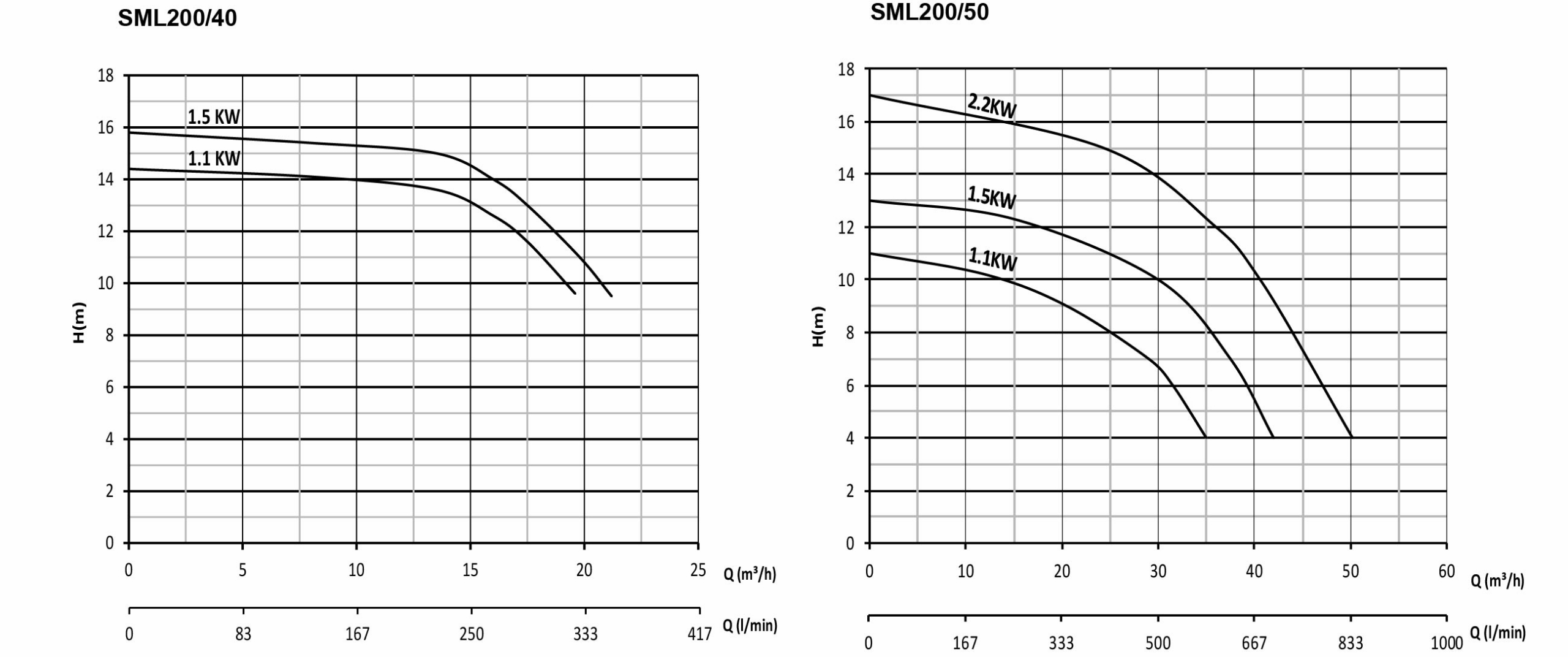

Technical Specifications
| MOTOR | PUMP | ||||||||||||||
| TYPE | KW | HP | Hz | rpm | input output | W | L | H | KG | m³/h | 5 | 12 | 15 | 20 | 25 |
| SML200/40 | 1.1 | 1.5 | 50 | 1450 | DN40 | 250 | 380 | 380 | 50 | mss | 14.2 | 14 | 13 | 9 | – |
| 1.5 | 2 | 50 | 1450 | DN40 | 250 | 380 | 380 | 55 | 15.5 | 15 | 14.5 | 11 | – | ||
| TYPE | KW | HP | Hz | rpm | input output | W | L | H | KG | m³/h | 10 | 20 | 30 | 40 | 50 |
| SML200/50 | 1.1 | 1.5 | 50 | 1450 | DN50 | 300 | 425 | 540 | 55 | mss | 10.5 | 9 | 6.5 | – | – |
| 1.5 | 2 | 50 | 1450 | DN50 | 300 | 425 | 540 | 60 | 12.5 | 11.5 | 10 | 5.5 | – | ||
| 2.2 | 3 | 50 | 1450 | DN50 | 300 | 425 | 540 | 60 | 16.5 | 15.5 | 14 | 10 | 4 |
SML 250/50
Definition
These pumps are high altitude, high flow and easy to maintain pumps with cast iron body, cast iron impeller, vertical shaft, single stage, non self suction and coupling connection.
It is designed to be used in pressurizing low viscosity liquids that are non-corrosive, non-flammable, and do not contain solid particles and fibers.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Usage Areas
These pumps are used for high flow water needs in industrial facilities, treatment facilities, heating and cooling systems, water mainses and pressurization facilities, booster and fire systems, in refineries and power plants.
Pump Material Characteristics
| Pump Body | GG25 CAST IRON |
| Impeller | GG25 CAST IRON |
| Shaft | AISI 420 |
| Flow Rate (max) | 32.5 m³/hour |
| Total Head (max) | 16.5 m |
| Liquid Temperature | 0-110°C |
| Protection Class | IP54 |
| Insulation | CI.F |
| Mechanical Seal | CERAMIC/CARBON |
| Input-Output | DN50 PN16 |
| Pump Durability Pressure (Pmax) | 16 bar |

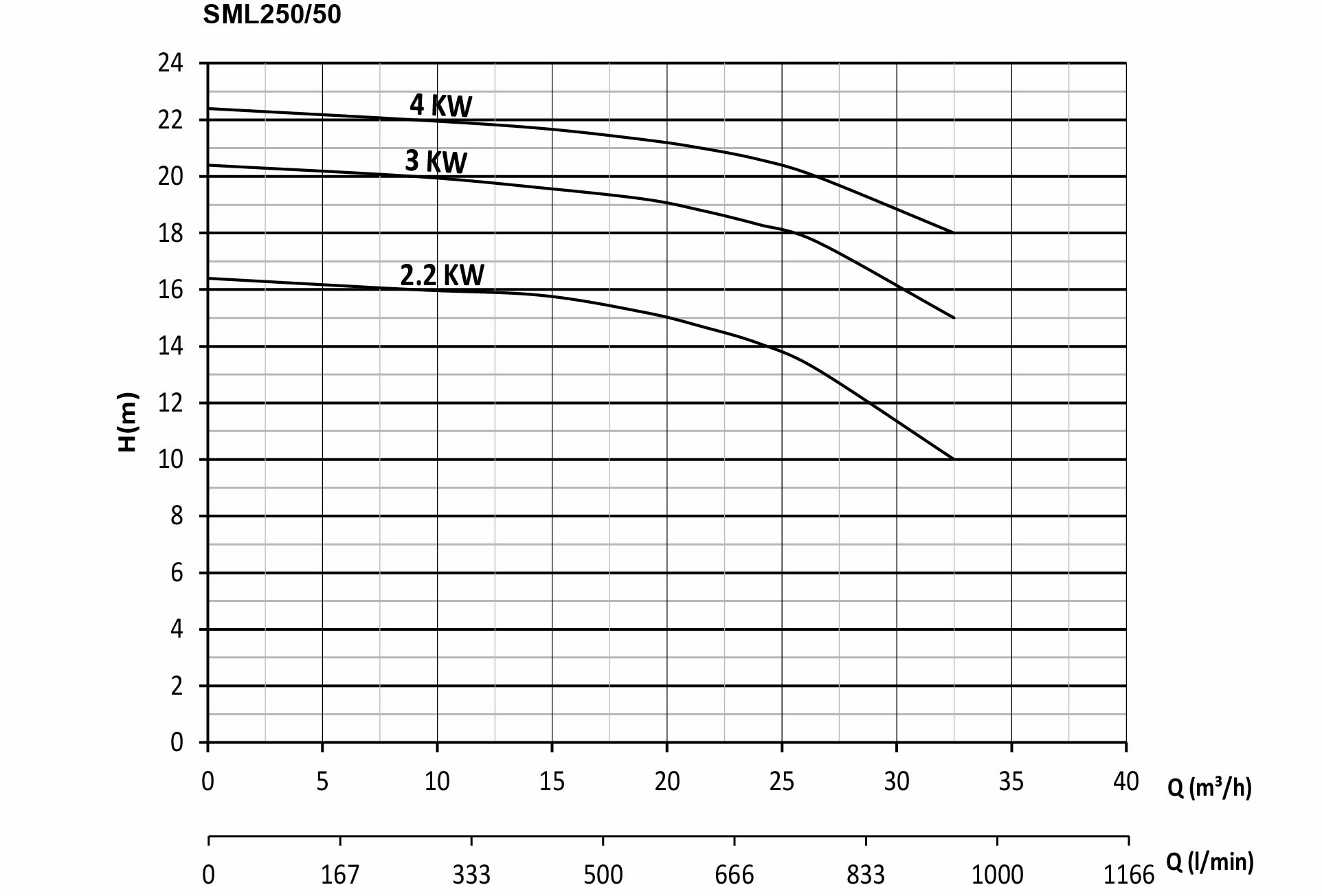

Technical Specifications
| MOTOR | PUMP | ||||||||||||||
| Type | KW | HP | Hz | rpm | input output | W | L | H | KG | m³/h | 5 | 15 | 20 | 25 | 30 |
| SML250/50 | 2.2 | 3 | 50 | 1450 | DN50 | 342 | 475 | 535 | 66 | mss | 16 | 15.5 | 15 | 14 | 11.5 |
| 3 | 4 | 50 | 1450 | DN50 | 300 | 475 | 575 | 69 | 20 | 19.5 | 19 | 18 | 16.5 | ||
| 4 | 5.5 | 50 | 1450 | DN50 | 300 | 475 | 575 | 72 | 22 | 21.5 | 21 | 20.5 | 19 | ||
Inline Centrifugal Pumps
Inline pumps are pumps obtained by connecting the discharge and suction flanges on the same line. It is widely used in many areas, especially in water treatment systems and air conditioning systems.
Inline Pumps manufactured by turkish inline pump producers are monostage, volute, closed impeller, coupling inline centrifugal pumps whose single-stage non-self-priming suction and discharge flashes can be mounted on the straight pipe on the same axis. In this way, inline pumps provide convenience to the workshops since the defective parts are replaced and maintained without removing the volute. Regarding the selection of inline pumps , Our line type pumps designed with inline water pump SML160/65 and SML160/80 models started to be manufactured with 2900 rpm and 1450 rpm engine options. This type of pumps produced by turkish inline pump manufacturers are designed for use in industrial facilities, swimming pools, geothermal facilities, heating and cooling systems pump, circulation pump, hot water circulation pump, air conditioning pump, water distribution facilities pump, power plant pump and water circulation pump.
Inline dry rotor circulation pump They are known as line type centrifugal pumps with vertical shaft, volute, single stage, closed impeller, own bearing group and connected to straight pipe. In inline pump installation, it is necessary to install with flanges suitable for the flanges of the pump, which should be considered. suction and discharge flanges comply with TS EN 1092 – 2 / PN 16.
