SMT160/80 M
Definition
They are pumps with a cast body and cast impeller, horizontal shaft, single stage, end suction, high altitude and high flow rate, monoblock and rigid coupling design, which take up less space and provide long-lasting use. It is designed to pressurize low viscosity liquids that are non-corrosive, non-flammable, and do not contain solid particles and fibers.
It is produced at frequencies of 50 Hz and 60 Hz.
Usage Areas
In industrial areas and social facilities, washing systems, agricultural and drip irrigation, treatment facilities, mining and iron and steel industry; It is used in boiler feeding and condensate, heating – cooling, booster and fire systems.
Pump Material Characteristics
| Pump Body | GG25 CAST IRON |
| Impeller | GG25 CAST IRON |
| Shaft | AISI 420 |
| Flow rate (max) | 180 m³/hour |
| Head (max) | 50 m |
| Liquid Temperature | 0-45°C (*120°C) |
| Seal | MECHANICAL SEAL |
| Inlet Flange | DN 100 PN 16 |
| Outlet Flange | DN 80 PN 16 |
| Pump Durability Pressure (Pmax) | 16 bar |
Technical Specifications
| MOTOR | PUMP | ||||||||||||||||

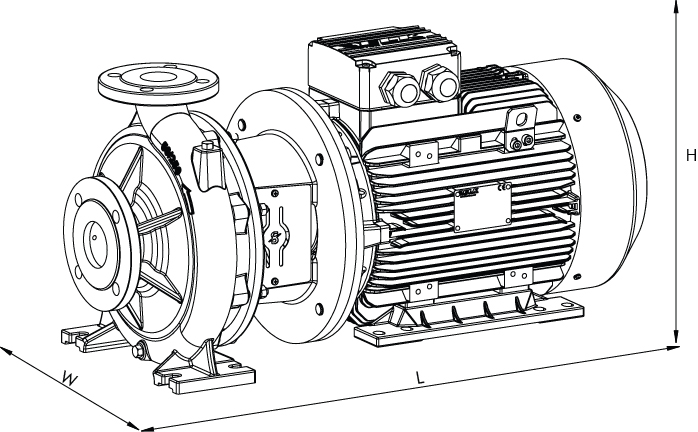

| TYPE | KW | V | Hz | rpm | Hm | In | Out | W | L | H | KG | m3/h | 30 | 50 | 100 | 150 | 180 |
SMT160/80 M | 11 | 380 | 50 | 2900 | 33 | DN100 | DN80 | 320 | 730 | 410 | 100 | mss | 32 | 31 | 24 | 12 | – |
| 15 | 380 | 50 | 2900 | 39 | DN100 | DN80 | 330 | 815 | 410 | 138 | 38 | 37 | 32 | 20 | – | ||
| 18.5 | 380 | 50 | 2900 | 44 | DN100 | DN80 | 350 | 820 | 410 | 145 | 43 | 42 | 38 | 28 | 15 | ||
| 22 | 380 | 50 | 2900 | 50 | DN100 | DN80 | 350 | 920 | 410 | 189 | 48 | 47 | 46 | 37 | 28 | ||
SMT250/32 M
Definition
They are pumps with a cast body and cast impeller, horizontal shaft, single stage, end suction, high altitude and high flow rate, monoblock and rigid coupling design, which take up less space and provide long-lasting use. It is designed to pressurize low viscosity liquids that are non-corrosive, non-flammable, and do not contain solid particles and fibers.
It is produced at frequencies of 50 Hz and 60 Hz.
Usage Areas
In industrial areas and social facilities, washing systems, agricultural and drip irrigation, treatment facilities, mining and iron and steel industry; It is used in boiler feeding and condensate, heating – cooling, booster and fire systems.
Pump Material Characteristics
| Pump Body | GG25 CAST IRON |
| Impeller | GG25 CAST IRON |
| Shaft | AISI 420 |
| Flow rate (max) | 34 m³/hour |
| Head (max) | 100 m |
| Liquid Temperature | 0-45°C (*120°C) |
| Seal | MECHANICAL SEAL |
| Inlet Flange | DN 50 PN 16 |
| Outlet Flange | DN 32 PN 16 |
| Pump Durability Pressure (Pmax) | 16 bar |

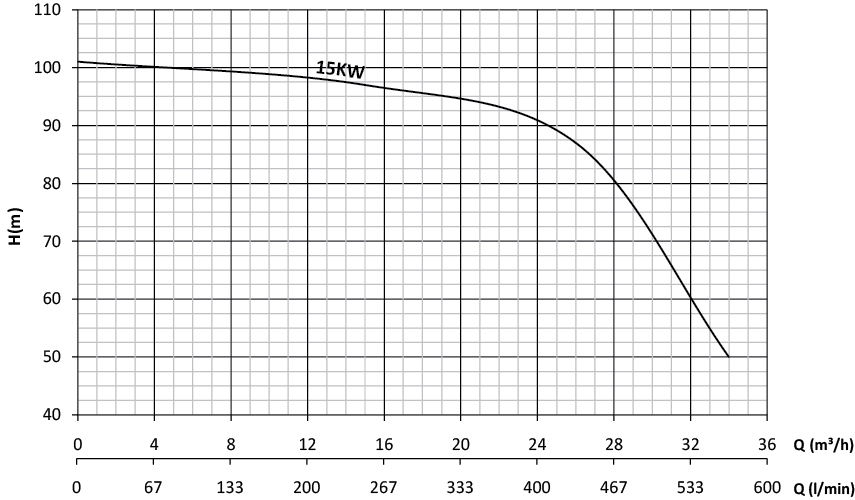

Technical Specifications
| MOTOR | PUMP | ||||||||||||||||
| TYPE | KW | V | Hz | rpm | Hm | In | Out | W | L | H | KG | m3/h | 5 | 10 | 15 | 20 | 25 |
SMT250/32 M | 15 | 380 | 50 | 2900 | 101 | DN50 | DN32 | 350 | 810 | 410 | 146 | mss | 100 | 98 | 97 | 94 | 88 |
SMT250/40 M
Definition
They are pumps with a cast body and cast impeller, horizontal shaft, single stage, end suction, high altitude and high flow rate, monoblock and rigid coupling design, which take up less space and provide long-lasting use. It is designed to pressurize low viscosity liquids that are non-corrosive, non-flammable, and do not contain solid particles and fibers.
It is produced at frequencies of 50 Hz and 60 Hz.
Usage Areas
In industrial areas and social facilities, washing systems, agricultural and drip irrigation, treatment facilities, mining and iron and steel industry; It is used in boiler feeding and condensate, heating – cooling, booster and fire systems.
Pump Material Characteristics
| Pump Body | GG25 CAST IRON |
| Impeller | GG25 CAST IRON |
| Shaft | AISI 420 |
| Flow rate (max) | 80 m³/hour |
| Head (max) | 95 m |
| Liquid Temperature | MECHANICAL SEAL |
| Inlet Flange | DN 65 PN 16 |
| Outlet Flange | DN 40 PN 16 |
| Pump Durability Pressure (Pmax) | 16 bar |

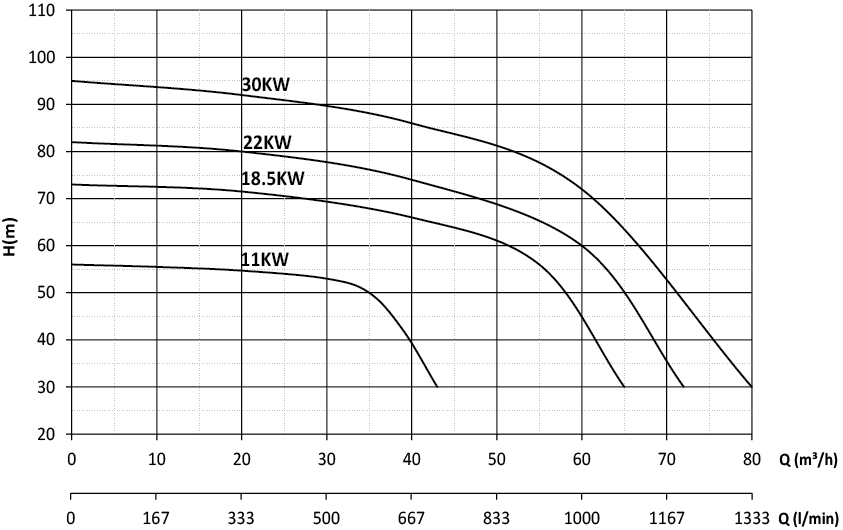

Technical Specifications
| MOTOR | PUMP | ||||||||||||||||
| TYPE | KW | V | Hz | rpm | Hm | In | Out | W | L | H | KG | m3/h | 20 | 30 | 40 | 50 | 60 |
SMT250/40 M | 15 | 380 | 50 | 2900 | 65 | DN65 | DN40 | 350 | 800 | 410 | 143 | mss | 63 | 61 | 58 | 45 | – |
| 18.5 | 380 | 50 | 2900 | 73 | DN65 | DN40 | 350 | 800 | 410 | 151 | 72 | 68 | 65 | 61 | 45 | ||
| 22 | 380 | 50 | 2900 | 82 | DN65 | DN40 | 350 | 900 | 430 | 195 | 80 | 78 | 73 | 68 | 60 | ||
| 30 | 380 | 50 | 2900 | 95 | DN65 | DN40 | 400 | 920 | 460 | 213 | 91 | 90 | 86 | 81 | 72 | ||

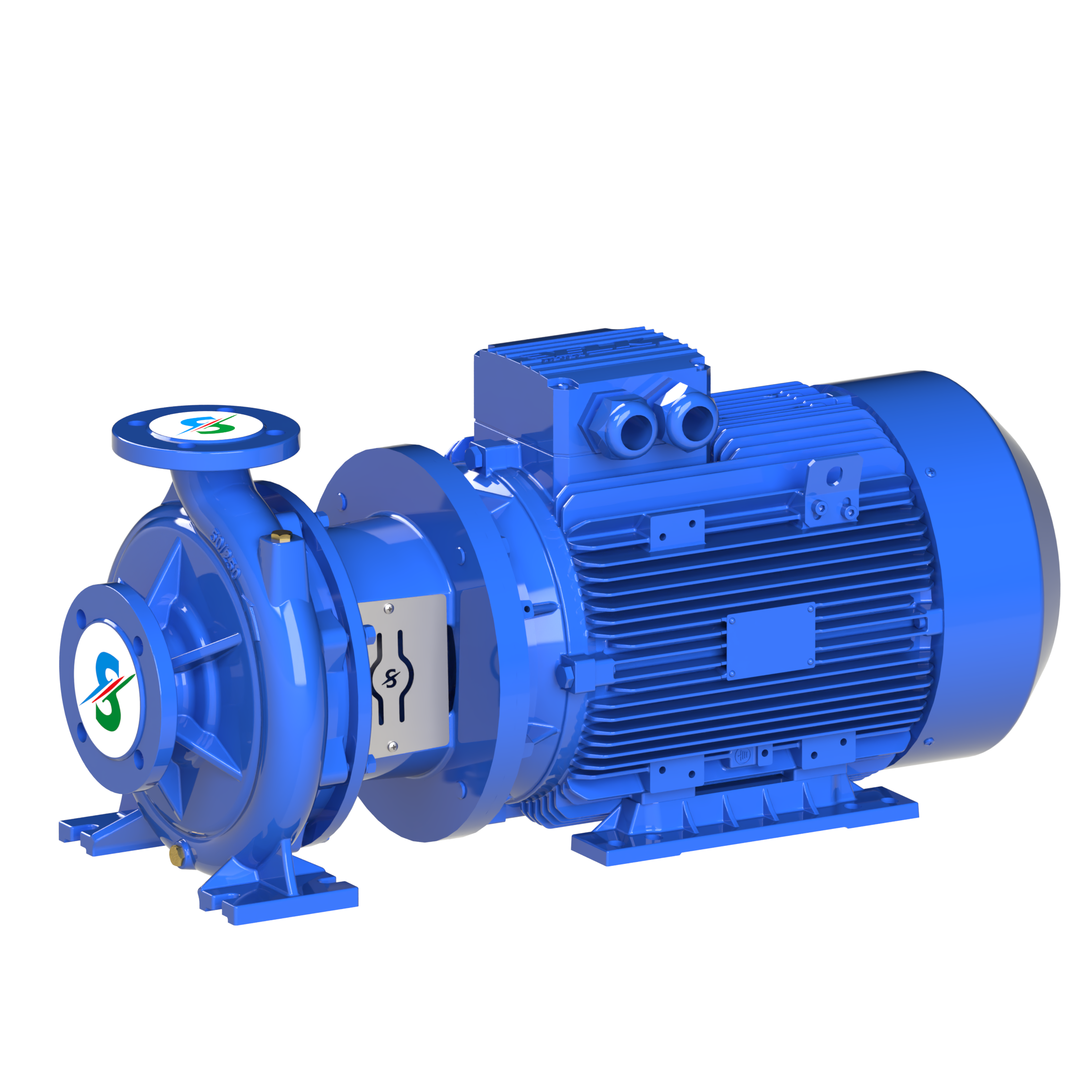

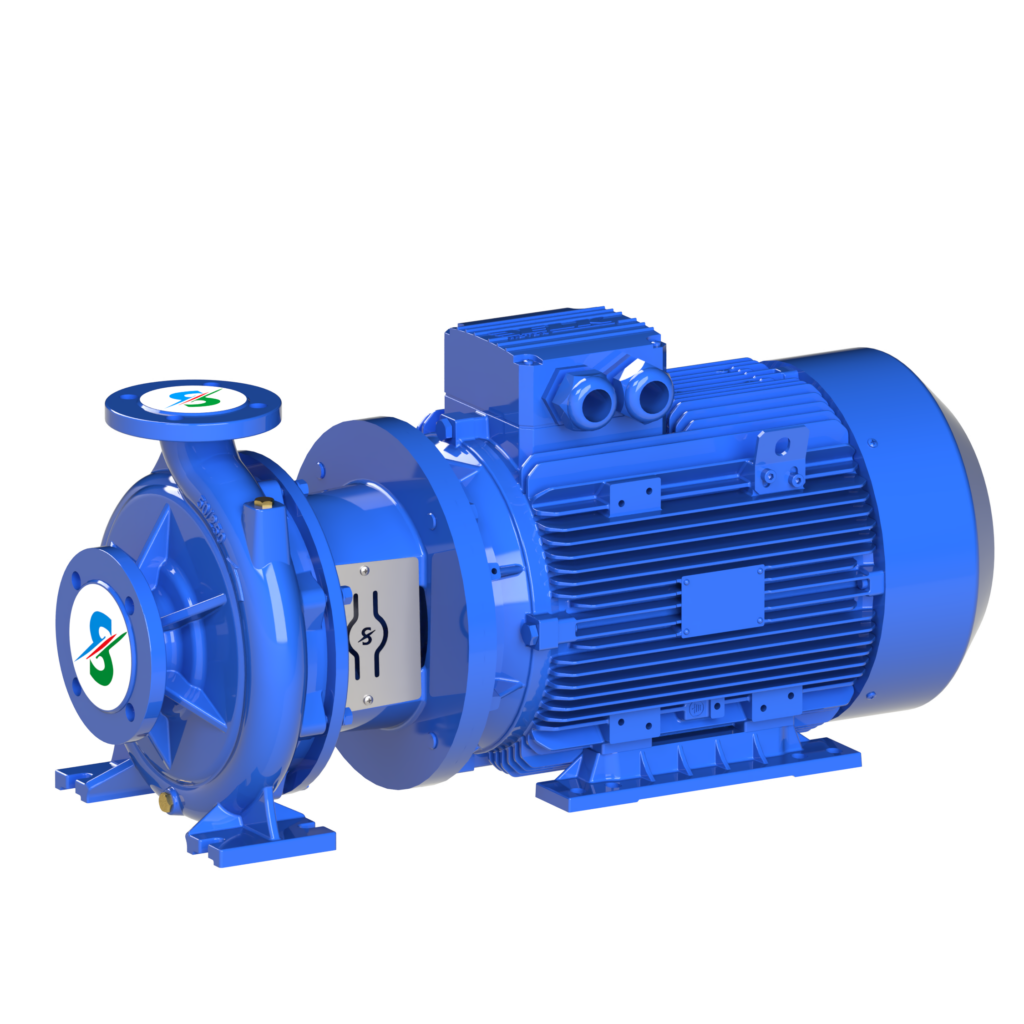

SMT250/50 M
Definition
They are pumps with a cast body and cast impeller, horizontal shaft, single stage, end suction, high altitude and high flow rate, monoblock and rigid coupling design, which take up less space and provide long-lasting use. It is designed to pressurize low viscosity liquids that are non-corrosive, non-flammable, and do not contain solid particles and fibers.
It is produced at frequencies of 50 Hz and 60 Hz.
Usage Areas
In industrial areas and social facilities, washing systems, agricultural and drip irrigation, treatment facilities, mining and iron and steel industry; It is used in boiler feeding and condensate, heating – cooling, booster and fire systems.
Pump Material Characteristics
| Pump Body | GG25 CAST IRON |
| Impeller | GG25 CAST IRON |
| Shaft | AISI 420 |
| Flow rate (max) | 145 m³/hour |
| Head (max) | 94 m |
| Liquid Temperature | 0-45°C (*120°C) |
| Inlet Flange | MECHANICAL SEAL |
| Outlet Flange | DN 65 PN 16 |
| Pump Durability Pressure (Pmax) | DN 50 PN 16 |
| Pompa Dayanma Basıncı (Pmax) | 16 bar |
Technical Specifications
| MOTOR | PUMP | ||||||||||||||||
| TYPE | KW | V | Hz | rpm | Hm | In | Out | W | L | H | KG | m3/h | 20 | 40 | 60 | 80 | 100 |
SMT250/50 M | 18.5 | 380 | 50 | 2900 | 63 | DN65 | DN50 | 350 | 810 | 410 | 147 | mss | 62 | 61 | 57 | 48 | 30 |
| 22 | 380 | 50 | 2900 | 71 | DN65 | DN50 | 350 | 800 | 410 | 171 | 70 | 68 | 64 | 55 | 38 | ||
| 30 | 380 | 50 | 2900 | 84 | DN65 | DN50 | 400 | 950 | 495 | 258 | 83 | 81 | 77 | 71 | 59 | ||
| 37 | 380 | 50 | 2900 | 94 | DN65 | DN50 | 400 | 915 | 495 | 242 | 93 | 92 | 90 | 85 | 75 | ||
