Multi-Staged Pumps With Stainless Body
Sumak Pump has a wide range of the stainless water pumps manufacturing in Turkey. Stainless body pumps are designed for using in hygienic environments and drinking water usage as booster sets. R&D works are completed and producing of stainless multi stage pumps are carried out.
Stainless body multi stage pumps are used in pressured water up to max 55 m height, used as booster sets in the buildings up to 7 floors – 14 flats, used in procurement of clean water in hygienic environments, petrol stations, social facilities and constructions. Turkey Manufacturer Of Centrifugal Pump.

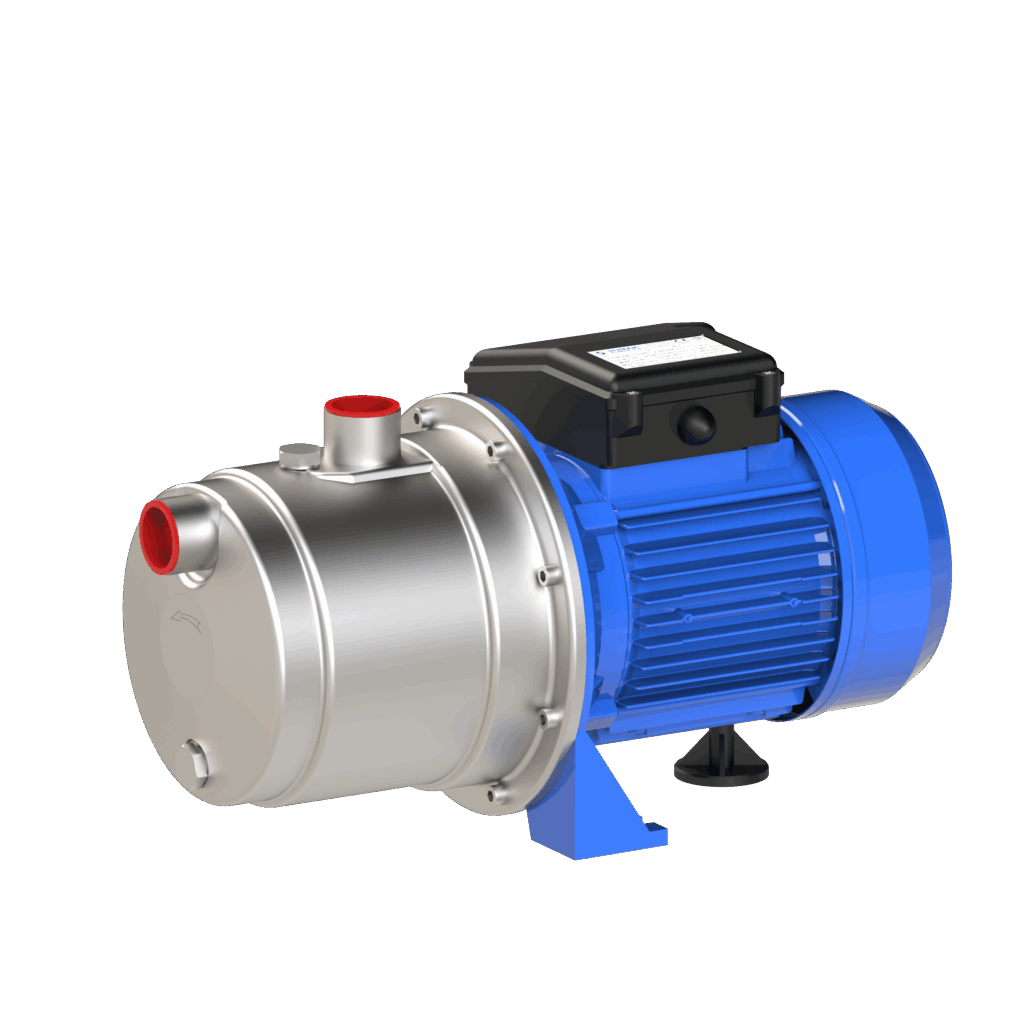

SMINOX/150-4
Definition
These pumps with stainless steel body are multistage, high altitude, easily to portable pumps. It is designed for use in clean water supply.
Monophase model has internal thermal protection and automatic reset.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Usage Areas
These pumps are used for water supply and pressurization in residential units, industrial facilities, for booster purposes in buildings with a maximum of 5 floors and 12 flats, irrigation applications, heating – cooling systems, social facilities and constructions.
Pump Material Characteristics
| Pump Body | AISI 304 INOX |
| Impeller | NORYL |
| Shaft | AISI 304 INOX |
| Flow Rate(max) | 7.2 m³/hour |
| Total Head (max) (max) | 55 m |
| Liquid Temperature | 0-45°C |
| Protection Class | IP54 |
| Insulation | CI.F |
| Mechanical Seal | CERAMIC/CARBON |
| Pump Durability Pressure (Pmax) | 8 bar |
Technical Specifications

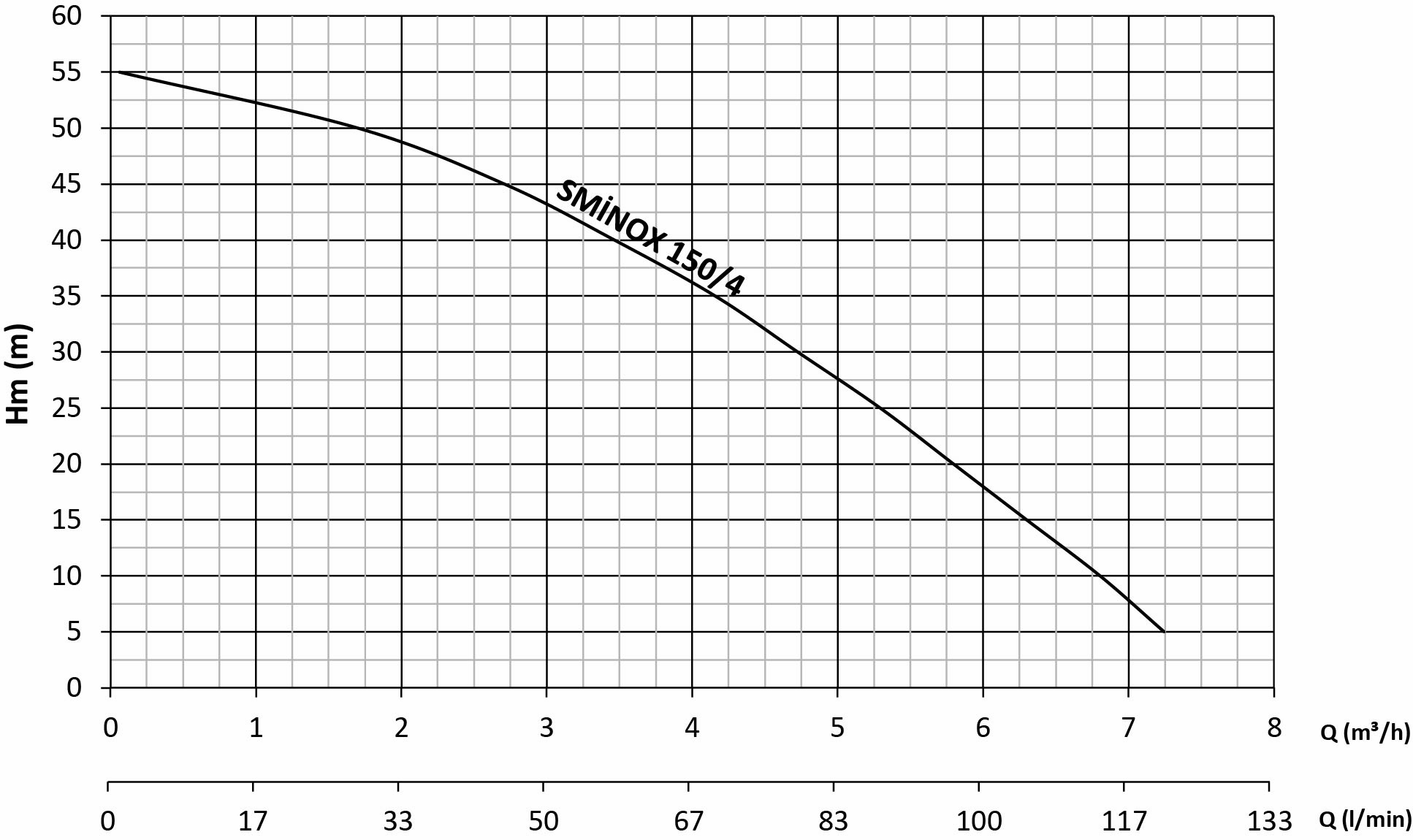

| MOTOR | PUMP | |||||||||||||||||
| TYPE | KW | HP | V | Hz | A | rpm | capacitor uf Vc | Hm | input | output | KG | m³/h | 1 | 2 | 3 | 5 | 6 | |
| SMINOX/150-4 | 1.1 | 1.5 | 220 | 50 | 6 | 2900 | 25 | 450 | 55 | 1″ | 1″ | 13 | mss | 53 | 48 | 43 | 28 | 18 |
| SMINOX/150-4T | 1.1 | 1.5 | 380 | 50 | 2.7 | 2900 | – | – | 55 | 1″ | 1″ | 12 | 53 | 48 | 43 | 28 | 18 | |

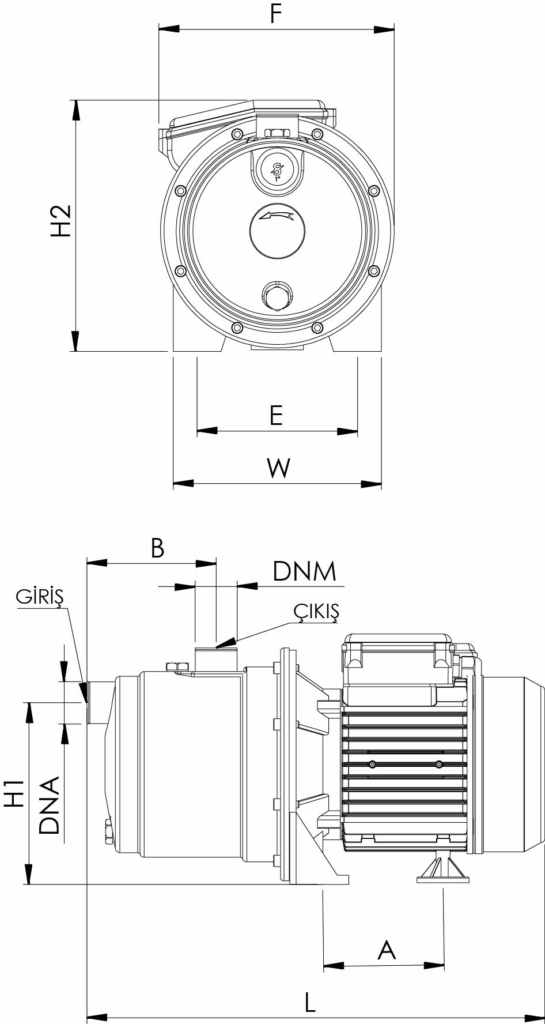

| DIMENSIONS | ||||||||||
| Type | A | B | L | W | E | F | H1 | H2 | DNA | DNM |
| SMINOX/150-4 | 104 | 112 | 396 | 179 | 138 | 203 | 157 | 216 | G1″ | G1″ |
Stainless Body Multistage Pumps
Multi-stage stainless pumps are produced for use in gas stations, social facilities, constructions, garden irrigation pumps for clean water supply and water booster pump systems up to 7 floors and 14 flats, up to a maximum height of 55 m. Stainless Body Multistage Pumps can be produced from Noryl, impeller and stages.
Stainless steel body Multistage Pumps are formed by combining more than one impeller and stage on a horizontal shaft. Generally, the front impeller sucks the water and gives it pressure to the other impellers, and the last impeller sends the water out of the volute. The vertical shaft is formed by the combination of the impeller and the stage on a vertical shaft in the same way in a multi-stage pump.
Multistage Pumps with Inox Body are manufactured by turkish stainless steel body centrifugal pump manufacturers with a power of 1.5 HP and are suitable for use in many different areas with TSE certificate. Pumps are designed and manufactured in accordance with TS EN ISO 9908 standard. In the electric motor windings, F insulation class cables are used in accordance with TS 60085:2011. User and motor safety are prioritized by using a 2-pole asynchronous motor with IP 54 protection class in accordance with TS 3033 EN 60529.
Stainless steel multistage centrifugal Pump selection should also be selected in accordance with the required flow rate and pipe size. Centrifugal Pumps manufactured by turkish stainless steel body centrifugal pump producers calculation should be selected in accordance with the required flow rate and pipe resistance. This will ensure that there is a sufficiently large flow area to be able to adjust while regulating the pump.
