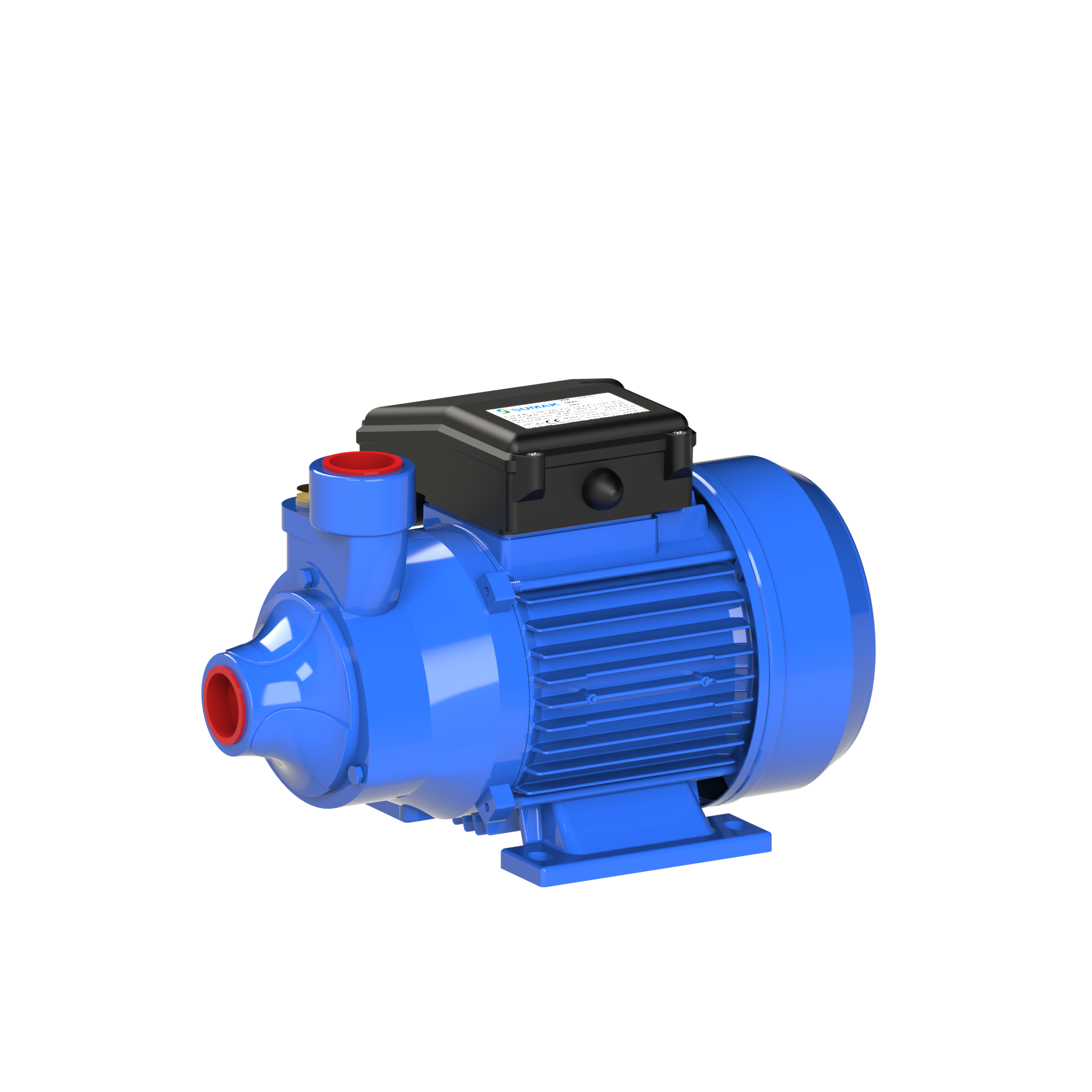

Peripheral Centrifugal Pumps
SM15
Definition
These pumps with cast iron body and bronze impeller are easy to portable, peripheral, high pressure and with a suction power of up to 6 meter pumps.
It is designed for use in clean water supply.
Monophase model has internal thermal protection and automatic reset.
It is easy and advantageous to use in places requiring high temperature and pressure due to the impeller and friction surface are bronze.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Usage Areas
These pumps are used to supply clean water in residential areas, industrial facilities, irrigation applications, places requiring high temperature and pressure such as ironing machines and steam boilers, heating-cooling systems, yacht and shipping industry, small gardens, villas and summer houses.
Pump Material Characteristics
| Pump Body | GG25 CAST IRON |
| Impeller | BRONZE |
| Shaft | AISI 304 INOX |
| Flow Rate(max) | 2.6 m³/hour |
| Pressing Height (max) | 98 m |
| Liquid Temperature | 0-45°C |
| Protection Class | IP54 |
| Insulation | CI.F |
| Mechanical Seal | CERAMIC /CARBON |
| Pump Durability Pressure (Pmax) | 10 bar |

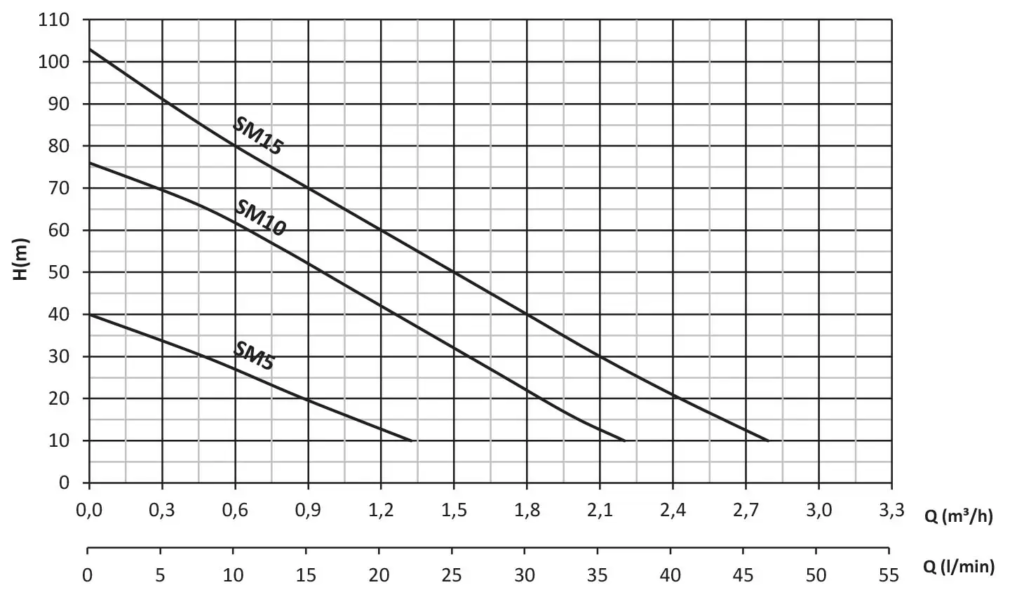

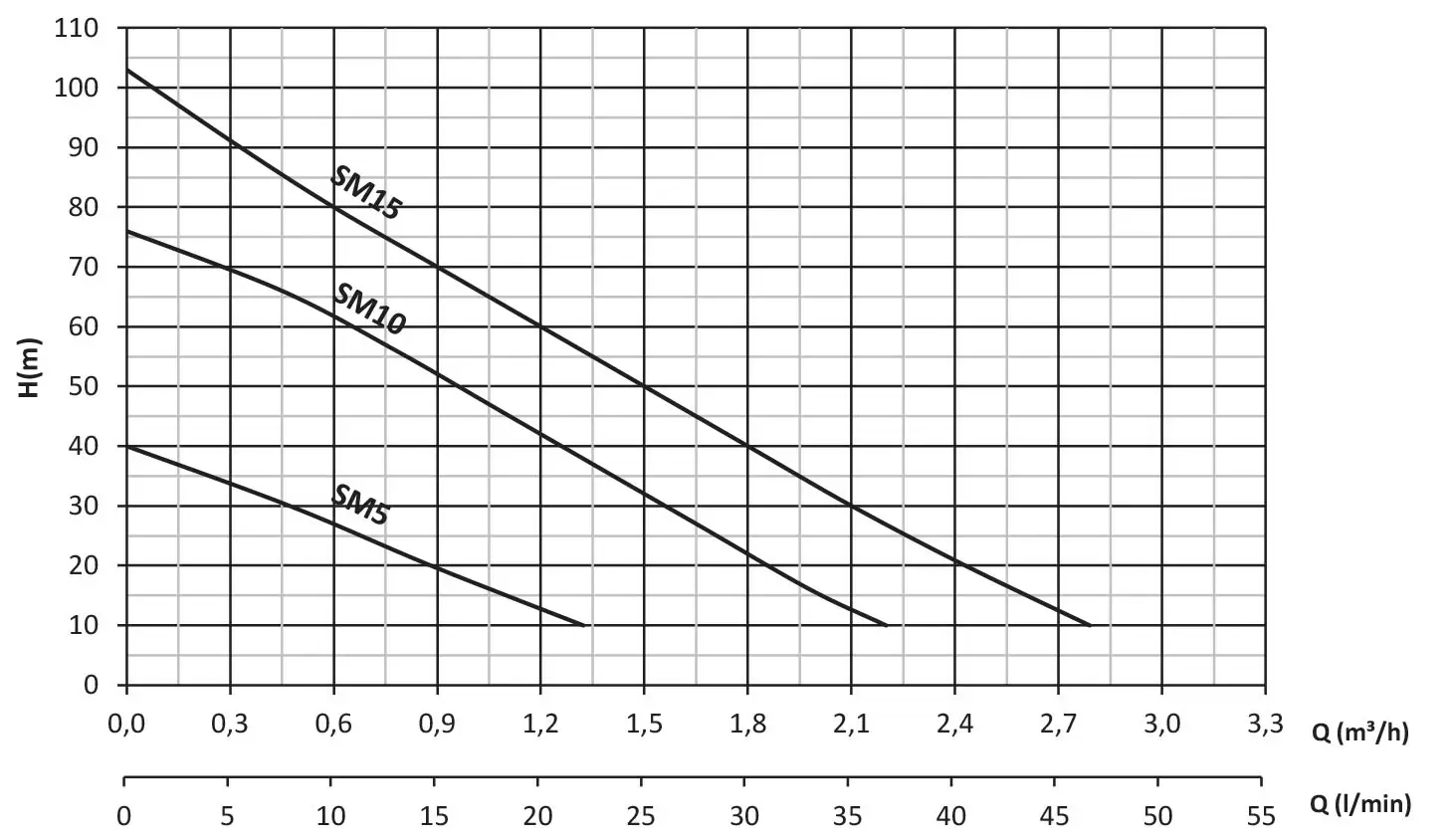

Technical Specifications
| MOTOR | PUMP | |||||||||||||||||
| Type | KW | HP | V | Hz | A | rpm | capacitor uf Vc | Hm | suc. m | output | KG | m³/h | 0.3 | 0.6 | 0.9 | 1.2 | 2.4 | |
| SM5 | 0.37 | 0.5 | 220 | 50 | 2.4 | 2900 | 10 | 450 | 40 | 6 | 1″ | 6 | mss | 33 | 28 | 20 | 13 | – |
| SMT5 | 0.37 | 0.5 | 380 | 50 | 1.4 | 2900 | 10 | 450 | 40 | 6 | 1″ | 6 | 33 | 28 | 20 | 13 | – | |
| SM10 | 0.75 | 1 | 220 | 50 | 5.4 | 2900 | 20 | 450 | 66 | 6 | 1″ | 10 | 65 | 52 | 43 | 33 | – | |
| SMT10 | 0.75 | 1 | 380 | 50 | 2.4 | 2900 | 20 | 450 | 66 | 6 | 1″ | 10 | 65 | 52 | 43 | 33 | – | |
| SM15 | 1.1 | 1.5 | 220 | 50 | 6 | 2900 | 25 | 450 | 98 | 6 | 1″ | 13 | 85 | 75 | 65 | 55 | 15 | |
| SMT15 | 1.1 | 1.5 | 380 | 50 | 2.5 | 2900 | 25 | 450 | 98 | 6 | 1″ | 13 | 85 | 75 | 65 | 55 | 15 | |

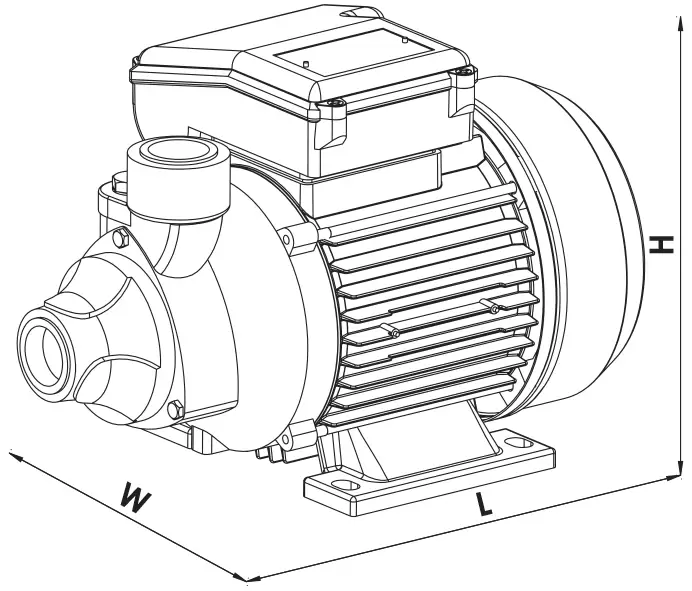

| DIMENSIONS | ||||||||||
| TYPE | A | B | L | W | E | F | H1 | H2 | DNA | DNM |
| SM5 | 100 | 53 | 266 | 120 | 95 | 148 | 63 | 157 | G1″ | G1″ |
| SM10 | 118 | 61 | 295 | 159 | 121 | 179 | 80 | 195 | G1″ | G1″ |
| SM15 | 118 | 57 | 294 | 159 | 121 | 179 | 80 | 195 | G1″ | G1″ |
Preferical Cenrtifugal Pumps
Preferical pumps manufactured by tukish preferical pump producers are generally known as friction fan pumps, because the pump impeller provides pressure by rubbing against a surface. Pump impellers and friction surfaces are generally made of stainless or bronze materials. Preferical centrifugal pumps with power between 0.50 – 1.5 HP, the pump systems we manufacture with different features, pump technologies, our products are the main booster pumps, garment ironing machine pump, textile steam ironing pump, pressurization pump, hydromat pump suitable for practical use, and our water pumps, which are suitable for use as a hot water pump, can also be manufactured as a special hot water pump.
Preferical water pumps produced by turkish preferical pump manufacturers , pump systems, pump technologies, water pumps that suck from a depth of 6 meters are water pumps with a minimum head of 40 m and a maximum head of up to 103 m. Due to the fact that the impeller and friction surfaces of the pump are bronze, preferical water pumps are suitable for use in places that require high temperature and pressure, in small-scale gardens, pump systems, pump technologies, and clean water supply to distant places.
The water pump produced by turkish preferical water pump suppliers has the ability to make suction, even if the impeller is in the form of a star, they are in a position to suck because the friction fan works. Preferical Centrifugal Pumps are manufactured by Turkey with a power between 0.50 – 1.5 HP and are suitable for use in many different areas with TSE certificate. Pumps are designed and manufactured in accordance with TS EN ISO 9908 standard. In the electric motor windings, F insulation class cables are used in accordance with TS 60085:2011. User and motor safety are prioritized by using a 2-pole asynchronous motor with IP 54 protection class in accordance with TS 3033 EN 60529.
Regarding the selection of preferical pumps it sould be known , Friction Fan Centrifugal pumps, as the name suggests, are pumps that flood water with centrifugal effect. Friction Fan Pumps are machines that increase the energy or pressure of liquids. In this regard, pumps are used to send a liquid from low to high or from low pressure to high pressure. On the other hand, pumps are also used to increase the flow rate and thus the flow rate of the liquid flowing in a pipe.
If we talk to centrifugal pumps, in these pumps, which consist of a vane impeller in a body, the liquid enters the pump through a suction pipe.
The path of the liquid in the suction water pump is as follows. Due to the vacuum created on the suction side of the impeller, the liquid enters between the blades of the impeller.
Regarding the installation of preferical pumps The fluid passing between the impeller blades gains a great tangential velocity with the rotational movements of the impeller. Between the impeller blades and the channels bounded by the front and rear profiles of the impeller, the liquid is pushed towards the exit side of the impeller by the centrifugal force that occurs during the rotational movement.
The movement created in this way ensures the continuous flow of liquid and suction from the suction side of the pump.
The kinetic energy contained in the liquid leaving the impeller blades with a great tangential velocity is converted into a pressure force in the volute cavity between the fixed diffuser blades. The highest pressure is achieved with a given rotational speed. This kind of pump can be said to be a hydrodynamic pump.
