Self-Flapped Pumps
These type pumps, which are also known as stop-type, are suitable for use in irrigation systems and ship sector due to their ability to suction from 1.5 – 7.5 HP, especially from certain distances. Turkey Manufacturer Of Centrifugal Pump.

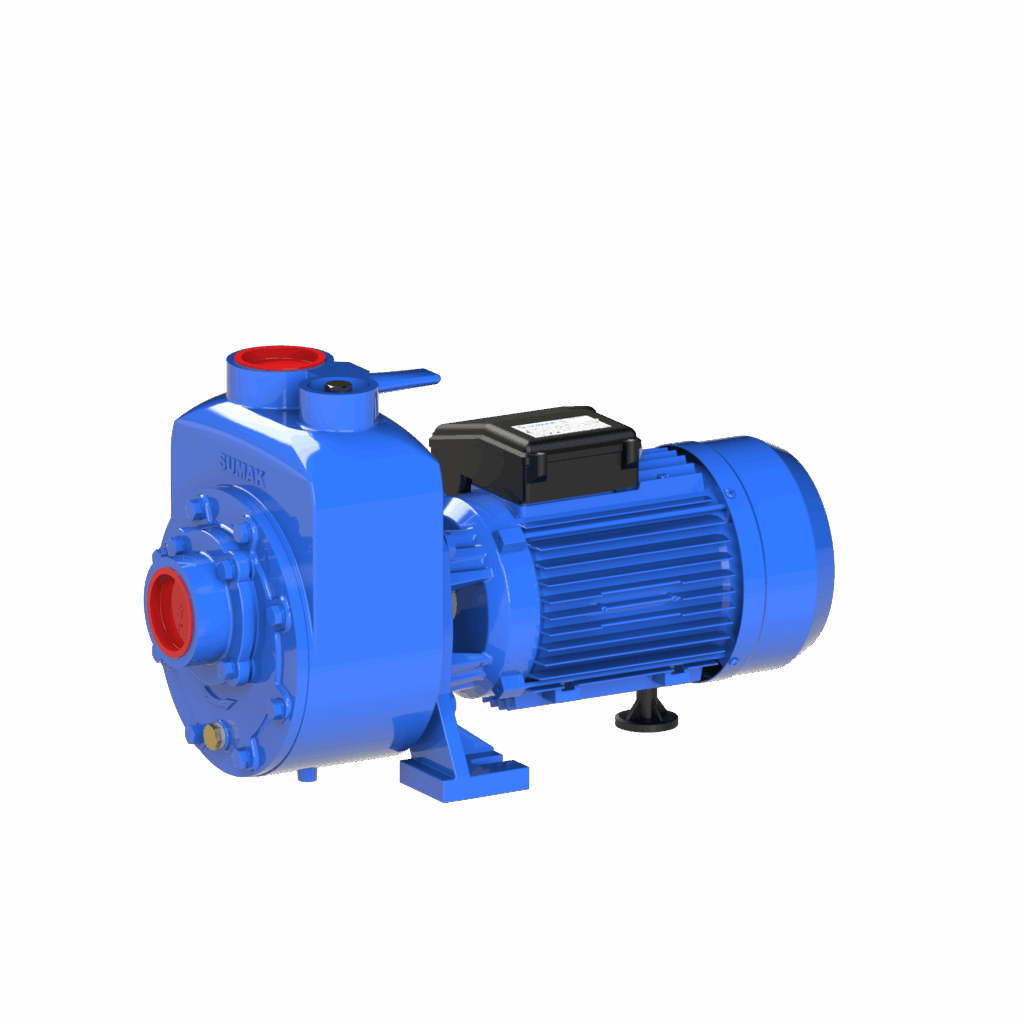

DSM300/2
Definition
These pumps with cast iron body and cast iron vortex impeller are self-flapped, suction power of up to 6 meters and without air leakage problem pumps. These pumps are designed for use in the discharge of dirty water that does not contain solid particles.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Usage Areas
These pumps are used to high flow water needs in residential areas, industrial facilities, agricultural irrigation, discharge of basic water in construction and the ship industry.
Pump Material Characteristics
| Pump Body | GG25 CAST IRON |
| Impeller | GG25 CAST IRON |
| Shaft | AISI 304 INOX |
| Flow Rate(max) | 35 m³/hour |
| Total Head (max) | 24 m |
| Liquid Temperature | 0-45°C |
| Protection Class | IP54 |
| Insulation | CI.F |
| Mechanical Seal | CERAMIC/CARBON |
| Pump Durability Pressure (Pmax) | 6 bar |

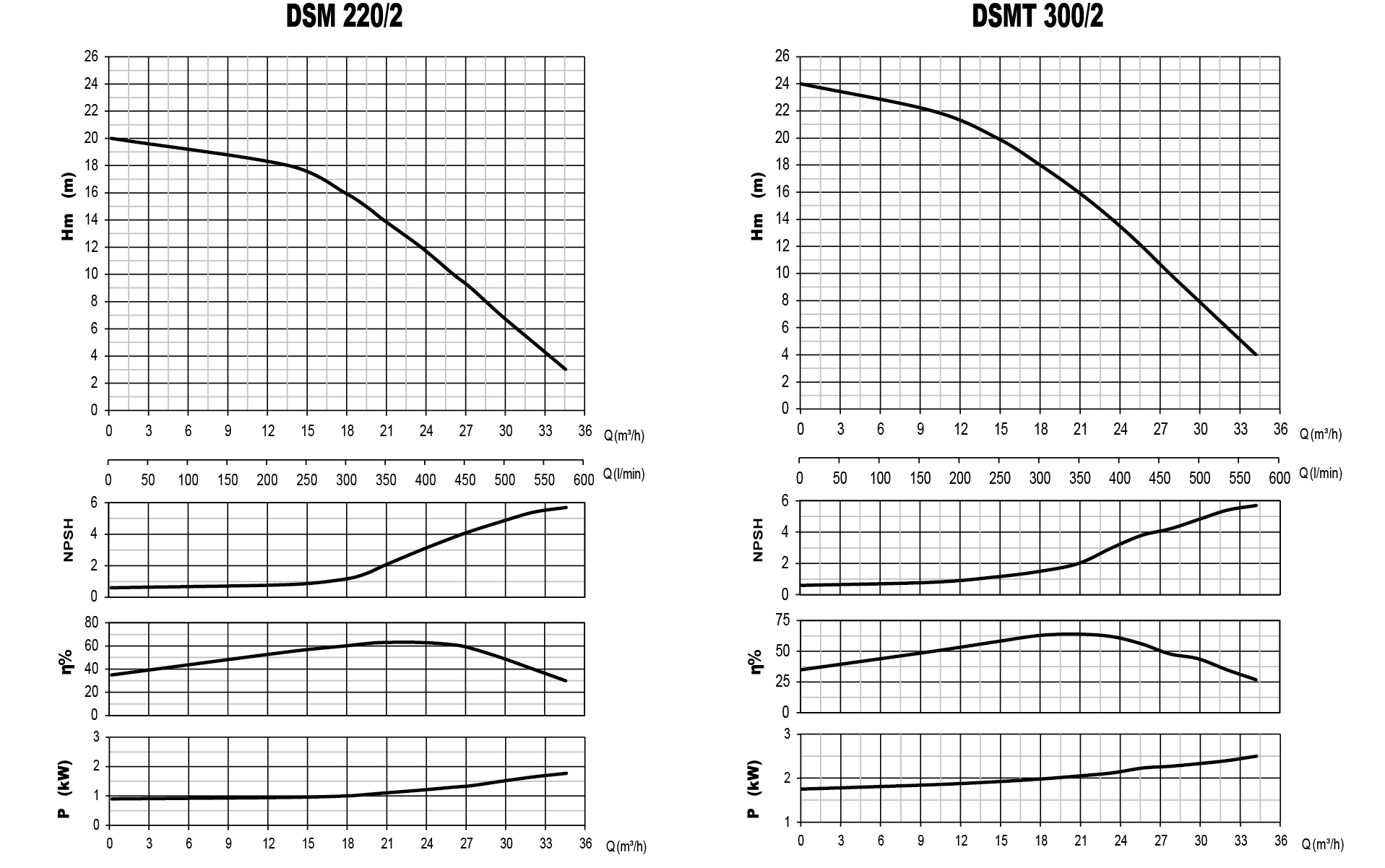

Technical Specifications
| MOTOR | PUMP | ||||||||||||||||
| TYPE | KW | HP | V | Hz | A | rpm | capacitor uf Vc | Hm | suc. m | input output | KG | m³/h | 6 | 12 | 18 | 24 | |
| DSM220/2 | 1.6 | 2.2 | 220 | 50 | 11.3 | 2900 | 45 | 450 | 20 | 6 | 2″ | 33.5 | mss | 19 | 18 | 15 | 11 |
| DSMT220/2 | 1.6 | 2.2 | 380 | 50 | 4.7 | 2900 | – | – | 20 | 6 | 2″ | 33.5 | 19 | 18 | 15 | 11 | |
| DSM300/2 | 2.2 | 3 | 220 | 50 | 14.8 | 2900 | 50 | 450 | 24 | 6 | 2″ | 34.5 | 23 | 21 | 18 | 13 | |
| DSMT300/2 | 2.2 | 3 | 380 | 50 | 4.9 | 2900 | – | – | 24 | 6 | 2″ | 34.5 | 23 | 21 | 18 | 13 | |

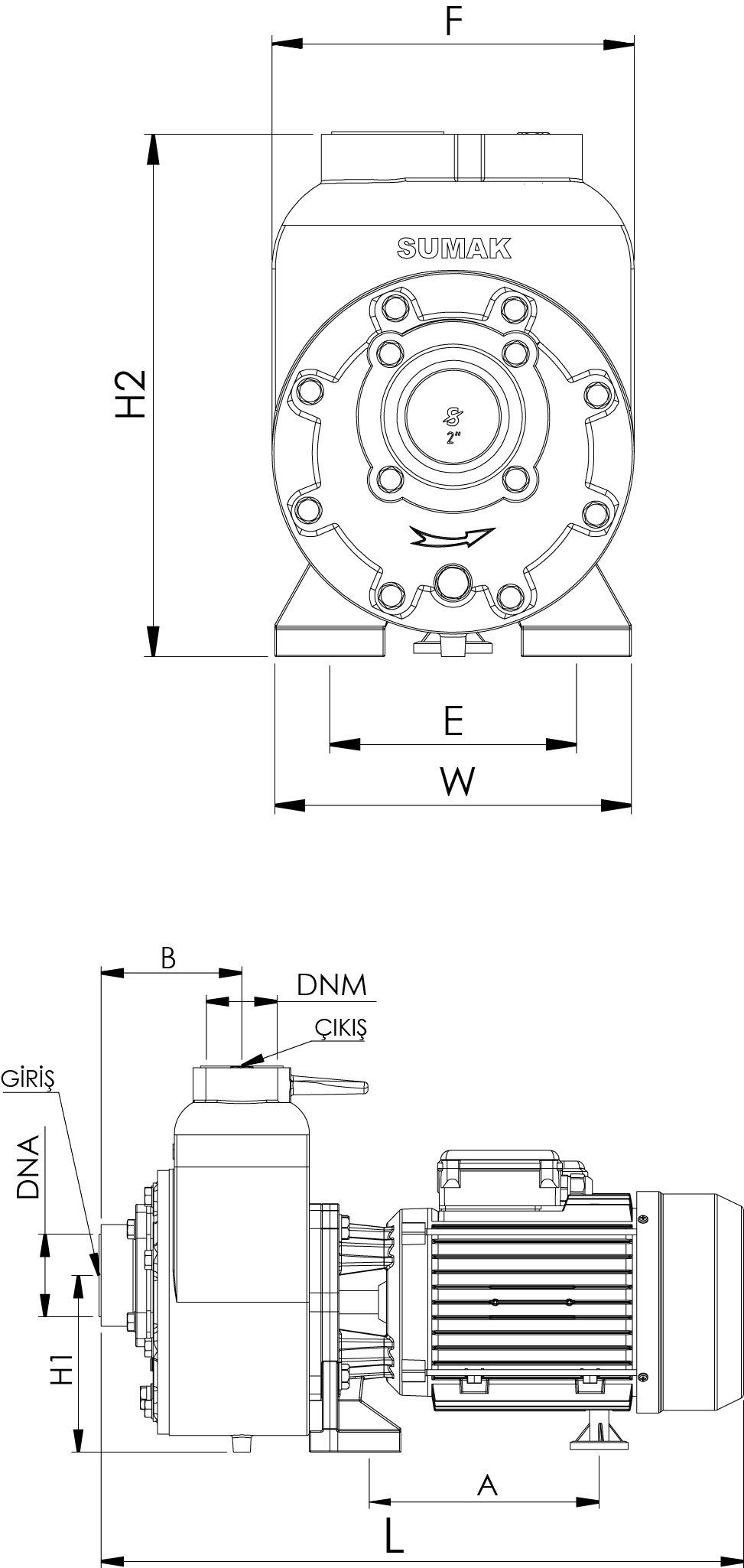

| DIMENSIONS | ||||||||||
| TYPE | A | B | L | W | E | F | H1 | H2 | DNA | DNM |
| DSM220/2 | 179 | 110 | 500 | 204 | 141 | 200 | 137 | 300 | G2″ | G2″ |
| DSM300/2 | 179 | 110 | 500 | 204 | 141 | 200 | 137 | 300 | G2″ | G2″ |

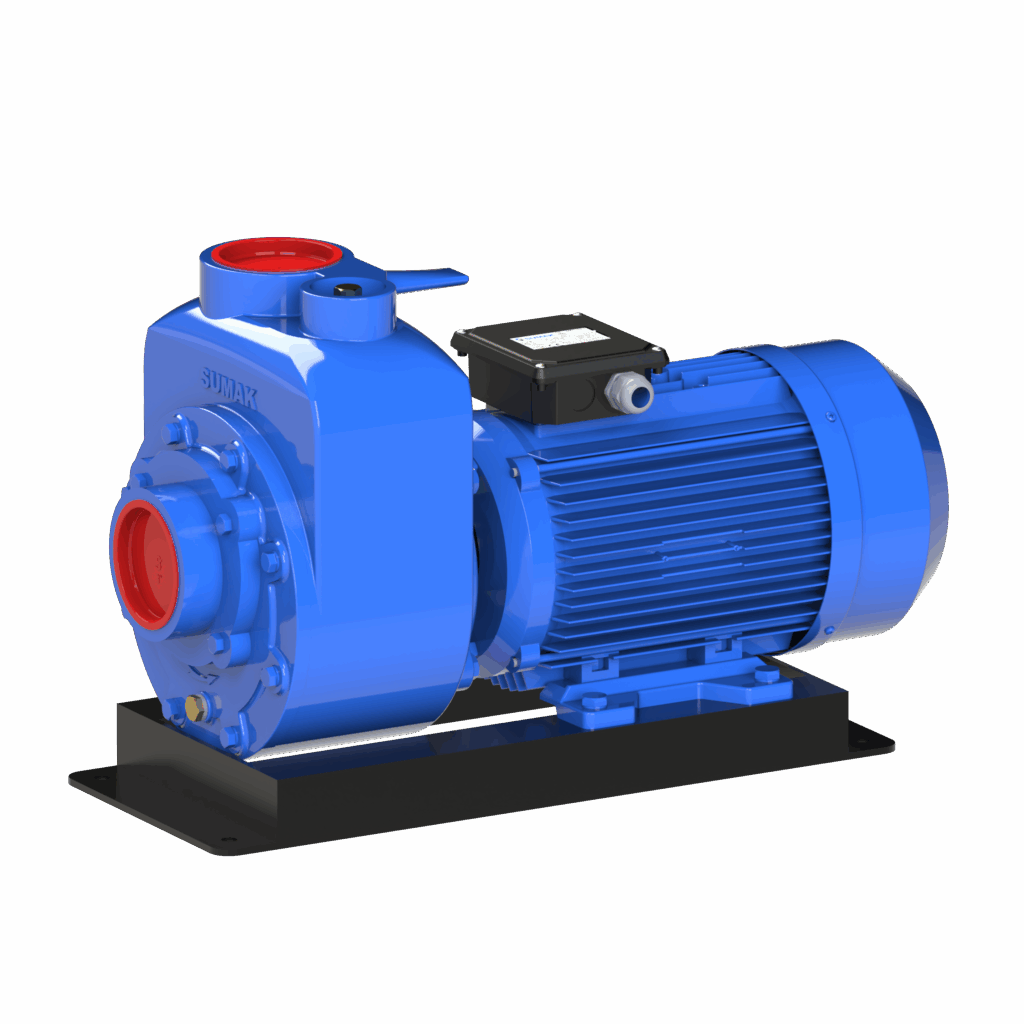

DSMT750/3
Definition
These pumps with cast iron body and cast iron vortex impeller are self-flapped, suction power of up to 6 meters and without air leakage problem pumps. These pumps are designed for use in the discharge of dirty water that does not contain solid particles.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Usage Areas
These pumps are used to high flow water needs in residential areas, industrial facilities, agricultural irrigation, discharge of basic water in construction and the ship industry.
Pump Material Characteristics
| Pump Body | GG25 CAST IRON |
| Impeller | GG25 CAST IRON |
| Shaft | AISI 304 INOX |
| Flow Rate(max) | 65 m³/hour |
| Total Head (max) | 32 m |
| Liquid Temperature | 0-45°C |
| Protection Class | IP54 |
| Insulation | CI.F |
| Mechanical Seal | CERAMIC/CARBON |
| Pump Durability Pressure (Pmax) | 6 bar |

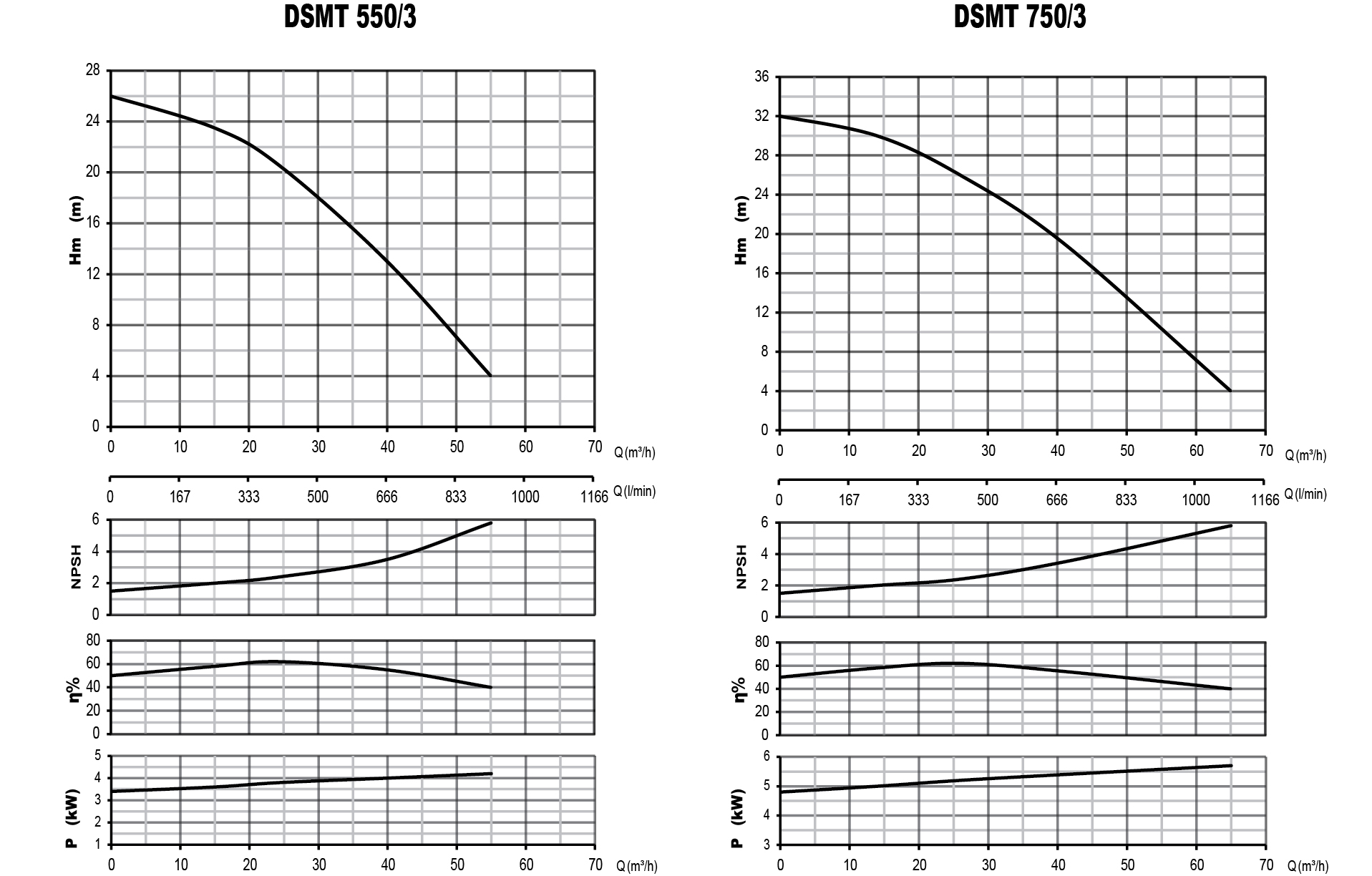

Technical Specifications
| MOTOR | PUMP | ||||||||||||||||
| Type | KW | HP | V | Hz | A | rpm | capacitor uf Vc | Hm | suc. m | input output | KG | m³/h | 25 | 35 | 45 | 55 | |
| DSMT550/3 | 4 | 5.5 | 380 | 50 | 9 | 2900 | – | – | 25 | 6 | 3″ | 63 | mss | 20 | 15 | 9 | 4 |
| DSMT750/3 | 5.5 | 7.5 | 380 | 50 | 12 | 2900 | – | – | 32 | 6 | 3″ | 67 | 26 | 22 | 17 | 9 | |
| DIMENSIONS | ||||||||||
| TYPE | A | B | L | W | E | F | H1 | H2 | DNA | DNM |
| DSMT550/3 | 520 | 130 | 607 | 229 | 199 | 248 | 183 | 215 | G3″ | G3″ |
| DSMT750/3 | 520 | 130 | 607 | 229 | 199 | 248 | 183 | 215 | G3″ | G3″ |
Self Flapped Pumps
Self Flapped centrifugal Pumps, colloquially stop-type pumps, stop-type water pumps, this type of priming pumps. Due to the valve placed on the suction line, when the pump stops, the water in the volute cannot fluid to the well or tank where the suction is made, and since the pump works again, it can easily suck without air problems. It does not need to be put a foot valve on the suction hose again .
Self flapped pumps produced by turkish self flapped pump manufacturers between 1.5 and 7.5 HP are suitable for use as pumps used in irrigation systems, ship industry, boats and shipyards, especially since they can suction from certain distances. Stop type suction water pumps are pumps that do not contain solid particles and fibers in agricultural irrigations up to a maximum height of 32 m and suction from 6 m. Self flapped pumps produced by turkish self flapped pump producers , which are used in the discharge of polluted water, in the discharge of construction foundation water and in high flow water needs in the ship sector, without air-forming problem, are suitable for use.
Selection of self flapped pumps , DSM series stop type water pumps are flap pumps designed for the transfer of very polluted wastewater. Ideal for applications where submersible pumps cannot operate. Working principle of stop type suction water pump These pumps are used in agricultural irrigation, field irrigation from stream bed, discharge of water accumulated on the basis of construction, and mines.
Installation of flap pumps can suction from 8 meters, and there is no need for a valve. Self Flapped Pumps are manufactured with a power between 1.5 – 7.5 HP and are suitable for use in many different areas with TSE certificate. Pumps are designed and manufactured in accordance with TS EN ISO 9908 standard. In the electric motor windings, F insulation class cables are used in accordance with TS 60085:2011.
Self Flapped Pumps are suitable for use as pumps used in irrigation systems, ship industry, boats, shipyards, due to their ability to suck from certain distances.
