Septic Submersible Pumps With Blade
Pumps with blade; septic pit with solid wastes, sewage works, discharges the wastes to be transferred in industrial kitchens by grinding them with a knife system, can discharge the wastes by grinding them with a knife, and manufactures them under the brand of Sumak Pump. This type of pumps with blade, which are produced from extremely high quality materials, are produced as a Sumak Pump suitable for long-term operation and quality pump.
Pumps with blade are manufactured with single-phase electric and three-phase electric options in residential, restaurant, hotel, hospital areas etc. You can watch the “Pumps With Blade Working Method” video from our videos menu.
Turkey Manufacturer Of Submersible Pump
SBRM15/2
Definition
These pumps with stainless steel body, cast iron vortex impeller and grinder blades are easy to portable, easy to install and automatic operation (with floater) pumps. It is designed for use in pumping septic waters.
It break into the solid particles in the water and facilitates drainage because of it has blade.
It has a long life and provides quiet operation due to its oil cooled engine design.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Usage Areas
These pumps are used to discharge water in residential areas, industrial facilities, rain and septic waters, hotels and treatment facilities.
Pump Material Characteristics
| Pump Body | AISI 304 INOX |
| Impeller | GG25 CAST IRON |
| Shaft | AISI 304 INOX |
| Flow Rate(max) | 18 m³/hour |
| Total Head (max) | 13.5 m |
| Liquid Temperature | 0-30°C |
| Protection Class | IP68 |
| Insulation | CI.F |
| Cable Lenght | 10 m |
| Blade | AISI 420 INOX |
| Mechanical Seal | SIC/SIC |
| Pump Durability Pressure (Pmax) | 4 bar |
| Type | Control Panel | Open Impeller | Closed Impeller | Blade | Stainless (304) | Cast Impeller (GG25) | Noryl Impeller |
SBRM15/2 | √ | √ | √ | √ | |||
| SBRM18/2 | √ | √ | √ | √ | |||
| SBRM19/2 | √ | √ | √ | √ | |||
| SBRT20/2 | √ | √ | √ | √ | |||
| SBRT30/2 | √ | √ | √ | √ | |||
| SBRT40/2 | √ | √ | √ | √ |
Technical Specifications
| MOTOR | PUMP | ||||||||||||||||||||||
| Type | KW | HP | V | Hz | A | rpm | capacitor uf Vc | Hm | output | W | L | H | KG | m³/h | 2 | 6 | 9 | 10 | 12 | 15 | 18 | 24 | |
| SBRM15/2 | 1,1 | 1,5 | 220 | 50 | 5,8 | 2900 | 30 | 450 | 10.5 | 2″ | 200 | 280 | 380 | 23,5 | mss | – | 9 | 8 | – | 7 | – | – | – |
| SBRM18/2 | 1,35 | 1,8 | 220 | 50 | 6,3 | 2900 | 30 | 450 | 11.5 | 2″ | 200 | 280 | 380 | 23.5 | – | 10 | 9 | – | 8 | – | 2 | – | |
| SBRM19/2 | 1.35 | 1.8 | 220 | 50 | 6.8 | 2900 | 30 | 450 | 13.8 | 2″ | 200 | 280 | 430 | 23.5 | 13 | 11,5 | – | 9 | 8 | 5 | – | – | |
| SBRT20/2 | 1,6 | 2,2 | 380 | 50 | 3,4 | 2900 | – | – | 19 | 2″ | 240 | 309 | 465 | 43 | – | 16 | 15 | – | 14 | – | 11 | 6 | |
| SBRT30/2 | 2,2 | 3 | 380 | 50 | 5 | 2900 | – | – | 22 | 2″ | 240 | 309 | 465 | 45 | – | 19 | 18 | – | 17 | – | 13 | 9 | |
| SBRT40/2 | 3 | 4 | 380 | 50 | 7,4 | 2900 | – | – | 28 | 2″ | 240 | 309 | 465 | 46,5 | – | 25 | 24 | – | 22 | – | 19 | 15 | |
Septic Submersible Pumps With Grinder Blade
Choosing a submersible pump with a shredder blade at the beginning of the issues that most attention should be paid to using a submersible pump with a blade in a suitable place, the best pump is a pump that is selected according to the needs, choosing a water pump with a blade and a submersible pump, choosing a submersible pump with a shredder, choosing a pump with a shredder and being economical according to the needs, the price of a submersible pump electric motor efficiency of a submersible pump, A energy In order to efficiently use the energy that we need most today with electricity consumption, the efficiency should be focused on rather than the price of the submersible pump, the price of the submersible pump should not be focused only when buying a submersible pump. Sumak quality knife submersible pump, knife grinder pump prices comparison can be misleading, as well as this type of technical knife submersible pump may be useful to have an expert in the business.
SBRM18/2-P
Definition
These pumps with stainless steel body, cast iron vortex impeller and grinder blades are easy to portable, easy to install and automatic operation (with floater) pumps. It is designed for use in pumping septic waters.
It break into the solid particles in the water and facilitates drainage because of it has blade.
It has a long life and provides quiet operation due to its oil cooled engine design.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Usage Areas
These pumps are used to discharge water in residential areas, industrial facilities, rain and septic waters, hotels and treatment facilities.
Pump Material Characteristics
| Pump Body | AISI 304 INOX |
| Impeller | GG25 CAST IRON |
| Shaft | AISI 304 INOX |
| Flow Rate (max) | 18 m³/hour |
| Total Head (max) | 13.5 m |
| Liquid Temperature | 0-30°C |
| Protection Class | IP68 |
| Insulation | CI.F |
| Cable Lenght | 10 m |
| Blade | AISI 420 INOX |
| Mechanical Seal | SIC/SIC |
| Pump Durability Pressure (Pmax) | 4 bar |
| Type | Control Panel | Open Impeller | Closed Impeller | Blade | Stainless(304) | Cast Impeller(GG25) | Noryl Impeller |
SBRM15/2-P | √ | √ | √ | √ | |||
SBRM18/2-P SBRT18/2-P | √ | √ | √ | √ | |||
SBRM19/2-P SBRT19/2-P | √ | √ | √ | √ |

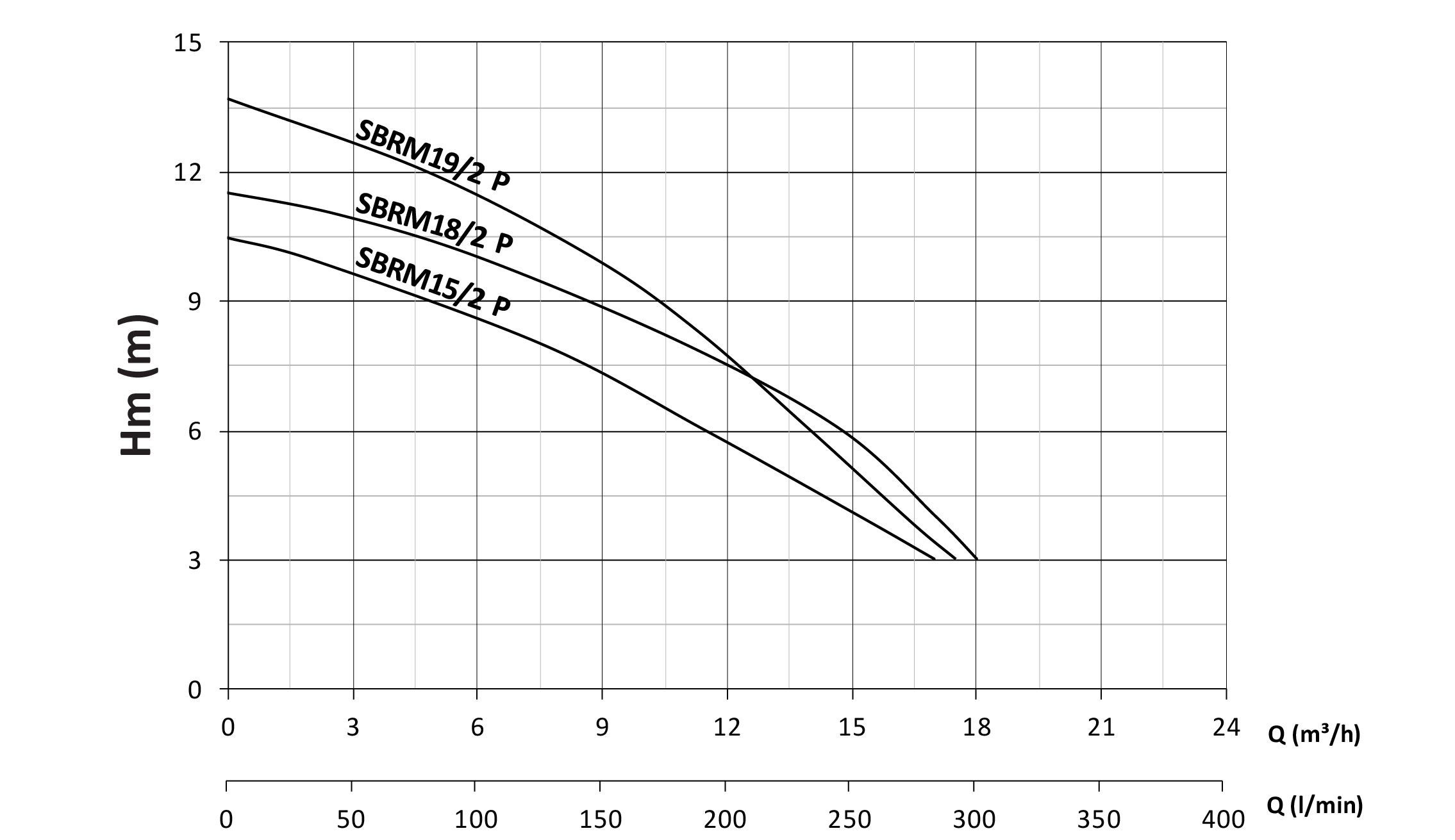

Technical Specifications
| MOTOR | PUMP | ||||||||||||||||||
| Type | KW | HP | V | Hz | A | rpm | capacitor uf Vc | output | W | L | H | KG | m³/h | 2 | 4 | 8 | 12 | 16 | |
SBRM15/2-P | 1.1 | 1.5 | 220 | 50 | 6.5 | 2900 | 25 | 450 | 2″ | 200 | 280 | 380 | 22.5 | mss | 10.5 | 10 | 8 | 5 | 2 |
SBRM18/2-P SBRT18/2-P | 1.35 | 1.8 | 220 | 50 | 6.4 | 2900 | 30 | 450 | 2″ | 200 | 280 | 380 | 23 | 11 | 10.5 | 9 | 8 | 5 | |
SBRM19/2-P SBRT19/2-P | 1.35 | 1.8 | 220 | 50 | 6.4 | 2900 | 30 | 450 | 2″ | 200 | 280 | 430 | 25 | 13.5 | 12.5 | 11.5 | 8.5 | 5 | |
SBRT20/2-P
Definition
These pumps have cast iron body, cast iron vortex impeller and grinder blade. It is designed for use in pumping septic waters containing fibrous solid particles.
It break into the solid particles in the water and facilitates drainage because of it has blade.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Usage Areas
These pumps are used to discharge water in residential areas, industrial facilities, rain and septic waters, hotels and treatment facilities.
Pump Material Characteristics
| Pump Body | GG25 CAST IRON |
| Impeller | GG25 CAST IRON |
| Shaft | AISI 304 INOX |
| Flow Rate(max) | 30 m³/hour |
| Total Head (max) | 28 m |
| Liquid Temperature | 0-30°C |
| Protection Class | IP68 |
| Insulation | CI.F |
| Cable Lenght | 10 m |
| Blade | AISI 420 INOX |
| Mechanical Seal | SIC/SIC |
| Pump Durability Pressure (Pmax) | 8 bar |
| Type | Control Panel | Open Impeller | Closed Impeller | Blade | Stainless (304) | Cast Impeller (GG25) | Noryl Impeller |
SBRT20/2-P | √ | √ | √ | √ | |||
SBRT30/2-P | √ | √ | √ | √ | |||
SBRT40/2-P | √ | √ | √ | √ |

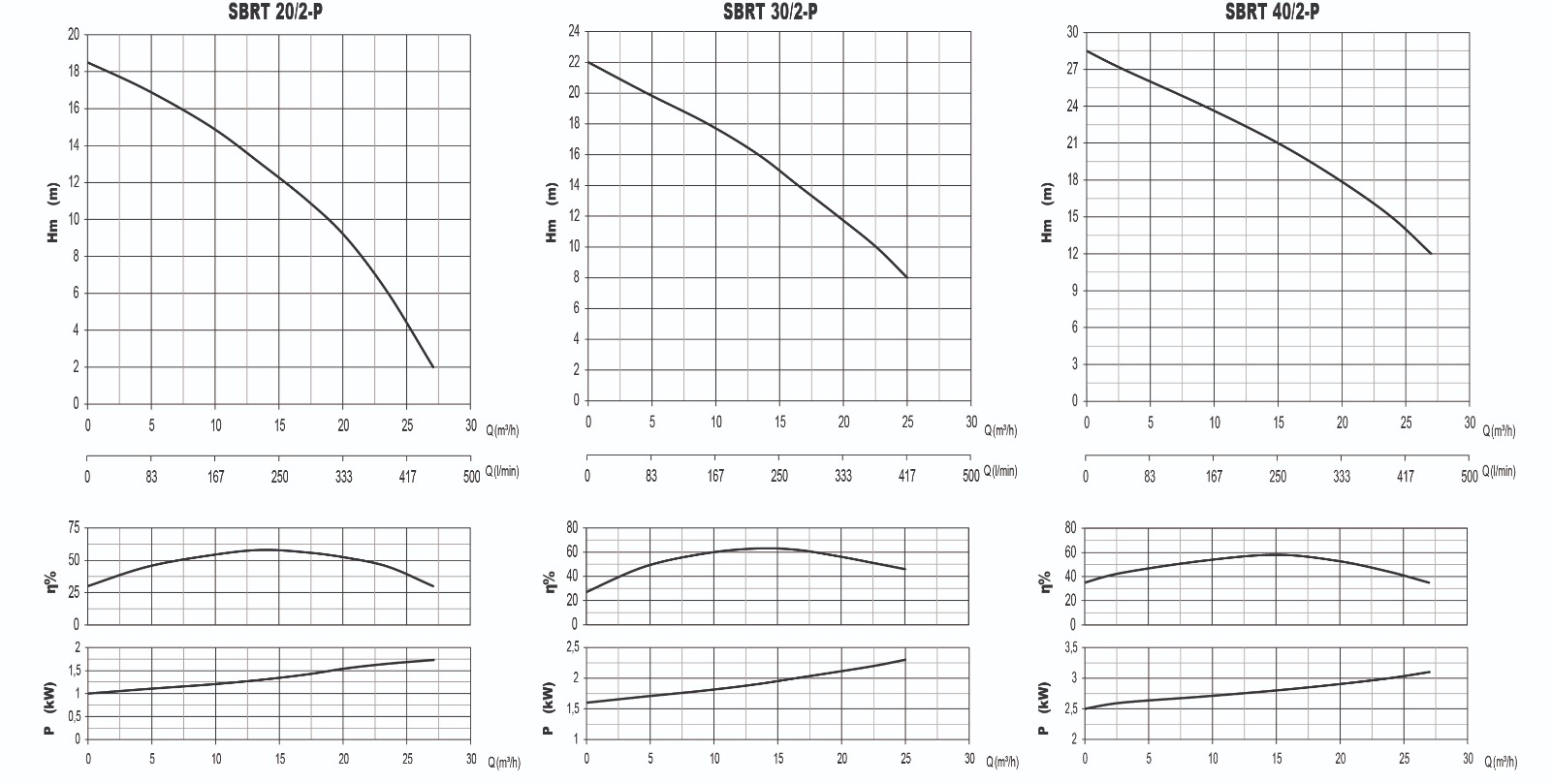

Technical Specifications
| MOTOR | PUMP | ||||||||||||||||||
| Type | KW | HP | V | Hz | A | rpm | Hm | output | W | L | H | ∇ | KG | m³/h | 5 | 10 | 15 | 20 | 25 |
SBRT20/2-P | 1.6 | 2.2 | 380 | 50 | 3.4 | 2900 | 19 | 2″ | 200 | 309 | 495 | 7 | 43 | mss | 17 | 15 | 12 | 9 | 4 |
SBRT30/2-P | 2.2 | 3 | 380 | 50 | 5 | 2900 | 22 | 2″ | 240 | 309 | 495 | 7 | 45 | 20 | 18 | 15 | 12 | 8 | |
SBRT40/2-P | 3 | 4 | 380 | 50 | 7.4 | 2900 | 28 | 2″ | 240 | 309 | 495 | 7 | 46.5 | 26 | 24 | 21 | 18 | 14 | |
SBRT50/2-P
Definition
These pumps have cast iron body, cast iron vortex impeller and grinder blade. It is designed for use in pumping septic waters containing fibrous solid particles.
It break into the solid particles in the water and facilitates drainage because of it has blade.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Usage Areas
These pumps are used to discharge water in residential areas, industrial facilities, rain and septic waters, hotels and treatment facilities.
| Pump Body | GG25 CAST IRON |
| Impeller | GG25 CAST IRON |
| Shaft | AISI 304 INOX |
| Flow Rate(max) | 30 m³/hour |
| Total Head (max) | 46 m |
| Liquid Temperature | 0-30°C |
| Protection Class | IP68 |
| Insulation | CI.F |
| Cable Lenght | 10 m |
| Blade | AISI 420 INOX |
| Mechanical Seal | SIC/SIC |
| Pump Durability Pressure (Pmax) | 8 bar |
Pump Material Characteristics
| Type | Control Panel | Open Impeller | Closed Impeller | Blade | Stainless (304) | Cast Impeller (GG25) | Noryl Impeller |
SBRT50/2-P | √ | √ | √ | √ | |||
SBRT75/2-P | √ | √ | √ | √ |

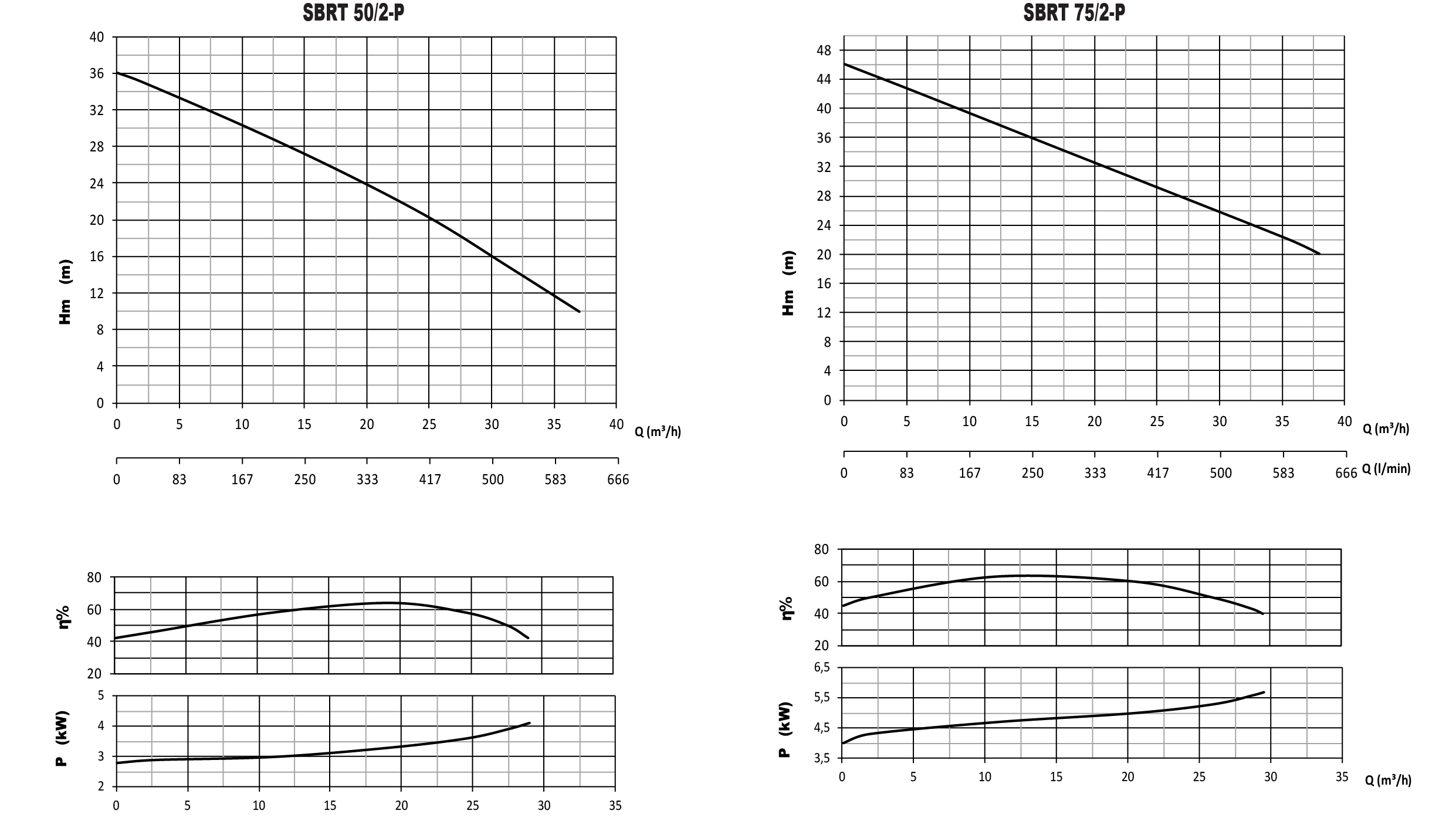

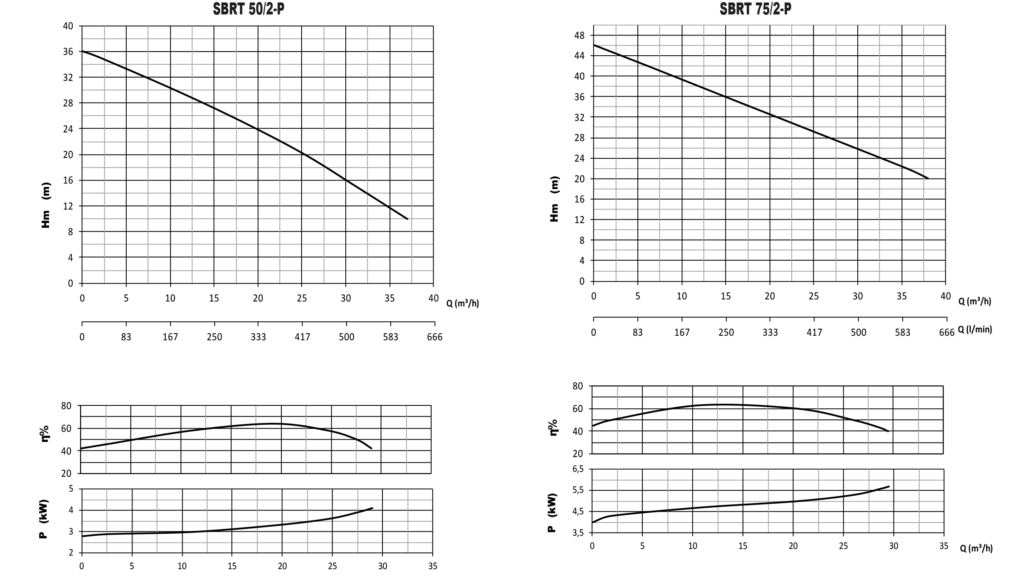

Technical Specifications
| MOTOR | PUMP | ||||||||||||||||||
| Type | KW | HP | V | Hz | A | rpm | Hm | output | W | L | H | ∇ | KG | m³/h | 5 | 10 | 15 | 20 | 25 |
SBRT50/2-P | 4 | 5.5 | 380 | 50 | 9.5 | 2900 | 37 | 2″ | 290 | 380 | 605 | 7 | 76 | mss | 33 | 30 | 28 | 24 | 20 |
SBRT75/2-P | 5.5 | 7.5 | 380 | 50 | 12 | 2900 | 46 | 2″ | 290 | 380 | 605 | 7 | 80 | 43 | 40 | 38 | 35 | 31 | |
SBRT50/3-P
Definition
These pumps have cast iron body, cast iron vortex impeller and grinder blade. It is designed for use in pumping septic waters containing fibrous solid particles.
It break into the solid particles in the water and facilitates drainage because of it has blade.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Usage Areas
These pumps are used to discharge water in residential areas, industrial facilities, rain and septic waters, hotels and treatment facilities.
Pump Material Characteristics
| Pump Body | GG25 CAST IRON |
| Impeller | GG25 CAST IRON |
| Shaft | AISI 304 INOX |
| Flow Rate(max) | 47 m³/hour |
| Total Head (max) | 34 m |
| Liquid Temperature | 0-30°C |
| Protection Class | IP68 |
| Insulation | CI.F |
| Cable Lenght | 10 m |
| Blade | AISI 420 INOX |
| Mechanical Seal | SIC/SIC |
| Pump Durability Pressure (Pmax) | 8 bar |
| Type | Control Panel | Open Impeller | Closed Impeller | Blade | Stainless (304) | Cast Impeller (GG25) | Noryl Impeller |
SBRT50/3-P | √ | √ | √ | √ | |||
SBRT75/3-P | √ | √ | √ | √ |
Technical Specifications
| MOTOR | PUMP | ||||||||||||||||||
| Type | KW | HP | V | Hz | A | rpm | Hm | output | W | L | H | ∇ | KG | m³/h | 10 | 15 | 20 | 30 | 40 |
SBRT50/3-P | 4 | 5.5 | 380 | 50 | 9.5 | 2900 | 28 | 3″ | 315 | 435 | 605 | 7 | 78 | mss | 24 | 22 | 19 | 13 | – |
SBRT75/3-P | 5.5 | 7.5 | 380 | 50 | 12 | 2900 | 33 | 3″ | 315 | 435 | 605 | 7 | 82 | 30 | 28 | 26 | 21 | 13 | |
