Septic Submersible Pumps With Thermoplastic Tanks
Our tank-mounted products are suitable for use in structures below the sewer line.
With the blade septic pump assembly kit, they are septic pumps that automatically switch on and discharge waste materials when stored. Turkey Manufacturer Of Septic Submersible Pump.

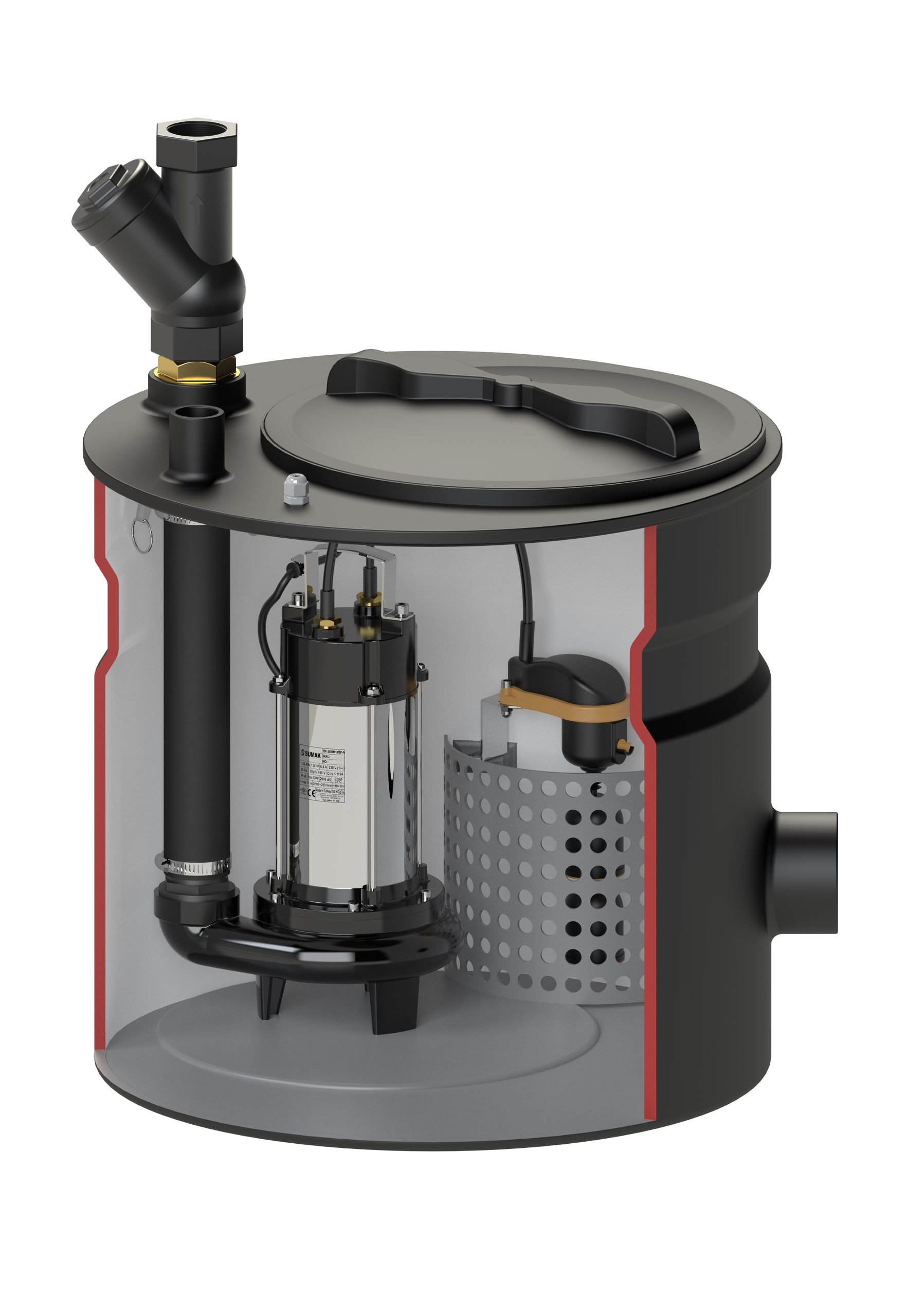

SMAC-1800 A
Definition
These systems with a thermoplastic body are automatic operation (with floater), self tank and do not create smell and moisture. The pump, which operates in a completely isolated thermoplastic cabin, is designed to collect the wastewater in the system to which it is connected and discharge the water to the main sewage due to the submersible pump with grinder blades.
Usage Areas
These systems ensure that septic and waste water occurring in areas lower than the main elevation of buildings is transferred to the city sewage. It is a septic submersible pump system suitable for use in drainage water pits, gas stations, car wash services ,in closed garages, in storing waste water in boats and marinas, in boiler and engine rooms, in public institutions, schools, universities, campuses, hospitals, in municipalities, public housing, factories, hotels, construction sites, holiday resorts, personnel accommodation containers, market warehouses, retrofitted toilets, sinks, showers and dining halls.
Pump Material Characteristics
| System Body | Thermoplastıc |
| Pump Body | GG25 CAST IRON |
| Pump Impeller | GG25 CAST IRON |
| Pump Shaft | Inox 304 |
| Flow Rate(max) | 50 m3 /hour |
| Total Head (max) | 18 m |
| Liquid Pumping Temperature | 0-30°C |
| Protection Class | IP 68 |
| Insulation | CI.F |
| Seal | SIC/SIC |

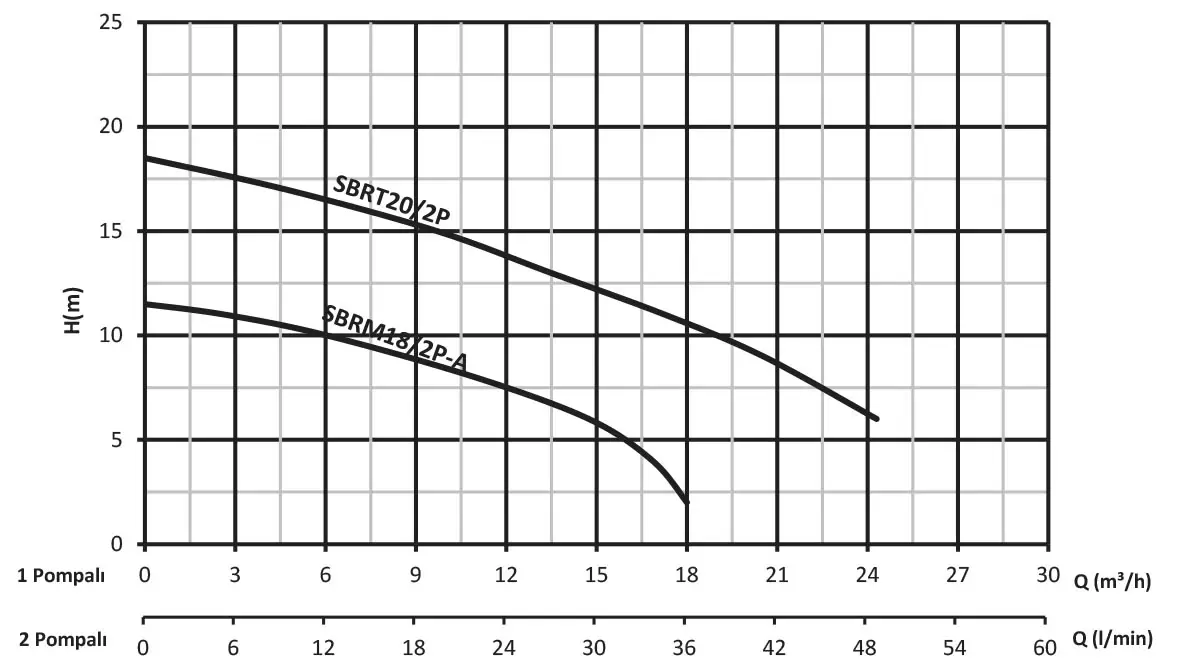

Technical Specifications

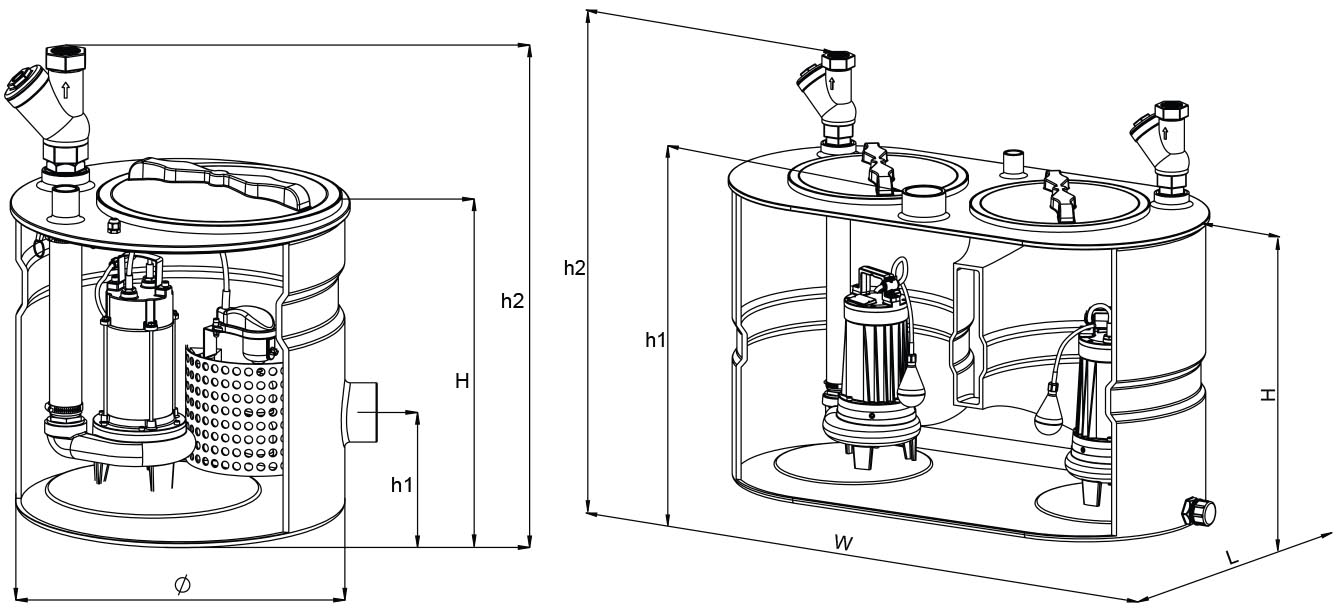

| Type | volume lt | Pump | V | mss | m3/h | volume dimensions | input h1 | output h2 | input Q | output Q | KG | |
SMAC-1800 A | 150 | SBRM18/2PA | 220 | 6-9 | 15-9 | 540 | 650 | 180 | 840 | 110 | 50 | 38 |
SMAC-2200 A | 200 | SBRT20/2P | 380 | 6-9 | 24-18 | 540 | 850 | 625 | 1038 | 110 | 50 | 60 |

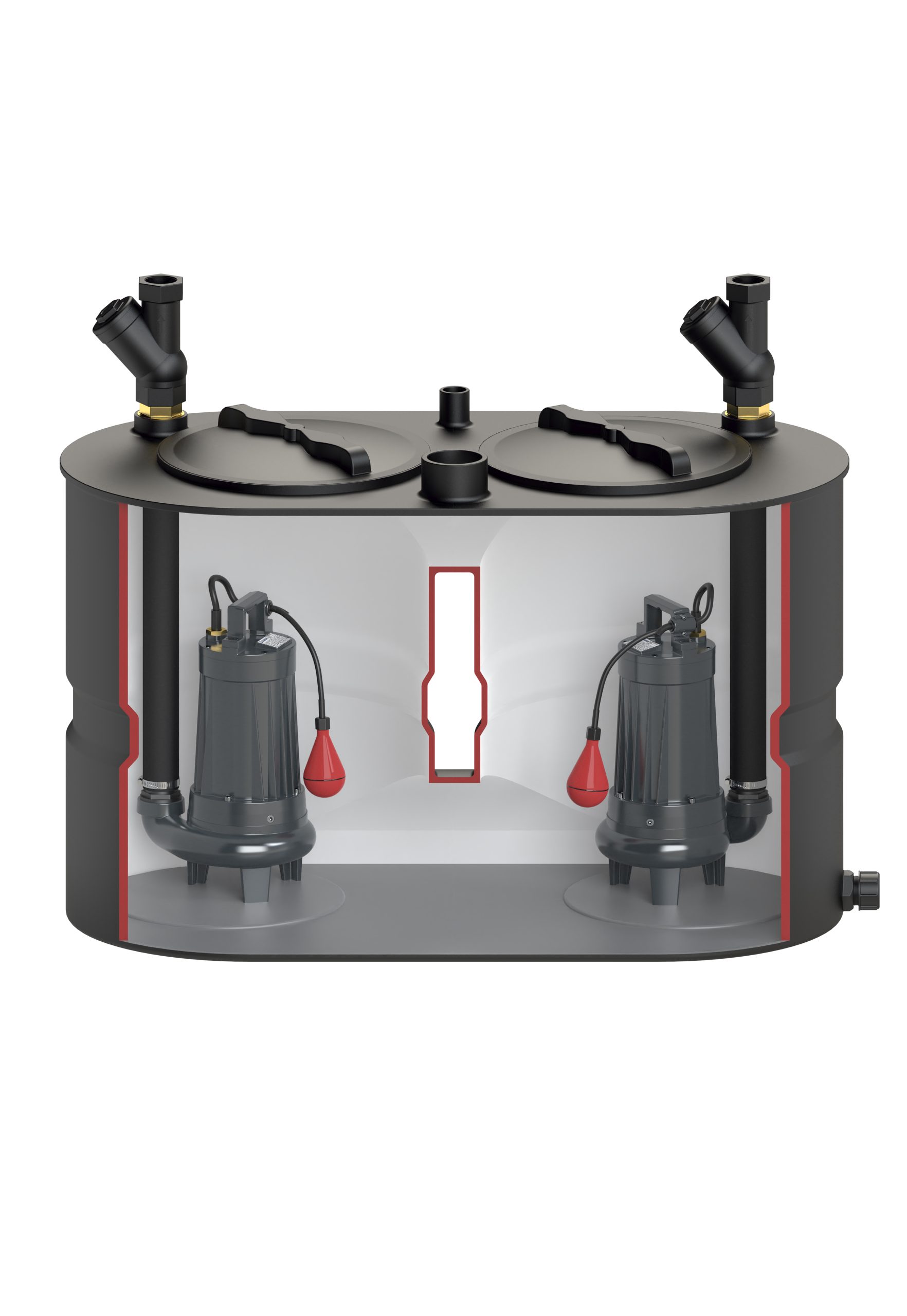

SMAC-2200 B
Definition
These systems with a thermoplastic body are automatic operation (with floater), self tank and do not create smell and moisture. The pump, which operates in a completely isolated thermoplastic cabin, is designed to collect the wastewater in the system to which it is connected and discharge the water to the main sewage due to the submersible pump with grinder blades.
Usage Areas
These systems ensure that septic and waste water occurring in areas lower than the main elevation of buildings is transferred to the city sewage. It is a septic submersible pump system suitable for use in drainage water pits, gas stations, car wash services ,in closed garages, in storing waste water in boats and marinas, in boiler and engine rooms, in public institutions, schools, universities, campuses, hospitals, in municipalities, public housing, factories, hotels, construction sites, holiday resorts, personnel accommodation containers, market warehouses, retrofitted toilets, sinks, showers and dining halls.
Pump Material Characteristics
| System Body | Thermoplastıc |
| Pump Body | GG25 CAST IRON |
| Pump Impeller | GG25 CAST IRON |
| Pump Shaft | Inox 304 |
| Flow Rate(max) | 50 m3 /hour |
| Total Head (max) | 18 m |
| Liquid Pumping Temperature | 0-30°C |
| Protection Class | IP 68 |
| Insulation | CI.F |
| Seal | SIC /SIC |

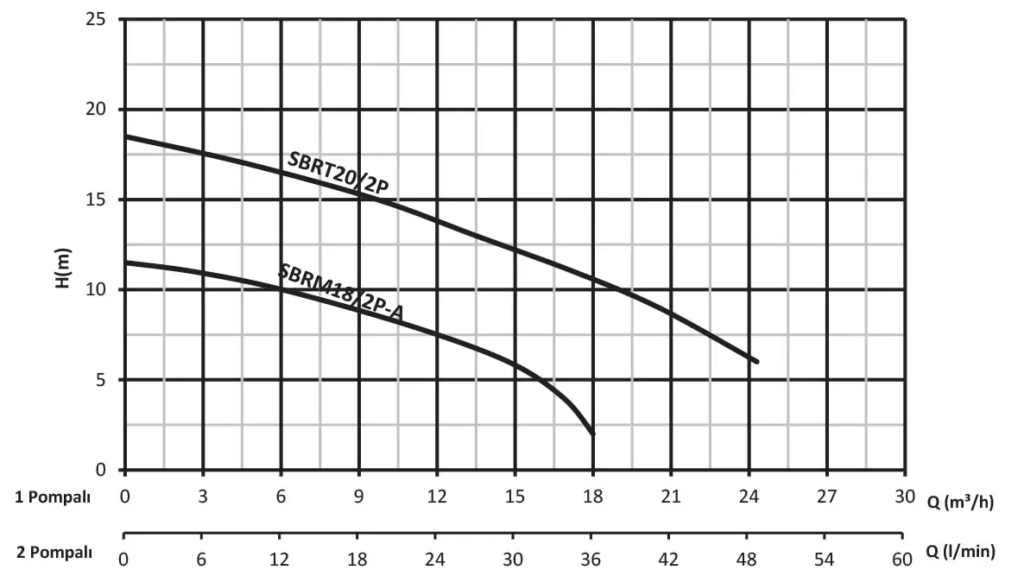

Technical Specifications
| Type | volume lt | Pump | V | mss | m3/h | volume dimensions W | volume dimensions L | volume dimensions H | input h1 | output h2 | input Q | output Q | KG |
SMAC-2200 B | 500 | 2X SBRT20/2P | 380 | 6-9 | 48-36 | 1280 | 540 | 850 | 845 | 1038 | 110 | 2×50 | 123 |
Septic Submersible Pumps with Thermoplastic Tank
They are known as self-storage septic pump systems. Working in a completely isolated Thermoplastic cabinet, the pump collects the waste water in the system it is connected to and discharges the water to the main sewer by means of a submersible pump with grinder blade. The pump produced by turkish septic pumps manufacturers starts to work with the command from the septic tank type pear floater in the thermoplastic tank and stops automatically after the water is discharged.
Regarding the selection of septic submersible pumps ,In areas lower than the main level in buildings, drainage water pits, gas stations, car wash services, closed garages, sewage storage in boats and marinas, boiler and engine rooms, public institutions, schools, universities, campuses, hospitals, cabin water discharge pump, municipalities, mass housing, factories, hotels, construction sites, holiday resorts, personnel accommodation containers, market warehouses, in WC, washbasins, showers and cafeterias that are built afterwards, ensures the transfer of waste water to the city sewer network.
Septic pumps with Thermoplastic Tank are divided into 3 in terms of structure and operation;
- Septic pumps with grinder
- Septic pumps with blade
- Septic pumps with grinder and blades.
The septic submersible pump produced by turkish manufactures ,also we manufacture is produced with polyurethane, stainless and cast body. Septic submersible pump with stainless impeller, septic submersible pump with cast steel impeller, septic submersible pump with vortex impeller, Septic submersible pump closed impeller can also be manufactured with elevator float suitable for use in narrow spaces. Pumps are designed and produced in accordance with TS 12599 standard. In the electric motor windings, F insulation class cables are used in accordance with TS 60085:2011. User and motor safety are prioritized by using a 2-pole asynchronous motor with IP 68 protection class in accordance with TS 3033 EN 60529.
Installation of Septic Submersible Pumps with Self Tank are specially designed centrifugal pumps that allow solid particles to pass through without clogging the pump. When the pump is turned on, the motor starts turning the impeller and creates the pressure that pushes the water into the impeller and enters the discharge pipe. Self-tank water pump Every possible information about the septic pump in the tank should try to be used for monitoring and control purposes. User personnel should be informed about how to use devices such as the manometer at the well outlet, which can be used to obtain information about the pump, electric motor and the status of the system, the electric control panel of especially high power submersible motors, the voltmeter and ammeter, which are used to monitor the current and voltage of each phase on it.
