Solar Energy 4 ”Submersible Pumps

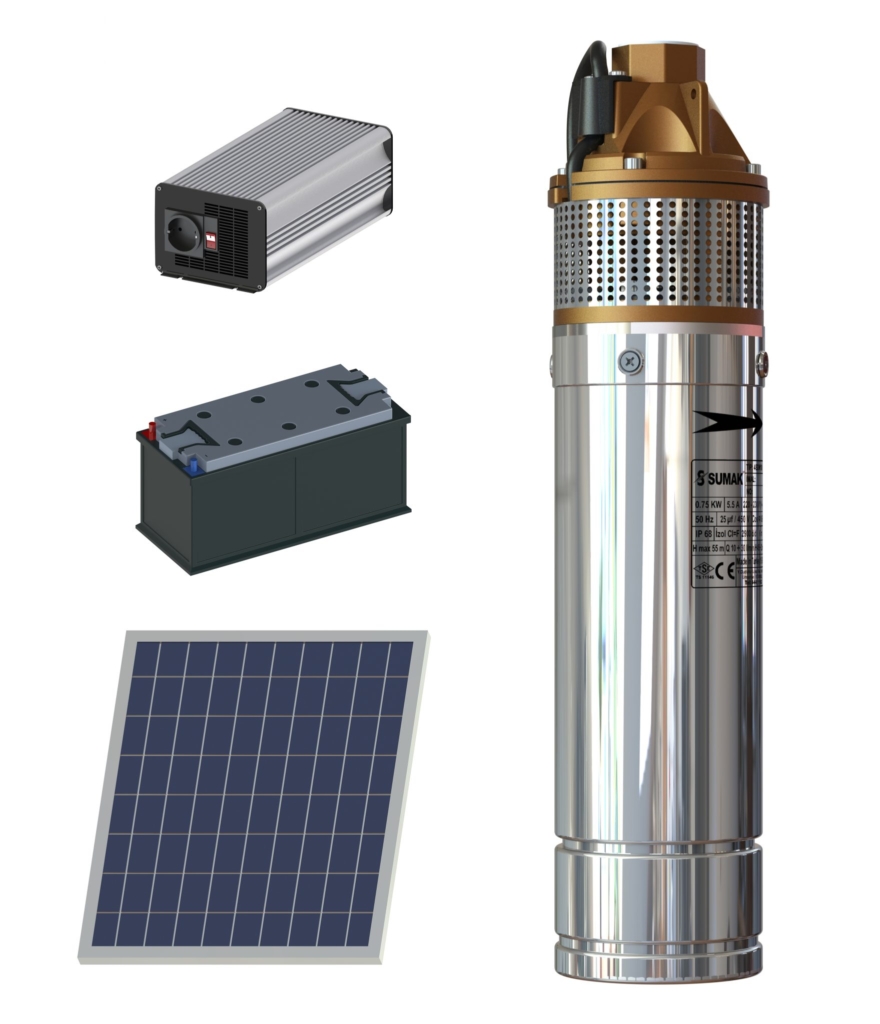

They are solar submersible pumps ready to use as a package with a solar panel kit where there is no electricity.
It is recommended to get information from our company’s technical consultants for information, product selection and usage details.
Turkey manufacturer factory of submersible pump.
4SDM100 SLR
Definition
These systems are designed the needs of all kinds of water that operate
submersible pumps by converting DC energy obtained from solar panels
to 220 V AC energy by storing them in gel batteries using invertor.
Usage Areas
These pumps are used in places such as farms, spring houses at residential areas and industrial facilities in rural areas, far from power lines or without electrical power to supply the need for clean water in areas such as drinking water, agricultural irrigation, crop irrigation, fields, gardens and wells.
Pump Material Characteristics
| Pump Body | AISI 304 INOX |
| Impeller | BRONZE (4SDM100)-POLYCARBONATE (4SDM310) |
| Shaft | AISI 304 INOX |
| Flow Rate(max) | 3 m³/hour |
| Total Head | 80 m |
| Liquid Temperature | 0-30°C |
| Protection Class | IP68 |
| Insulation | CI.F |
| Cable Lenght | 30 m |
| Mechanical Seal | CERAMIC/CARBON |
| Pump Durability Pressure(Pmax) | 12 bar |

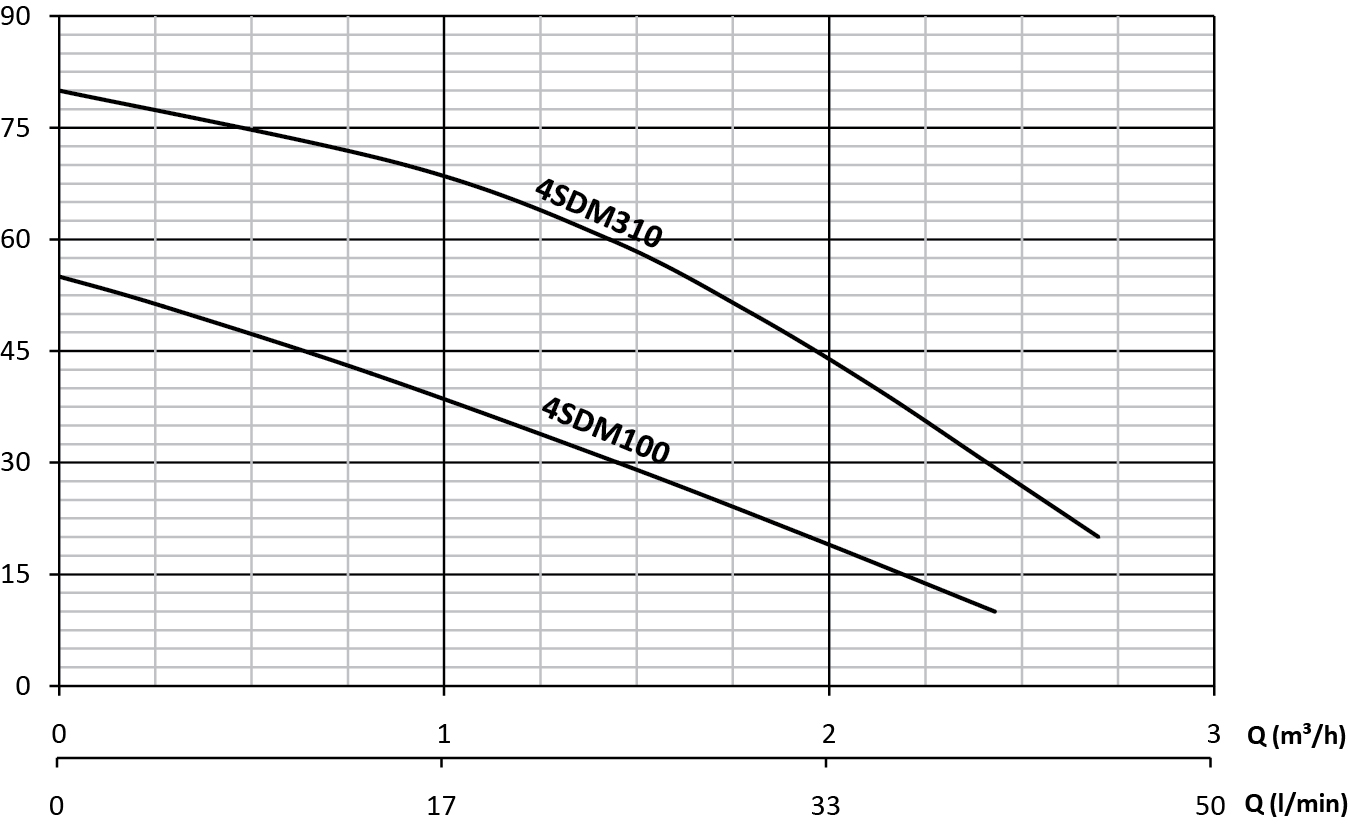

Technical Specifications
| Type | Panel | Battery | Invertor | Pump kW | H max | Q max | output | KG | |
4SDM100 SLR | Poliskristal 2600 Watt 1660×990 mm 4×18.5 kg | 12 V 20 A Jel battery 4×7 Kg | input 24 V DC output 220 V 1∼ 1500 Watt 5 kg | 0.75 | 55 mss | 2.5 m³/h | 1″ | 13 | |
| 4 pcs Panel | 4 pcs Battery | 1 pcs ınvertor | 1 pcs 4SDM100 SLR Pump | ||||||
| Type | Panel | Battery | Invertor | Pump kW | H max | Q max | output | KG | |
4SDM310 SLR | Polycristal 2600 Watt 1660×990 mm 4×18.5 kg | 12 V 20 A Jel battry 4×7 Kg | input 24 V DC output 220 V 1∼ 1500 Watt 5 kg | 0.75 | 80 mss | 3 m³/h | 1¼ | 16 | |
| 4 pcs Panel | 4 pcs battery | 1 pcs ınventor | 1 pcs 4SDM310 SLR Pump | ||||||
Solar Submersible Pumps
They are ready to use solar submersible pumps produced by turkish solar pump manufacturers as a package with a solar panel kit in places where there is no electrical energy.
One of the areas where solar energy is used practically, economically and functionally is irrigation systems with solar powered solar pumps. Complete solutions that can work in harmony with this system gain importance, especially at points where irrigation or drinking water extraction is needed in areas far from the electricity grid. Water pumping systems are absolutely necessary in remote houses or businesses where the city network is not used. Solar water pumping systems are a serious solution in this regard.
Regarding the solar pump selection It can be easily used in crop irrigation, water storage and drinking water supply. In order to draw water from a source, first of all, it is checked whether the place gets enough sun or not. Solar panels are connected at the angle and direction where the sun can be taken maximum. If the sunbathing time is low in the region, the batteries can be charged and supported. Or, if the wind is sufficient, a hybrid study can be made by providing support from the wind power.
If we consider the advantages of solar powered pumps;
- It works independently from the network.
- Maintenance-operation cost is close to zero.
- Electrical losses are at minimum level.
- No need for long wiring and generator use in the field.
- It is long lasting.
- Easy to assemble, simple and practical.
- It is modular and scalable.
- It is possible to make a mobile application and it can be used collaboratively.
- It is environmentally friendly.

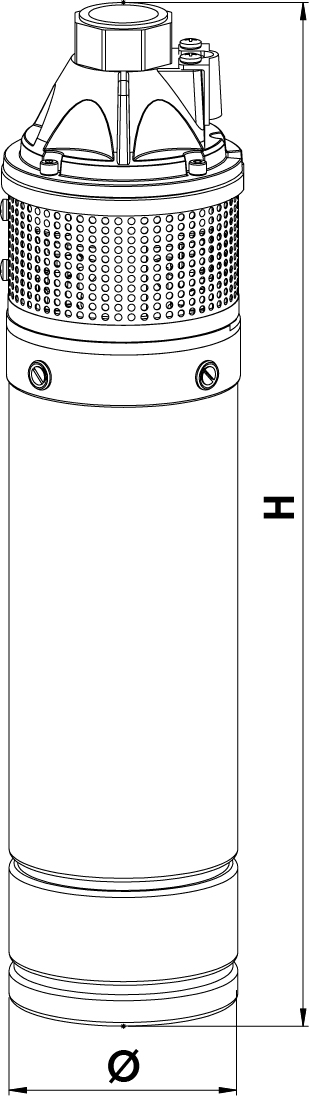

Also known as Solar Submersible pumps installation , the stepped deep well pump is permanently and completely immersed in the water to be conveyed. The characteristic feature of the 4”-5” submersible pump type is the body, which is usually long and rather thin. The pump can therefore also be perfectly placed in narrow boreholes. Multistage pumps Extremely powerful and quiet, the pump system delivers water from deep points, for example, to irrigate gardens or to supply domestic water.
The factors that determine the choice of a solar deep well pump manufactured bt turkish solar water pump producers are the required delivery height and the desired or required amount of water.
At this time, you need to consider at what depth the pump should be used and what is the delivery height of the water to the ground. Finally, the water quality, or rather the percentage of floating matter or the maximum particle size of the particles, should also be taken into account when choosing a solar water pump. Sumak 4”-5” deep well pumps are suitable for conveying clean water, lightly polluted water is filtered with an integrated stainless steel filter.
