Booster systems 2.2 HP – 7.5 HP multi-stage water contact areas, completely stainless water booster pumps, which work very quietly due to their inline design, and are suitable for pumping up to 155 Hm height, due to their hygienic nature, in treatment plants, systems, food industry, hot water applications, in a maximum of 30 floors, 144 apartments. Sumak stainless (chrome) hydrophores, which are suitable for use in many other sectors, including booster systems in buildings up to

Our designed complete stainless pump and completely stainless water booster products are optionally suitable for use in hot water applications up to 120°C.

In addition to the design of tungsten bedding and cartridge type mechanical seal, the design of our inline and complete stainless production and the design of very silently working complete stainless pumps has been completed and has been certified with the TS EN ISO 9908/A1 standard.

Sumak pump In the project, which was started with the aim of producing domestic multi-stage complete stainless pump and booster, the necessary R&D design studies were completed and the production of the only domestic complete stainless pump and booster booster was started by our company. They are stainless silent hydrophores suitable for trouble-free operation for a long time.

Our authorized services provide service in 81 provinces for the commissioning of Package Boosters. It should not be forgotten that the “Best Booster Booster” is the one that is most suitable for the need.

Booster system Turkey manufacturers.

SHTP8A

SHTP8B

SHTP8C

DESCRIPTION AND USAGE AREAS

TECHNICAL SPECIFICATIONS

DESCRIPTION AND USAGE AREAS

TECHNICAL SPECIFICATIONS

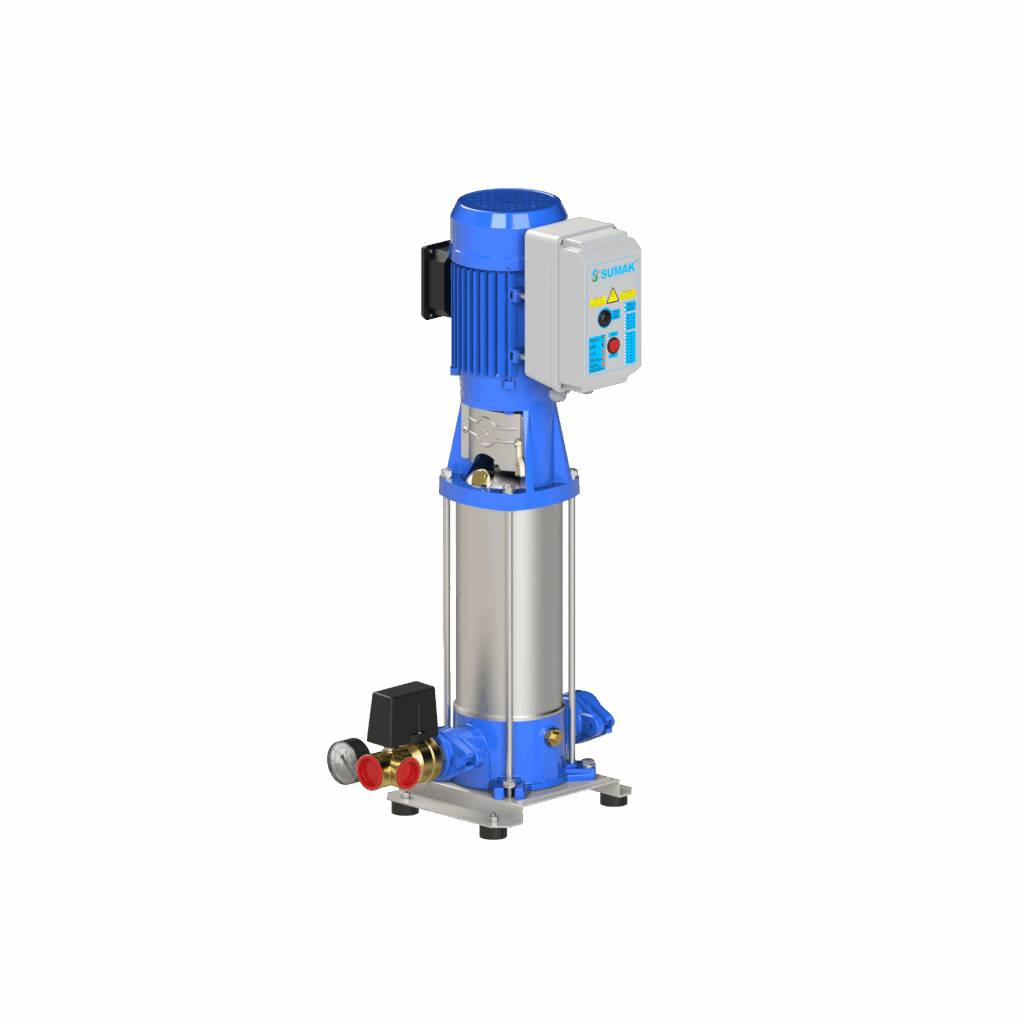

SHTPD8A

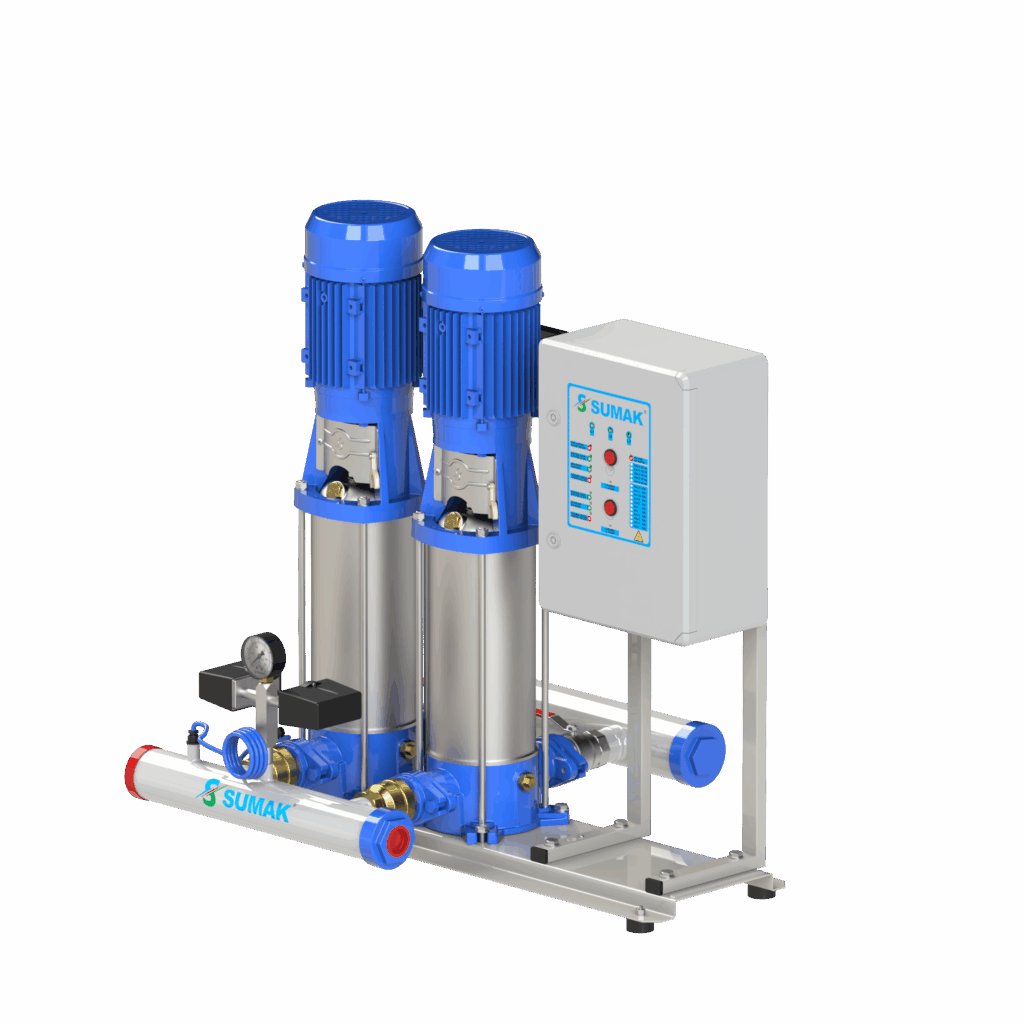

SHTPD8B

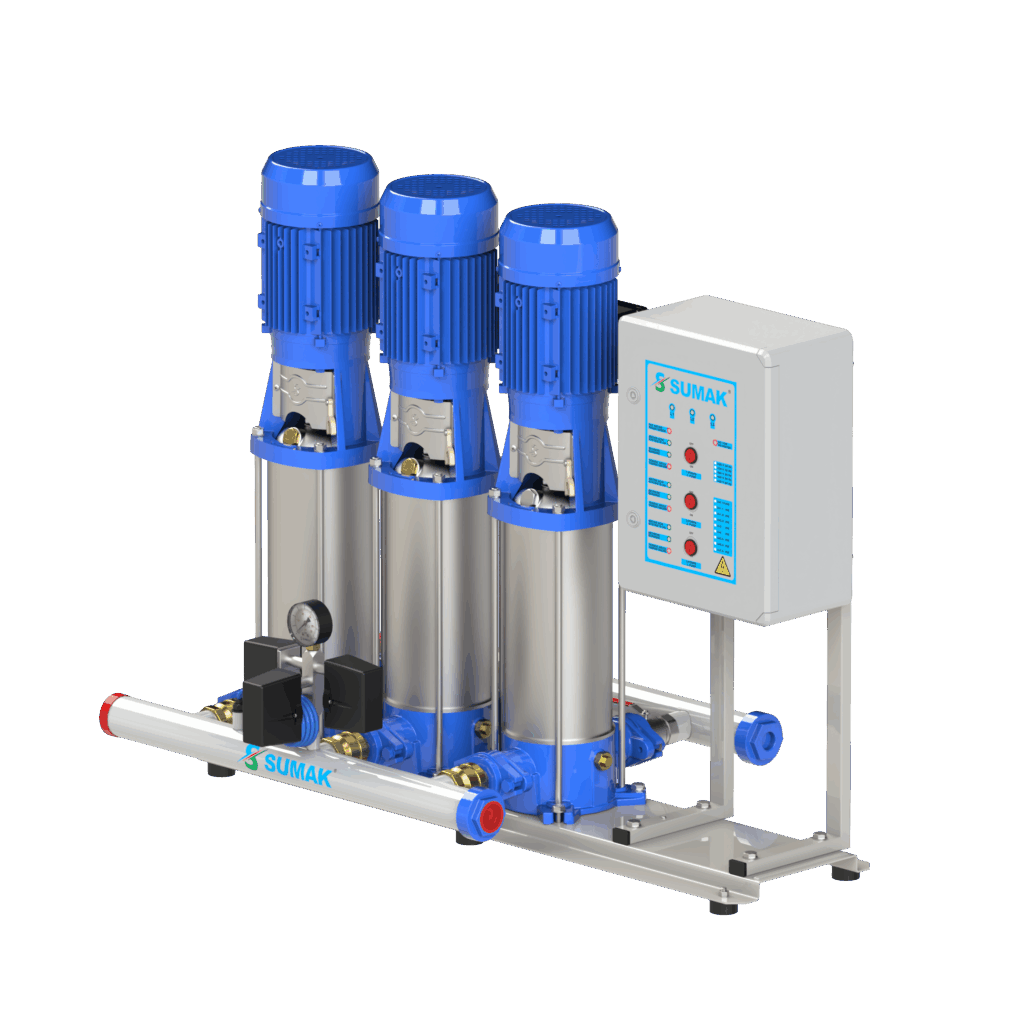

SHTPD8C

DESCRIPTION AND USAGE AREAS

TECHNICAL SPECIFICATIONS

DESCRIPTION AND USAGE AREAS

TECHNICAL SPECIFICATIONS

SMINOX12A220/2

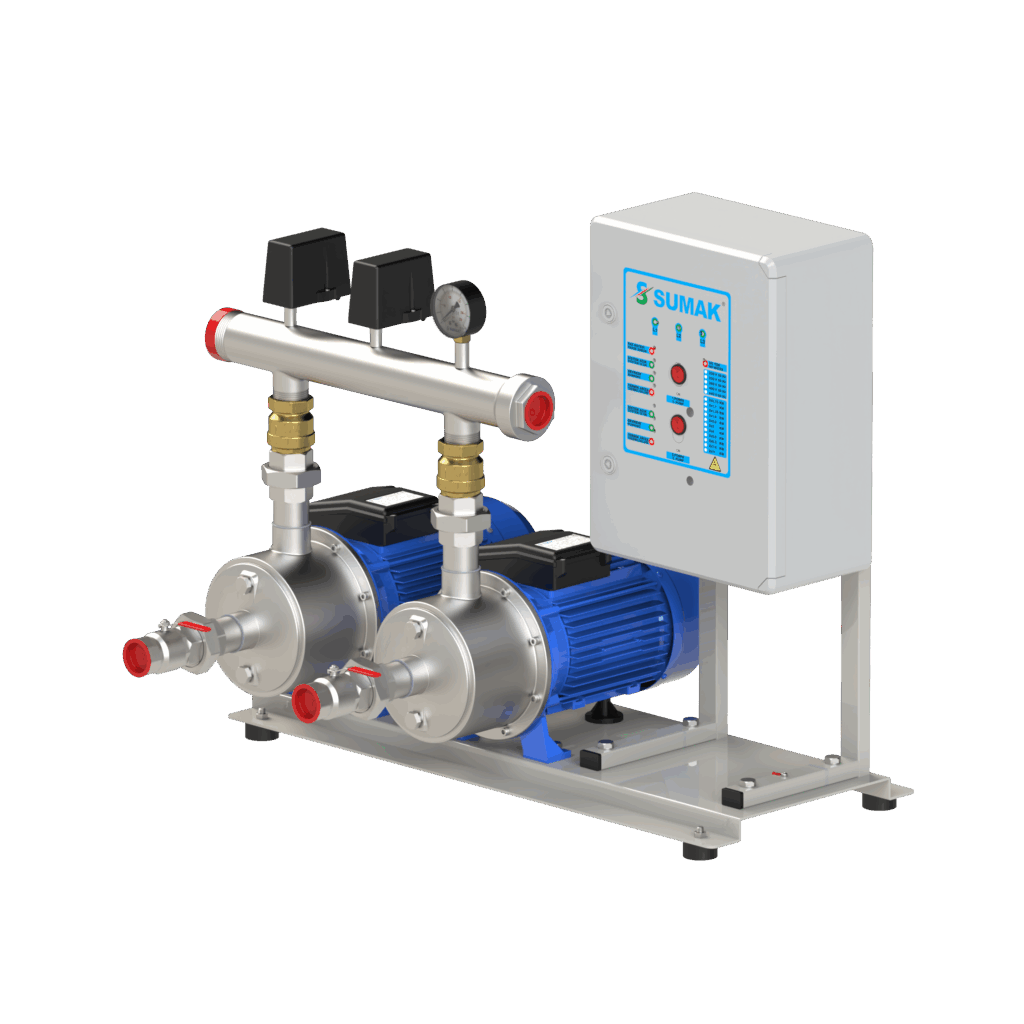

SMINOX12B220/2

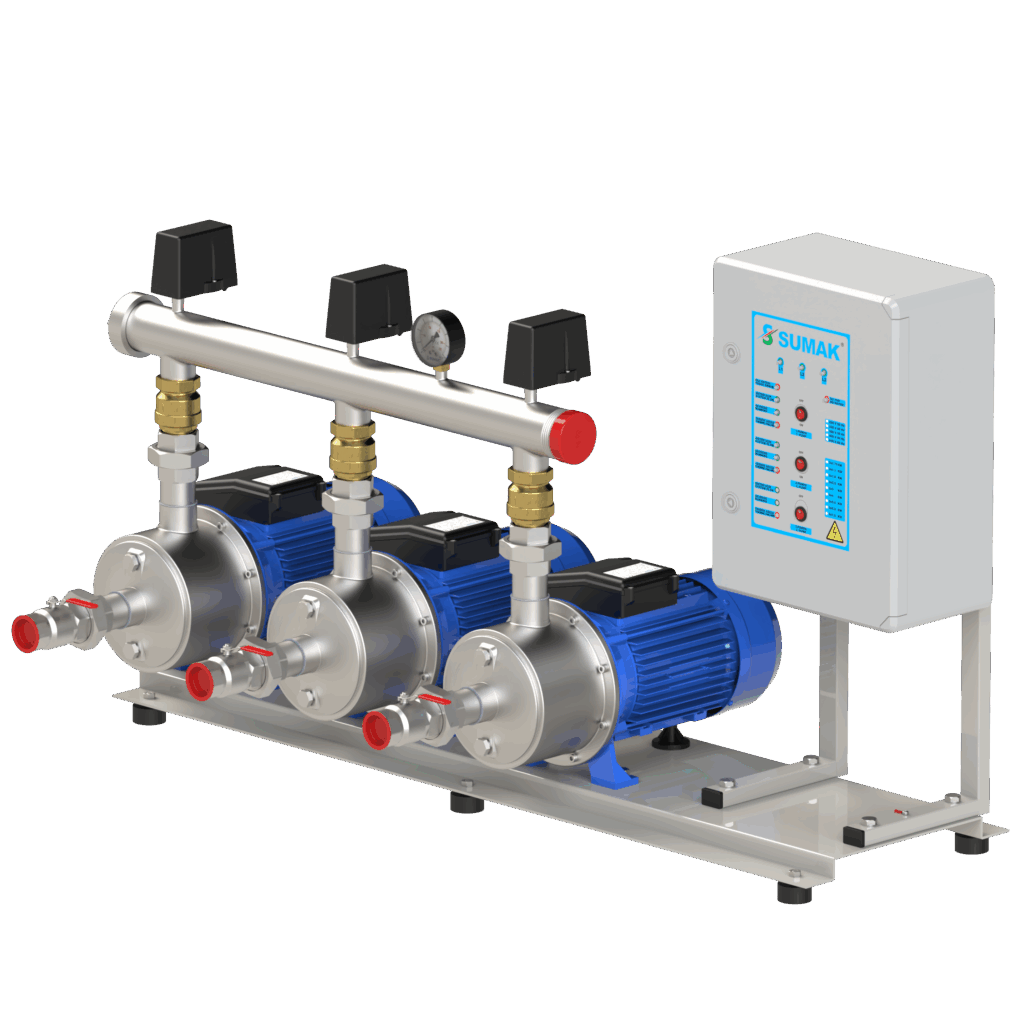

SMINOX12C220/2

DESCRIPTION AND USAGE AREAS

TECHNICAL SPECIFICATIONS

DESCRIPTION AND USAGE AREAS

TECHNICAL SPECIFICATIONS

Stainless Steel Boosters

Stainless Water Boosters produced by turkish stainless steel booster manufacturers are also suitable for use in hygienic environments due to the fact that all surfaces that the water comes into contact with are completely stainless, stainless water booster systems that give regular and continuous water according to the need at determined pressures are used in schools, hospitals, workplaces, mass housing, hotels, etc. Suitable for use anywhere. When two or more pumps are used in stainless suction pumps, the collector is not used in the suction line.

Stainless Booster systems manufactured by Turkish stainless booster set producers are electrically operated water pumps produced for the purpose of increasing the water pressure system. Stainless Hydrophores produced by turkish stainless booster suppliers , with the help of high pressure, deliver the water they absorb from a certain water tank to distant points. Due to the expansion tanks connected to the boosters, they already hold pressurized water. Stainless Water Boosters are used in buildings, apartments, detached villas, estates and high-rise buildings to meet the need for mains water or pressurized water from tanks in cases where the mains water pressure is not sufficient. In short, we can say that it is a water pressurization system used wherever the water pressure is insufficient. These systems, most of which work with electricity, increase the pressure of the water flowing from our taps.

Regarding the selection of stainless boosters, The difference between the stainless steel booster pump and the pump is a detail that is often wondered. Let’s briefly explain this as follows. The booster is a whole system consisting of both the pump and the control equipment that controls the pump’s input and output. Stainless Pump has a system consisting of protection equipment in order to ensure its long-lasting operation, so that it does not focus on a single purpose, the system in general provides control and protection.

Regarding the installation of stainless booster , Working Principle of Inox Booster, Booster working mode, booster is the name given to the pumps that are automatically activated in cases where the mains water is insufficient. It pressurizes the water in the water tank with air and pumps it to the far point, in short, this is the working principle. The selection of the booster pump should be completely tailored to the needs; It should be able to give the pressure to the water to go to the desired place. INOX Hydrophore is not only a system consisting of a water tank and a pump, but also has auxiliary elements mounted. We can count these auxiliary elements as follows; Expansion Tank, Manometer, Check Valve, Ball Valve, Pressure Switch, Control Panel and Water Level Floater.

Turkey stainless steel booster set manufacturer / Turkey stainless booster set company / turkey stainless steel booster systems / quality stainless booster company / turkey quality stainless booster manufacturer /

MOTOR					POMPA
TİP	KW	V	Hz	d/d	W mm	L mm	H mm	KOLLEKTÖR GİRİŞ	KOLLEKTÖR ÇIKIŞ	MAX DEBİ m³/h	KAPASİTE mss	DAİRE SAYISI	KAT SAYISI
SHTP8A-220/8	1×1,6	380	50	2900	360	506	9+8	1½	1½	4 – 5	60 – 50	18 – 24	11 – 8
SHTP8B-220/8	2×1,6	380	50	2900	1000	750	867	2″	2″	8 – 10	60 – 50	36 – 48	11 – 8
SHTP8C-220/8	3×1,6	380	50	2900	1300	750	867	2″	2″	12 – 15	60 – 50	54 – 72	11 – 8
SHTP8A-300/10	1×2,2	380	50	2900	360	405	927	1½	1½	4 – 5	70 – 60	18 – 24	14 – 11
SHTP8B-300/10	2×2,2	380	50	2900	1000	750	927	2″	2″	8 – 10	70 – 60	36 – 48	14 – 11
SHTP8C-300/10	3×2,2	380	50	2900	1300	750	927	2″	2″	12 – 15	70 – 60	54 – 72	14 – 11
SHTP8A-400/12	1×3	380	50	2900	360	405	987	1½	1½	4 – 5	80 – 70	18 – 24	17 – 14
SHTP8B-400/12	2×3	380	50	2900	1000	750	987	2″	2″	8 – 10	80 – 70	36 – 48	17 – 14
SHTP8C-400/12	3×3	380	50	2900	1300	750	987	2″	2″	12 – 15	80 – 70	54 – 72	17 – 14
SHTP16A-550/8	1×4	380	50	2900	360	405	960	1½	1½	2,5 – 10	60 – 45	24 – 48	11 – 7
SHTP16B-550/8	2×4	380	50	2900	1000	800	960	3″	2½	5 – 20	60 – 45	48 – 96	11 – 7
SHTP16C-550/8	3×4	380	50	2900	1300	800	960	3″	2½	7,5 – 30	60 – 45	72 – 144	11 – 7
SHTP16A-550/10	1×4	380	50	2900	360	405	1020	1½	1½	5 – 10	100 – 75	24 – 48	23 – 15
SHTP16B-550/10	2×4	380	50	2900	1000	800	1020	3″	2½	10 – 20	100 – 75	48 – 96	23 – 15
SHTP16C-550/10	3×4	380	50	2900	1300	800	1020	3″	2½	15 – 30	100 – 75	72 – 144	23 – 15
SHTP16A-750/12	1×5,5	380	50	2900	360	405	1081	1½	1½	6 – 10	120 – 85	28 – 48	28 – 19
SHTP16B-750/12	2×5,5	380	50	2900	1000	800	1081	3″	2½	12 – 20	120 – 85	56 – 96	28 – 19
SHTP16C-750/12	3×5,5	380	50	2900	1300	800	1081	3″	2½	18 – 30	120 – 85	85 – 144	28 – 19
SHTP16A-750/14	1×5,5	380	50	2900	360	405	1042	1½	1½	7 – 10	130 – 95	32 – 48	32 – 22
SHTP16B-750/14	2×5,5	380	50	2900	1000	800	1042	3″	2½	14 – 20	130 – 95	64 – 96	32 – 22
SHTP16C-750/14	3×5,5	380	50	2900	1300	800	1042	3″	2½	21 – 30	130 – 95	96 – 144	32 – 22

MOTOR					POMPA
TİP	KW	V	Hz	d/d	W mm	L mm	H mm	KOLLEKTÖR GİRİŞ	KOLLEKTÖR ÇIKIŞ	MAX DEBİ m³/h	KAPASİTE mss	DAİRE SAYISI	KAT SAYISI
SHTPD8A-220/8	1×1,6	380	50	2900	360	506	9+8	1½	1½	4 – 5	60 – 50	18 – 24	11 – 8
SHTPD8B-220/8	2×1,6	380	50	2900	1000	750	867	2″	2″	8 – 10	60 – 50	36 – 48	11 – 8
SHTPD8C-220/8	3×1,6	380	50	2900	1300	750	867	2″	2″	12 – 15	60 – 50	54 – 72	11 – 8
SHTPD8A-300/10	1×2,2	380	50	2900	360	405	927	1½	1½	4 – 5	70 – 60	18 – 24	14 – 11
SHTPD8B-300/10	2×2,2	380	50	2900	1000	750	927	2″	2″	8 – 10	70 – 60	36 – 48	14 – 11
SHTPD8C-300/10	3×2,2	380	50	2900	1300	750	927	2″	2″	12 – 15	70 – 60	54 – 72	14 – 11
SHTPD8A-400/12	1×3	380	50	2900	360	405	987	1½	1½	4 – 5	80 – 70	18 – 24	17 – 14
SHTPD8B-400/12	2×3	380	50	2900	1000	750	987	2″	2″	8 – 10	80 – 70	36 – 48	17 – 14
SHTPD8C-400/12	3×3	380	50	2900	1300	750	987	2″	2″	12 – 15	80 – 70	54 – 72	17 – 14
SHTPD16A-550/8	1×4	380	50	2900	360	405	960	1½	1½	2,5 – 10	60 – 45	24 – 48	11 – 7
SHTPD16B-550/8	2×4	380	50	2900	1000	800	960	3″	2½	5 – 20	60 – 45	48 – 96	11 – 7
SHTPD16C-550/8	3×4	380	50	2900	1300	800	960	3″	2½	7,5 – 30	60 – 45	72 – 144	11 – 7
SHTPD16A-550/10	1×4	380	50	2900	360	405	1020	1½	1½	5 – 10	100 – 75	24 – 48	23 – 15
SHTPD16B-550/10	2×4	380	50	2900	1000	800	1020	3″	2½	10 – 20	100 – 75	48 – 96	23 – 15
SHTPD16C-550/10	3×4	380	50	2900	1300	800	1020	3″	2½	15 – 30	100 – 75	72 – 144	23 – 15
SHTPD16A-750/12	1×5,5	380	50	2900	360	405	1081	1½	1½	6 – 10	120 – 85	28 – 48	28 – 19
SHTPD16B-750/12	2×5,5	380	50	2900	1000	800	1081	3″	2½	12 – 20	120 – 85	56 – 96	28 – 19
SHTPD16C-750/12	3×5,5	380	50	2900	1300	800	1081	3″	2½	18 – 30	120 – 85	85 – 144	28 – 19
SHTPD16A-750/14	1×5,5	380	50	2900	360	405	1042	1½	1½	7 – 10	130 – 95	32 – 48	32 – 22
SHTPD16B-750/14	2×5,5	380	50	2900	1000	800	1042	3″	2½	14 – 20	130 – 95	64 – 96	32 – 22
SHTPD16C-750/14	3×5,5	380	50	2900	1300	800	1042	3″	2½	21 – 30	130 – 95	96 – 144	32 – 22

MOTOR						POMPA
TİP	KW	V Mono	V Tri	Hz	d/d	W mm	L mm	H mm	KOLLEKTÖR GİRİŞ	KOLLEKTÖR ÇIKIŞ	MAX DEBİ m³/h	KAPASİTE mss	DAİRE SAYISI	KAT SAYISI
SMINOX12A220/2	1×1,6	220	380	50	2900	480	520	495	1¼	1¼	9 – 3	27 – 45	40 – 14	2 – 7
SMINOX12B220/2	2×1,6	220	380	50	2900	850	520	700	1¼	2″	18 – 6	27 – 45	80 – 28	2 – 7
SMINOX12C220/2	3×1,6	220	380	50	2900	1155	520	700	1¼	2″	27 – 9	27 – 45	120 – 42	2 – 7
SMINOX12A300/3T	1×2,2	–	380	50	2900	480	520	495	1¼	1¼	9 – 3	35 – 60	40 – 14	4 – 11
SMINOX12B300/3T	2×2,2	–	380	50	2900	850	520	700	1¼	2″	18 – 6	35 – 60	80 – 28	4 – 11
SMINOX12C300/3T	3×2,2	–	380	50	2900	1155	520	700	1¼	2″	27 – 9	35 – 60	120 – 42	4 – 11

SHTP8A

SHTP8B

SHTP8C

SHTPD8A

SHTPD8B

SHTPD8C

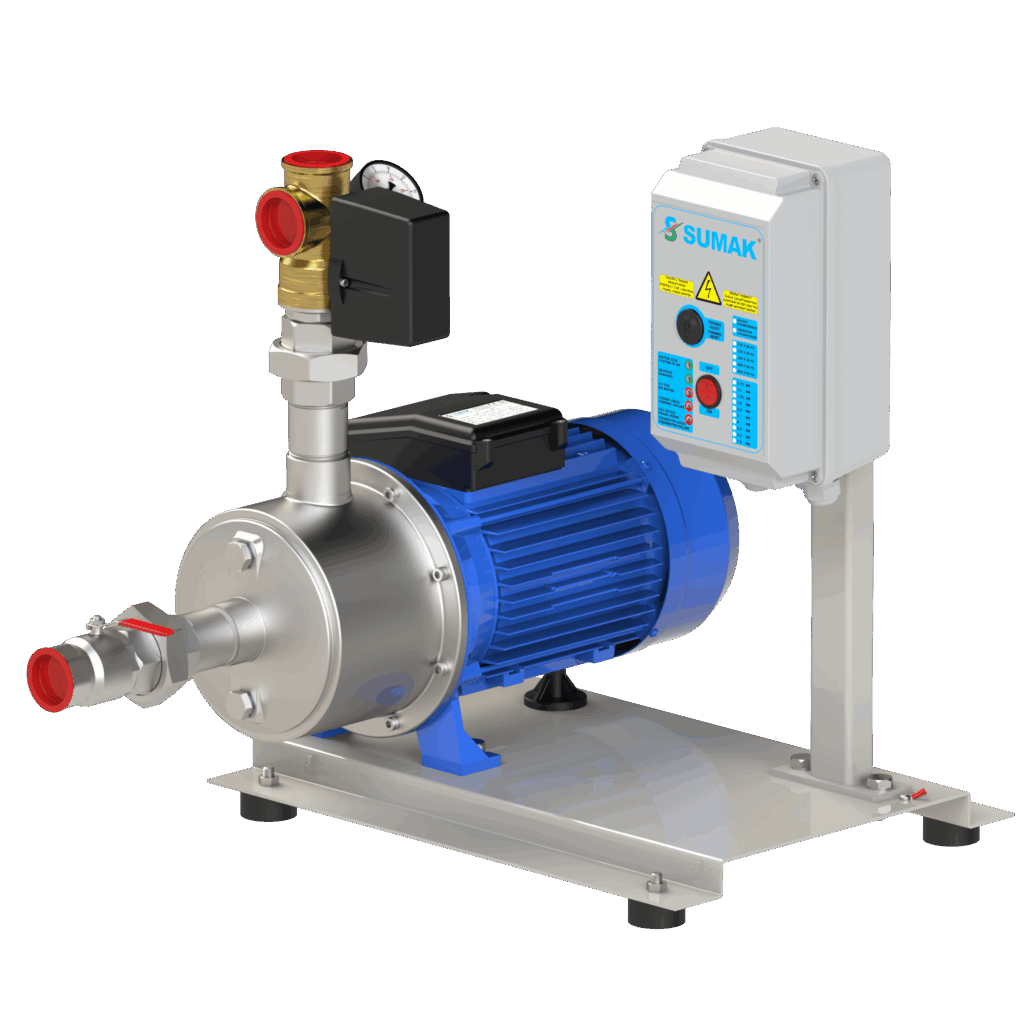

SMINOX12A220/2
