Stainless Centrifugal Pumps
Sumak Pump has a wide range of the stainless water pumps manufacturing in Turkey. Sumak Stainless Body Centrifugal Pumps have 1HP, 1.5HP, 2.2HP, 3HP, 4HP mono phase and tree phase motor types.
This type of pumps are used in treatment systems, food industries, hospitals, hygienic environments, transferring various chemicals, garden watering, fish farms and pool circulating systems up to max 18m height due to their completely stainless surfaces that contact with water and due to silence working. Turkey Manufacturer Of Centrifugal Pump.

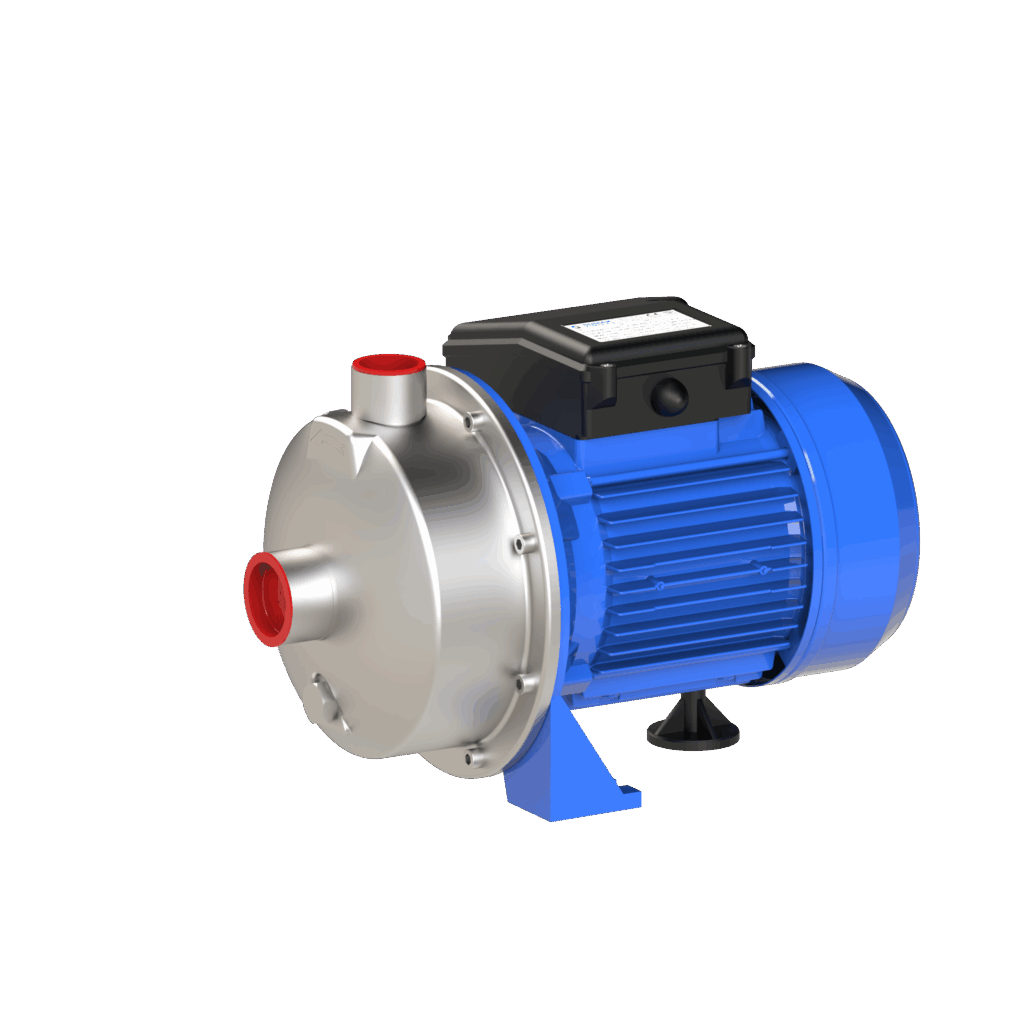

SMINOX/A-100/1
Definition
These pumps with stainless steel body and stainless steel vortex impeller are easy to portable pumps. All surfaces in contact with water are made of stainless steel.
It is designed for use in clean water, less corrosive industrial and chemical liquids.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Usage Areas
These pumps are used in industrial facilities, food industry, sea water applications, cooling systems, energy facilities, chemical liquids, water supply from wells and tanks, drinking water and filling facilities, purification systems, hospitals and hygienic environments..
Pump Material Characteristics
| Pump Body | AISI 304 INOX |
| Impeller | AISI 304 INOX (AISI 316 INOX) |
| Shaft | AISI 304 INOX (AISI 316 INOX) |
| Flow Rate(max) | 9.5 m³/hour |
| Total Head (max) | 12.5 m |
| Liquid Temperature | 0-45°C |
| Proctection Class | IP54 |
| Insulation | CI.F |
| Mechanical Seal | CERAMIC/CARBON |
| Pump Durability Pressure (Pmax) | 4 bar |
Technical Specifications
| MOTOR | PUMP | ||||||||||||||||
| TYPE | KW | HP | V | Hz | A | rpm | capacitor uf Vc | Hm | input | output | KG | 1 | 3 | 5 | 7 | 9 | |
| SMINOX/A-100/1 | 0.75 | 1 | 220 | 50 | 5 | 2900 | 20 | 450 | 12.5 | 1¼ | 1″ | 10.5 | 11.5 | 9.5 | 7.5 | 5 | 3 |
| SMINOX/A-100/1T | 0.75 | 1 | 380 | 50 | 2.4 | 2900 | – | – | 12.5 | 1¼ | 1″ | 10.5 | 11.5 | 9.5 | 7.5 | 5 | 3 |
| DIMENSIONS | ||||||||||
| Type | A | B | L | W | E | F | H1 | H2 | DNA | DNM |
| SMINOX/A-100/1 | 104 | 72 | 330 | 179 | 138 | 203 | 104 | 216 | G1¼ | G1″ |

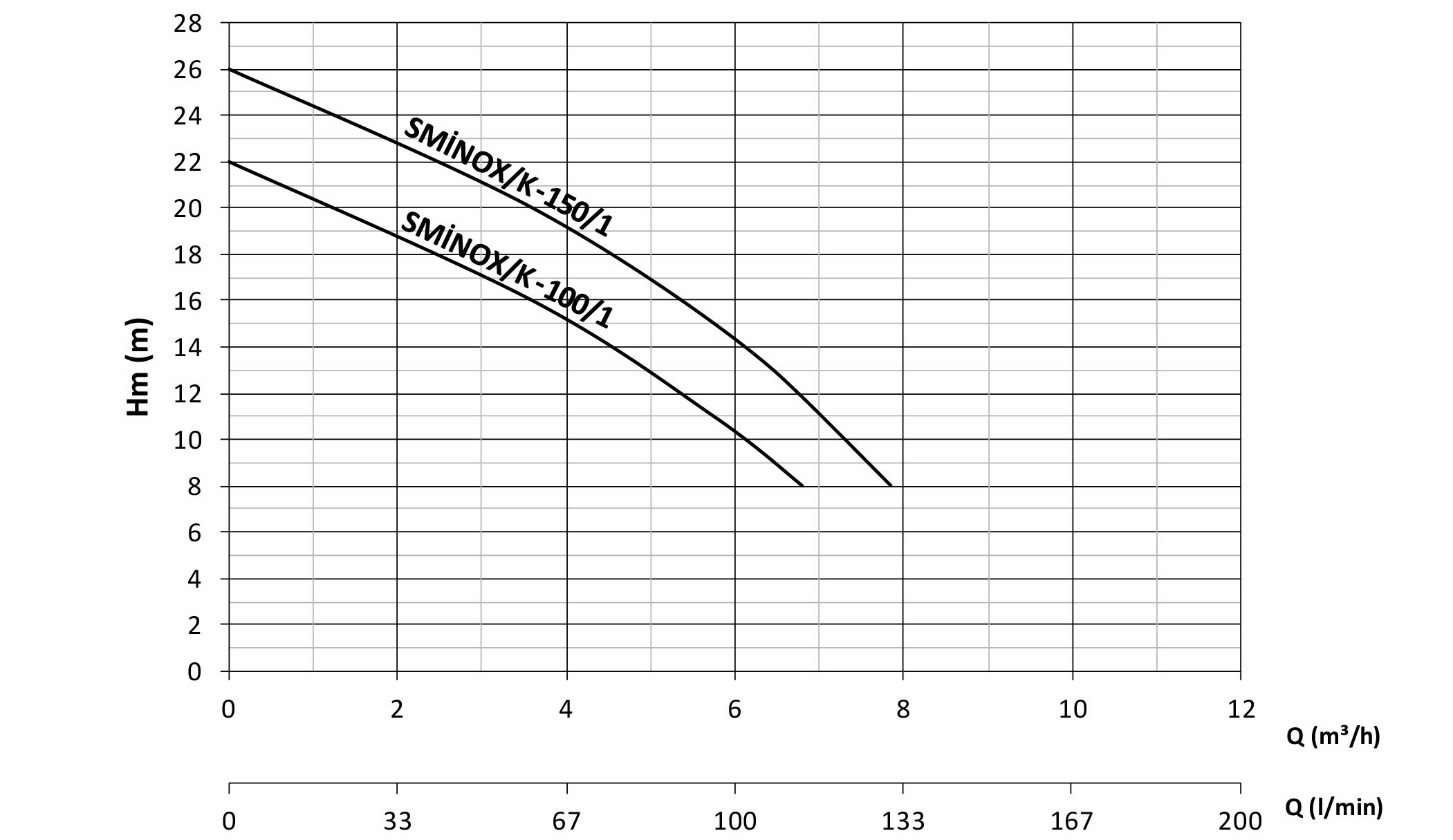

SMINOX/K-150/1
Definition
These pumps with stainless steel body and stainless steel vortex impeller are easy to portable pumps. All surfaces in contact with water are made of stainless steel.
It is designed for use in clean water, less corrosive industrial and chemical liquids.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Usage Areas
These pumps are used in industrial facilities, food industry, sea water applications, cooling systems, energy facilities, chemical liquids, water supply from wells and tanks, drinking water and filling facilities, purification systems, hospitals and hygienic environments.
Pump Material Characteristics
| Pump Body | AISI 304 INOX |
| Impeller | AISI 304 INOX (AISI 316 INOX) |
| Shaft | AISI 304 INOX (AISI 316 INOX) |
| Flow Rate(max) | 8 m³/hour |
| Total Head (max) | 26 m |
| Liquid Temperature | 0-45°C |
| Proctection Class | IP54 |
| Insulation | CI.F |
| Mechanical Seal | CERAMIC/CARBON |
| Pump Durability Pressure (Pmax) | 4 bar |
Technical Specifications
| MOTOR | PUMP | ||||||||||||||||||
| Type | KW | HP | V | Hz | A | rpm | capacitor uf Vc | Hm | suc. m | input | output | KG | m³/h | 2 | 3 | 4 | 6 | 8 | |
| SMINOX/K-100/1 | 0.75 | 1 | 220 | 50 | 5.2 | 2900 | 20 | 450 | 22 | 6 | 1¼ | 1″ | 11 | mss | 19 | 17 | 15 | 10 | – |
| SMINOX/K-100/1T | 0.75 | 1 | 380 | 50 | 2.4 | 2900 | – | – | 22 | 6 | 1¼ | 1″ | 11 | 19 | 17 | 15 | 10 | – | |
| SMINOX/K-150/1 | 1.1 | 1.5 | 220 | 50 | 6.1 | 2900 | 25 | 450 | 26 | 6 | 1¼ | 1″ | 12 | 23 | 21 | 19 | 14 | 6 | |
| SMINOX/K-150/1T | 1.1 | 1.5 | 380 | 50 | 2.6 | 2900 | – | – | 26 | 6 | 1¼ | 1″ | 11 | 23 | 21 | 19 | 14 | 6 | |
| DIMENSIONS | ||||||||||
| TYPE | A | B | L | W | E | F | H1 | H2 | DNA | DNM |
| SMINOX/K-100/1 | 104 | 72 | 330 | 179 | 138 | 203 | 104 | 216 | G1¼ | G1″ |
| SMINOX/K-150/1 | 104 | 72 | 330 | 179 | 138 | 203 | 104 | 216 | G1¼ | G1″ |

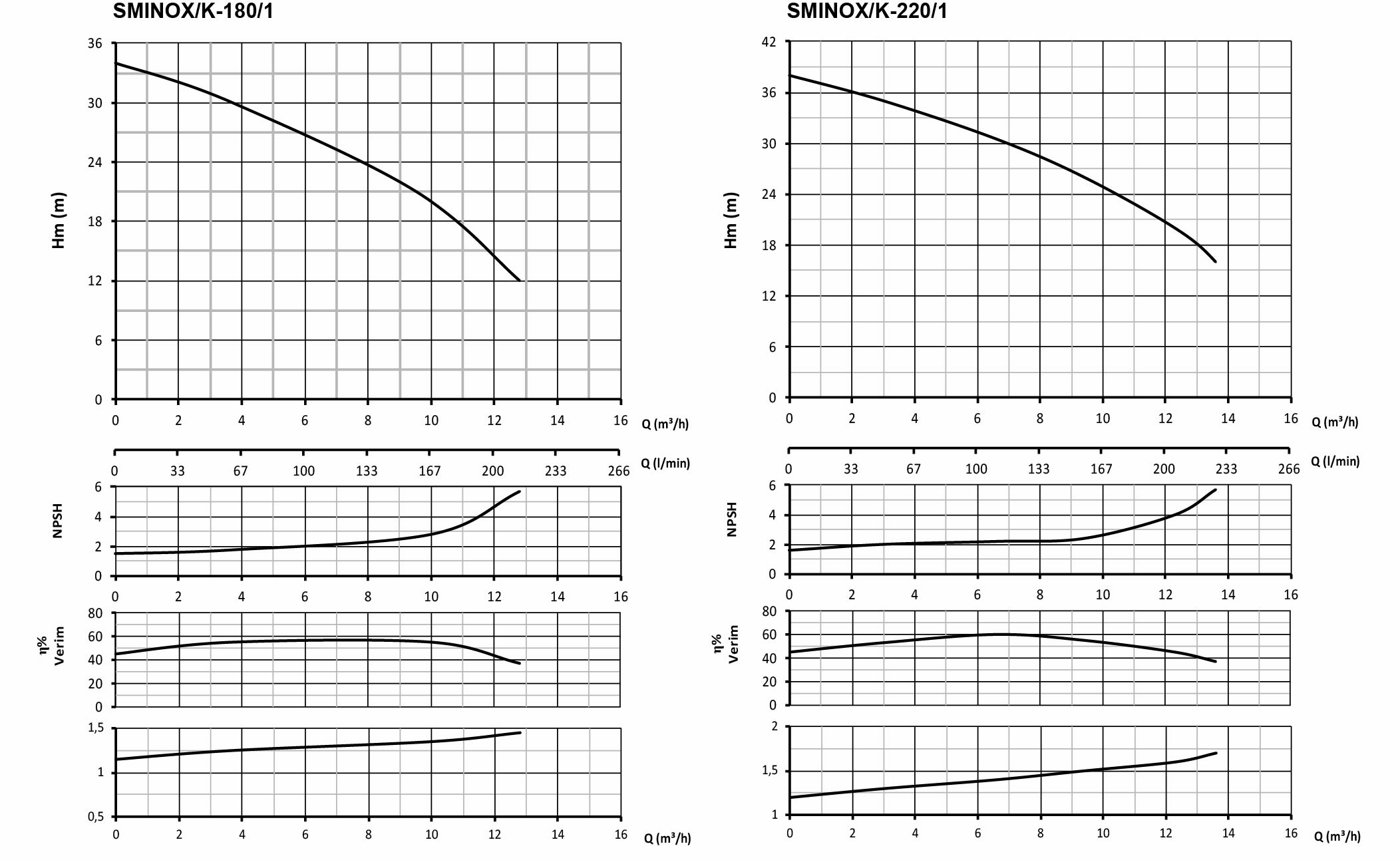

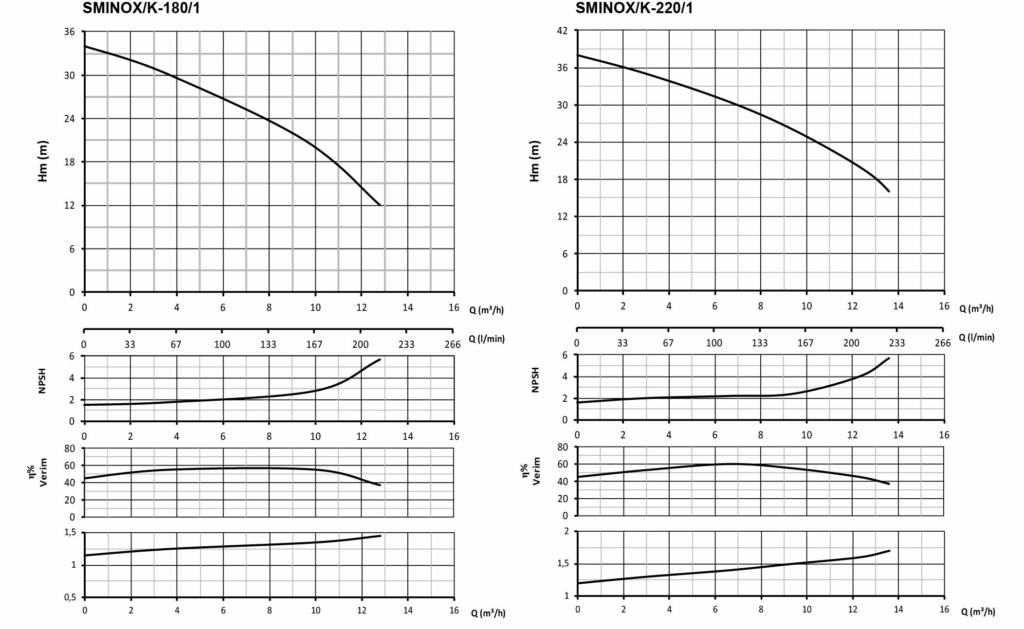

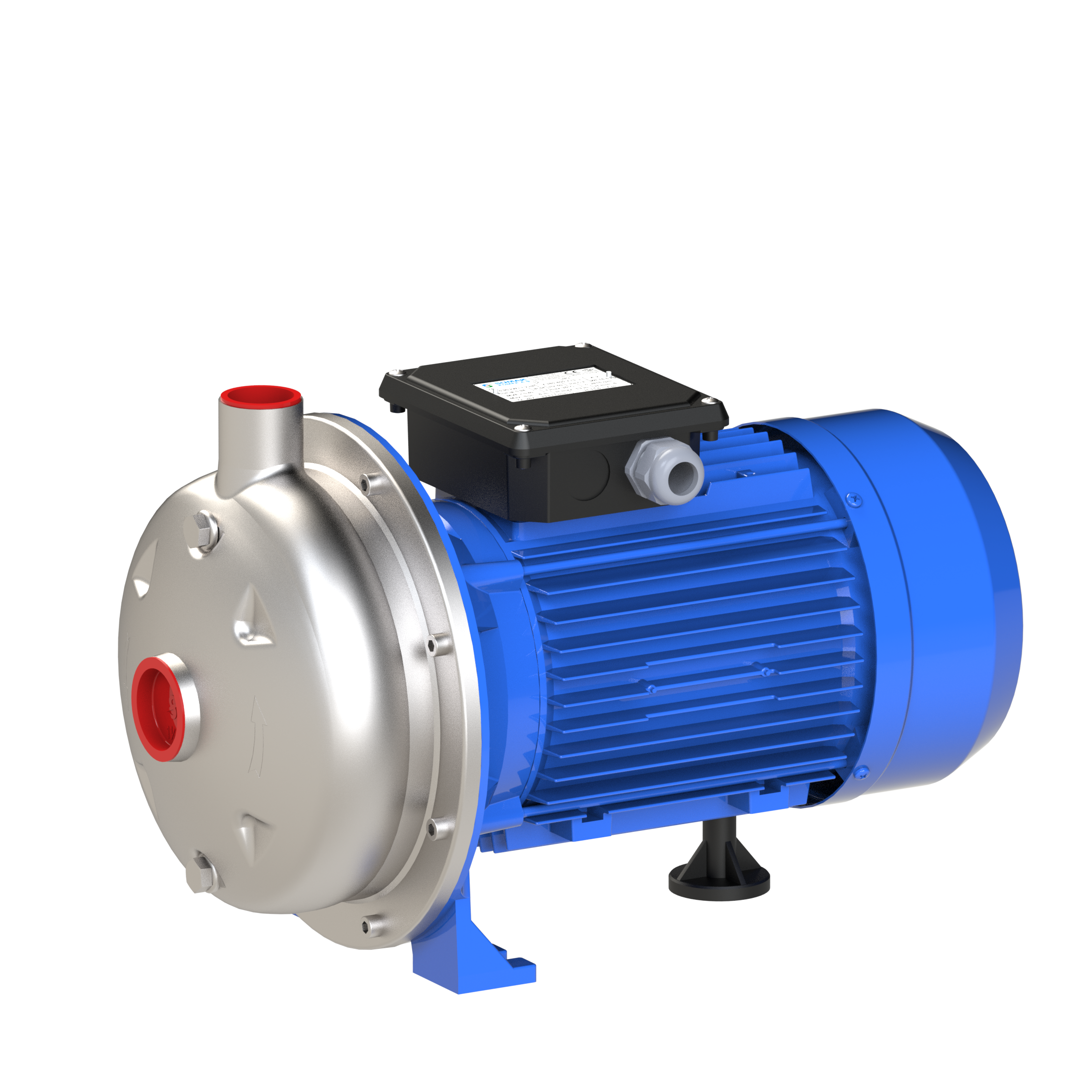

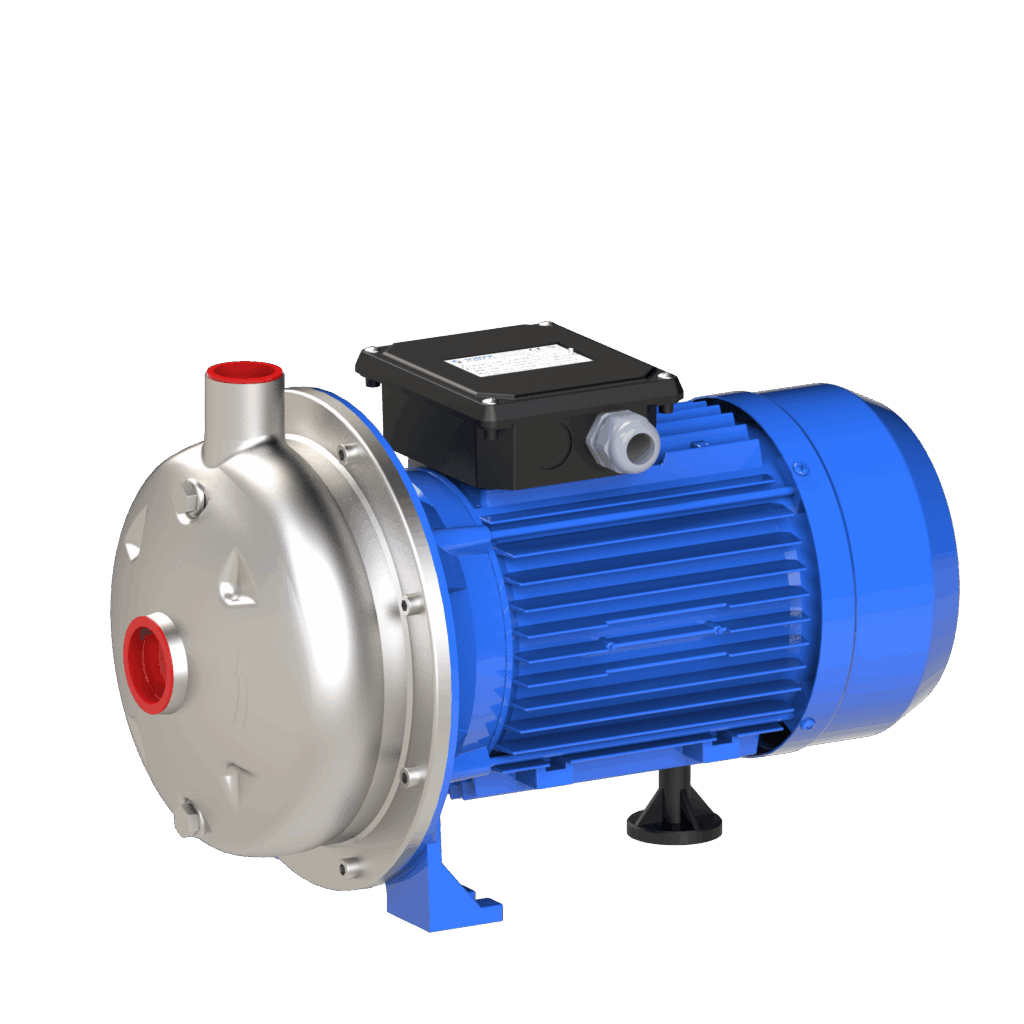

SMINOX/K-220/1
Definiton
These pumps with stainless steel body and stainless steel vortex impeller are easy to portable pumps. All surfaces in contact with water are made of stainless steel.
It is designed for use in clean water, less corrosive industrial and chemical liquids.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Usage Areas
These pumps are used in industrial facilities, food industry, sea water applications, cooling systems, energy facilities, chemical liquids, water supply from wells and tanks, drinking water and filling facilities, purification systems, hospitals and hygienic environments.
Pump Material Characteristics
| Pump Body | AISI 304 INOX |
| Impeller | AISI 304 INOX |
| Shaft | AISI 304 INOX |
| Flow Rate(max) | 13.5 m³/hour |
| Total Head (max) | 38 m |
| Liquid Temperature | 0-45°C |
| Proctection Class | IP54 |
| Insulation | CI.F |
| Mechanical Seal | CERAMIC/CARBON |
| Pump Durability Pressure (Pmax) | 4 bar |
Technical Specifications
| MOTOR | PUMP | ||||||||||||||||||
| Type | KW | HP | V | Hz | A | rpm | capacitor uf Vc | Hm | suc. m | input | output | KG | m³/h | 2 | 4 | 7 | 9 | 12 | |
| SMINOX/K-180/1 | 1.35 | 1.8 | 220 | 50 | 9.6 | 2900 | 40 | 450 | 34 | 6 | 1¼ | 1″ | 19.3 | mss | 32 | 29 | 27 | 21.5 | 15 |
| SMINOX/K-180/1T | 1.35 | 1.8 | 380 | 50 | 3.6 | 2900 | – | – | 34 | 6 | 1¼ | 1″ | 19.3 | 32 | 29 | 27 | 21.5 | 15 | |
| SMINOX/K-220/1 | 1.6 | 2.2 | 220 | 50 | 11.3 | 2900 | 45 | 450 | 38 | 6 | 1¼ | 1″ | 21 | 36 | 34 | 31 | 27 | 21 | |
| SMINOX/K-220/1T | 1.6 | 2.2 | 380 | 50 | 4.5 | 2900 | – | – | 38 | 6 | 1¼ | 1″ | 19.5 | 36 | 34 | 31 | 27 | 21 | |

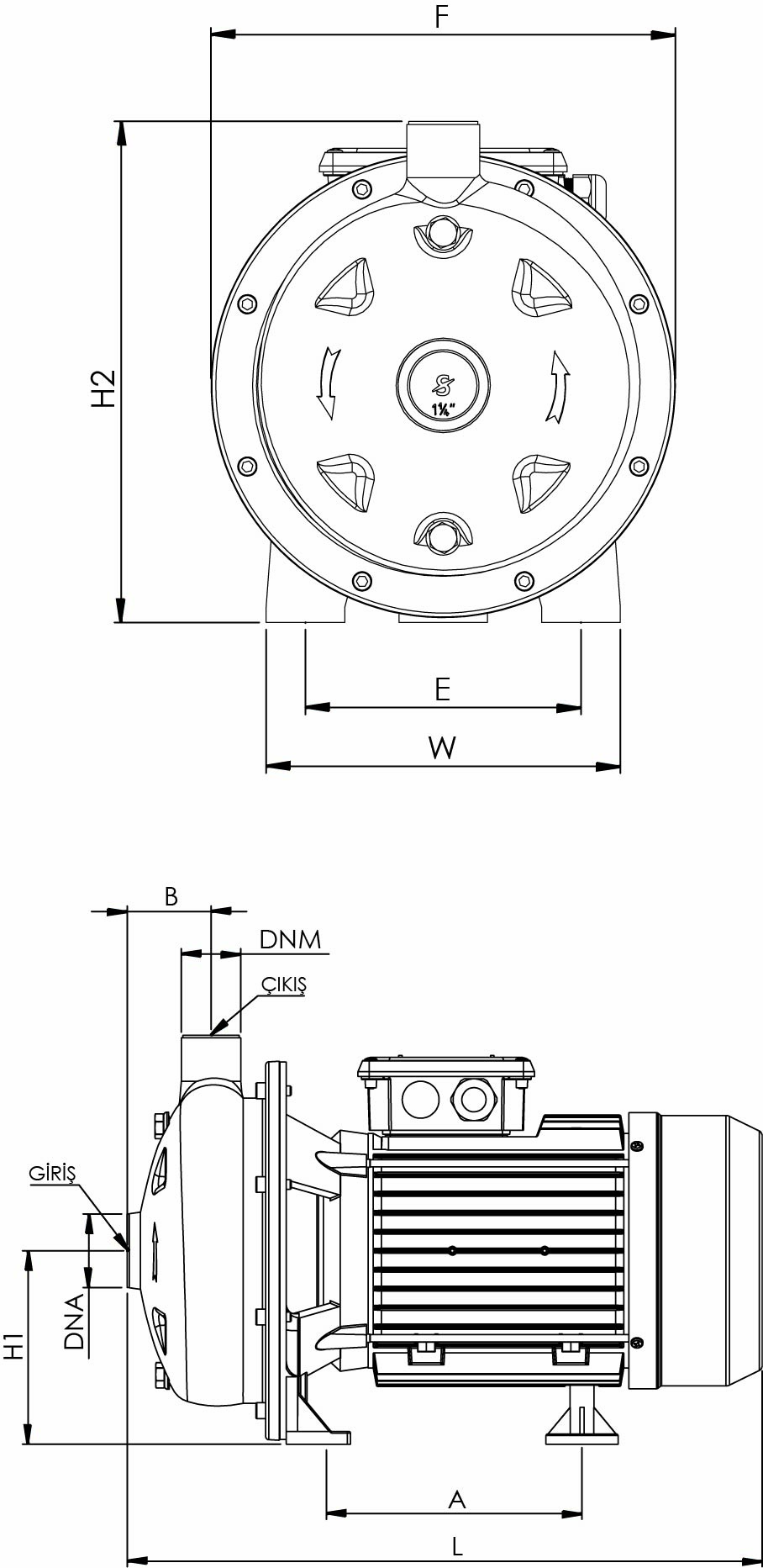

| DIMENSIONS | ||||||||||
| Type | A | B | L | W | E | F | H1 | H2 | DNA | DNM |
| SMINOX/K-180/1 | 165 | 52 | 395 | 180 | 140 | 236 | 120 | 254 | G1¼ | G1″ |
| SMINOX/K-220/1 | 165 | 52 | 395 | 180 | 140 | 236 | 120 | 254 | G1¼ | G1″ |
SMINOX/A-150
Definition
These pumps with stainless steel body and stainless steel vortex impeller are easy to portable pumps. All surfaces in contact with water are made of stainless steel.
It is designed for use in clean water, less corrosive industrial and chemical liquids.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Usage Areas
These pumps are used in industrial facilities, food industry, sea water applications, cooling systems, energy facilities, chemical liquids, water supply from wells and tanks, drinking water and filling facilities, purification systems, hospitals and hygienic environments.
Pump Material Characteristics
| Pump Body | AISI 304 INOX |
| Impeller | AISI 304 INOX (AISI 316 INOX) |
| Shaft | AISI 304 INOX (AISI 316 INOX) |
| Flow Rate(max) | 24 m³/hour |
| Total Head (max) | 15.5 m |
| Liquid Temperature | 0-45°C |
| Proctection Class | IP54 |
| Insulation | CI.F |
| Mechanical Seal | CERAMIC/CARBON |
| Pump Durability Pressure (Pmax) | 4 bar |
Technical Specifications
| MOTOR | PUMP | |||||||||||||||||
| Type | KW | HP | V | Hz | A | rpm | capacitor uf Vc | Hm | input | output | KG | m³/h | 3 | 6 | 9 | 12 | 17 | |
| SMINOX/A-100 | 0.75 | 1 | 220 | 50 | 5.2 | 2900 | 20 | 450 | 13 | 1½ | 1¼ | 11 | mss | 12.5 | 11 | 9.5 | 7.5 | 4 |
| SMINOX/A-100T | 0.75 | 1 | 380 | 50 | 2.4 | 2900 | – | – | 13 | 1½ | 1¼ | 11 | 12.5 | 11 | 9.5 | 7.5 | 4 | |
| SMINOX/A-150 | 1.1 | 1.5 | 220 | 50 | 5.5 | 2900 | 25 | 450 | 15 | 1½ | 1¼ | 11.5 | 14 | 12.5 | 11 | 9 | 6 | |
| SMINOX/A-150T | 1.1 | 1.5 | 380 | 50 | 2.5 | 2900 | – | – | 15 | 1½ | 1¼ | 10.5 | 14 | 12.5 | 11 | 9 | 6 | |
| SMINOX/A-150/2 | 1.1 | 1.5 | 220 | 50 | 6.2 | 2900 | 25 | 450 | 11.5 | 2″ | 2″ | 11.5 | 11 | 10 | 9 | 7.5 | 6 | |
| SMINOX/A-150/2T | 1.1 | 1.5 | 380 | 50 | 2.6 | 2900 | – | – | 11.5 | 2″ | 2″ | 10.5 | 11 | 10 | 9 | 7.5 | 6 | |
| DIMENSIONS | ||||||||||
| TYPE | A | B | L | W | E | F | H1 | H2 | DNA | DNM |
| SMINOX/A-100 | 104 | 72 | 329 | 179 | 138 | 203 | 104 | 216 | G1½ | G1¼ |
| SMINOX/A-150 | 104 | 72 | 329 | 179 | 138 | 203 | 104 | 216 | G1½ | G1¼ |
| SMINOX/A-150/2 | 104 | 78 | 347 | 179 | 138 | 203 | 104 | 219 | G2″ | G2″ |
SMINOX/K-150
Definition
These pumps with stainless steel body and stainless steel vortex impeller are easy to portable pumps. All surfaces in contact with water are made of stainless steel.
It is designed for use in clean water, less corrosive industrial and chemical liquids.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Usage Areas
These pumps are used in industrial facilities, food industry, sea water applications, cooling systems, energy facilities, chemical liquids, water supply from wells and tanks, drinking water and filling facilities, purification systems, hospitals and hygienic environments.
Pump Material Characteristics
| Pump Body | AISI 304 INOX |
| Impeller | AISI 304 INOX (AISI 316 INOX) |
| Shaft | AISI 304 INOX (AISI 316 INOX) |
| Flow Rate(max) | 27 m³/hour |
| Total Head (max) | 18.5 m |
| Liquid Temperature | 0-45°C |
| Proctection Class | IP54 |
| Insulation | CI.F |
| Mechanical Seal | CERAMIC/CARBON |
| Pump Durability Pressure (Pmax) | 4 bar |
Technical Specifications
| MOTOR | PUMP | ||||||||||||||||||
| Type | KW | HP | V | Hz | A | rpm | capacitor uf Vc | Hm | suc. m | input | output | KG | m³/h | 3 | 6 | 9 | 12 | 17 | |
| SMINOX/K-100 | 0.75 | 1 | 220 | 50 | 5.2 | 2900 | 20 | 450 | 15 | 6 | 1½ | 1¼ | 11 | mss | 13 | 11 | 10 | 8 | 5 |
| SMINOX/K-100T | 0.75 | 1 | 380 | 50 | 2.4 | 2900 | – | – | 15 | 6 | 1½ | 1¼ | 11 | 13 | 11 | 10 | 8 | 5 | |
| SMINOX/K-150 | 1.1 | 1.5 | 220 | 50 | 5.6 | 2900 | 25 | 450 | 19 | 6 | 1½ | 1¼ | 11.5 | 17 | 15 | 13.5 | 12 | 9 | |
| SMINOX/K-150T | 1.1 | 1.5 | 380 | 50 | 2.6 | 2900 | – | – | 19 | 6 | 1½ | 1¼ | 11.5 | 17 | 15 | 13.5 | 12 | 9 | |
| SMINOX/K-150/2 | 1.1 | 1.5 | 220 | 50 | 6.2 | 2900 | 25 | 450 | 17 | 6 | 2″ | 2″ | 11 | 16 | 15 | 13.5 | 12 | 10 | |
| SMINOX/K-150/2T | 1.1 | 1.5 | 380 | 50 | 2.6 | 2900 | – | – | 17 | 6 | 2″ | 2″ | 11 | 16 | 15 | 13.5 | 12 | 10 | |
| DIMENSIONS | ||||||||||
| Type | A | B | L | W | E | F | H1 | H2 | DNA | DNM |
| SMINOX/K-100 | 104 | 72 | 329 | 179 | 138 | 203 | 104 | 216 | G1½ | G1¼ |
| SMINOX/K-150 | 104 | 72 | 329 | 179 | 138 | 203 | 104 | 216 | G1½ | G1¼ |
| SMINOX/K-150/2 | 104 | 78 | 347 | 179 | 138 | 203 | 104 | 219 | G2″ | G2″ |
SMINOX/A-400/2T
Definition
These pumps with stainless steel body and stainless steel vortex impeller are easy to portable pumps. All surfaces in contact with water are made of stainless steel.
It is designed for use in clean water, less corrosive industrial and chemical liquids.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Usage Areas
These pumps are used in industrial facilities, food industry, sea water applications, cooling systems, energy facilities, chemical liquids, water supply from wells and tanks, drinking water and filling facilities, purification systems, hospitals and hygienic environments.
Pump Material Characteristics
| Pump Body | AISI 304 INOX |
| Impeller | AISI 304 INOX (AISI 316 INOX) |
| Shaft | AISI 304 INOX (AISI 316 INOX) |
| Flow Rate(max) | 58 m³/hour |
| Total Head (max) | 19 m |
| Liquid Temperature | 0-45°C |
| Proctection Class | IP54 |
| Insulation | CI.F |
| Mechanical Seal | CERAMIC/CARBON |
| Pump Durability Pressure (Pmax) | 4 bar |
Technical Specifications
| MOTOR | PUMP | |||||||||||||||||
| Type | KW | HP | V | Hz | A | rpm | capacitor uf Vc | Hm | input | output | KG | m³/h | 5 | 15 | 25 | 35 | 50 | |
| SMINOX/A-220/2 | 1.6 | 2.2 | 220 | 50 | 11.8 | 2900 | 45 | 450 | 16 | 2½ | 2″ | 20 | mss | 15.5 | 13.5 | 11 | 7.5 | – |
| SMINOX/A-220/2T | 1.6 | 2.2 | 380 | 50 | 4.3 | 2900 | – | – | 16 | 2½ | 2″ | 20 | 15.5 | 13.5 | 11 | 7.5 | – | |
| SMINOX/A-300/2 | 2.2 | 3 | 220 | 50 | 13.6 | 2900 | 50 | 450 | 17 | 2½ | 2″ | 21 | 16.5 | 15 | 12.5 | 9 | 4 | |
| SMINOX/A-300/2T | 2.2 | 3 | 380 | 50 | 5 | 2900 | – | – | 17 | 2½ | 2″ | 21 | 16.5 | 15 | 12.5 | 9 | 4 | |
| SMINOX/A-400/2T | 3 | 4 | 380 | 50 | 6 | 2900 | – | – | 19 | 2½ | 2″ | 23.5 | 18 | 16 | 14 | 11 | 5.5 | |
| DIMENSIONS | ||||||||||
| TYPE | A | B | L | W | E | F | H1 | H2 | DNA | DNM |
| SMINOX/A-220/2 | 166 | 67 | 421 | 180 | 140 | 202 | 114 | 231 | G1½ | G2″ |
| SMINOX/A-300/2 | 166 | 67 | 421 | 180 | 140 | 202 | 114 | 231 | G1½ | G2″ |
| SMINOX/A-400/2T | 114 | 67 | 438 | 180 | 140 | 202 | 189 | 237 | G1½ | G2″ |
SMINOX/K-400/2T
Definition
These pumps with stainless steel body and stainless steel vortex impeller are easy to portable pumps. All surfaces in contact with water are made of stainless steel.
It is designed for use in clean water, less corrosive industrial and chemical liquids.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Usage Areas
These pumps are used in industrial facilities, food industry, sea water applications, cooling systems, energy facilities, chemical liquids, water supply from wells and tanks, drinking water and filling facilities, purification systems, hospitals and hygienic environments.
Pump Material Characteristics
| Pump Body | AISI 304 INOX |
| Impeller | AISI 304 INOX (AISI 316 INOX) |
| Shaft | AISI 304 INOX (AISI 316 INOX) |
| Flow Rate(max) | 38 m³/hour |
| Total Head (max) | 25 m |
| Liquid Temperature | 0-45°C |
| Proctection Class | IP54 |
| Insulation | CI.F |
| Mechanical Seal | CERAMIC/CARBON |
| Pump Durability Pressure (Pmax) | 4 bar |
Technical Specifications
| MOTOR | PUMP | ||||||||||||||||||
| Type | KW | HP | V | Hz | A | rpm | capacitor uf Vc | Hm | suc. m | input | output | KG | m³/h | 5 | 15 | 25 | 35 | 50 | |
| SMINOX/K-220/2 | 1.6 | 2.2 | 220 | 50 | 11 | 2900 | 45 | 450 | 19 | 6 | 2½ | 2″ | 18 | mss | 18 | 15.5 | 11 | – | – |
| SMINOX/K-220/2T | 1.6 | 2.2 | 380 | 50 | 3.5 | 2900 | – | – | 19 | 6 | 2½ | 2″ | 18 | 18 | 15.5 | 11 | – | – | |
| SMINOX/K-300/2 | 2.2 | 3 | 220 | 50 | 13 | 2900 | 50 | 450 | 22 | 6 | 2½ | 2″ | 21.5 | 21 | 19 | 13.5 | 6.5 | – | |
| SMINOX/K-300/2T | 2.2 | 3 | 380 | 50 | 4 | 2900 | – | – | 22 | 6 | 2½ | 2″ | 20 | 21 | 19 | 13.5 | 6.5 | – | |
| SMINOX/K-400/2T | 3 | 4 | 380 | 50 | 4.8 | 2900 | – | – | 25 | 6 | 2½ | 2″ | 24 | 24 | 21.5 | 16 | 9 | – | |
| DIMENSIONS | ||||||||||
| TYPE | A | B | L | W | E | F | H1 | H2 | DNA | DNM |
| SMINOX/K-220/2 | 166 | 67 | 421 | 180 | 140 | 202 | 114 | 231 | G2½ | G2″ |
| SMINOX/K-300/2 | 166 | 67 | 421 | 180 | 140 | 202 | 114 | 231 | G2½ | G2″ |
| SMINOX/K-400/2T | 114 | 67 | 438 | 180 | 140 | 202 | 189 | 219 | G2½ | G2″ |
Stainless Steel Centrifugal Pumps
SMINOX Series Stainless steel Centrifugal Water Pumps are machines that increase the energy or pressure of liquids. In this regard, pumps are used to send a liquid from low to high or from low pressure to high pressure.
The chrome water pump is used to the increase flow rate of the liquid flowing in a pipe. Centrifugal water pump produced by turkish stainless steel centrifugal pump manufacturers inlets and outlets are manufactured to work with single-phase and three-phase electricity at 2900 cycles between 1 – 4 HP in types ranging from 1” to 2.5 inches. Inox Water pump selection is very important in terms of choosing the one that suits the need.
Stainless Centrifugal Pump installation is very practical and easy.
SMINOX Series Stainless steel Centrifugal Water Pumps are manufactured by turkish stainless steel pump producers with 1 – 4 HP power and are suitable for use in many different areas with TSE certificate. Pumps are designed and manufactured in accordance with TS EN ISO 9908 standard. In the electric motor windings, F insulation class cables are used in accordance with TS 60085:2011.
Stainless steel Centrifugal Pumps produced by turkish stainless steel centrifugal pump manufacturers were started to be manufactured in order to be able to use them in hygienic environments and to move our product range to stainless production. This type of stainless water pumps are manufactured economically 100% domestically for the needs up to a maximum height of 19 m, with the production of completely stainless steel surfaces in contact with the water. It has also been produced for use in treatment plants, systems, hygienic environments such as food industry pumps, hospitals, transferring various chemicals, food transfer pump, milk transfer pump, milk pump, garden irrigation pump, fish production facility pump. If we talk to the stainless pump working principle, water pumps, these pumps consist of a vane impeller in a body, and the liquid enters the pump through a suction pipe.
The path of the liquid in the inox centrifugal water dynamo is as follows. Due to the vacuum created on the suction side of the impeller, the liquid enters between the blades of the impeller. The fluid passing between the impeller blades gains a great tangential velocity with the rotational movements of the impeller. Between the impeller blades and the channels bounded by the front and rear profiles of the impeller, the liquid is pushed towards the exit side of the impeller by the centrifugal force that occurs during the rotational movement.
