Stainless Clean Water Submersible Pumps
This type clear water pumps suitable for use in drilling wells can be manufactured with a stainless body and a cast body.
The control panel is factory assembled and ready to use and is suitable for amateur installation.
They are water pumps that can be used for many years without any problems when selected according to the area of use. Turkey Manufacturer Of Submersible Pump

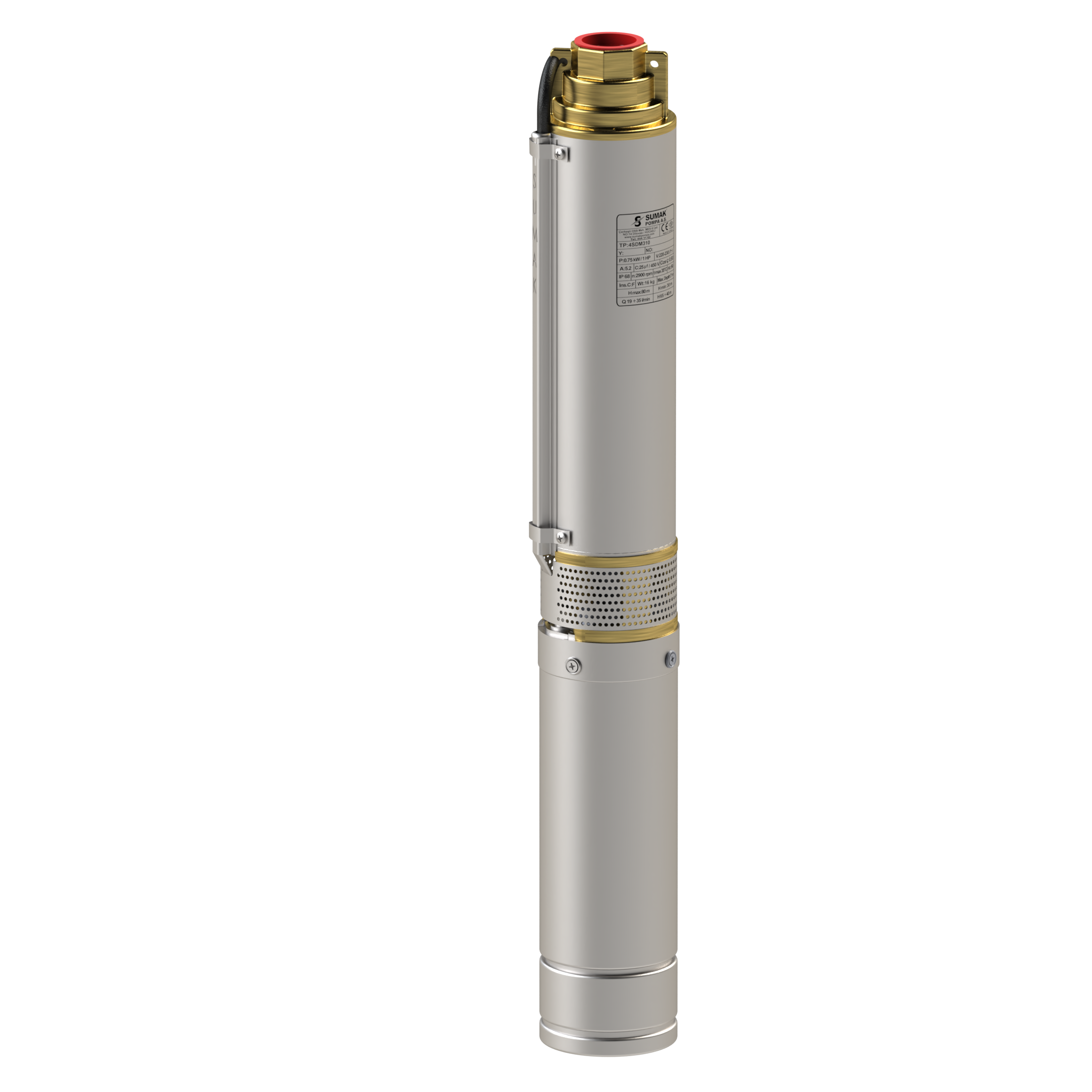

4SDM310
Definition
These pumps with stainless steel body are easily portable and high altitude pumps.

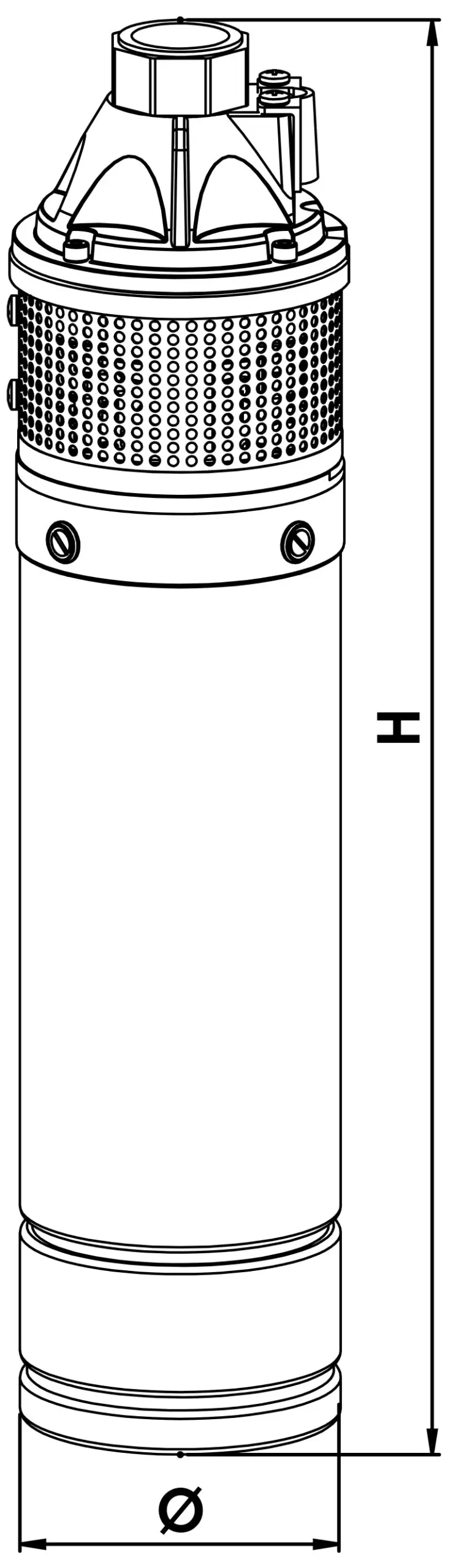

4SDM100 model has bronze impeller.
Having a suction filter provides an advantage against clogging risks.
It has a long term and provides quiet operation due to oil cooled engine design.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Usage Areas
These pumps are used for the supply of high pressure clean water in residential areas and industrial facilities, in places such as 4” boreholes and wells, and for booster purposes in villas and summer houses.
Pump Material Characteristics
| Pump Body | AISI 304 INOX |
| Impeller | POLİKARBON(4SDM310) |
| Shaft | AISI 304 INOX |
| Flow Rate(max) | 3 m³/hour |
| Total Head | 80 m |
| Liquid Temperature | 0-30°C |
| Protection Class | IP68 |
| Insulation | CI.F |
| Cable Lenght | 15 m |
| Mechanical Seal | CERAMIC/CARBON |
| Pump Durability Pressure (Pmax) | 12 bar |

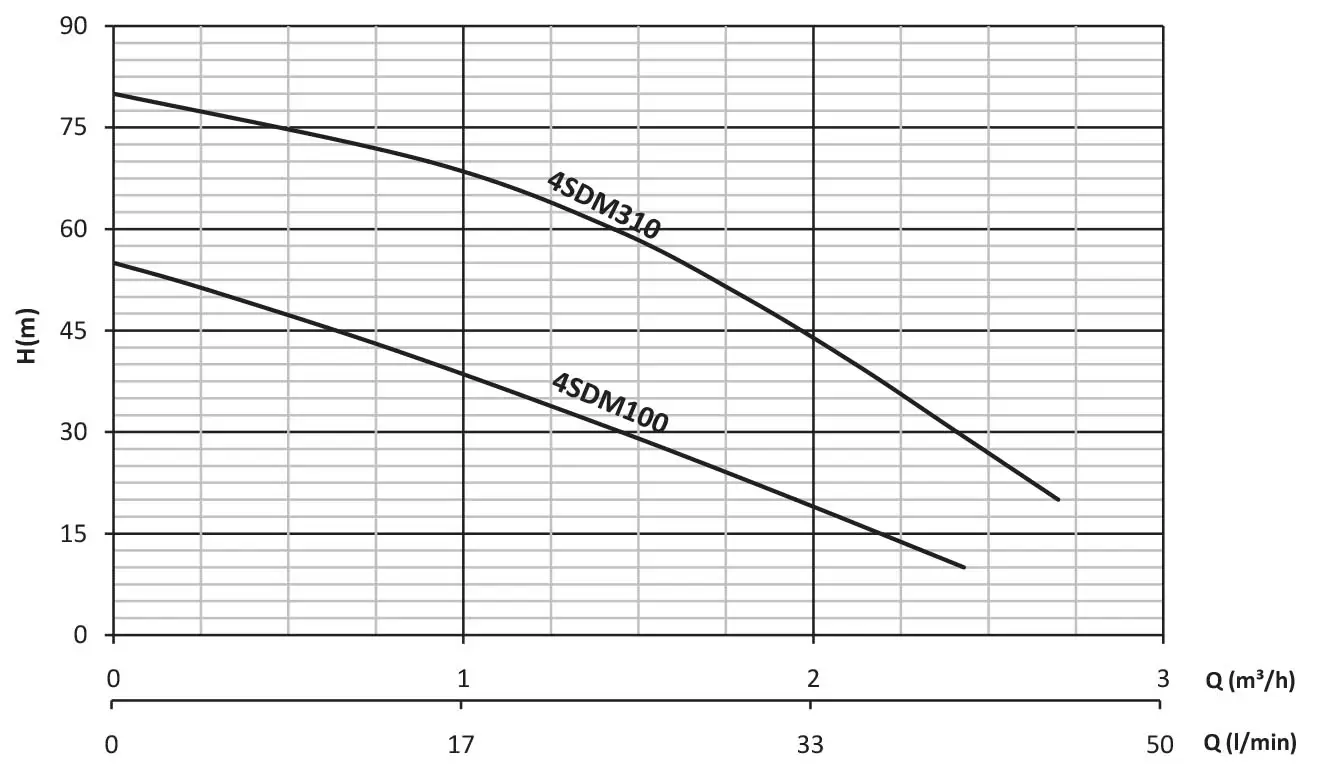

Technical Specifications
| MOTOR | PUMP | ||||||||||||||||||
| Type | KW | HP | V | Hz | A | rpm | Hm | capacitor | output | ∇ | ∅ | H | KG | m³/h | 0.5 | 1 | 1.5 | 2 | |
| 4SDM310 | 0.75 | 1 | 220 | 50 | 5.2 | 2900 | 80 | 25 | 450 | 1¼ | 27 | 97 | 836 | 16.5 | mss | 74 | 69 | 58 | 43 |

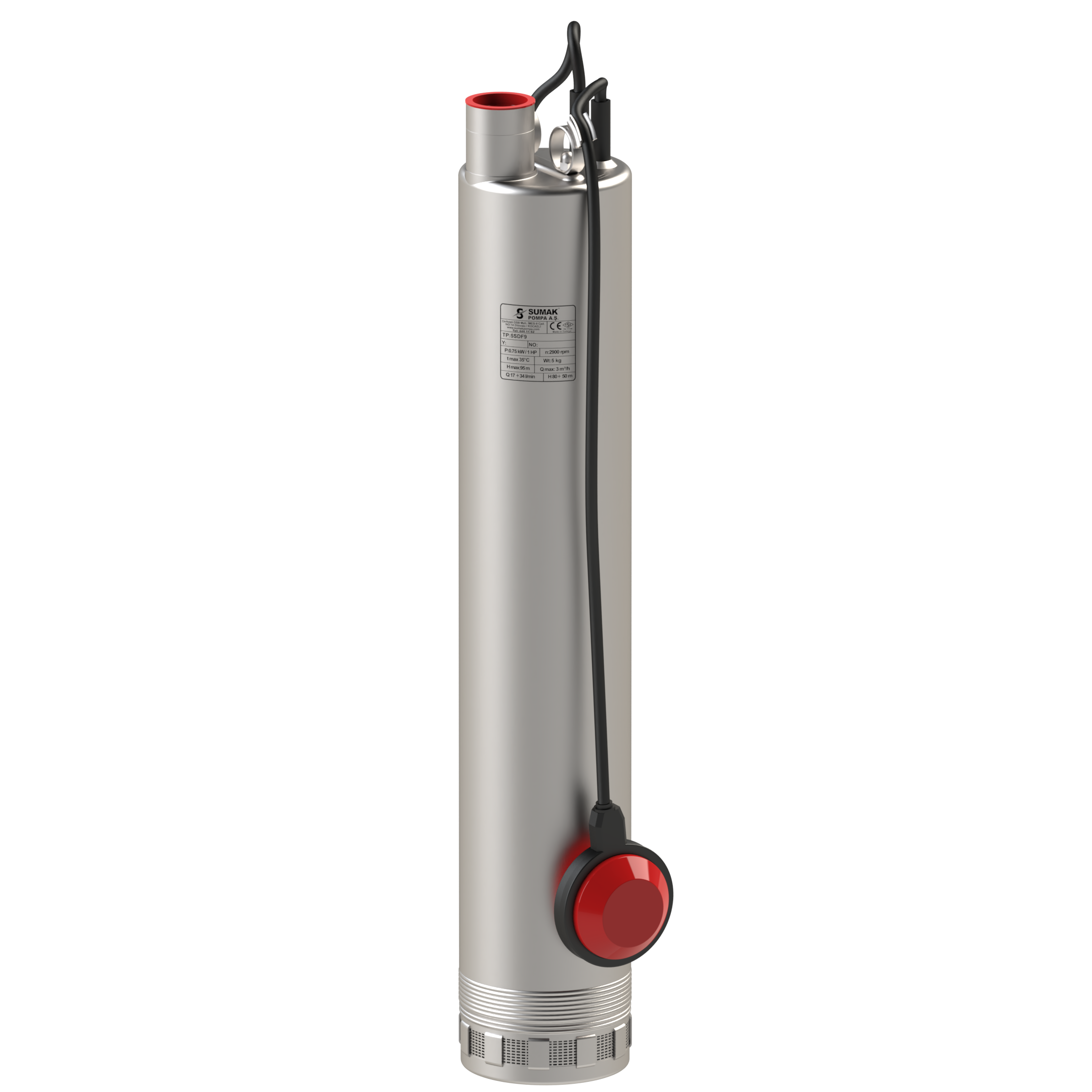

5SDF9
Definition
These pumps with stainless steel body are multistage, easily to portable, high altitude, automatically operating (with floater) pumps.
It is designed for use in clean water supply.
Having a suction filter provides an advantage against clogging risks.
It has a long term and provides quiet operation due to oil cooled engine design.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
Usage Areas
These pumps are used for the supply of pressurized clean water in residential areas and industrial facilities, in places such as 5” boreholes and wells, pool systems with fountain, lawn irrigation systems, and for booster purposes in villas and summer houses
Pump Material Characteristics
| Pump Body | AISI 304 INOX |
| Impeller | NORYL |
| Shaft | AISI 304 INOX |
| Flow Rate(max) | 4 m³/hour |
| Total Head | 72 m |
| Liquid Temperature | 0-30°C |
| Protection Class | IP68 |
| Insulation | CI.F |
| Cable Lenght | 15 m |
| Mechanical Seal | CERAMIC/CARBON |
| Pump Durability Pressure (Pmax) | 10 bar |
| Type | Control Panel | Open Impeller | Closed Impeller | Blade | Stainless | Cast Impeller | Noryl Impeller | Thermal Protection |
| 5SDF9 | √ | √ | √ | |||||
| 5SDT9 | √ | √ | √ |

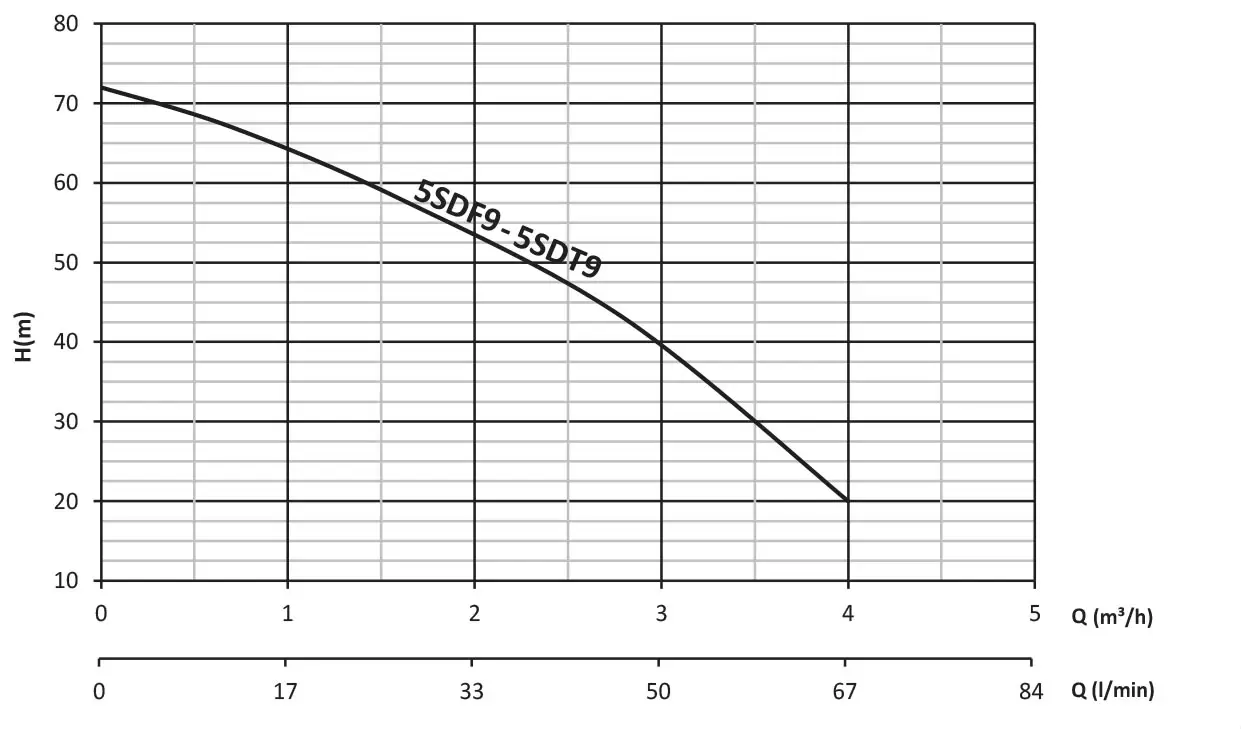

Technical Specifications
| MOTOR | PUMP | |||||||||||||||||||
| Type | KW | HP | V | Hz | A | rpm | Hm | capacitor | output | ∇ | ∅ | H | KG | m³/h | 1 | 2 | 3 | 4 | 4.5 | |
| 5SD9 | 1.1 | 1.5 | 220 | 50 | 8.3 | 2900 | 74 | 30 | 450 | 1¼ | 27 | 114 | 645 | 18 | mss
| 63 | 53 | 39 | 20 | – |
| 5SDF9 | 1.1 | 1.5 | 220 | 50 | 8.3 | 2900 | 74 | 30 | 450 | 1¼ | 27 | 114 | 645 | 18.5 | 63 | 53 | 39 | 20 | – | |
| 5SDT9 | 1.1 | 1.5 | 380 | 50 | 2.7 | 2900 | 74 | – | – | 1¼ | 27 | 114 | 645 | 20.5 | 63 | 53 | 39 | 20 | – | |
Stainless Clean Water Submersible Pumps
Stainless Clean Water Submersible Pump produced by turkish stainless submersible pump manufacturers is a kind of water pump designed to work completely in water and structurally designed to prevent water leakage into the motor body. The Chrome Submersible Pump is used when groundwater needs to be removed. Although it is in contact with water, it is one of the robust and long-lasting pump types. It is suitable for well water use in buildings, car wash stations. Inox Submersible Pump, motor is mounted adjacent to the pump body. These joint parts are insulated airtight and watertight to ensure impermeability. They can be manufactured from BRONZE (4SDM100) – POLYCARBON (4SDM310) impellers.
Stainless Clean Water Submersible Pumps manufcatured by turkish stainless submersible water pump producers are used for the supply of clean water from boreholes and deep caisson wells. Dimensions vary according to the diameter of the well, it can be designed to enter the inside diameter of the well for use in wells from 2 inches to 30 inches. Due to oilcooled engines, long-term use is ensured. It generally works in connection with the control panel, since it is not possible to operate the float in the boreholes, the dry running of the pump is generally prevented by means of the electrode. There are some criteria to consider when choosing a Deep Well Submersible pump.
Regarding the selection of stainless submersible pumps , The purpose of using the Chrome Submersible Pump, the depth of the well to be used, the type of liquid to be discharged, the maximum particle sizes in the liquid, and the flow rate of the water are the criteria that should be evaluated first. The purpose of using the Chrome Submersible Pump, the depth of the well to be used, the type of liquid to be charged, the maximum particle sizes in the liquid, and the flow rate of the water are the criteria that should be evaluated first. Stainless Submersible Pumps are manufactured to be suitable for use in many different areas with TSE certificates up to 1 HP.
The pumps are designed and produced in accordance with the TS 11146 standard by turkish stainless submersible manufacturers. In the electric motor windings, F insulation class cables are used in accordance with TS 60085:2011. User and motor safety are prioritized by using a 2-pole asynchronous motor with IP 68 protection class in accordance with TS 3033 EN 60529. The main variables of the operating conditions that should be known in the selection of a Stainless Submersible Pump are: The flow rate and the desired head values at the operating point.
Inox Submersible pump is one of the products that enables operations such as water supply and irrigation, due to its motorized system. It is used for level control of groundwater and for pressurizing clean or slightly polluted sources in heat pump applications. Submersible pumps, which operate without being exposed to external influences, provide great advantages in the area they are used. In situations where resources are insufficient, these products help to bring underground water to the surface. This product, which finds use in many different fields with its technical features, is sometimes preferred even in the agricultural sector.
